Understanding and Interpreting Box Plots: A Guide to Reading Box-and-Whisker Plots, Including Outliers

The Foundation of Data Visualization: Understanding Box Plots

Box plots, often referred to as box-and-whisker plots, are indispensable tools in descriptive statistics, offering a highly efficient graphical method to summarize the distribution of large or complex datasets. This visualization provides immediate insights into the data’s central tendency, spread, and symmetry, making it a preferred choice for initial exploratory data analysis. Unlike histograms or density plots, which detail every point’s frequency, the box plot focuses on concisely summarizing critical quantitative features, allowing for rapid and effective comparison between multiple distributions simultaneously.

The core strength of this visual representation lies in its compact display of the five-number summary of a dataset. This summary is a robust foundation that encapsulates the dataset’s characteristics, providing a standardized way to assess its range and the concentration of values around the center. Mastery of these five crucial statistics is essential for accurately interpreting the visual components of any box plot, especially when dealing with continuous data where consistency and range are key factors.

The components meticulously displayed by the box plot are universally defined, providing a standardized look at data dispersion:

• The minimum value (the smallest observation in the dataset).
• The first quartile (Q1), which clearly demarcates the 25th percentile.
• The median value (or Q2), representing the 50th percentile and the true center of the data.
• The third quartile (Q3), which indicates the 75th percentile.
• The maximum value (the largest observation in the dataset).

Deconstructing the Five-Number Summary and Interquartile Range

Each element within the five-number summary provides a specific diagnostic view of the data’s overall shape and boundaries. The minimum value and the maximum value define the absolute outer limits of the dataset, establishing the total range. However, relying solely on the range can be misleading, as these extreme points are highly sensitive to unusual observations. Therefore, the central statistics—the quartiles—are often significantly more informative for understanding the typical spread and concentration of the data.

The median value is arguably the most critical component, as it represents the central dividing point of the dataset, splitting the observations into two equal halves. Because it is position-dependent rather than value-dependent, the median is a highly stable measure of central tendency, offering superior resilience against distortion from extreme values compared to the mean. Surrounding the median are the first quartile (Q1), marking the point below which 25% of the data falls, and the third quartile (Q3), marking the point below which 75% of the data falls. Together, these three values define the core structure of the box plot, showing where the majority of observations are concentrated.

Crucially, the span between the first quartile (Q1) and the third quartile (Q3) defines the interquartile range (IQR). The IQR is a robust measure of statistical dispersion, quantifying the range covered by the middle 50% of the data. This metric is invaluable because it intentionally disregards the potentially erratic behavior of the top and bottom 25% of the data, focusing instead on the central variability. A smaller IQR signifies that the central data points are tightly clustered, indicating low variability, while a wider IQR suggests greater dispersion and variability within the core dataset, providing critical insights into homogeneity.

Visualizing the Data: Constructing the Box and Whiskers

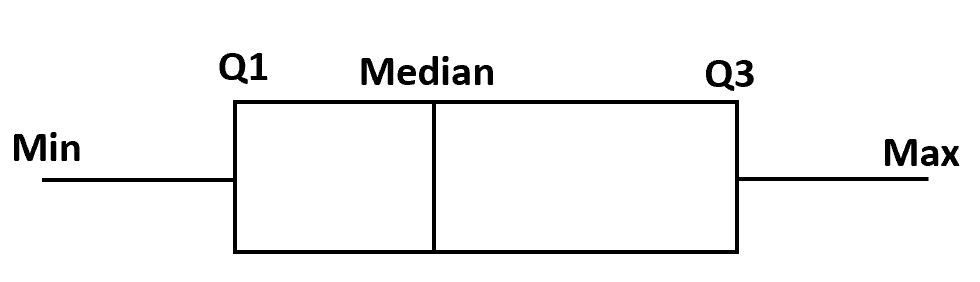

The process of constructing a box plot systematically translates the calculated five-number summary into an intuitive visual graphic, adhering to a defined set of steps. The primary structure begins with drawing the central rectangular box. This box is anchored precisely at the first quartile (Q1) and extends horizontally or vertically to the third quartile (Q3). By definition, the box visually represents the interquartile range (IQR) and thus encapsulates the middle half of the entire dataset, clearly defining its central spread.

Immediately following the establishment of the box, a defining vertical or horizontal line is drawn inside the box at the location corresponding to the median value. The positioning of this median line relative to Q1 and Q3 offers a rapid visual assessment of the dataset’s skewness. If the line is significantly offset toward Q1, the distribution is generally considered right-skewed (positively skewed); if it is closer to Q3, the distribution is likely left-skewed (negatively skewed). This visual cue helps analysts understand the symmetry of the data distribution instantly.

The final elements are the “whiskers” extending outward from the edges of the box. Traditionally, in simple box plots without identified extreme values, these whiskers stretch from Q1 down to the minimum value and from Q3 up to the maximum value. However, when outliers are present, the whiskers are adjusted to reach only the most extreme non-outlier data points. These whiskers define the overall range of the data that is considered “typical” or non-anomalous, providing a clear boundary for expected values.

Detecting Anomalies: The 1.5 IQR Rule for Identifying Outliers

One of the most valuable features of the box plot is its inherent capability to clearly highlight outliers. An outlier is formally defined as an observation that deviates dramatically from other observations in the dataset. These extreme values often warrant specific attention from analysts, as they may signal critical errors in measurement, rare events, or unusual characteristics within the population being studied, potentially skewing standard statistical measures.

To provide an objective and standardized method for identifying these anomalies, most statistical methodologies and professional statistical software rely on the industry-standard 1.5 IQR rule. This widely accepted criterion establishes clear fences beyond which data points are designated as statistical outliers. The calculation is highly effective because it uses the central spread (the IQR) as the proportional basis for determining what constitutes an “abnormal” distance from the main body of the data.

Specifically, an observation is formally classified as an outlier if it falls outside the following two calculated boundaries:

• The observation is less than the Lower Fence: Q1 – 1.5 × IQR.
• The observation is greater than the Upper Fence: Q3 + 1.5 × IQR.

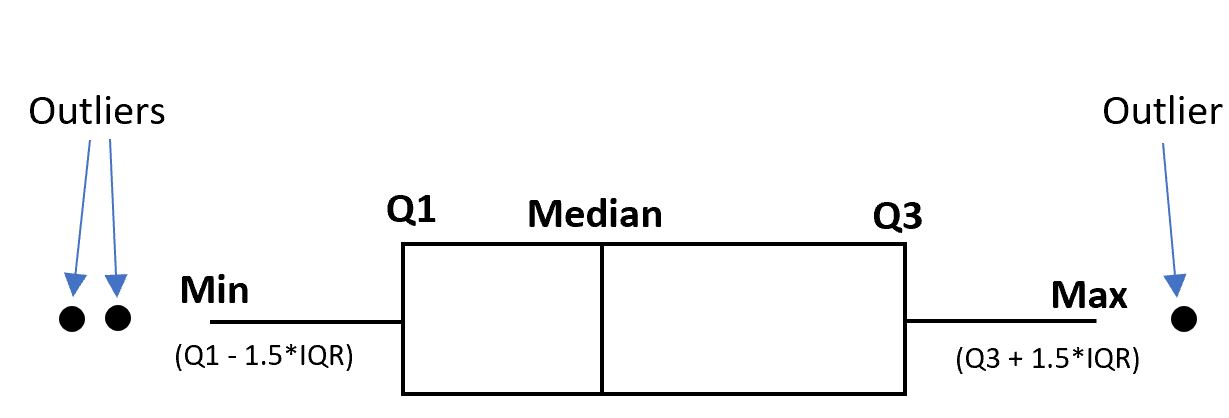

When an outlier is detected using this rule, it is visually marked on the box plot as a distinct symbol, such as a star, circle, or dot, placed clearly outside the range of the extended whiskers. This immediate visual demarcation is a key strength of the box plot. Furthermore, the presence of these extreme points necessitates an adjustment to the whiskers themselves; they are no longer permitted to extend to the absolute minimum and maximum values. Instead, the whiskers are truncated to reach the most extreme data points that are not flagged as outliers—often referred to as the adjacent values—ensuring the plot accurately reflects the spread of the non-anomalous data.

Practical Application: Analyzing Datasets with Outliers (Basketball Example)

To solidify the understanding of box plot interpretation, especially concerning outliers, we can examine a practical scenario involving the performance scores of basketball players from two separate teams. By generating comparative box plots, we can visually assess the distribution of scores for Team A and Team B, illustrating how the presence or absence of anomalies directly influences our conclusions about team consistency and performance variability.

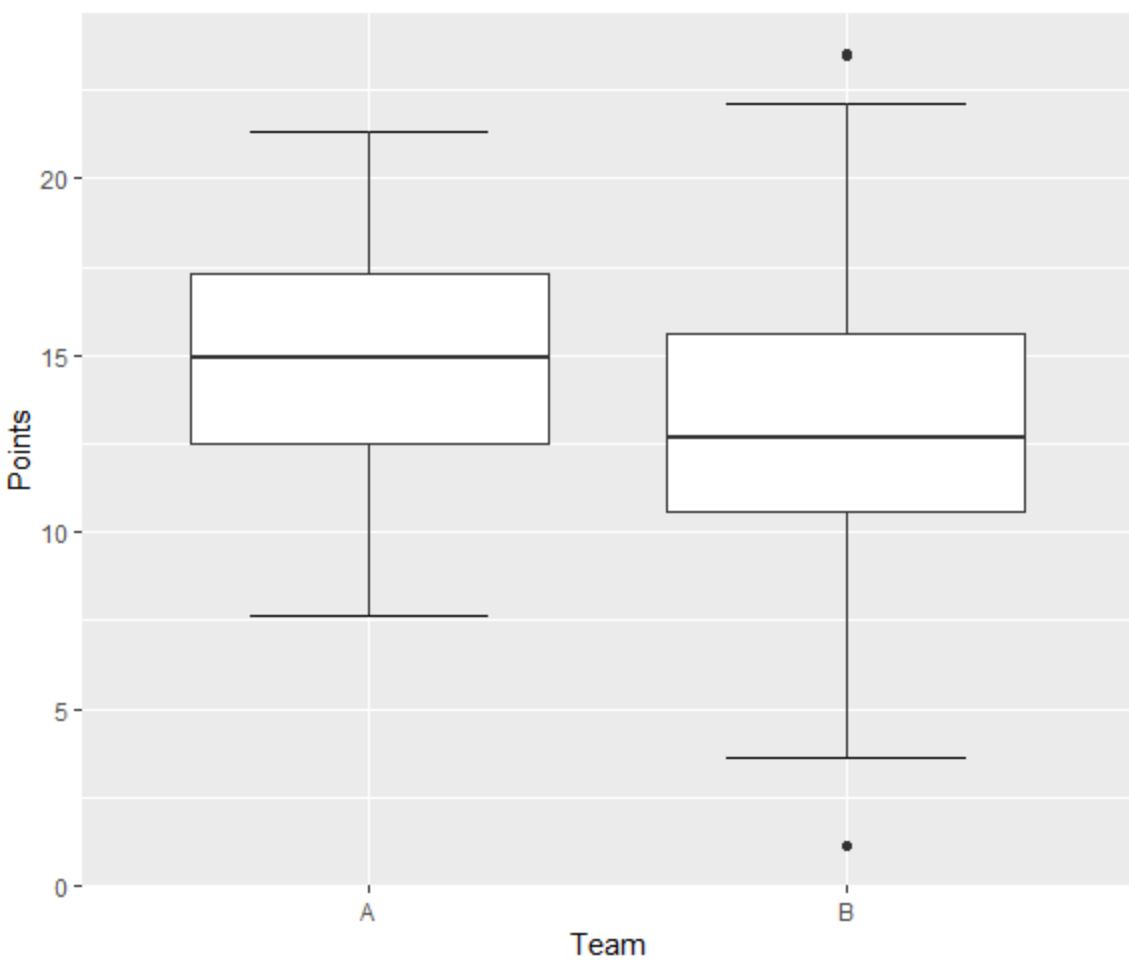

Consider the following visualization, which plots the scores achieved by players on both teams:

A critical examination of the figure reveals significant differences in performance characteristics. The box plot for Team A (on the left) displays a standard structure where the whiskers extend to the adjacent minimum and maximum scores, indicating a dataset that is relatively consistent and free of extreme outliers. All data points fall within the calculated boundaries, suggesting stability and a predictable range of scores among the players.

In stark contrast, the box plot for Team B clearly depicts multiple flagged anomalies. Distinct dots are visible both above the upper whisker and below the lower whisker. These symbols represent individual player scores that are statistically far removed from the core distribution of Team B, having exceeded the calculated 1.5 IQR boundaries. This visual evidence implies that Team B’s overall performance is highly variable, potentially relying heavily on one or two exceptionally high scorers while also contending with one or two significantly low scorers that drag down the lower boundary.

We can verify the visual identification of these outliers through the precise numerical calculation based on Team B’s five-number summary:

• Minimum value: 1.1
• First Quartile (Q1): 10.5
• Median: 12.7
• Third Quartile (Q3): 15.6
• Maximum value: 23.5

The calculation proceeds by first determining the central spread:

IQR = Q3 – Q1 = 15.6 – 10.5 = 5.1

Next, we apply the 1.5 IQR rule to define the fences:

Lower Boundary = Q1 – 1.5 × IQR = 10.5 – (1.5 × 5.1) = 10.5 – 7.65 = 2.85

Upper Boundary = Q3 + 1.5 × IQR = 15.6 + (1.5 × 5.1) = 15.6 + 7.65 = 23.25

Since the actual scores included 1.1 (which is less than 2.85) and 23.5 (which is greater than 23.25), both observations are statistically confirmed as outliers. This detailed analysis confirms why these points are plotted separately and why the whiskers were truncated to the adjacent non-outlier values within the calculated range.

Generating Box Plots Programmatically Using R and ggplot2

For analysts seeking to reproduce these visualizations or apply this technique to new datasets, the R programming language provides an industry-leading environment. Specifically, the ggplot2 package, built on the principles of the Grammar of Graphics, is the standard tool for generating high-quality statistical plots, including comparative box plots with automatic outlier detection.

The following comprehensive code snippet demonstrates the necessary steps to load the library, simulate the comparative data for Team A and Team B, and render the final visualization:

library(ggplot2)

#make this example reproducible
set.seed(2)

#create data frame
df <- data.frame(Team = factor(rep(c("A", "B"), each = 200)),
                 Points = c(rnorm(200, mean = 15, sd = 3),
                           rnorm(200, mean = 12, sd = 4)))

#create box plots
ggplot(df, aes(x = Team, y = Points)) +
  stat_boxplot(geom = "errorbar", width = 0.5) +
  geom_boxplot()

#calculate summary statistics for each team
tapply(df$Points, df$Team, summary)

The script begins with the essential practice of setting a random seed, which ensures the simulated data remains consistent across all executions, a cornerstone of reproducible research. Following this, a data frame is constructed to hold 400 simulated player scores, drawn from distinct normal distributions to accurately model the variation observed between the two teams.

The visualization is driven by the ggplot() function, where the data and the fundamental aesthetic mappings (Team on X, Points on Y) are defined. The layered approach of ggplot2 is evident here: stat_boxplot(geom = "errorbar") is utilized to precisely draw the whiskers, while geom_boxplot() renders the central box, the median line, and automatically identifies and plots any statistical outliers. Finally, the inclusion of the tapply function provides a handy numerical complement to the graphic, delivering the numerical five-number summary for each team in the console.

Conclusion: Enhancing Data Literacy Through Box Plot Mastery

Box plots are far more than simple visualizations; they are powerful diagnostic tools that accelerate exploratory data analysis. Their capacity to simultaneously convey central tendency, dispersion, skewness, and the crucial identification of anomalies in a single, concise graphic makes them indispensable across quantitative fields. By mastering the interpretation of the box, the whiskers, and the accurate demarcation of outliers using the 1.5 IQR rule, practitioners gain a critical advantage in drawing robust conclusions and making data-informed decisions.

The application of box plots, especially when used comparatively, allows analysts to quickly pinpoint where variability exists and whether specific extreme observations are driving the overall characteristics of a dataset. This skill is foundational to advanced statistical thinking and robust data literacy. To further solidify your understanding and practical proficiency in quantitative analysis and visualization, consider exploring documentation on related topics.
