Learning Guide: Removing Legends in Matplotlib Plots

The Role of Legends in Data Visualization and the Need for Removal

Matplotlib is globally recognized as the foundational plotting library within the Python ecosystem. It empowers users to generate static, animated, and interactive visualizations of exceptional quality. When crafting comprehensive graphical representations, the inclusion of a legend is often considered a standard requirement. A legend acts as a vital interpreter, mapping the visual characteristics—such as color, line type, or marker shape—to the specific data categories they represent. This clarity is essential, particularly when dealing with complex datasets involving multiple series or variables that must be easily distinguished by the viewer.

However, effective data visualization is not merely about including every possible element; it is fundamentally about achieving maximum informational density with minimal clutter. There are several common scenarios where a legend, despite its purpose, actually hinders the visual communication process. These situations usually involve redundancy. For instance, if a plot displays only one data series, or if the labels for categories are already incorporated directly onto the axes or as annotations near the data points, the legend box becomes superfluous. Its presence consumes valuable screen real estate and distracts the viewer from the core data patterns, diminishing the overall impact of the visualization.

Optimizing a graphic often necessitates removing elements that contribute negatively to readability. The decision to eliminate the legend is a sophisticated choice made by experienced practitioners striving for streamlined, professional output. This comprehensive guide details the precise, canonical method within Matplotlib to programmatically remove the legend, ensuring a clean and focused presentation. We will explore the specific function arguments required, demonstrating their application across common plot types, including stacked bar charts and pie charts, thereby providing a versatile solution for enhancing your graphical reports.

Mastering the Core Syntax for Discreet Legend Suppression

The mechanism for legend removal in Matplotlib is surprisingly elegant, utilizing the primary plotting interface function, plt.legend(), from the pyplot module. Instead of relying on complex configuration settings or deleting the element entirely, we simply instruct the function to draw an empty legend box without a visible boundary. This simple yet highly effective syntax ensures that no trace of the legend remains on the generated figure, allowing for a truly minimal output.

The standard command employed to achieve this result is presented below. It is essential to understand that simply omitting the call to plt.legend() after a plotting command might not always work, especially if the underlying plotting function (e.g., pandas integration or certain higher-level APIs) automatically registers labels and attempts to generate a default legend. Therefore, explicitly calling this function with specific parameters is the most robust solution for complete and reliable suppression across various plotting contexts.

import matplotlib.pyplot as plt

plt.legend('', frameon=False)

This short line of code relies on two critical arguments working in tandem. First, passing an empty string, '', as the primary argument signals to the Matplotlib engine that there are absolutely no labels or handles to display within the legend area. If labels were provided during the plotting call (e.g., plt.plot(..., label='Series A')), Matplotlib would typically display them. By enforcing the empty string here, we effectively override any registered labels, preventing any text from being rendered within the legend box.

The second, equally vital argument is frameon=False. By default, visualizations in Matplotlib are designed to include a subtle rectangular boundary around the legend to visually separate it from the plot area. Setting the frameon parameter to False disables this feature entirely. The combination of an empty label set and the removal of the frame results in an invisible, zero-footprint legend. This method ensures maximum compatibility and reliability across different Matplotlib versions and plotting functions, making it the definitive way to remove the component without leaving residual elements.

Case Study 1: Removing the Legend from a Stacked Bar Chart

To demonstrate the practical application of this syntax, we will utilize the popular pandas library for data handling, followed by visualization using Matplotlib. Our scenario involves analyzing hypothetical basketball statistics, where we track points scored across different teams and player positions. This requires structuring the raw data into a DataFrame before we can generate a meaningful stacked bar chart.

We begin by importing the necessary libraries and constructing the sample dataset, which includes columns for ‘team’, ‘position’ (Guard ‘G’ or Forward ‘F’), and ‘points’ scored. This initial preparation step is crucial for ensuring the data is in the correct format for subsequent aggregation and plotting operations required by the stacked chart type, which visually compares categorical contributions within larger groups.

import pandas as pd

#create DataFrame
df = pd.DataFrame({'team': ['A', 'A', 'A', 'A', 'B', 'B', 'B', 'B'],
                   'position': ['G', 'G', 'F', 'F', 'B', 'F', 'F', 'F'],
                   'points': [5, 7, 7, 9, 12, 9, 9, 4]})

#view DataFrame
print(df)

  team position  points
0    A        G       5
1    A        G       7
2    A        F       7
3    A        F       9
4    B        G      12
5    B        F       9
6    B        F       9
7    B        F       4

When we generate the stacked bar chart using the chained pandas plotting method, which leverages Matplotlib internally, the system automatically detects the categorical data used for stacking (the ‘position’ column) and creates a default legend, typically situated in the upper right corner of the figure. While this key correctly identifies the segments as ‘G’ and ‘F’, its automatic placement or the mere presence of the legend might interfere with the overall visual composition, especially when preparing figures for publication or integration into streamlined dashboards.

import matplotlib.pyplot as plt

#create stacked bar chart
df.groupby(['team', 'position']).size().unstack().plot(kind='bar', stacked=True)

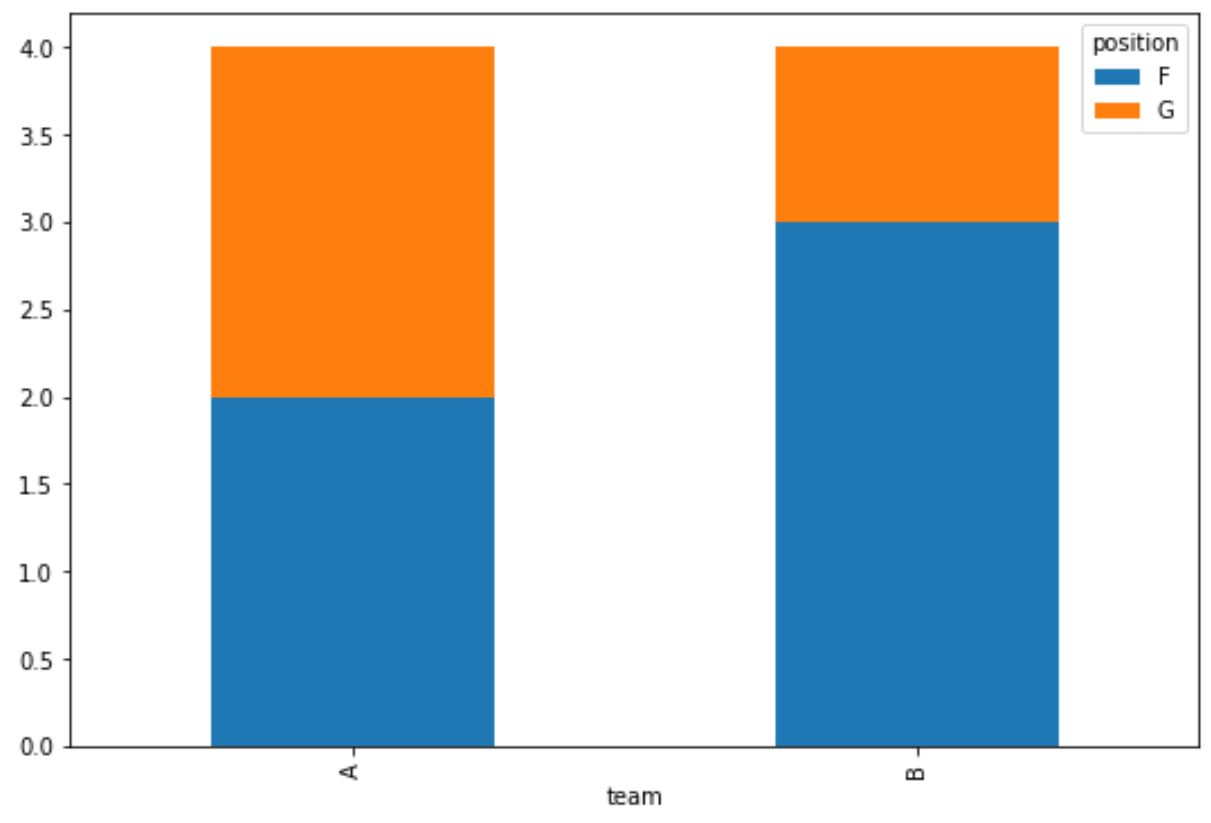

The image above clearly shows the default legend box defining ‘G’ and ‘F’. To eliminate this visual element, we simply insert the core legend suppression command immediately after the plotting function. This ensures that when the plot is rendered, the legend is explicitly told to draw empty and frameless, overriding any automatic generation attempts. The resulting code, shown below, is cleaner and immediately achieves the desired minimalist output, which is often preferred for high-impact presentations where context is already established.

import matplotlib.pyplot as plt

#create stacked bar chart
df.groupby(['team', 'position']).size().unstack().plot(kind='bar', stacked=True)

#remove legend
plt.legend('', frameon=False)

Comparing the two outputs reveals the immediate benefit of this technique. The second figure, lacking the stacked bar chart legend, focuses the viewer’s attention exclusively on the structure of the data—the comparison between Team A and Team B and the composition of their positions—without the distraction of the redundant key. This confirms the efficacy of plt.legend('', frameon=False) as the definitive method for legend suppression.

Case Study 2: Consistent Removal in Pie Charts and Other Visualizations

A hallmark of good programming practice is the use of consistent APIs, and the legend removal method excels in this regard. The plt.legend('', frameon=False) command is universally applicable across all standard pyplot visualizations, ensuring that the same simple logic can be applied whether you are plotting line charts, scatter plots, or pie charts. This versatility makes the technique highly valuable for anyone working with diverse data visualization needs, maintaining a consistent approach to visual editing.

Consider now transforming our previous data analysis to calculate the total contribution of points by each team and represent this distribution using a pie chart. Pie charts often present unique challenges for legends because the small size of the figure or the complexity of labels can lead to overlap between the legend box and the chart itself. In these cases, it is usually better to rely on direct annotation of percentages or categories on the slices rather than an external key.

The following code aggregates the points by team within the pandas DataFrame and then executes the plotting command. Critically, we append the same legend removal syntax, demonstrating its seamless integration regardless of the plot function used or the data structure being visualized. This highlights the power of the technique in providing cross-plot consistency.

import matplotlib.pyplot as plt

#create pie chart that shows total points scored by team
df.groupby(['team']).sum().plot(kind='pie', y='points')

#remove legend
plt.legend('', frameon=False)

As demonstrated by the output, applying the plt.legend('', frameon=False) command successfully removes the legend from the pie chart. This flexibility ensures that you can maintain a consistent visual style and remove clutter across all your Matplotlib visualizations, irrespective of their specific type, guaranteeing a clean and professional appearance every time.

Advanced Considerations and Alternatives to Complete Removal

While the ability to remove a legend is powerful for decluttering visuals, it is crucial to employ this technique judiciously. The objective of any data visualization is clear communication, and removing the key must never compromise the reader’s ability to interpret the data accurately. Before resorting to total removal, data scientists should evaluate whether alternative strategies might better serve the informational needs of the audience, thus ensuring the chart remains fully understandable.

One primary alternative is **repositioning** the legend. Matplotlib offers extensive control over legend placement using the loc parameter (e.g., loc='best', loc='upper right', or passing specific coordinates). Moving the legend outside the main plotting area, perhaps below the X-axis or to the right of the figure, can often resolve clutter issues without sacrificing the necessary explanatory context. Furthermore, adjusting the font size or reducing the complexity of the legend entries themselves can make a retained legend far less disruptive and more integrated with the overall design.

Another powerful technique is **direct annotation**. Instead of relying on a separate legend box, you can use Matplotlib’s annotation functions (such as plt.text() or plt.annotate()) to place labels directly next to the corresponding data points or series. This approach links the visual element and its description immediately, reducing cognitive load for the viewer. This is especially effective in smaller plots or when only a few categories are present, providing clarity exactly where it is needed most.

The decision matrix should always favor clarity. If the categories are complex (e.g., long names or many entries), a dedicated, well-placed legend is usually necessary. If the categories are binary (like ‘G’ and ‘F’) and easily inferable or if the plot is simple, then the complete removal via plt.legend('', frameon=False) is the optimal choice for achieving a sleek, professional aesthetic. Ultimately, the goal is to create a self-contained graphic that communicates its insights instantly and unambiguously.

Conclusion: Mastering Visual Clarity in Matplotlib

Effectively managing plot elements like legends is a fundamental skill in creating compelling data visualizations. This guide has demonstrated a straightforward and universally applicable method to remove a legend from any Matplotlib plot using the plt.legend('', frameon=False) syntax. By understanding both the mechanism and the appropriate scenarios for its use, you can produce cleaner, more focused, and ultimately more effective visual representations of your data.

This powerful, two-pronged command ensures that the legend area is both empty of labels and invisible due to the removal of the frame. By utilizing this syntax, developers working within the Python environment can ensure that their pyplot visualizations are polished, focused, and optimized for maximum impact and readability.
