Learning to Remove Date Hierarchies in Power BI: A Step-by-Step Guide

The Function and Challenge of Power BI’s Date Hierarchy

When analyzing time-series data, effective reporting often requires the ability to segment metrics across various temporal granularities—such as breaking down sales figures by year, quarter, month, or day. Microsoft’s robust business intelligence platform, Power BI, is designed to facilitate this analysis by automatically generating a specialized time structure. This feature activates whenever the system recognizes a column with a date or datetime data type, creating what is formally known as the Date Hierarchy.

While this automatic hierarchy offers significant convenience for rapid initial exploration and high-level reporting—allowing users to quickly drill down into time components—it frequently becomes a major impediment to accurate or specialized analysis. Problems arise particularly when developers utilize a custom date table for complex calculations, or when the visualization must strictly display the raw, unaggregated date values rather than segmented components. The default behavior of splitting the date field into its constituent parts (Year, Quarter, Month, Day) is a common source of confusion for users expecting a continuous timeline visualization.

Fortunately, developers are not locked into this default behavior. Power BI provides a simple and critical mechanism to override this automated process, allowing the underlying date column to be treated as a singular, continuous field. For anyone aiming to construct precise, robust, and optimized data models, understanding exactly how and when to disable the automatic Date Hierarchy is an indispensable skill. The following guide provides the precise, step-by-step instructions necessary to remove this hierarchy from specific visuals, ensuring your reports accurately reflect the intended granularity of your source data.

Establishing the Environment and Initial Data Setup

To clearly illustrate the procedure for removing the automatic hierarchy, we will utilize a straightforward, hypothetical dataset. Our example assumes a table named my_data has been successfully imported into the Power BI Desktop environment. This table is minimal, containing just two essential fields: Date, recording the transaction date, and Sales, representing the corresponding revenue total. Crucially, the presence of the Date field, correctly identified as a date type by the system, is what triggers the automatic creation of the internal Date Hierarchy.

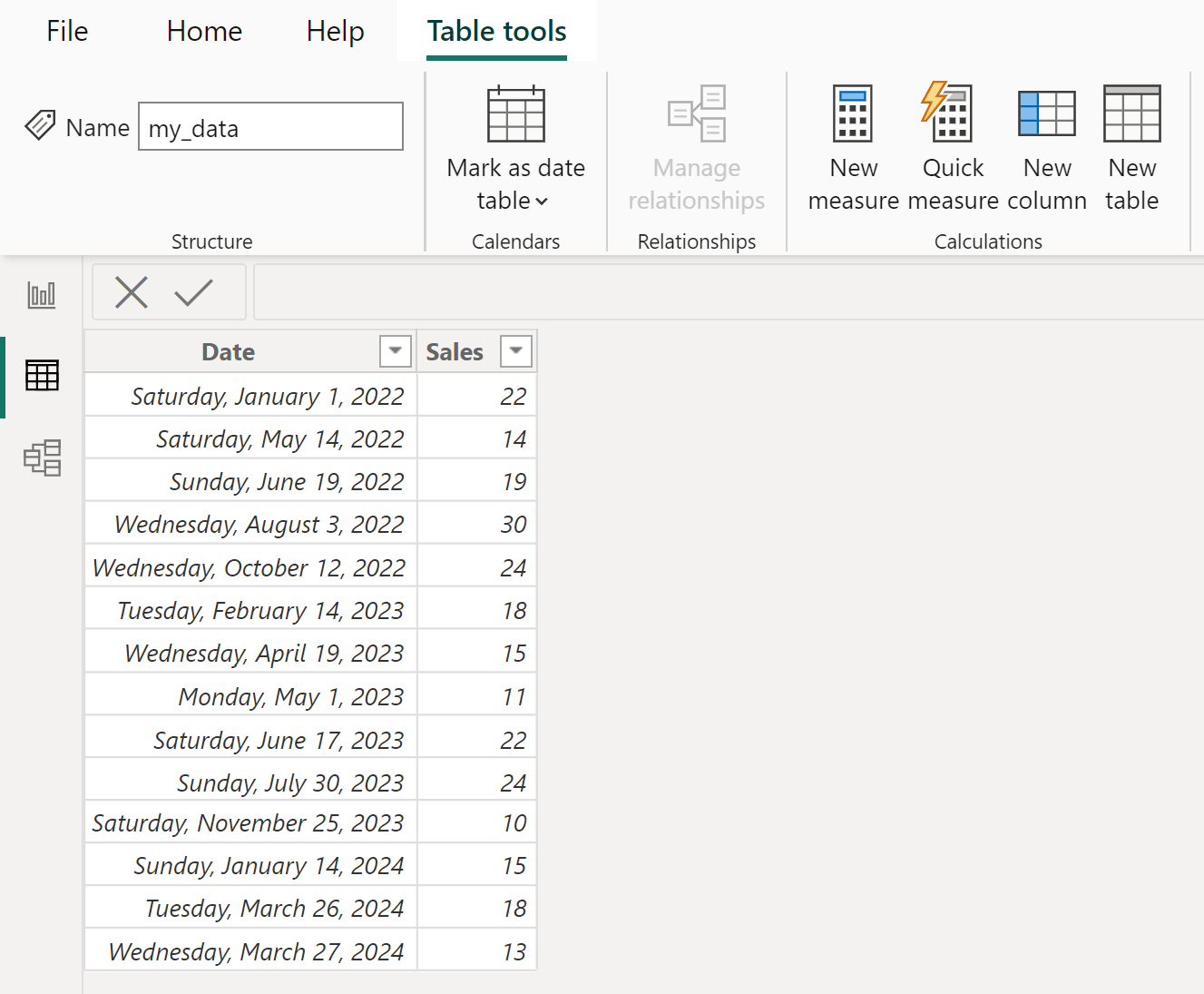

The structure of our sample data, my_data, is displayed below. It is important to note that the date column contains specific, non-aggregated dates that we ultimately intend to visualize directly on a continuous axis, not as separate hierarchical levels.

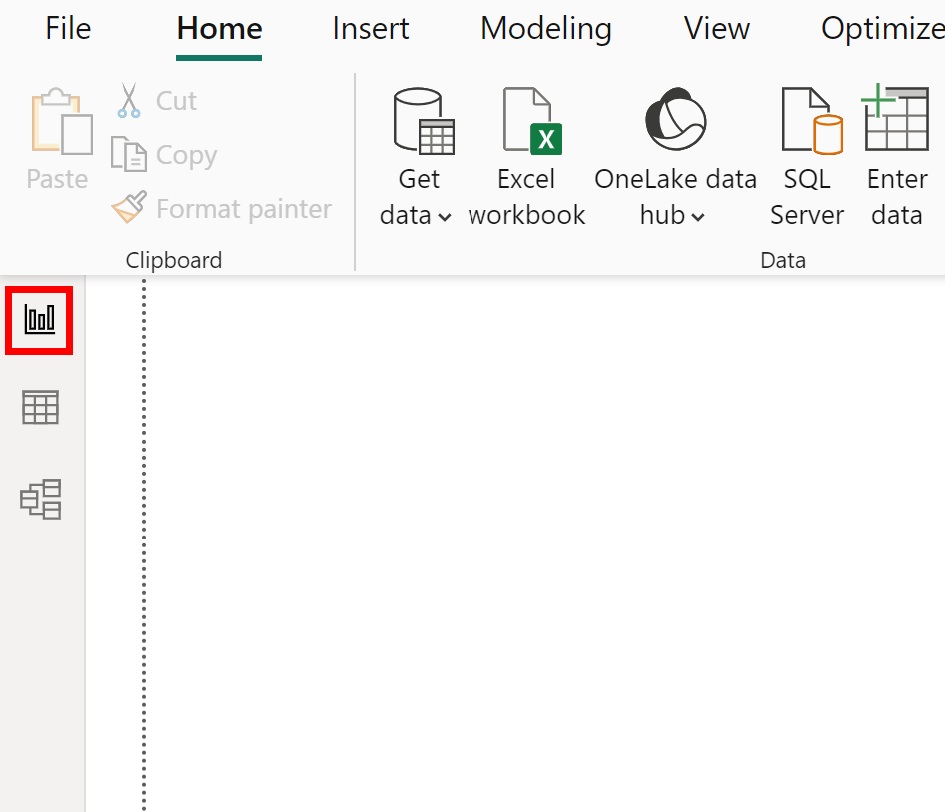

Our initial step in report creation requires navigating to the appropriate interface within Power BI Desktop. This process begins by selecting the Report view, which serves as the primary workspace where visualizations are built, customized, and arranged. This view is fundamental for constructing the visual layer that communicates insights derived from the underlying Data Model. To access this workspace, locate and click the specific icon typically situated on the left navigation pane of the application interface:

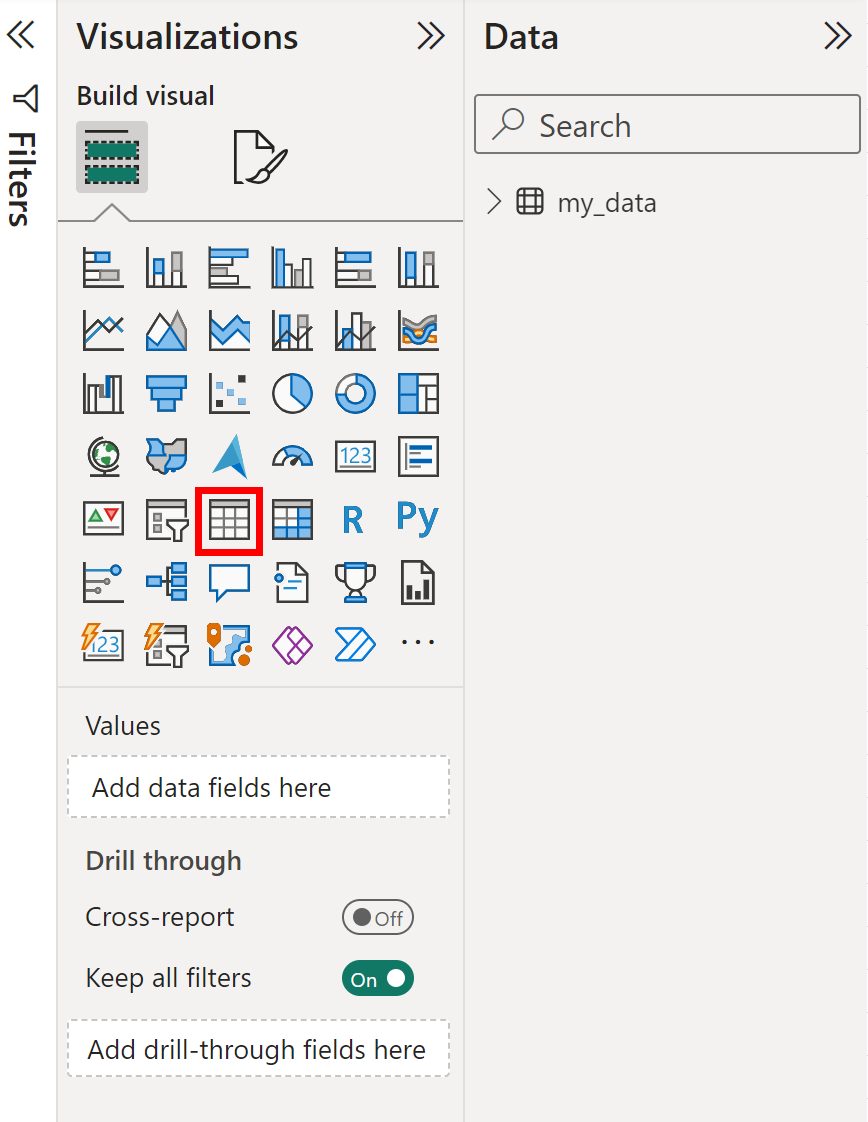

Once inside the Report view, we must select the visualization type best suited for demonstrating the hierarchy behavior. The standard Table visual is the most suitable choice for displaying raw, tabulated data and clearly observing how the hierarchy fragments the date field. This visual can be found under the Visualizations pane, which is typically positioned on the right side of the screen. Clicking the Table icon initializes an empty container on the report canvas, ready to be populated with fields from our my_data table.

Witnessing the Default: Automatic Hierarchy Activation

With the empty table visual selected on the canvas, the next critical step involves feeding it the data fields necessary for our analysis. We proceed by dragging both the Date and Sales fields from the Fields pane into the Columns well of the visual’s configuration settings. This simple action immediately instructs Power BI to display these variables within the visual container.

The moment the Date field is placed into the visual, the automatic hierarchy feature instantly activates. The intended result—a single column showing exact dates (e.g., 1/1/2023)—is suppressed. Instead, the visual is populated with four separate, related columns: Year, Quarter, Month, and Day. While this default breakdown is helpful for macro-level aggregation, it actively prevents the clear visualization of daily trends or continuous time series, necessitating a manual adjustment to the field settings.

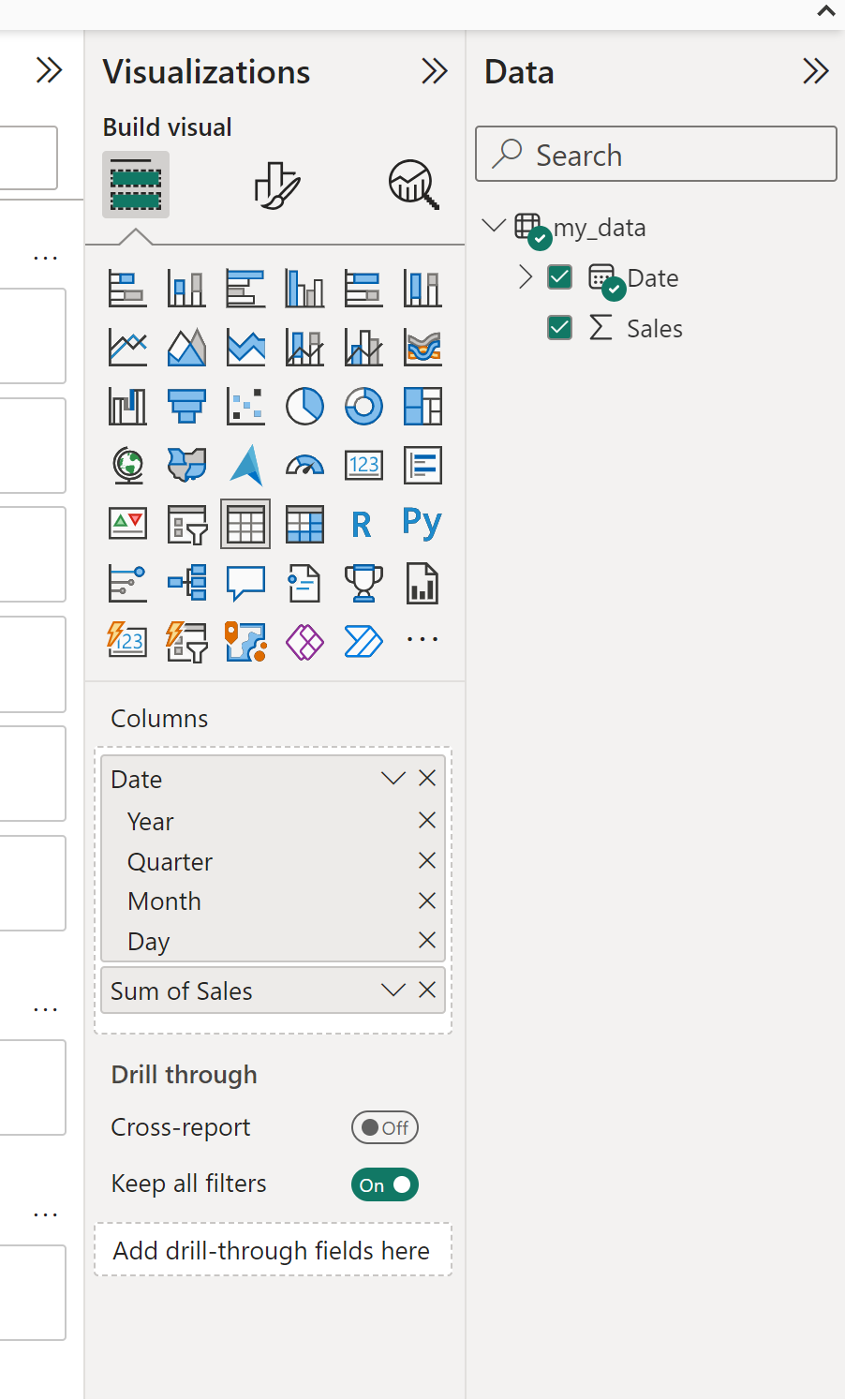

The visual configuration pane, immediately after dragging the fields, clearly reflects this hierarchical application, confirming that the Date Hierarchy has been applied to the column well:

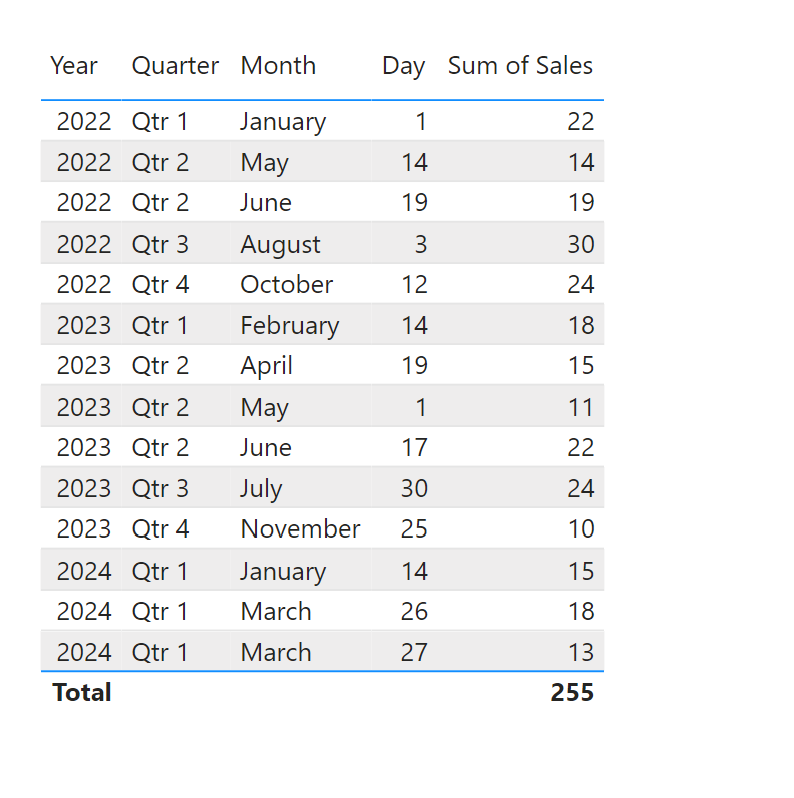

Consequently, the output table generated on the report canvas confirms this hierarchical breakdown. The raw date information is now obscured, replaced entirely by the aggregated components of the date field. This segmentation is the exact behavior that users must override when they require the specific, raw date value for accurate plotting or detailed reporting purposes. Observing this initial, fragmented result is the key prerequisite for understanding the necessity of the removal procedure that follows:

Notice specifically that the original Date column has been fragmented into its hierarchical levels—Year, Quarter, Month, and Day columns. This immediate fragmentation represents the precise symptom we are targeting for correction, ensuring that the visual ultimately displays the full date timestamp as intended by the user.

The Visual-Level Override: Step-by-Step Hierarchy Removal

The procedure for disabling the Date Hierarchy on a specific visual is both quick and highly intuitive, focusing entirely on a modification within the visual’s configuration pane. This method is advantageous because it does not require altering the underlying Data Model settings, meaning the automatic hierarchy remains available for any other visuals that might benefit from it.

Follow these precise steps to revert the date field back to its raw, unaggregated state within the selected visual:

1. Ensure the target visual (in our demonstration, the Table visual) is actively selected on the report canvas.

2. Navigate to the Visualizations pane on the right side of the screen, specifically locating the configuration wells, or Fields/Columns area.

3. Locate the Date field entry under the Columns heading. Because the hierarchy is active, this field will currently be displayed as Date Hierarchy, often accompanied by a small icon indicating its composite nature.

4. Click the dropdown arrow located immediately next to the name of the Date Hierarchy field. This action opens a crucial context menu displaying two main options for how the date should be treated: Date Hierarchy (the currently selected, aggregated state) and the raw field name, Date (the desired continuous state).

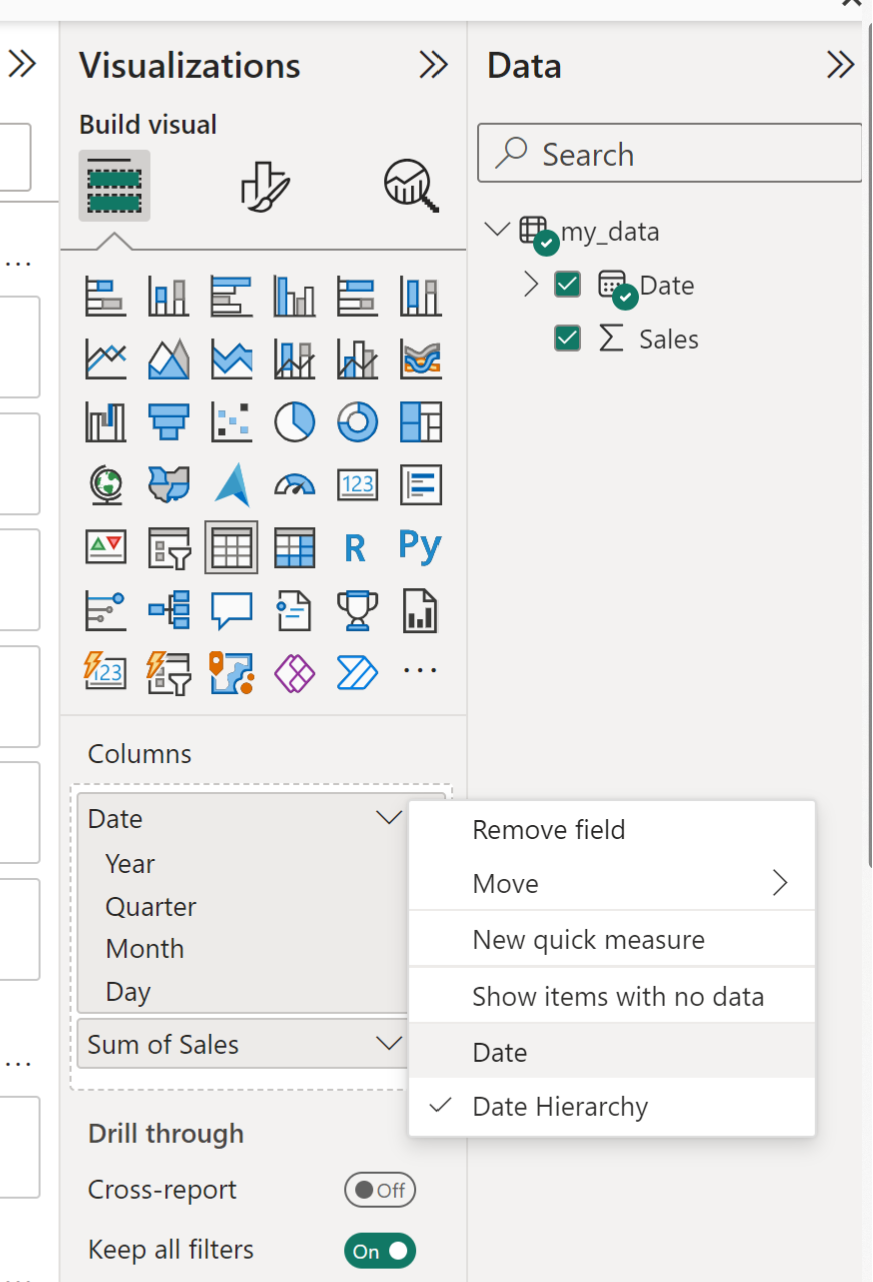

   This critical selection step is illustrated below, showing the menu interface required to change the field treatment:



5. Select the option corresponding to the raw field name, Date. By selecting this option, you are specifically instructing Power BI to treat the field as a continuous date value rather than segmenting it into its Year, Quarter, Month, and Day components.

Upon successfully executing step five, the visual will update instantaneously. All the separate Year, Quarter, Month, and Day columns will be collapsed and replaced by a single column labeled Date, containing the precise dates sourced from the my_data table. This modification is essential, as it ensures that any calculations and visualizations based on continuous time series data can now function correctly without interference from implicit aggregation.

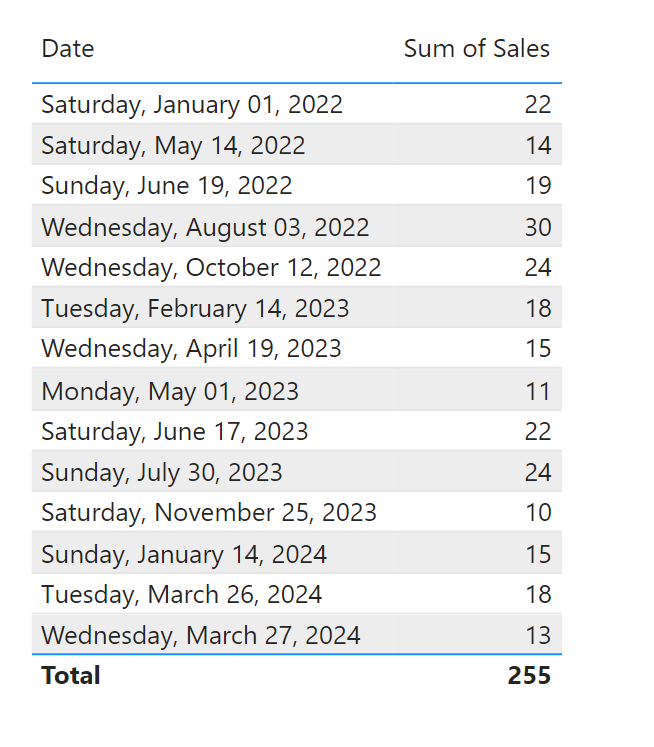

The resulting table, confirming the successful removal of the hierarchy and the display of raw date values, is shown here:

Global Control: Disabling Auto Date/Time Defaults

While the visual-level override is effective for immediate fixes, advanced developers and those managing highly optimized or complex Data Models often adopt a strategy of disabling the automatic Date Hierarchy feature entirely at the application level. This global change is considered a best practice because it prevents Power BI from creating these hidden, implicit date tables and hierarchies for every new date column imported. This significantly reduces the size and complexity of the model, which is paramount when a custom, explicit Date Table is utilized.

The automatic date/time feature can be managed at two distinct scopes: settings specific to the current file, or global settings that apply to all future projects.

Disabling for the Current File:

To disable this feature specifically for the file you are currently working on, follow these instructions:

• Go to the File menu in Power BI Desktop.

• Select Options and settings, then click Options.

• In the resulting dialog box, navigate to the settings pane under Current File.

• Select Data Load from the options.

• Under the Time intelligence section, uncheck the box labeled Auto date/time for new files.

Applying this change requires refreshing the data or restarting the file for it to take full effect, ensuring that no new automatic hierarchies are generated from that point forward within this specific report environment.

Disabling Globally for All New Files:

To establish a permanent preference that prevents the automatic creation of date hierarchies in all future projects, the application’s global options must be adjusted:

• Access the Options dialog box again (File -> Options and settings -> Options).

• Navigate to the settings pane under Global.

• Select Data Load.

• Under Time intelligence, uncheck the box labeled Auto date/time.

This global setting change is highly recommended when adhering to data modeling best practices. It facilitates the implementation of a dedicated Date Table, which offers superior control, flexibility, and performance for calendar-based analysis compared to the limitations inherent in Power BI’s default automatic hierarchies.

Analytical Impact: Why Raw Dates are Essential for Advanced DAX

The choice between utilizing the hierarchical date structure and the raw date field carries substantial analytical implications, fundamentally altering how data is aggregated and visualized. When the Date Hierarchy is active, any calculated measure (such as Sales) is automatically aggregated at the highest level selected by the user, often the Year or Quarter. If a line chart is used, this may result in only a handful of data points spread across the time axis, making detailed trend analysis at a finer granularity—like daily or weekly—impossible without cumbersome manual drilling.

Conversely, by selecting the raw Date field, the developer instructs Power BI to treat every unique date value as its own distinct category or independent point on an axis. For continuous visualization types, such as line charts or scatter plots, this yields a truly continuous time axis. This allows for the precise observation of daily, weekly, or monthly fluctuations without the inherent limitations imposed by the drill-down mechanism.

Furthermore, removing the auto hierarchy is a mandatory prerequisite for effectively using sophisticated time intelligence functions within Power BI’s powerful DAX language. Functions designed for calculating metrics like year-over-year growth, moving averages, or complex parallel period comparisons rely heavily on a proper, continuous date column, which is typically linked to a custom date table. The automatic hierarchy, being a set of implicit and calculated columns, often interferes with the necessary context transitions required by these advanced analytical functions. Ultimately, the decision rests on the required precision: the automatic hierarchy suffices for quick summaries, but professional-grade time series analysis demands the raw date field, ideally supported by a robust and explicit Data Model.

Conclusion and Resources for Further Mastery

Mastering the behavior and management of date fields is a cornerstone skill for achieving proficiency in Power BI development. While the automatic Date Hierarchy provides an undeniable immediate benefit for exploratory data analysis, scenarios demanding precise control over aggregation levels or the implementation of advanced time intelligence techniques necessitate its removal. By understanding both the quick visual-level override and the strategic global setting adjustment, developers can ensure their reports are both highly accurate and performance-optimized.

The simple action of clicking the dropdown menu and selecting the raw Date field instead of the Date Hierarchy is the most common and effective solution for immediate visual correction, transitioning the visual display from segmented components back to a continuous and usable date stream.

We highly recommend exploring additional resources to deepen your understanding of Data Model management and optimization within Power BI. The following tutorials explain how to perform other common tasks related to modeling and visualization:
