Remove Gridlines in ggplot2 (With Examples)

Introductory Overview: Why Gridlines Matter and the ggplot2 Solution

Effective data visualization is predicated on clarity. When communicating complex datasets, minimizing visual noise is paramount to ensure the audience focuses on the data patterns rather than distracting background elements. In the R programming environment, the ggplot2 package stands as the definitive tool for generating sophisticated statistical graphics, utilizing the Grammar of Graphics framework. While ggplot2’s default settings are highly functional, they typically include background gridlines—a feature some users prefer to remove when striving for a pure, minimalist aesthetic in their final outputs.

The presence of default gridlines, while beneficial for precise value estimation during exploratory data analysis, can often detract from the overall rhetorical impact of a final, publication-ready figure. Therefore, mastering the techniques required to selectively remove or manage these background elements is a crucial skill for any professional data scientist or analyst working within the R ecosystem. This article details the two primary, highly effective mechanisms provided by ggplot2 for comprehensive gridline management, transitioning from the quickest aesthetic fix to the most granular level of control.

Fortunately, ggplot2 offers robust and streamlined solutions for achieving a clean canvas. The simplest method involves applying a predefined theme, specifically theme_classic(), which instantly strips away the grey panel background and grid structures with a single command. For scenarios demanding finer precision, the comprehensive theme() function allows developers to target and modify every single plot component individually, providing unparalleled customization flexibility to meet exacting standards.

Understanding when to employ the simple predefined theme versus the powerful customization function is key to efficient and professional plotting. We will detail both approaches, illustrating how to use theme_classic() for rapid, simple results and how to leverage theme() to achieve highly tailored visualizations, such as removing only minor gridlines or retaining a specific rectangular plot border.

ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  theme_classic()

Alternatively, if your visualization requirements necessitate more nuanced control—perhaps maintaining a specific background color or retaining only major grid references—you must utilize the powerful theme() function. This method allows you to specifically target and eliminate individual components like major or minor gridlines while leaving all other plot elements intact, providing maximum flexibility.

ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  theme_bw() +
  theme(axis.line = element_line(color='black'),
    plot.background = element_blank(),
    panel.grid.major = element_blank(),
    panel.grid.minor = element_blank(),
    panel.border = element_blank())

Method 1: The Efficiency of theme_classic() for Clean Plots

For the majority of standard visualizations, including scatter plots, line graphs, and correlation charts, the desired outcome is typically the complete removal of all distracting background elements. The ggplot2 package offers several predefined themes designed for various aesthetic outcomes, but theme_classic() is specifically engineered to provide the cleanest, most traditional output by default.

Applying theme_classic() is the fastest and most highly recommended method when speed and aesthetic simplicity are the primary objectives. When this function is called, it automatically executes a specific set of visual adjustments: the panel background is rendered blank (transparent or white), all major and minor grid structures are eliminated, and, critically, clean lines are drawn around the X and Y axes to frame the plot area. This results in a figure that immediately appears clean, professional, and entirely focused on the data points and their corresponding scales.

This method drastically simplifies the process of creating minimalist graphics, bypassing the need to write multiple lines of complex theme customization code. Instead of manually specifying that panel.grid.major, panel.grid.minor, and panel.background should all be set to element_blank(), theme_classic() handles these essential adjustments internally with a single, highly concise command. This efficiency makes it the preferred starting point for creating publication-ready graphics that require a traditional, uncluttered appearance.

Example 1: Quick Removal via theme_classic()

This code block provides a practical demonstration of defining a simple dataset in R and then generating a scatter plot using the streamlined theme_classic() function to instantly achieve a gridline-free appearance. This setup ensures we have a reproducible dataset and the necessary libraries loaded before attempting the visualization.

We begin by loading the essential ggplot2 package, which is required for all plotting operations. Following this, we define a basic data.frame named df, which contains the coordinate pairs necessary for the subsequent scatter plot. The plot construction follows the standard Grammar of Graphics syntax: defining the data, mapping aesthetics, specifying the geometric object, and finally, applying the desired theme modification.

Observe how the simple addition of + theme_classic() completely transforms the default ggplot2 output into a clean visualization, free from the standard gray background and internal grid structures. This demonstrates the immediate and powerful effect of using predefined themes for rapid aesthetic changes. The resulting visualization clearly shows the successful removal of all background elements, leaving a clean canvas defined only by the X and Y axes and the plotted observations.

library(ggplot2)

#define data
df <- data.frame(x=c(1, 2, 3, 4, 5, 6),
                 y=c(6, 8, 14, 19, 29, 31))

#create ggplot with no gridlines
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  theme_classic()

This is the output of the code above:

Method 2: Achieving Precision with the theme() Function

While theme_classic() is efficient for a complete visual reset, advanced data visualization often requires more nuanced control than a pre-packaged theme can provide. This is where the powerful theme() function becomes absolutely essential. The theme() function grants the user the ability to manually override and customize virtually every single graphical element within the plot area, providing unmatched control over the final aesthetic.

The standard strategy when leveraging theme() for gridline manipulation is to first apply a baseline theme, such as theme_bw() (Black and White), which provides a stable, white background and light grey gridlines as a consistent starting point. We then use the theme() function to selectively override these base elements. This approach is significantly more flexible than relying solely on predefined themes because it grants precise, surgical control over which elements are kept, modified, or entirely eliminated from the canvas.

To explicitly target and remove gridlines, we focus on two critical arguments within theme(): panel.grid.major and panel.grid.minor. These components correspond to the main, typically darker, gridlines and the secondary, often lighter, gridlines, respectively. By setting the value of these components to the dedicated helper function element_blank(), we explicitly instruct ggplot2 not to draw those elements, ensuring their complete disappearance from the plot panel.

Furthermore, achieving a truly minimalist look—one defined only by the X and Y axes—requires careful management of the plot boundary. The panel.border argument controls the rectangular frame surrounding the data area. For a clean, open appearance, this should also be set to element_blank(). Conversely, if a border is required for visual separation, this argument can be customized for color and thickness or simply omitted from the theme() call.

Mastery of theme() is fundamental for producing custom graphics that align perfectly with corporate style guides or specific journal publication requirements. This level of granular control ensures that even highly complex statistical graphics can be presented with the highest level of aesthetic polish and precision.

Example 2: Customizing Gridline Visibility (Complete Removal)

This example showcases how to use the explicit commands within the theme() function to achieve the exact same gridline-free result as theme_classic(), but through manual instruction. We start with theme_bw() and then systematically ensure that all gridlines, the plot background, and the panel border are explicitly removed. This provides a clear blueprint for exercising maximum manual control over the plot elements.

The following code demonstrates the systematic removal of elements. Note the use of element_blank() to eliminate the major gridlines, minor gridlines, and the panel border, while axis.line = element_line(color='black') ensures the frame of reference remains visible.

library(ggplot2)

#define data
df <- data.frame(x=c(1, 2, 3, 4, 5, 6),
                 y=c(6, 8, 14, 19, 29, 31))

#create ggplot with no gridlines
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  theme_bw() +
  theme(axis.line = element_line(color='black'),
    plot.background = element_blank(),
    panel.grid.major = element_blank(),
    panel.grid.minor = element_blank(),
    panel.border = element_blank())

The visualization produced by this highly customized code is aesthetically identical to the output of Example 1, confirming that explicit theme control can replicate the results of the simpler predefined theme functions.

Example 3: Keeping Major Gridlines

A frequent customization requirement is to remove only the less significant, minor gridlines while retaining the major gridlines. This approach provides a helpful balance: the major lines assist the reader in tracking values across the plot area, while the removal of minor lines eliminates unnecessary visual clutter. This results in a cleaner plot that still offers essential reference lines.

To achieve this specific aesthetic, we utilize the same structure as Example 2 but strategically omit the line that sets panel.grid.major to element_blank(). We ensure that panel.grid.minor is removed, and we also remove the panel.border for a clean, open look defined only by the axes and the retained major reference lines.

library(ggplot2)

#define data
df <- data.frame(x=c(1, 2, 3, 4, 5, 6),
                 y=c(6, 8, 14, 19, 29, 31))

#create ggplot with no minor gridlines
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  theme_bw() +
  theme(axis.line = element_line(color='black'),
    plot.background = element_blank(),
    panel.grid.minor = element_blank(),
    panel.border = element_blank())

The resulting image clearly retains the horizontal and vertical lines corresponding to the major tick marks, while the intermediate, lighter lines are successfully removed, confirming the selective control provided by the theme() function:

Example 4: Retaining the Panel Border

In another scenario, a user might need to remove all internal gridlines (both major and minor) but still require the rectangular frame, or “panel border,” around the plot area to maintain a strict visual boundary. This preserves the defined limits of the data region without the distraction of internal reference lines.

To achieve this specific look, we explicitly remove both panel.grid.major and panel.grid.minor using element_blank(). Crucially, we strategically omit the line that would remove the panel.border. Since we started with theme_bw(), which includes a border by default, the border remains visible, effectively framing the data panel.

library(ggplot2)

#define data
df <- data.frame(x=c(1, 2, 3, 4, 5, 6),
                 y=c(6, 8, 14, 19, 29, 31))

#create ggplot with no gridlines but retained border
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  theme_bw() +
  theme(axis.line = element_line(color='black'),
    plot.background = element_blank(),
    panel.grid.minor = element_blank(),
    panel.grid.major = element_blank())

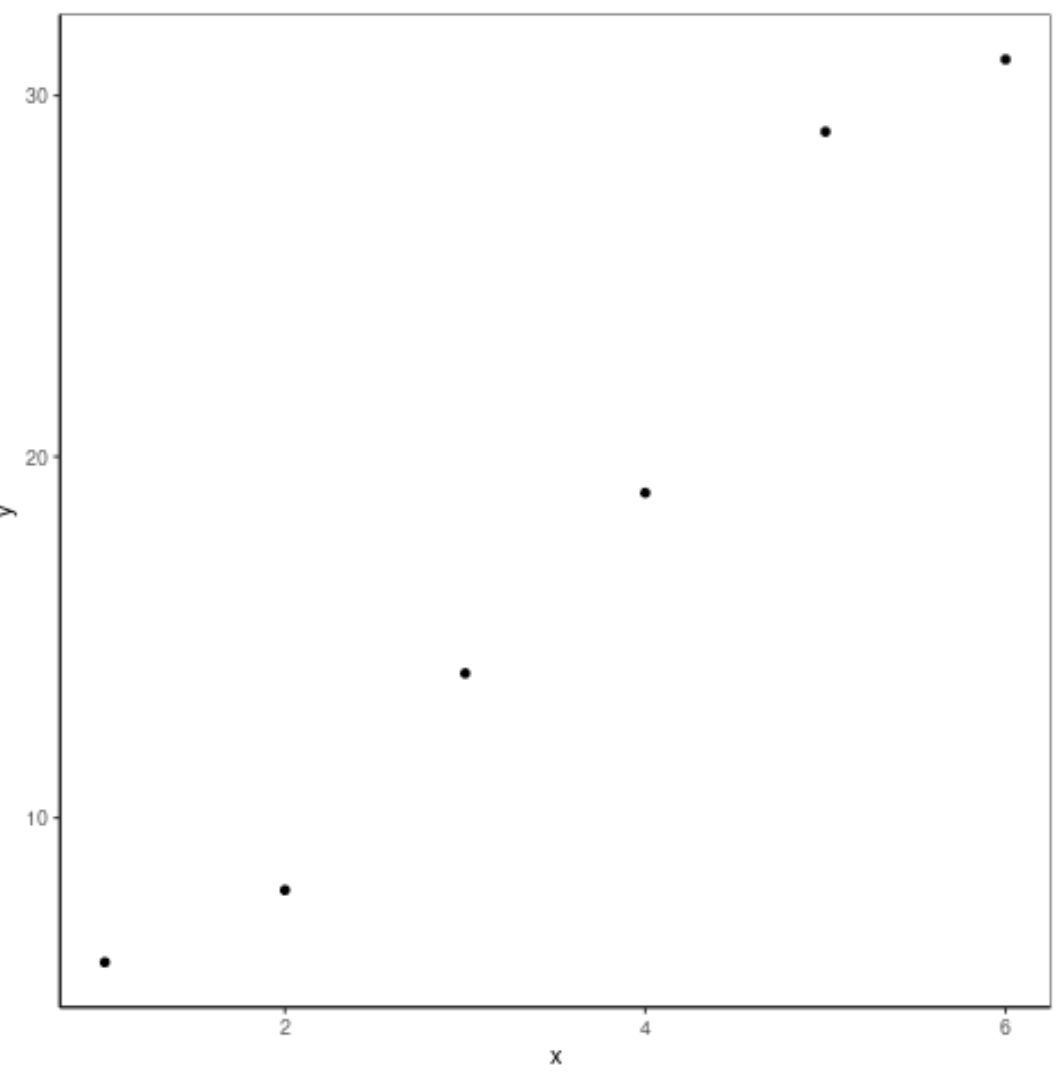

The final output displays the data points against a plain white background, clearly framed by a border, which contrasts with the previous examples that relied only on the axis lines for definition:

Mastering Theme Elements: A Reference Guide for Customization

To truly master gridline removal and aesthetic control in ggplot2, it is necessary to internalize the specific theme elements responsible for managing the plot panel appearance. These elements, used in conjunction with functions like element_blank(), provide the necessary vocabulary for achieving any desired aesthetic outcome, allowing data scientists to move confidently beyond simple predefined themes.

The control provided by the theme() function centers on specific component names that target distinct parts of the plot background and axis structure. Understanding the precise role of each component—especially those related to gridlines and borders—is the key to producing customized, publication-quality graphics tailored to specific requirements.

The following list itemizes the critical theme elements demonstrated in these examples, detailing their function and how to manipulate them for effective gridline control:

• panel.grid.major: This element governs the appearance of the primary gridlines, which typically align with the main tick marks on the axes. To completely eliminate these lines, the argument must be set as element_blank().
• panel.grid.minor: This element controls the secondary, often lighter, gridlines used for finer data reference between major tick marks. Its complete removal is accomplished by setting it to element_blank().
• panel.border: This element dictates the line that forms the rectangular boundary around the immediate data panel area. Setting this to element_blank() removes the enclosing box, resulting in a plot defined only by its axes.
• axis.line: This element manages the line drawn specifically for the X and Y axes themselves. It is crucial to define this element (e.g., using element_line(color='black')) to ensure the axes remain visible, particularly when the panel.border has been removed.
• plot.background: This element defines the background color and style of the entire plot region, including the margins outside the data panel. Setting this to element_blank() ensures that the overall plot background is transparent or pure white, maintaining a clean aesthetic.

By leveraging these specific elements within the theme() function, users of the R environment can tailor their data visualizations to meet the highest standards of professional presentation and clarity, ensuring that the focus remains squarely on the communicated data.

For users looking to further refine their ggplot2 visualizations, exploring the official package documentation provides comprehensive details on advanced theme customization, color scaling, and coordinate system manipulation. These resources are invaluable for creating truly custom and professional graphics that extend beyond basic gridline adjustments.

Understanding how to use theme() is fundamental to creating publication-ready graphics that meet specific aesthetic requirements across various scientific and professional disciplines.
