Crafting Cleaner Plots: A Guide to Removing Ticks in Matplotlib

Data visualization is a critical phase in effective data analysis. The Matplotlib library serves as the indispensable foundation for creating high-quality static, interactive, and animated plots within the Python ecosystem. While this library provides immense power and flexibility, achieving a truly polished and professional aesthetic often requires moving beyond the default settings. A common requirement, particularly in graphics destined for publication or presentations, is the need to eliminate the small markings—known as ticks—that indicate value locations along the chart’s Axes.

These visible tick marks, though fundamentally important for precise data reading, can introduce unnecessary visual clutter. This is especially true when a plot is designed for artistic display, or when the scale information is normalized, simplified, or redundant due to external context. Fortunately, Matplotlib offers a highly versatile and dedicated function for controlling these elements: tick_params(). This function empowers analysts and developers to precisely adjust the visibility, appearance, and presence of ticks, their accompanying labels, and even grid lines for any axis within a figure.

This comprehensive tutorial is designed to guide you through the practical application of the tick_params() function. We will explore various scenarios ranging from targeted removal on a single axis to the complete elimination of all numerical scaling indicators, thereby achieving a clean, minimalist plot structure. We will begin by establishing a baseline visualization—a standard scatterplot—and then systematically apply modifications to demonstrate the function’s capabilities clearly.

Establishing the Baseline: Data Preparation and Default Visualization

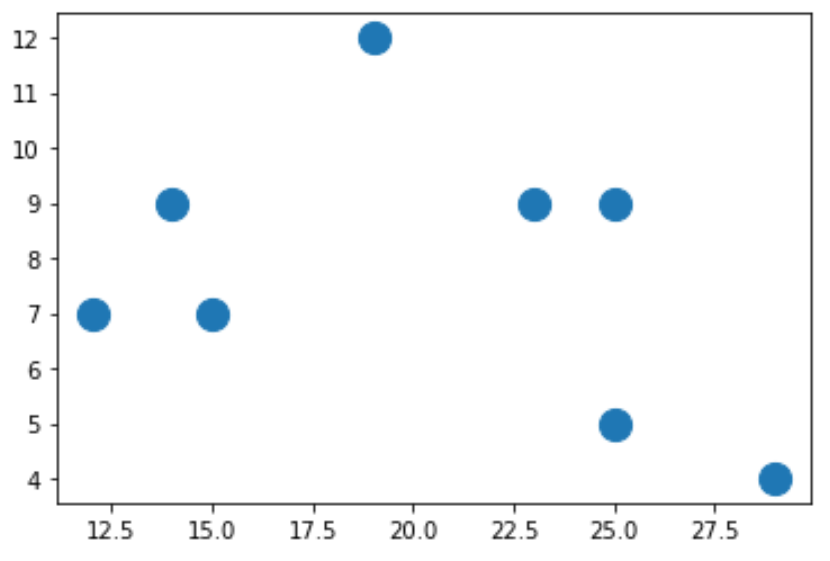

To effectively illustrate how tick removal works, we must first establish a standard scatterplot using typical Matplotlib commands. This baseline plot serves as the crucial reference point, clearly displaying the default positioning and aesthetic of the tick marks before any customization is applied. The following Python code initializes the necessary library, defines a simple coordinate dataset, and renders the initial visualization.

Our dataset consists of two simple lists, x and y, which define the coordinates for our data points. We use plt.scatter to create a clear representation of these points, specifying a large size (s=200) to enhance visibility against the axes. In the default output, you will immediately notice that both the horizontal (X) and vertical (Y) Axes automatically display major tick marks along their boundaries, accompanied by their respective numerical labels.

Understanding this default behavior is essential before attempting modification. By default, Matplotlib automatically attempts to determine the most appropriate tick locations and labeling based on the range and distribution of the underlying data. While convenient for quick analysis, this automatic scaling is precisely what we must override when aiming for specialized visual designs where the focus should be placed exclusively on the data points themselves, rather than the scale markers.

import matplotlib.pyplot as plt

#create data
x = [25, 12, 15, 14, 19, 23, 25, 29]
y = [5, 7, 7, 9, 12, 9, 9, 4]

#create scatterplot
plt.scatter(x, y, s=200)

Targeted Control: Eliminating Ticks on a Single Axis

One frequent design requirement is the removal of ticks from only one axis—most commonly the Y-axis—especially if the values represented are qualitative, relative, or if the data relationships are sufficiently conveyed through visual placement alone. The tick_params() function allows for this selective removal using boolean parameters that correspond directly to the location of the ticks: left, right, top, and bottom. Setting any of these to False instructs Matplotlib to hide the corresponding major tick marks.

To illustrate the removal of ticks from the vertical axis, we utilize the left=False parameter within the function call. This modification specifically impacts the visual tick lines on the left side of the plot. It is important to remember that this action leaves the numerical labels associated with those ticks untouched; those labels will remain visible unless explicitly addressed, which we cover in a subsequent section. The implementation is straightforward, requiring the parameter to be executed before the final plot rendering command.

The following code snippet targets the ticks only on the y-axis (left side). Observe how the short vertical lines that mark the scale disappear completely, leaving only the numerical labels and the bounding line of the plot box itself. This technique is highly effective for visualizations, such as time series plots, where the horizontal axis carries the primary scale information, and the vertical measure is secondary or less critical for precise reading.

plt.tick_params(left=False)

plt.scatter(x, y, s=200)

Conversely, if the objective is to clean up the Axes along the horizontal plane, we employ the bottom=False parameter. When executed, this parameter eliminates the tick marks running along the bottom boundary of the plot, while retaining the numerical context provided by the labels. Retaining the y-axis ticks while removing the x-axis ticks can be advantageous when visualizing vertical comparisons or distributions where the exact horizontal coordinate values are less critical than the vertical alignment of the data points. Since we are using the simplified pyplot interface here, these changes apply globally to the current figure being rendered.

plt.tick_params(bottom=False)

plt.scatter(x, y, s=200)

Achieving Minimalism: Removing Ticks from Both Axes Simultaneously

When preparing a graphic for maximum visual impact or when context is provided externally, a highly minimalist visualization is often desired. This necessitates removing tick marks from both the X and Y Axes entirely. This approach is frequently used in creating background graphics, decorative elements, or when the data points are intended to overlay a custom background image where grid lines and scale markers would be unnecessarily distracting. To achieve this synchronized dual removal, we simply combine the left=False and bottom=False parameters introduced previously into a single, efficient call to tick_params().

By setting both parameters to False, we successfully target the major ticks on the standard plotting boundaries. For the vast majority of standard 2D plots, controlling the left and bottom ticks is sufficient, as these are the primary locations. However, it is noteworthy that if your plot utilized secondary axes (e.g., ticks on the right or top of the figure), you would need to explicitly set right=False and top=False to ensure their complete removal as well.

Visually, the resulting plot is significantly cleaner than the default. It retains the bounding box and the numerical labels, but the small tick marks themselves vanish. This configuration offers a great balance between a clean aesthetic and informational density, as the viewer still has the numerical context for the data point locations, but without the clutter of the physical markers. This balance is often key to effective and modern data design principles.

plt.tick_params(left=False,
                bottom=False)

plt.scatter(x, y, s=200)

The Clean Slate: Comprehensive Removal of Ticks and Labels

While the previous examples focused strictly on removing the visual tick markers, the ultimate objective for many minimalist visualizations is the complete elimination of all numerical scaling indicators. This means successfully removing not only the short lines (ticks) but also the numerical text (labels) that provide the magnitude context. The tick_params() function manages this separation through a distinct set of parameters dedicated solely to the labels: labelleft, labelright, labeltop, and labelbottom.

To achieve a truly sterile visualization—one where the data points are suspended purely in space without any reference to an explicit numerical scale—we must set four parameters to False in a single, combined call. We first disable the physical tick marks using left=False and bottom=False, and then crucially, we disable the numerical labels using labelleft=False and labelbottom=False. It is vital to understand this distinction: the left and bottom parameters control the markers; the labelleft and labelbottom parameters control the numbers. Failure to disable both sets of parameters will result in an incomplete removal, leaving either floating labels or invisible ticks.

This technique is frequently employed when the spatial relationship between data points is sufficient to convey the message, or when the context of the data is provided externally, such as in a detailed caption or surrounding narrative. The resultant plot is highly focused on the data points in the scatterplot, stripped entirely of numerical distraction, allowing the viewer to concentrate solely on patterns and clusters.

plt.tick_params(left=False,
                bottom=False,
                labelleft=False,
                labelbottom=False)

plt.scatter(x, y, s=200)

Advanced Customization and Contextual Considerations

While the preceding examples centered on simple removal, the true power of tick_params() extends to numerous other modifications. Understanding this function’s relationship with the larger Axes object is crucial for truly advanced plotting customization. Analysts may not always wish to remove ticks entirely, but instead modify their appearance to be more subtle or decorative.

For instance, one can precisely control the length and thickness of the remaining ticks using parameters like length and width, or modify their color using the color parameter. Furthermore, Python developers frequently utilize the direction parameter to place ticks inside the plot area rather than outside, creating a distinct visual boundary effect. When deciding whether to remove or modify ticks, it is paramount to consider the target audience and the primary purpose of the visualization.

If the plot is intended for Exploratory Data Analysis (EDA), retaining some form of scaling (whether ticks or labels) is highly recommended for accuracy and reference. Conversely, if the plot is destined for a publication, a presentation slide, or integration into a larger design ecosystem, the complete removal of ticks and labels often contributes to a cleaner, more impactful aesthetic. It is important to note that even when all tick marks and labels are removed, the bounding lines of the plot box itself typically remain visible, framing the data points.

In scenarios where the ultimate goal is a completely frame-less plot, additional commands are necessary. After successfully removing the ticks and labels using the methods outlined above, one must also employ plt.box(False) to hide the surrounding border lines. This combination results in data points floating freely on the figure canvas, offering maximum minimalism and ensuring that the visual focus is entirely dedicated to the relationships captured by the scatterplot points.

Summary of Essential Tick Management Parameters

The ability to manipulate axis elements with precision is a core skill for sophisticated plot generation in Python. The tick_params() function stands as the central control mechanism for managing the appearance and existence of ticks and their associated labels. By mastering the crucial distinction between the parameters controlling the tick marker itself (left, bottom) and those controlling the numerical annotation (labelleft, labelbottom), users gain complete command over the visual fidelity of their data presentations.

For quick reference when aiming for a minimal plot structure, here is a summary of the key parameters utilized for complete removal:

• left=False: Removes the physical tick lines along the left Y-axis.
• bottom=False: Removes the physical tick lines along the bottom X-axis.
• labelleft=False: Removes the numerical labels associated with the left Y-axis.
• labelbottom=False: Removes the numerical labels associated with the bottom X-axis.

We highly encourage further investigation into the official documentation for tick_params(), as it provides many other customization options, including control over minor ticks, alignment, and rotation, all of which contribute significantly to creating highly polished and professional data visualizations.
