Learning to Reorder Boxplots in R for Enhanced Data Visualization

When presenting data visually, the order of elements within a chart can significantly impact its clarity and the insights it conveys. This is particularly true for boxplots, which are powerful tools for visualizing the distribution of a quantitative variable across different categorical groups. In the R programming language, you often need to reorder these boxplots to highlight specific trends, compare groups effectively, or simply present them in a logical sequence.

This comprehensive guide will illustrate how to effectively reorder boxplots in R using two distinct and highly practical methods. By understanding these techniques, you will gain greater control over your data visualization, enabling more insightful data analysis.

• Method 1: Reorder Boxplots Based on a Specific Order
• Method 2: Reorder Boxplots Based on the Median Value of Each Boxplot

For all our examples, we will utilize R’s built-in airquality dataset, a classic dataset containing daily air quality measurements in New York, May to September 1973. This dataset is ideal for demonstrating how to visualize and compare distributions across different categorical variables, such as months.

# View the first six rows of the airquality dataset to understand its structure
head(airquality)

  Ozone Solar.R Wind Temp Month Day
1    41     190  7.4   67     5   1
2    36     118  8.0   72     5   2
3    12     149 12.6   74     5   3
4    18     313 11.5   62     5   4
5    NA      NA 14.3   56     5   5
6    28      NA 14.9   66     5   6

Before we delve into reordering, let’s first observe how multiple boxplots appear when no specific order is applied. This initial visualization will provide a baseline for comparison, highlighting the default arrangement of the categorical variable (Month) on the x-axis.

# Create a boxplot to display the distribution of 'Temp' (temperature) by 'Month'
# without specifying any particular order.
# 'col' sets the fill color of the boxes, and 'border' sets the outline color.
boxplot(Temp~Month, data=airquality, col="lightblue", border="black")

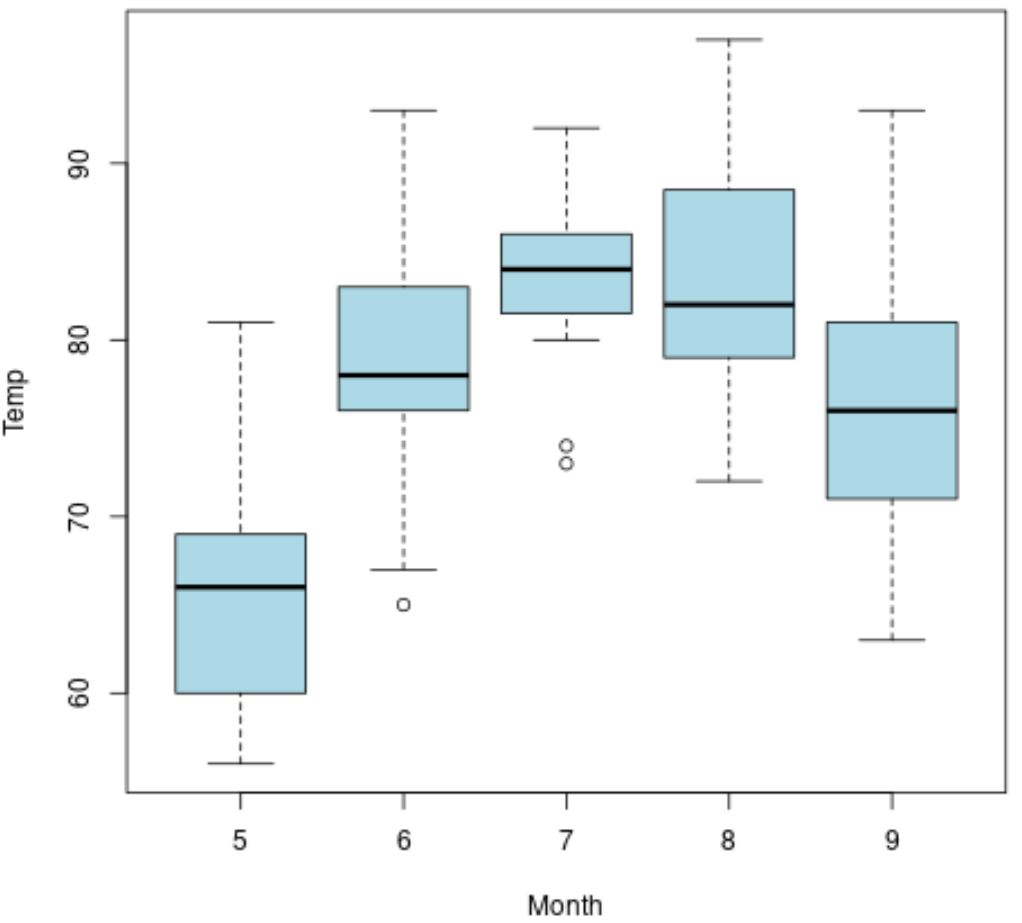

As you can see from the plot above, the months are ordered numerically (5, 6, 7, 8, 9) by default, which is R’s standard behavior for numeric variables treated as factors. While this order is logical, it might not always be the most effective for highlighting specific data patterns or comparisons.

Example 1: Reorder Boxplots Based on a Specific Order

One common requirement in data analysis is to present categorical data in a predefined sequence. This might be necessary for chronological reasons, to follow a logical progression, or to adhere to specific reporting standards. In R, you can achieve this by converting your categorical variable into a factor and explicitly defining its levels.

Let’s demonstrate this by reordering the boxplots of temperature by month according to a specific, custom sequence: 5 (May), 8 (August), 6 (June), 9 (September), 7 (July). This allows us to juxtapose certain months for direct comparison, even if they are not consecutive in the calendar year.

# Reorder the 'Month' variable by converting it into a factor with custom levels.
# The 'factor()' function is used to create ordered or unordered categorical variables.
# The 'levels' argument specifies the exact order in which the categories should appear.
airquality$Month <- factor(airquality$Month , levels=c(5, 8, 6, 9, 7))

# Now, create the boxplot again using the newly ordered 'Month' factor.
# The boxplots will now reflect the custom order defined in the previous step.
boxplot(Temp~Month, data=airquality, col="lightblue", border="black")

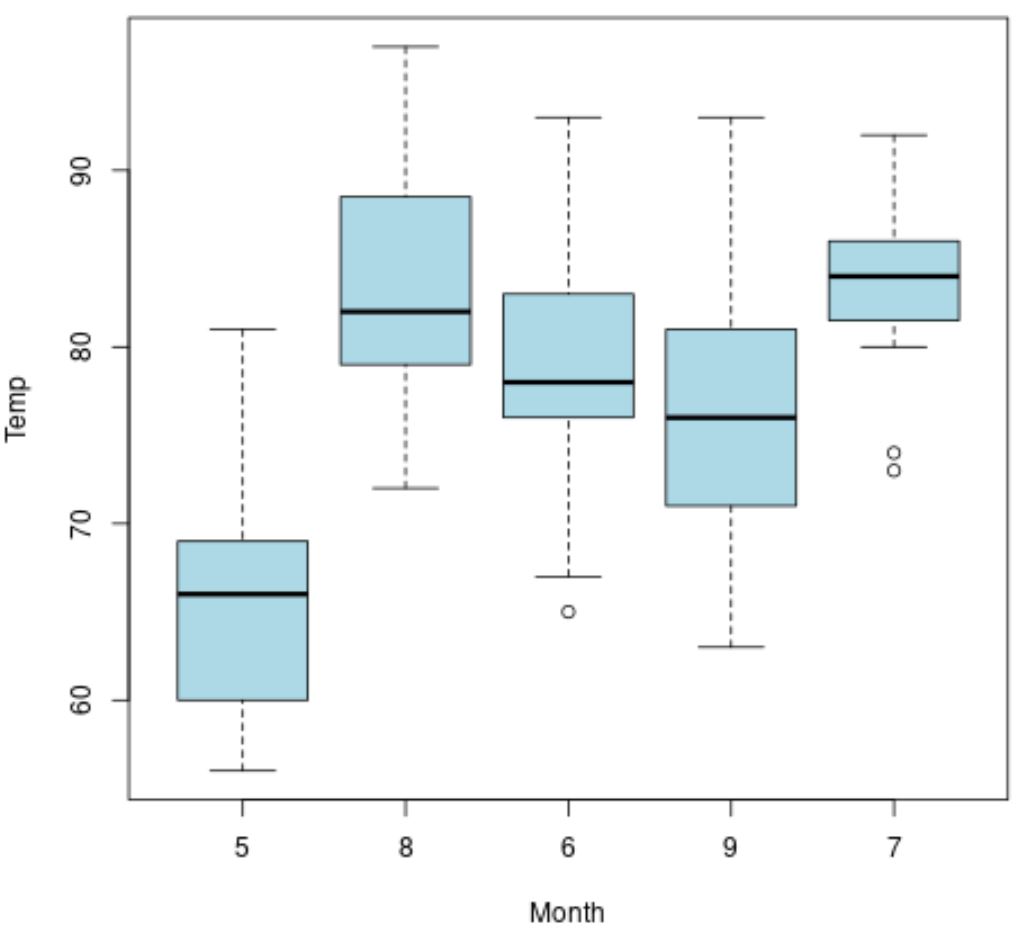

Upon reviewing the new boxplot, you will notice that the months on the x-axis are now arranged precisely according to the sequence we specified in the levels argument. This method offers granular control over the display order, which is invaluable for tailored presentations and analyses.

Example 2: Reorder Boxplots Based on Median Value

Beyond defining a specific order, it is often insightful to arrange boxplots based on a statistical summary of their distributions, such as the median value. Ordering by median can quickly reveal trends, identify the lowest or highest performing groups, or highlight a natural progression in the data. This approach is particularly useful when comparing many groups, as it simplifies visual interpretation.

We will now reorder the boxplots in ascending order based on the median temperature value for each month. This means months with lower median temperatures will appear first, followed by those with progressively higher medians. The reorder() function in R is perfectly suited for this task.

# Reorder the 'Month' factor levels in ascending order based on the median of 'Temp'.
# 'reorder()' takes the factor to be reordered ('Month'), the numeric variable used for ordering ('Temp'),
# and the function to apply for ordering (here, 'median').
# 'na.rm=T' ensures that missing values (NA) in 'Temp' are ignored during median calculation.
airquality$Month <- with(airquality, reorder(Month , Temp, median , na.rm=T))

# Generate the boxplot with the months now ordered by their median temperature values.
boxplot(Temp~Month, data=airquality, col="lightblue", border="black")

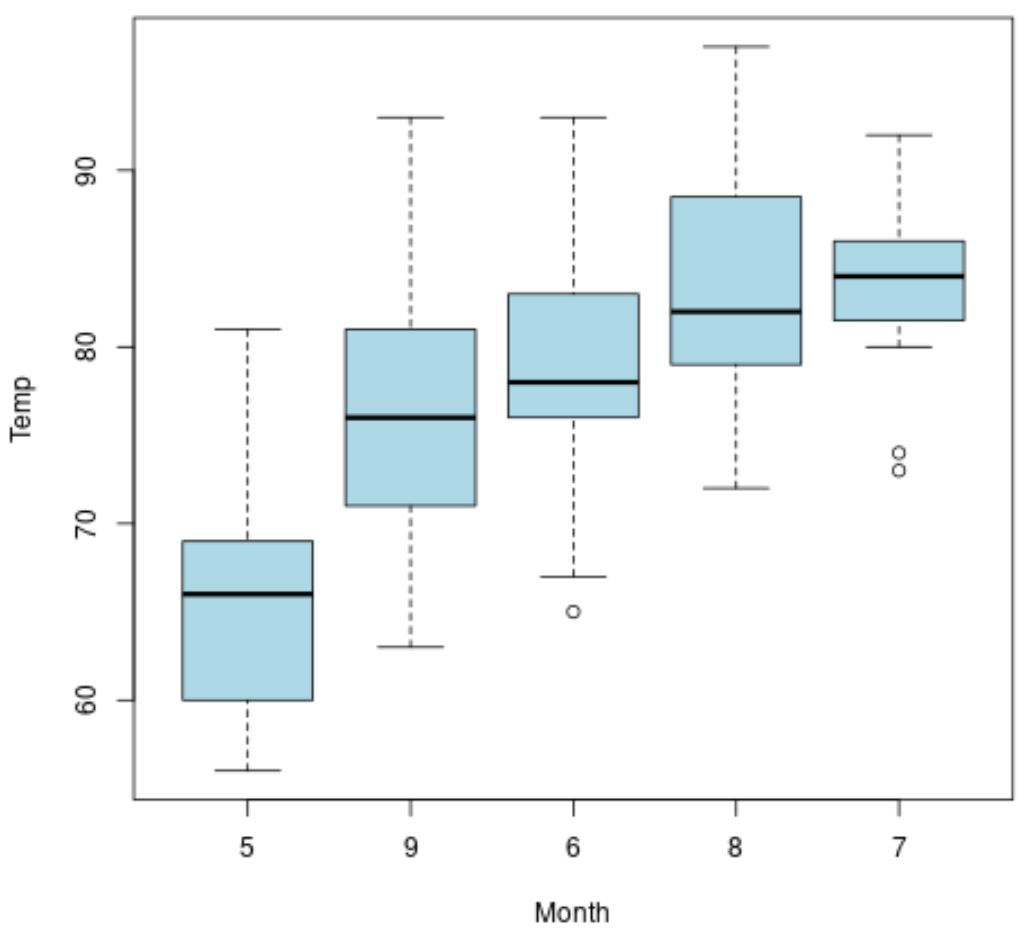

Observing the resulting plot, you can clearly see that the months are now arranged from left to right in ascending order of their median temperature. This arrangement makes it straightforward to identify which months generally experienced cooler or warmer conditions. Remember, the median value for each boxplot is visually represented by the bold horizontal line traversing the interior of each box.

Reordering in Descending Order

Just as easily, you might want to present your boxplots in descending order based on their median values. This could be useful for highlighting groups with the highest measurements first or for reversing a trend. The reorder() function accommodates this by simply introducing a negative sign before the numeric variable used for ordering.

By adding a minus sign before Temp within the reorder() function, we instruct R to sort the months based on the inverse of their temperature medians, effectively achieving a descending order. This simple modification provides flexibility in how you present your comparative distributions.

# Reorder the 'Month' factor levels in descending order based on the median of 'Temp'.
# The negative sign before 'Temp' inverts the sorting, leading to a descending order.
airquality$Month <- with(airquality, reorder(Month , -Temp, median , na.rm=T))

# Create the boxplot with months now ordered in descending fashion by median temperature.
boxplot(Temp~Month, data=airquality, col="lightblue", border="black")

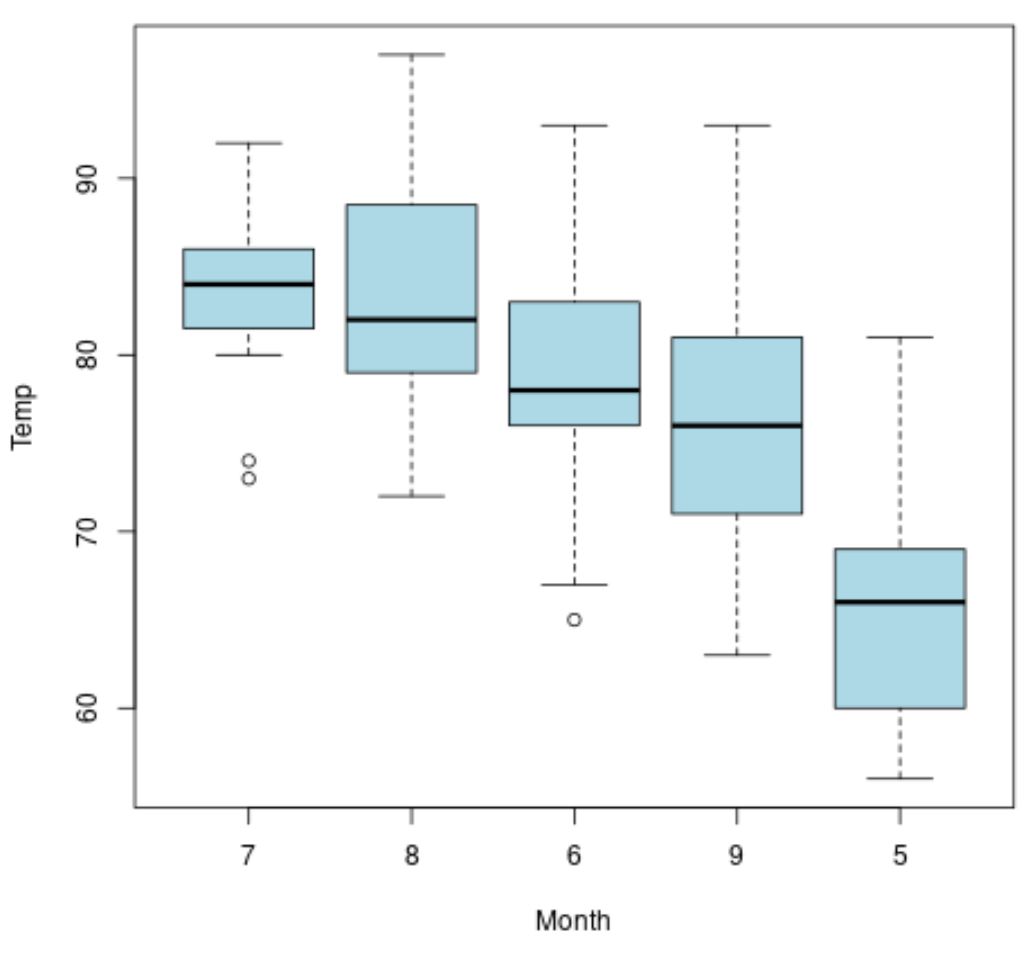

As anticipated, this final boxplot displays the months ordered from highest to lowest median temperature. This technique is extremely valuable for quickly identifying and emphasizing the categorical groups that exhibit the highest or lowest central tendencies within your dataset.

Conclusion

Mastering the reordering of boxplots in R is a fundamental skill for effective data visualization and communication. Whether you need to arrange groups in a specific custom order or based on statistical summaries like the median, R provides straightforward functions to achieve these goals. By applying these methods, you can transform your raw data into clear, interpretable visual stories, enhancing the impact and understanding of your analyses.
