Learn How to Reorder Variables in SAS Datasets Using the RETAIN Statement

In the world of statistical programming and data manipulation, the order in which variables appear within a dataset is often crucial for both clarity and subsequent processing. While the default behavior of the SAS (Statistical Analysis System) DATA step is to maintain the order in which variables are read or created, analysts frequently need to reorganize columns—perhaps to place identifier variables first, or to group related metrics for easier reporting.

Fortunately, SAS provides an elegant and efficient solution for this task: the RETAIN statement. Although its primary function is to hold a variable’s value from one observation to the next, when used strategically within the DATA step structure, the RETAIN statement acts as a powerful tool for defining the output order of variables in a new dataset.

This tutorial will explore how the RETAIN statement can be leveraged specifically for variable reordering, covering the three most common structural methods employed by seasoned SAS programmers. We will provide detailed explanations and practical code examples demonstrating full reordering, as well as methods for simply promoting key variables to the front of the list while preserving the relative order of the remaining columns.

Understanding Variable Order in SAS

When SAS processes data, the order of variables often dictates the flow of reports and the ease of data interpretation. For example, in a financial dataset, having the ‘CustomerID’ and ‘TransactionDate’ variables appear immediately before metrics like ‘Amount’ or ‘Status’ significantly improves readability. Conversely, if variables are scattered arbitrarily, the dataset becomes cumbersome to use, especially when dealing with hundreds of columns.

By default, when you use a SET statement to copy an existing dataset, the new dataset inherits the exact variable order of the source dataset. To override this default arrangement, we must intervene in the compilation phase of the SAS DATA step. This is where the RETAIN statement proves invaluable, as it is processed before the data records are actually read.

The key principle lies in placing the RETAIN statement before the SET statement. When SAS encounters RETAIN listing specific variables, it defines and sets aside space for these variables first. Crucially, if the variables listed in RETAIN already exist in the input dataset specified by the SET statement, SAS defines their position in the new output dataset according to the order listed in the RETAIN statement, regardless of their original position.

The Power of the RETAIN Statement for Reordering

The RETAIN statement serves two main purposes in SAS programming. Its most common function is persistence—telling SAS to retain the value of a variable from the previous observation for the current observation. However, when used solely to list variables that exist in the input dataset and placed strategically before the SET statement, its function morphs entirely into a variable ordering mechanism.

The flexibility of this approach allows developers to execute precise control over the output structure without resorting to more complex procedures like the PROC DATASETS or ATTRIB statements, which, while powerful, often involve more intricate syntax or require working outside the main DATA step flow. Utilizing RETAIN is often considered the cleanest and most direct method for restructuring variables dynamically within a data flow.

Here are the three fundamental methods for variable reordering using the RETAIN statement, which we will demonstrate fully in the examples below:

• Method 1: Reorder All Variables (Full Specification)

This method requires explicitly listing every variable in the exact desired sequence. Any variable not listed will be omitted from the output dataset, emphasizing the need for precision when using this technique for complete restructuring.

data new_data;
    retain var4 var5 var1 var3 var2;
    set original_data;
run;

• Method 2: Move One Variable to Front (Partial Specification)

By listing only a subset of variables, we instruct SAS to place these specified variables at the beginning of the new dataset. All variables *not* listed in the RETAIN statement will follow in their original order from the source dataset, making this a quick way to promote key variables.

data new_data;
    retain var4;
    set original_data;
run;

• Method 3: Move Several Variables to Front (Group Promotion)

Similar to Method 2, this technique allows for the promotion of multiple variables to the starting positions. The order of these promoted variables will strictly follow the sequence defined in the RETAIN statement, while the remaining variables maintain their initial relative order.

data new_data;
    retain var4 var5;
    set original_data;
run;

Practical Demonstration: Setting Up the Sample Dataset

To illustrate these reordering methods, we will utilize a sample dataset containing basic basketball statistics. This dataset, named original_data, includes five variables: team (character), points, rebounds, assists, and steals (numeric). Notice the initial order of these variables, as it is this sequence that we aim to manipulate in the subsequent examples.

The setup code below creates and displays the initial structure of our sample data. This foundation is essential for observing the changes introduced by the RETAIN statement in each method.

/*create dataset*/
data original_data;
    input team $ points rebounds assists steals;
    datalines;
A 18 10 4 5
B 24 11 6 7
C 26 14 6 8
D 34 22 5 3
E 38 3 7 7
F 45 12 4 4
G 23 7 9 1
;
run;

/*view dataset*/
proc print data=original_data;

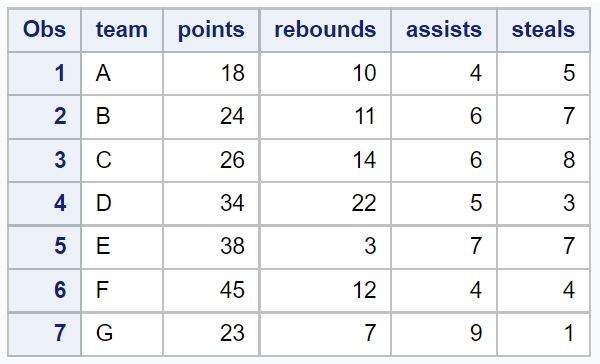

As displayed by the output of the PROC PRINT step, the default variable order is: team, points, rebounds, assists, and steals. We will now proceed to reorganize these columns using the three distinct applications of the RETAIN statement.

Example 1: Specifying a Complete Custom Order

When the requirement is a total overhaul of the dataset structure, Method 1—listing every variable in the RETAIN statement—is necessary. This ensures that the new dataset, new_data, will contain all original variables, but positioned precisely according to the specified sequence.

For this example, suppose we want to place the identifier variable (team) first, followed by defensive statistics (rebounds, assists, steals), and finally, the primary offensive statistic (points). The desired sequence is: team, rebounds, assists, steals, then points.

The following code block demonstrates how to achieve this complete reordering. Notice that the variables are listed in the RETAIN statement in the exact desired output sequence. Since all variables from original_data are listed in RETAIN, the new dataset structure is entirely defined by this statement.

/*create new dataset with variables reordered*/
data new_data;
    retain team rebounds assists steals points;
    set original_data;
run;

/*view new dataset*/
proc print data=new_data;

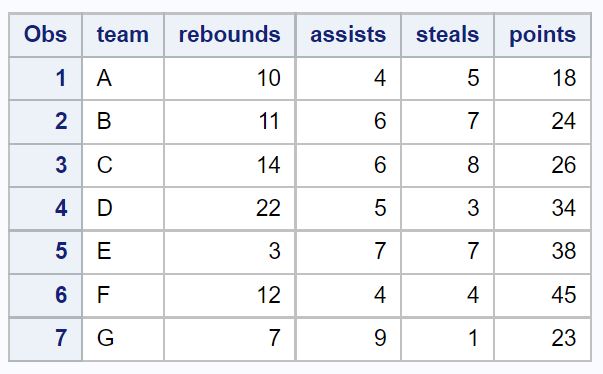

The resulting dataset, new_data, successfully reflects the specified sequence: team, rebounds, assists, steals, and points. This confirms that the RETAIN statement, when used for full specification, provides absolute control over the final variable arrangement.

Example 2: Promoting Single Key Variables

Often, a programmer only needs to promote one or two critical variables to the very beginning of the dataset without disrupting the sequence of the remaining columns. Methods 2 and 3 address this scenario by utilizing the implicit ordering behavior of SAS.

When the RETAIN statement lists only a subset of the total variables, SAS first places the retained variables in the specified order. Then, it automatically appends all remaining variables from the source dataset in their original relative order. This is highly efficient when dealing with datasets that have many variables, where listing every single column would be impractical or prone to error.

In this example, let’s assume we only want the assists variable to be the very first column, leaving all other variables (team, points, rebounds, steals) to follow exactly as they were ordered in original_data.

/*create new dataset with variables reordered*/
data new_data;
    retain assists;
    set original_data;
run;

/*view new dataset*/
proc print data=new_data;

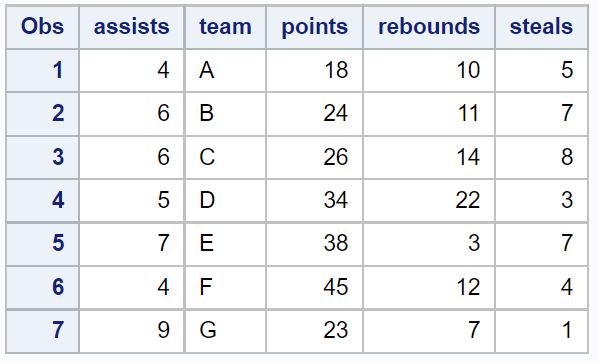

Upon reviewing the output, we clearly observe that assists is now the first variable. The remaining variables—team, points, rebounds, and steals—follow, maintaining the same sequential relationship they had in the input dataset, but shifted to accommodate the promoted variable. This partial use of the RETAIN statement provides excellent streamlining for data preparation tasks.

Example 3: Moving Multiple Variables to the Front

Building on the previous method, we can promote a group of variables to the front of the dataset. The order of the promoted group is determined strictly by their listing in the RETAIN statement, while the rest of the variables maintain their original relative sequence. This is Method 3: promoting several key variables simultaneously.

Let’s demonstrate how to move both the assists and rebounds variables to the front. We want assists to be first and rebounds to be second. All other variables should follow in their original order. Note that the order within the RETAIN statement is critical; listing assists before rebounds ensures that assists takes the primary position.

/*create new dataset with variables reordered*/
data new_data;
    retain assists rebounds;
    set original_data;
run;

/*view new dataset*/
proc print data=new_data;

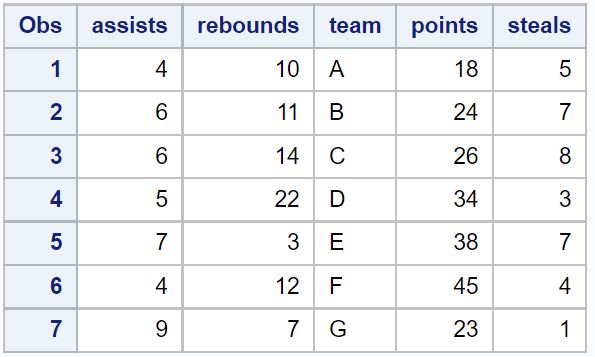

The resulting output confirms that assists is now in the first position, followed by rebounds in the second position. The remainder of the variables—team, points, and steals—follow, preserving their original order relative to one another. This demonstrates the efficiency of using RETAIN for focused variable promotion without needing to manually account for every single column in the dataset structure. Understanding the difference between full specification (Example 1) and partial specification (Examples 2 and 3) is key to writing clean and maintainable SAS code.

Additional Resources and Further Study

Mastering the RETAIN statement for variable reordering is a fundamental skill in SAS programming, significantly enhancing data management efficiency. While this technique is robust, SAS offers several other powerful methods and procedures for structuring and manipulating data.

For those looking to deepen their expertise, exploring alternative methods such as using the LENGTH or ATTRIB statements in conjunction with the DATA step, or employing the PROC DATASETS procedure for permanent changes to a library’s metadata, is highly recommended. These tutorials provide further insight into common advanced tasks in SAS:

• How to manage variable attributes using the ATTRIB statement.
• Techniques for conditionally dropping or keeping variables in a dataset.
• Advanced uses of the RETAIN statement for cumulative calculations.
