Learning to Reverse Axes in Matplotlib: A Step-by-Step Guide with Examples

Effective data visualization hinges on the precise control and manipulation of the underlying coordinate system. By default, the popular plotting library Matplotlib adheres to the conventional mathematical standard, placing the origin (0, 0) at the bottom-left corner of the plotting area. This means that data values typically increase as one moves upwards along the Y-axis and to the right along the X-axis, consistent with the standard Cartesian coordinate system. While this default orientation is suitable for most statistical and scientific plots, the world of data representation is diverse, and certain fields require alternative conventions.

Specific domains, such as seismology, deep-sea research, or certain aspects of computer graphics and image processing, mandate a reversed axis orientation. For example, when visualizing geological depth, it is conventional for the value 0 to represent the surface, with positive values increasing downwards. Similarly, many image libraries treat the top-left corner as the origin. Therefore, mastering the technique of reversing one or both axes in Matplotlib is not merely a stylistic choice but a fundamental requirement for accurate and conventional domain-specific plotting.

Fortunately, Matplotlib provides an exceptionally simple and high-level procedural interface specifically designed for this task. By accessing the current plotting context, users can quickly flip the direction of either axis using dedicated inversion methods. This article serves as a comprehensive guide to implementing these techniques, ensuring immediate control over your plot’s orientation and adherence to specialized visualization standards.

The core syntax required to achieve axis reversal involves obtaining the current Axes object and calling the respective inversion methods. These methods provide a toggle-like function, instantly reorienting the data display without requiring manual calculation of limits.

plt.gca().invert_xaxis()
plt.gca().invert_yaxis()

The Procedural Approach: Utilizing plt.gca()

To effectively reverse an axis using the streamlined procedural style of Matplotlib, we rely heavily on the pyplot interface, which manages the current figure and axes environment behind the scenes. The critical function in this process is plt.gca(), an acronym for “Get Current Axes.” This function retrieves the active Axes object—the container upon which all data elements (lines, points, bars) are drawn and where properties like limits and ticks are defined.

Once the Axes object is obtained, we gain access to two powerful, self-explanatory methods: .invert_xaxis() and .invert_yaxis(). These methods function as simple, idempotent toggles. When invoked, they automatically examine the current minimum and maximum limits of the specified axis and swap them. For example, if the X-axis currently runs from 1 to 15, calling .invert_xaxis() will immediately redefine the axis to run from 15 to 1. This reversal is purely a visual transformation of the coordinate scale; the underlying data points remain unchanged but are displayed according to the new axis orientation.

This approach is particularly valuable for rapid prototyping, data exploration, and scripting environments where immediate visualization adjustments are necessary. The clarity and simplicity of this syntax make it the preferred method for most users who interact primarily with the pyplot module. The following examples demonstrate the practical implementation of this syntax, beginning with the necessary baseline plot setup to clearly illustrate the impact of each inversion command.

Example 1: Establishing the Standard Scatterplot Baseline

Before implementing any modifications to the axis orientation, it is essential to define a clear baseline visualization. This reference plot, generated using standard Matplotlib conventions, allows us to immediately observe the effect of the inversion techniques. We will define a simple dataset consisting of six (X, Y) coordinates and generate a basic scatterplot.

The code below initializes the necessary components from the pyplot module, defines our sample data arrays, and then generates the plot using the plt.scatter() function. It is important to note that, in the resulting visualization, the lowest values (closest to the origin) appear at the bottom-left corner, and values increase as we move toward the top and right edges of the plot area, conforming to the default behavior of the Cartesian coordinate system.

import matplotlib.pyplot as plt

# Define x and y coordinates for the scatterplot
x = [1, 4, 8, 11, 13, 14]
y = [5, 11, 18, 26, 25, 23]

# Create the scatterplot visualization
plt.scatter(x, y)

This initial plot serves as the foundational reference point for the subsequent examples. By maintaining the same dataset throughout the tutorial, any visual change in the data distribution or axis labeling will be attributable solely to the axis inversion commands applied in the following sections.

Example 2: Implementing Vertical Inversion on the Y-Axis

Reversing the Y-axis is perhaps the most frequently needed axis manipulation, primarily because it aligns the plot with common non-mathematical conventions. This reversal is crucial when plotting phenomena related to depth, altitude profiles, or specific engineering schematics where the origin (0) represents the highest or starting point. For instance, in oceanography, depth increases as the vertical coordinate value increases downwards. Furthermore, aligning visualizations with standard computer graphics frameworks, which often define the top-left corner as (0, 0), necessitates this vertical flip.

To execute this transformation, we integrate the plt.gca().invert_yaxis() method call immediately after the scatterplot generation command. This instruction directs Matplotlib to swap the minimum and maximum limits defining the vertical extent of the plot. The consequence is a mirrored display of the data vertically across the center axis. Crucially, this operation changes the scale labels, causing high values to appear at the top of the plot and low values at the bottom, achieving the desired inversion.

The following code snippet demonstrates the complete implementation, showing how to transform the vertical scale from a bottom-up range (5 to 26) to a top-down range (26 to 5). This simple addition radically alters the interpretation of the plot relative to the baseline.

import matplotlib.pyplot as plt

# Define x and y data
x = [1, 4, 8, 11, 13, 14]
y = [5, 11, 18, 26, 25, 23]

# Create scatterplot of x and y
plt.scatter(x, y)

# Reverse the Y-axis using the dedicated inversion method
plt.gca().invert_yaxis()

Upon examining the resulting image, one can clearly see that while the relative arrangement of the data points remains preserved, the Cartesian coordinate system labels on the Y-axis have been flipped. The highest data value (26) is now positioned at the top boundary of the plot, confirming that this transformation is immediate and highly efficient for adapting visualizations to specific vertical standards.

Example 3: Applying Horizontal Inversion to the X-Axis

While less frequently encountered than Y-axis reversal, manipulating the horizontal axis is essential in scenarios where the traditional left-to-right progression is inappropriate. This might be necessary in chronological plots that conventionally run backward, or in certain specialized geographical or astronomical plots where convention dictates that values decrease as they move away from the origin toward the right. Reversing the X-axis ensures that the visualization accurately reflects these domain-specific directional requirements.

The mechanism for horizontal reversal mirrors the Y-axis process, utilizing the corresponding method: plt.gca().invert_xaxis(). When this command is executed, Matplotlib instantly mirrors the plot horizontally by swapping the limits on the X-axis. This results in the highest numerical values being positioned on the left side of the plot and the lowest values residing on the right. This powerful yet simple command guarantees immediate alignment with required display conventions.

In the example below, we integrate this command into our existing data setup. The plot will now display the X-axis ranging from 14 on the left boundary down to 1 on the right boundary, completely reversing the perceived flow of the data compared to the standard Cartesian coordinate system setup.

import matplotlib.pyplot as plt

# Define x and y data
x = [1, 4, 8, 11, 13, 14]
y = [5, 11, 18, 26, 25, 23]

# Create scatterplot
plt.scatter(x, y)

# Reverse the X-axis
plt.gca().invert_xaxis()

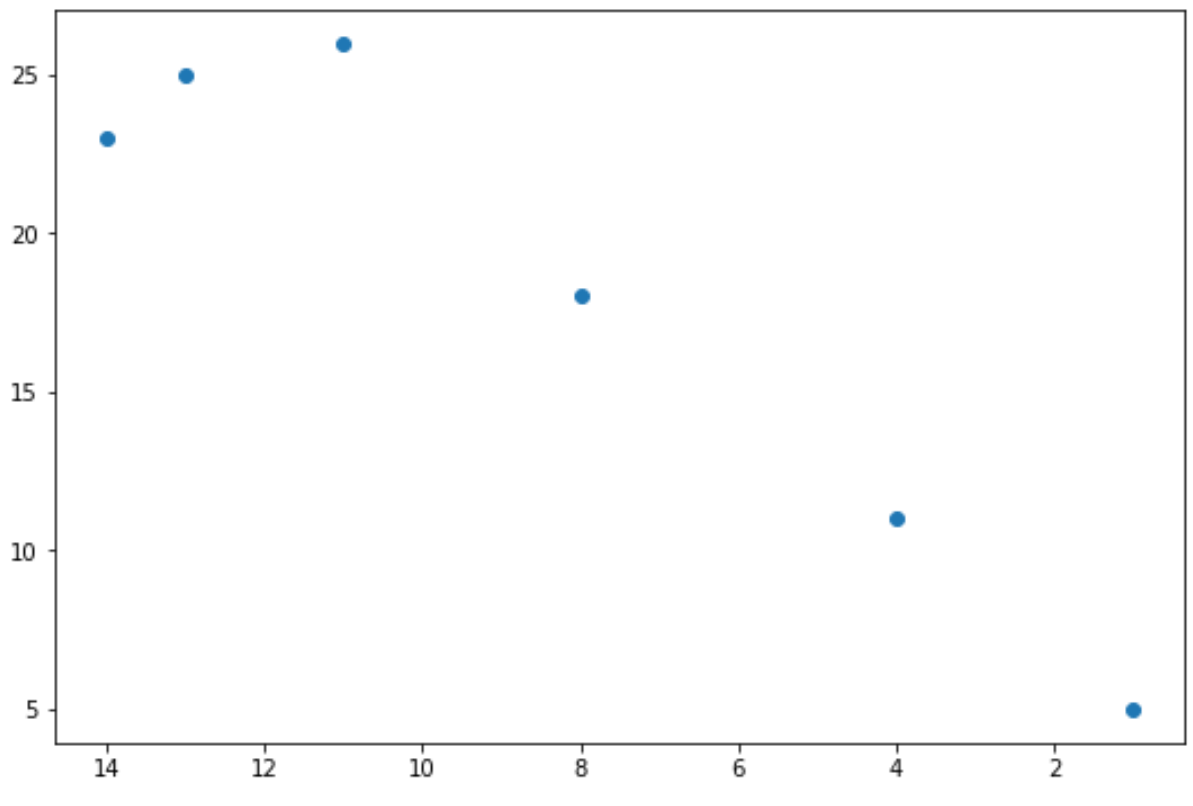

After execution, the X-axis values are reversed, now ranging from 14 down to 1. This horizontal inversion transforms the visual interpretation of the data flow, which can be critical for maintaining domain-specific charting standards.

Example 4: Combined Reversal of Both Axes

There are scenarios where the dataset requires a full 180-degree rotation of the coordinate system relative to the standard Cartesian coordinate system. This combined reversal is necessary when both the horizontal and vertical conventions demand that the maximum values are displayed closest to the origin, or perhaps when simulating a specific view of a physical system. The operation is achieved by simply calling both inversion methods sequentially on the active Axes object.

Crucially, the order in which .invert_xaxis() and .invert_yaxis() are called is irrelevant, as they operate independently on their respective axis properties. The overall outcome is a plot where the minimum values (1, 5 in our example) are effectively positioned at the top-right corner, and the maximum values (14, 26) are positioned at the bottom-left. This produces a profound shift in the visual representation of the data distribution, which is often mandatory when comparing results with specialized legacy systems or non-standard protocols.

The following comprehensive code snippet includes both inversion commands. This demonstrates how effortless it is to achieve a dual reversal using the procedural interface of Matplotlib, requiring only two lines of code to fundamentally change the plot’s orientation.

import matplotlib.pyplot as plt

# Define x and y data
x = [1, 4, 8, 11, 13, 14]
y = [5, 11, 18, 26, 25, 23]

# Create scatterplot
plt.scatter(x, y)

# Reverse both axes
plt.gca().invert_xaxis()
plt.gca().invert_yaxis()

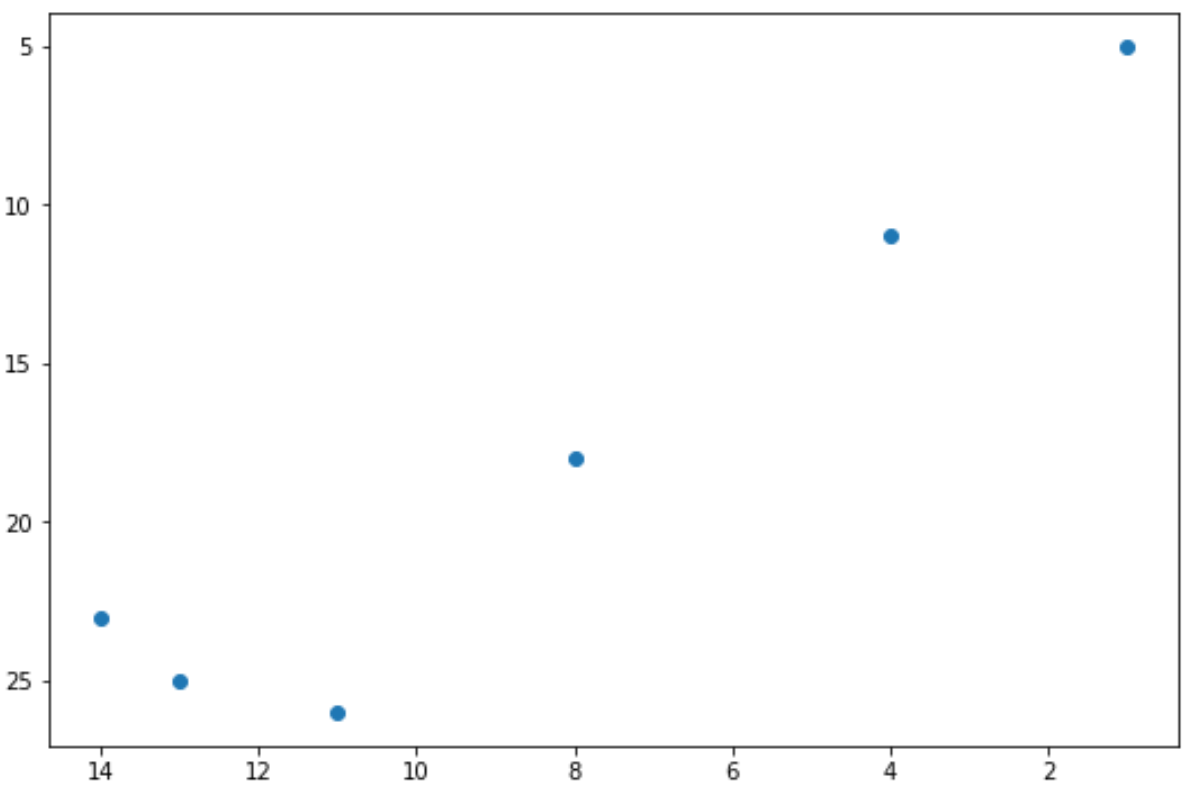

The resultant plot clearly shows that both axes values are reversed. The X-axis reads high-to-low (left-to-right), and the Y-axis reads high-to-low (top-to-bottom). This powerful demonstration concludes our exploration of the basic procedural reversal methods, providing a robust toolkit for adapting plot orientations.

Advanced Techniques and Object-Oriented Alternatives

While the plt.gca().invert_xaxis() pattern is highly effective and simple for quick scripts, production-level code and more complex visualization pipelines often benefit from adopting the object-oriented (OO) approach inherent to Matplotlib. The OO model provides superior control, particularly when dealing with multiple subplots or embedding visualizations within larger Python applications. In the OO paradigm, instead of relying on the implicit “current axes,” the user explicitly defines and manages the Figure (fig) and Axes object (ax) at creation (e.g., fig, ax = plt.subplots()).

Under the object-oriented model, the functional mechanism remains identical: the inversion methods are simply called directly upon the explicit Axes instance (e.g., ax.invert_yaxis()). This switch from procedural to OO style maintains the core functionality while significantly enhancing code readability, maintainability, and scalability. Developers working on sophisticated data dashboards or scientific simulations are strongly encouraged to utilize this explicit object-oriented control mechanism.

Furthermore, a crucial alternative to the dedicated inversion methods involves manually setting the axis limits using the set_xlim() and set_ylim() functions. This technique bypasses the simple toggle mechanism and allows for granular control over the displayed range, regardless of the data’s true minimum and maximum values. To achieve reversal using this method, one simply passes the maximum desired value as the first argument and the minimum as the second. This forces the axis to decrease from left to right or top to bottom.

• For procedural style: plt.xlim(max_value, min_value)
• For object-oriented style: ax.set_xlim(max_value, min_value)

This manual limit setting is especially useful if you need to reverse the axis while simultaneously ensuring the plot always displays a specific, fixed range that might extend beyond or truncate the data’s natural bounds. Regardless of whether you choose the simple invert_axis() toggle or the powerful set_xlim() setter function, Matplotlib ensures that manipulating the visual orientation of your data remains a straightforward and highly flexible task, adapting seamlessly to any visualization requirement.

Summary and Further Resources

The ability to reverse axes in Matplotlib is a critical skill for any data scientist dealing with domain-specific visualization standards. Whether reversing the Y-axis for geological depth plots or flipping the X-axis for chronological requirements, the library offers robust and highly efficient solutions through both the procedural pyplot interface and the flexible object-oriented approach. By utilizing simple methods like .invert_xaxis() or explicitly setting limits via plt.xlim(), users gain complete control over the display conventions of the Cartesian coordinate system.

Mastering axis manipulation is just one step in maximizing the potential of Matplotlib. For those interested in exploring related topics and enhancing their visualization expertise within the Python ecosystem, the following tutorials explain how to perform other common operations required for professional data visualization:

• How to label axes and titles effectively.
• Techniques for using multiple subplots in a single figure.
• Advanced customization of tick marks and grid lines.
