Save Matplotlib Figure to a File (With Examples)

Understanding the Core Syntax of plt.savefig()

The process of generating compelling data visualizations using the Matplotlib library is central to modern data analysis in Python. However, the visualization is only complete when it can be effectively shared. To distribute these plots, embed them in reports, or include them in presentations, we must export the generated figure object from the system memory into a permanent file format. This essential export operation is handled by the savefig() function, which is conveniently accessed via the pyplot interface, typically imported as plt.

The greatest strength of the plt.savefig() function lies in its simplicity and versatility. At its most basic, it requires only a single, crucial argument: the desired output file name, which must include the appropriate file extension. Matplotlib intelligently interprets this extension—whether it is .png, .jpg, .pdf, or .svg—to automatically determine the required output format and execute the necessary rendering pipeline. This streamlined approach enables developers to effortlessly transform dynamic plots into static media types suitable for nearly any purpose, ranging from high-resolution print to fast-loading web display.

When invoked without explicitly specifying a figure object, plt.savefig() operates on the most recently active figure in the current session. The following basic syntax demonstrates the fundamental usage of the function, illustrating how a single visualization can be simultaneously exported to multiple common file types merely by changing the file extension in subsequent calls. This command is always placed at the conclusion of the plotting script, after all visual elements have been finalized.

import matplotlib.pyplot as plt

#save figure in various formats
plt.savefig('my_plot.png')
plt.savefig('my_plot.jpg')
plt.savefig('my_plot.pdf')

These introductory commands highlight the inherent flexibility and ease of use provided by the savefig() function. In the subsequent sections, we will integrate this fundamental syntax into complete, practical plotting workflows, beginning with the highly favored PNG format, which is the standard choice for web-based applications.

Saving a Matplotlib Figure to a PNG File: A Practical Walkthrough

The Portable Network Graphics (PNG) format stands out as the most ubiquitous choice for exporting data visualizations intended for digital consumption, such as inclusion in online reports or websites. Its primary technical benefit is the use of lossless compression. This critical feature guarantees that the plot’s visual integrity—including the sharpness of lines, the fidelity of colors, and the clarity of text—is perfectly preserved during the saving process. In contrast, lossy formats like JPG introduce artifacts to minimize file size, making them less suitable for precise scientific graphs where detail retention is paramount.

To effectively demonstrate how to export a visualization to a PNG file, we must first establish a complete, functional plotting script. This involves defining a basic dataset, creating the plot itself (here, a simple line graph), and crucially, ensuring that all necessary labeling—including axis titles and potentially a figure title—is applied. This preparation phase is vital because savefig() captures the figure exactly as it exists in memory at the moment of execution. If labels or titles are missing, the resulting image will be incomplete.

The comprehensive code block below illustrates the entire workflow, starting with the necessary imports from the Matplotlib library, defining the data coordinates, generating the visualization using plt.plot(), and finally, concluding the process by saving the resulting figure as my_plot.png.

import matplotlib.pyplot as plt

#define data
x = [1, 2, 3, 4, 5, 6]
y = [8, 13, 14, 11, 16, 22]

#create scatterplot with axis labels
plt.plot(x, y)
plt.xlabel('X Variable')
plt.ylabel('Y Variable')

#save figure to PNG file
plt.savefig('my_plot.png')

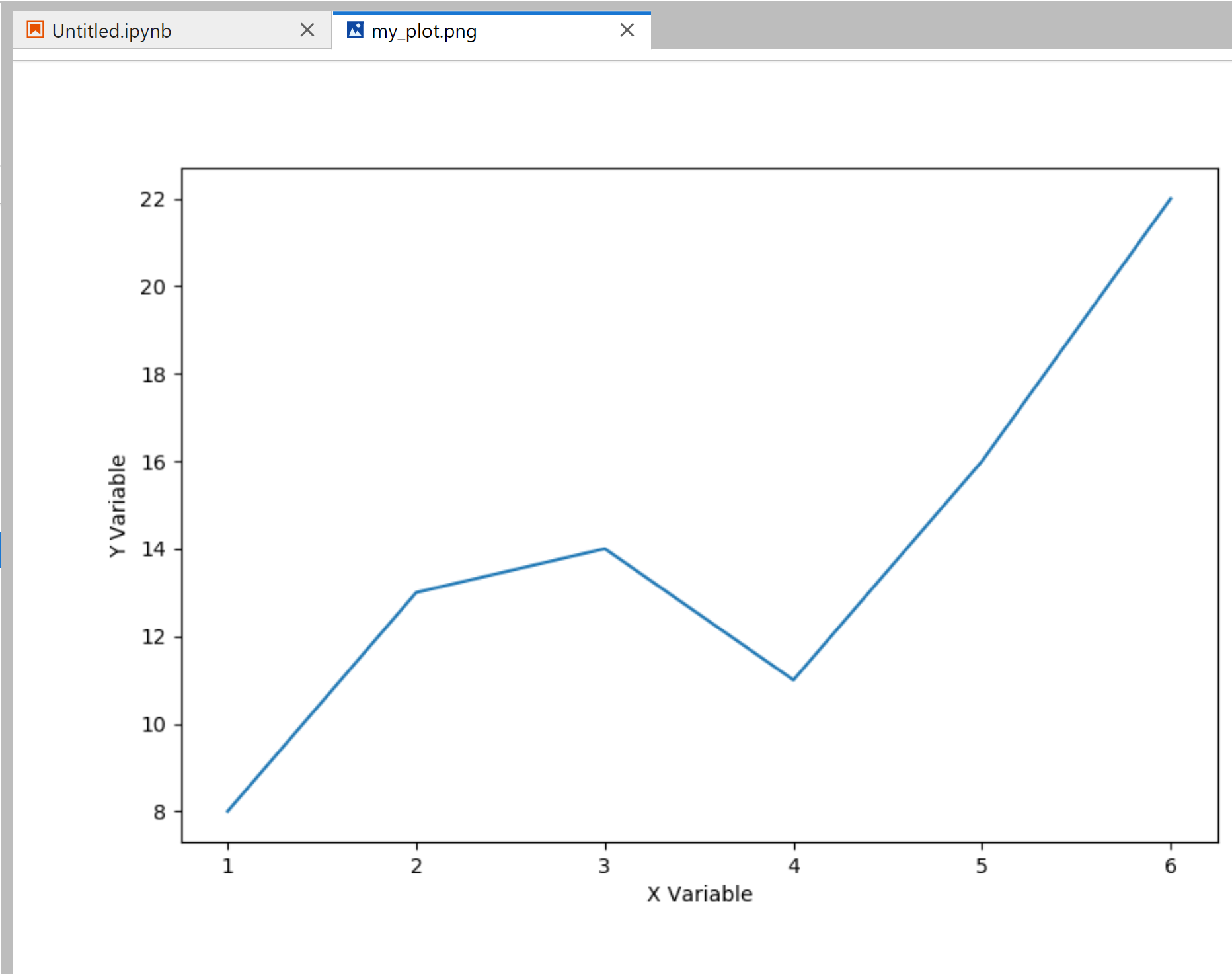

Upon successful execution, the image file is automatically generated and placed in the directory from which the Python script was executed, unless a fully qualified path was explicitly provided in the filename string. Examining the resulting file confirms that all elements, including the data points, the plotted line, and the axis labels, were correctly captured and exported in the high-fidelity PNG format, ready for immediate deployment or reporting.

Exploring Different Output Formats (Vector vs. Raster)

While PNG is perfectly suited for screen-based viewing, the selection of the ideal file format is a critical decision that must align with the graphic’s ultimate intended use, such as web embedding, high-quality printing, or dynamic document creation. Matplotlib provides support for both Raster formats and Vector formats, and understanding the core differences between these two categories is essential for producing professional-grade output.

Raster formats, which include PNG and JPG, describe an image as a fixed grid of colored pixels. This makes them inherently resolution-dependent; if a raster image is scaled up significantly beyond its native resolution, it will inevitably suffer from blurring, jagged edges, or visible pixelation. JPG (JPEG) specifically uses lossy compression to achieve smaller file sizes, making it acceptable for photographs or complex images with smooth gradients, but generally unsuitable for scientific line plots where clarity and precision are non-negotiable.

In contrast, Vector formats, such as PDF and SVG, store graphics not as pixels, but as mathematical instructions—descriptions of geometric shapes, lines, and colors. Because they are defined mathematically, vector graphics are completely resolution-independent. They can be scaled infinitely large or small without any degradation in quality, preserving perfect sharpness regardless of the magnification level. This characteristic makes vector formats absolutely mandatory for academic publishing, high-resolution printing, and professional design work.

If the requirement is high-fidelity output for professional documentation or print publication, exporting the figure as a PDF or SVG is the recommended approach. Switching the format requires no complex changes; one merely alters the file extension provided to the savefig() function. Matplotlib handles the internal conversion automatically, rendering the plot based on its mathematical definitions rather than a fixed pixel array.

• PNG: Highly suitable for web display and digital reports; uses lossless compression.

• JPG: Effective for significantly smaller file sizes but relies on lossy compression (should be avoided for precise line plots and charts).

• PDF/SVG: Essential for print media and high-resolution environments, offering infinite scalability due to their nature as vector graphics.

Controlling Figure Padding and Margins using Tight Layout

By default, when Matplotlib renders a plot, it applies generous whitespace padding around the perimeter of the entire figure canvas. This default margin is designed to ensure that elements like axis labels, titles, and potential legends are never inadvertently clipped or cut off during the saving process. While safe, this often results in a significant amount of extraneous blank space surrounding the visualization, which can appear inefficient or unprofessional when the figure is embedded into a document with constrained space. A key goal for clean data visualization is minimizing this unnecessary external whitespace.

Matplotlib provides an elegant and highly effective solution for this through the bbox_inches argument, which is passed directly to the savefig() function. When this argument is set to bbox_inches='tight', the library is instructed to intelligently analyze the entire plot composition—including all text, ticks, labels, and the plotting area itself—and calculate the smallest possible bounding box that fully contains all elements. The output file is then cropped precisely to this calculated boundary. This powerful feature completely eliminates distracting external margins, resulting in a much more focused and compact visualization.

This functionality is particularly valuable for complex figures that might include legends positioned outside the main plotting area or long titles that extend near the edge of the canvas. Using bbox_inches='tight' guarantees that these elements are included in the final export without forcing excessive empty space. It is important to note that this parameter only affects the file generation; the in-memory figure object itself remains unchanged, preserving its original default padding configuration.

#save figure to PNG file with no padding
plt.savefig('my_plot.png', bbox_inches='tight')

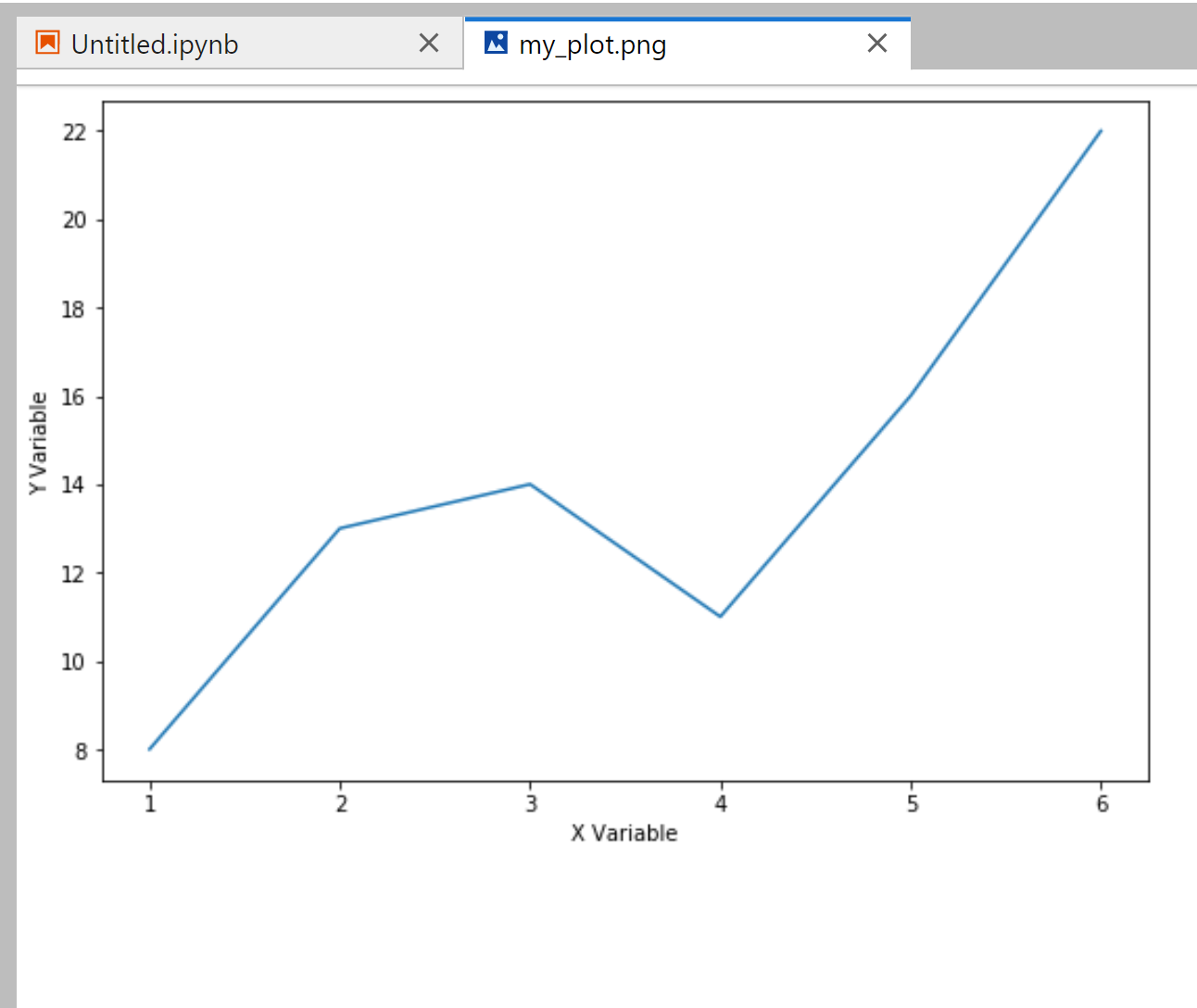

When this argument is successfully applied, the resulting output image showcases a dramatically reduced margin around the plot boundary compared to the default output. This technique maximizes the visual impact of the data, ensuring the majority of the file’s space is dedicated to the actual visualization content, as clearly demonstrated by the resulting image below.

Customizing Image Quality and Size with DPI

In addition to selecting the file format, controlling the physical size and inherent quality of a saved image is managed through its resolution, which is quantified in DPI (Dots Per Inch). The DPI value fundamentally dictates the pixel density—how many pixels are packed into every linear inch of the saved image space. Consequently, a higher DPI setting produces an image that is physically larger and offers superior print quality, while a lower DPI is sufficient for simple screen viewing but may suffer from pixelation if magnified or printed at a large scale.

Matplotlib typically uses a default DPI setting of 100 for all saved figures. If the requirement is to export an image with a greater physical size or to satisfy the strict high-resolution standards often mandated by academic journals (which commonly require 300 DPI or greater), the dpi parameter must be explicitly defined within the savefig() function call. Increasing the DPI effectively scales the visualization up, thereby increasing the total pixel count while meticulously preserving the aspect ratio established by the initial figure size definition.

For typical digital applications, a DPI range between 72 and 150 is usually adequate for a crisp display on monitors. However, for any print media application, setting the DPI to 300 is considered the industry benchmark for guaranteeing sharp, artifact-free, non-pixelated results. It is crucial to remember the scaling impact: increasing the DPI linearly scales the dimensions of the output image. For instance, doubling the DPI from 100 to 200 quadruples the total number of pixels in the image, resulting in a substantially larger file size and memory footprint.

#save figure to PNG file with increased size
plt.savefig('my_plot.png', dpi = 300)

A figure saved using a higher DPI setting will be visibly larger and exhibit a significantly greater level of detail compared to the default 100 DPI output. This makes the figure perfectly suited for scenarios where visual fidelity and precise sizing are non-negotiable requirements. The image provided below illustrates the palpable effect of specifying a higher resolution through the dpi argument, leading to a noticeably expanded visualization area.

Advanced Parameters for Exporting Transparent and High-Quality Figures

The capabilities of plt.savefig() extend well beyond basic format and resolution control, offering a suite of advanced parameters that allow users to meticulously fine-tune the aesthetic properties of the exported graphic, particularly concerning background appearance and color. These sophisticated settings are indispensable when plots must be seamlessly integrated into complex documents, reports, or web pages where the visualization needs to harmonize with the surrounding design elements.

One of the most frequently employed advanced options is the transparent=True parameter. When this boolean flag is activated, it mandates that the background of the figure canvas is rendered as completely transparent in the final saved file. This functionality is absolutely essential when exporting to formats that support transparency, such as PNG or SVG. Transparency allows the underlying background color of the webpage or document to show through the plot area, preventing the visually distracting effect of a standard white box sitting atop a colored design.

Furthermore, users retain explicit control over the figure’s primary background colors—specifically the face color (the main background) and the edge color (the boundary)—using the facecolor and edgecolor arguments. These parameters accept standard HTML color names or precise hexadecimal color codes. While less common than using transparency, specifying these colors can be beneficial for specific branding requirements or when preparing plots for environments that strictly expect a defined, non-white background tone for the bounding box.

By combining these advanced parameters, developers can create highly customized outputs tailored to professional specifications. For instance, achieving a high-resolution (300 DPI) figure that features minimal padding (bbox_inches='tight') and a transparent background (transparent=True) is a standard requirement for professional web publishing and high-end digital design integration.

# Example of combined advanced saving options
plt.savefig('transparent_hires_plot.png',
bbox_inches='tight',
dpi = 300,
transparent = True)

Mastery of these detailed parameters ensures that the saved Matplotlib figure is not merely an accurate representation of the underlying data, but a fully polished, publication-ready graphic prepared for seamless integration into virtually any design context.

Summary and Further Matplotlib Resources

Successfully exporting a Matplotlib visualization is reliant upon a thorough understanding of the core plt.savefig() function and its crucial optional arguments. We have explored how the filename extension dictates the output format, forcing a choice between resolution-dependent Raster formats (like PNG) and infinitely scalable Vector formats (like PDF and SVG). We also demonstrated the essential technique for controlling the figure’s spatial layout by employing the powerful bbox_inches='tight' parameter to systematically eliminate distracting external whitespace.

Furthermore, we detailed the process of managing the figure’s resolution and physical print size through the use of the dpi argument. This capability is paramount for ensuring that the visualization meets the stringent quality standards required for different target media, whether that be low-resolution web display or demanding, high-resolution commercial printing. By diligently leveraging these fundamental and advanced parameters, developers can ensure their visualizations are exported and preserved exactly as they were conceived in the code.

For power users and those seeking complete control over every facet of the figure saving process, consulting the official Matplotlib documentation is highly recommended. The savefig() function boasts dozens of additional parameters that govern everything from compression quality, specific color profiles, to the inclusion of metadata within the output file, providing an unparalleled level of customization for the final static graphic.

The following resources offer critical documentation and further tutorials for expanding your mastery of Matplotlib functionality:

• Complete Online Documentation for plt.savefig()

• Tutorial on customizing colors and styles in Matplotlib.

• Guide to working with subplots and complex layouts.
