Learning to Interpret Scatterplots: A Comprehensive Guide to Understanding Bivariate Data

The Foundational Role of Scatterplots in Data Exploration

Scatterplots are indispensable instruments in the field of data visualization, providing a direct graphical representation of the relationship between two numerical variables. Their primary function in statistical analysis is to reveal patterns of association—or the complete absence thereof—that might be obscured within raw data tables. Unlike charts focused on single-variable characteristics, such as histograms or box plots, a scatterplot maps individual data points as coordinate pairs, allowing analysts to quickly grasp the nature, direction, and strength of the bivariate relationship. This visual inspection is often the crucial first step before moving to advanced analytical techniques, such as applying a linear regression model.

The core utility of a scatterplot lies in its immediate ability to convey complex relational information. When researchers hypothesize that changes in one factor influence another—for example, measuring how years of experience relates to salary, or how advertising spend correlates with sales volume—the scatterplot offers compelling visual evidence. This initial assessment guides the analyst in validating assumptions, formulating precise hypotheses, and selecting the most appropriate quantitative methods for deeper inquiry. A well-constructed scatterplot instantly translates numerical complexity into intuitive spatial patterns.

To illustrate this powerful concept, consider a common practical scenario in sports analytics. We aim to understand the physical relationship between basketball players’ height and weight. We gather a raw dataset containing these two measurements for every player in the sample population. The data points, before visualization, appear in a tabular format, making it difficult to discern any immediate trend:

In this context, height and weight are the two quantitative variables under scrutiny. The scatterplot is uniquely suited for plotting these pairs, as it allows us to visualize how these characteristics interact across the collective sample of athletes.

Defining Axes and Constructing the Visualization

The process of constructing a scatterplot is fundamentally straightforward, yet careful attention must be paid to the assignment of variables to the coordinate axes, as this decision dictates proper interpretation. By convention, the variable hypothesized to be the cause, predictor, or independent variable is always mapped along the horizontal axis (the x-axis). Conversely, the variable that is being predicted or measured as the response—the dependent variable—is plotted along the vertical axis (the y-axis). In our basketball example, although the relationship between height and weight is mutual, height is often treated as the predictor when examining body mass, thus typically residing on the x-axis.

To create the visual, each observation (representing a single player) is transformed into a single coordinate point (x, y). If a specific player measures 75 inches in height (the x-value) and 220 pounds in weight (the y-value), they are represented by a distinct dot at the coordinate (75, 220). The aggregation of all these individual points forms the scatterplot, which provides an immediate and holistic view of the entire dataset.

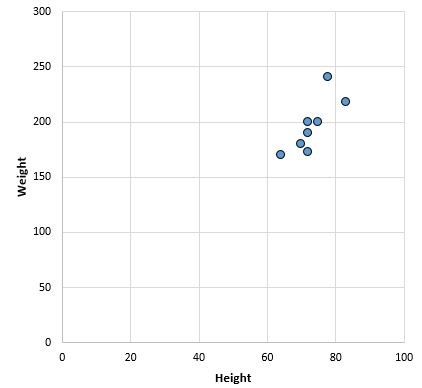

Once the plotting process is complete, the resulting graph instantly provides profound insights into the potential relationship. The visualization below is generated from the height and weight data, clearly displaying the joint distribution and how the two variables correspond:

From this visual output, a clear trend emerges: as the x-values (height) increase, the y-values (weight) generally increase as well. This noticeable upward trajectory is the first key component in scatterplot analysis, establishing the direction of the relationship, which is formally defined through correlation.

Analyzing Correlation: Direction, Shape, and Significance

The interpretation of a scatterplot begins by assessing the direction of the correlation, which describes how the variables move relative to one another. Understanding this direction is paramount, as it determines how changes in the independent variable relate to observed changes in the dependent variable. We generally categorize these relationships into three distinct types: positive, negative, and zero correlation.

A positive relationship, often referred to as positive correlation, is observed when the values of both variables ascend simultaneously. Visually, the data points on the scatterplot trend upward and to the right, forming an ascending pattern. Our basketball example perfectly illustrates this: taller players tend to be heavier. This type of relationship is commonly found in areas where factors are naturally complementary, such as the relationship between years of schooling and lifetime earnings, or the concentration of a pollutant and its measurable impact.

Conversely, a negative relationship, known technically as negative correlation, occurs when an increase in the x-variable corresponds to a decrease in the y-variable. When plotted, the data points will trend downward and to the right, forming a descending pattern. Classic examples include the relationship between vehicle age and market resale value, or the relationship between time spent exercising and body mass index (BMI).

Finally, if the data points are dispersed randomly across the plotting area, displaying no discernible pattern, either upward or downward, we conclude that there is no relationship or zero correlation. In this scenario, the value of the independent variable provides no meaningful information or predictive power concerning the value of the dependent variable. For example, plotting the number of siblings a person has against their score on a standardized math test would likely result in a zero correlation.

Assessing the Strength of Association and Form

Beyond simply identifying the direction of the relationship, a scatterplot is also crucial for visually judging the strength of the association. The strength quantifies how closely the data points adhere to a theoretical line of best fit. The more tightly clustered the points are around this imaginary line, the stronger the relationship, which implies higher reliability and predictive accuracy if a model were built upon this data.

We typically categorize the strength as strong, moderate, or weak. The following visualizations demonstrate the spectrum of both strength and direction, highlighting how the dispersion of points directly impacts interpretation:

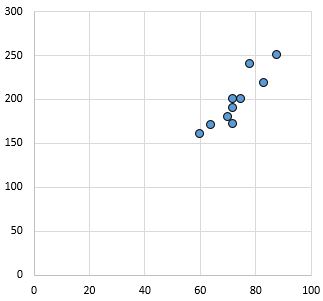

• Strong, Positive Relationship: As the x-variable consistently increases, the y-variable increases in lockstep. The data points are tightly packed, forming a clear, narrow band that suggests the variables are highly interdependent and predictable.

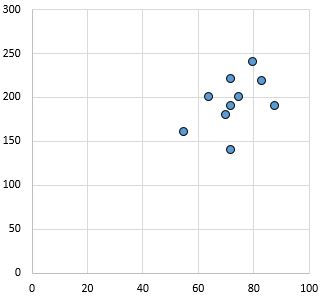

• Weak, Positive Relationship: An overall upward trend is still visible, indicating that both variables increase together, but the data points are widely scattered. This wide dispersion signifies that while a relationship exists, it is not highly predictive, suggesting that numerous other confounding factors influence the y-variable.

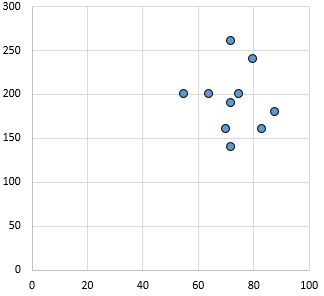

• No Relationship (Zero Correlation): There is no systematic pattern or discernible slope; the points are distributed randomly across the plane. Observing the value of the x-variable offers no useful insight or prediction about the value of the y-variable.

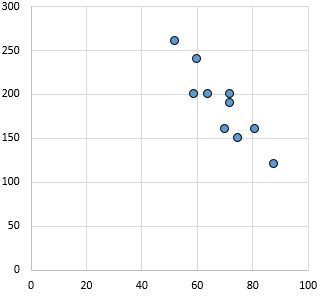

• Strong, Negative Relationship: As the x-variable increases, the y-variable decreases in a highly consistent manner. The dots form a tight cluster along a distinct downward slope, indicating a powerful inverse relationship.

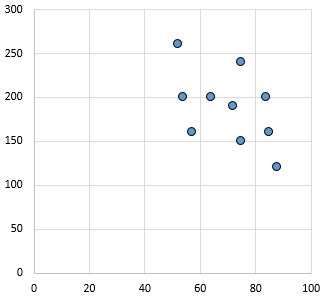

• Weak, Negative Relationship: A general downward trend is visible, but the data points are widely scattered and loosely organized. The inverse relationship exists, but its predictive efficacy is low due to high variance.



Identifying Anomalies and Non-Linear Structures

One of the most critical advantages of using scatterplots is their diagnostic capability, allowing analysts to detect patterns that simple summary statistics might miss. Specifically, they reveal the presence of outliers and any underlying curvilinear relationships. An outlier is an isolated data point situated significantly far from the main body of the data cluster. Visually identifying these anomalies is vital, as they possess the potential to severely distort statistical calculations, such as the Pearson correlation coefficient (r) or the resulting regression line. Outliers may signal genuine, extreme phenomena, or they might simply be the result of recording errors that require correction or exclusion.

Furthermore, while numerical correlation metrics primarily quantify how well data aligns with a straight line, scatterplots reveal whether the underlying relationship is better modeled by a curve—a non-linear pattern. Examples of non-linear forms include parabolic (U-shaped) or exponential (J-shaped) growth curves. If the visual evidence strongly suggests a curve, standard linear regression techniques would be inappropriate and yield poor predictive results. In such cases, analysts must pivot to employing specialized non-linear regression models, underscoring the plot’s importance as a preliminary modeling check.

The visual assessment of the scatterplot serves as an essential diagnostic tool for model validation. If the plot displays a clear curvilinear structure, fitting a straight line will inevitably lead to biased predictions and inaccurate conclusions. Similarly, if severe outliers are present, they must be rigorously investigated and addressed (either by transformation, removal, or separate analysis) to ensure that the resulting statistical model accurately and robustly represents the trends within the majority of the dataset.

Real-World Applications and Statistical Diagnostics

Due to their simplicity and universal interpretability, scatterplots are indispensable across virtually all scientific, engineering, and commercial disciplines. Their applications are expansive: economists use them to visualize macroeconomic relationships, such as the inverse relationship between inflation and unemployment; medical researchers plot drug dosage against observed therapeutic outcomes; and environmental scientists plot pollution levels against geographic proximity. This versatility establishes the scatterplot as a universal language for exploratory analysis.

Beyond initial exploration, one of the most powerful statistical uses of scatterplots is in validating the foundational assumptions required for more sophisticated analytical tests. Many advanced methods, including multiple linear regression, rely fundamentally on the assumption of linearity between the predictor and response variables. A rapid review of the scatterplot immediately confirms whether this crucial assumption is met. If the plot reveals strong non-linearity or issues like heteroscedasticity (unequal spread of variance across the data), the analyst is immediately alerted that data transformation or alternative modeling approaches are required before proceeding.

In fields such as manufacturing and quality control, scatterplots are actively used to monitor and manage processes. By plotting two critical process characteristics—such as temperature against product tensile strength—engineers can rapidly detect process drift, unusual shifts, or anomalies in production over time, facilitating proactive intervention. This capability to instantly reveal patterns and validate statistical assumptions solidifies the scatterplot’s foundational status in exploratory data visualization.

Leveraging Modern Tools for Efficient Generation

While manually plotting data points is an effective pedagogical tool for grasping the underlying mechanism, modern statistical software and specialized platforms are now utilized to streamline the visualization process. These tools are absolutely essential when dealing with large-scale datasets, where manual plotting becomes impractical and inefficient.

Most professional statistical programming environments—including R, Python libraries (like Matplotlib and Seaborn), and proprietary commercial packages—offer extensive functionalities for customizing scatterplots. These enhancements include the ability to seamlessly overlay fitted regression lines, calculate and display confidence intervals, color-code points based on a third categorical variable, and introduce interactive features (like zooming and tooltips). These capabilities facilitate multi-dimensional analysis that extends far beyond the constraints of a basic two-variable plot, enhancing the power of data visualization.

To support rapid analysis and educational purposes, many online resources provide free, user-friendly scatterplot generators. These web-based tools enable users to upload or input their own data values and instantly generate visualizations, allowing them to focus entirely on interpretation and analytical insights rather than manual calculation or complex programming syntax.
