Tutorial: Adjusting Axis Label Position in ggplot2 for Enhanced Data Visualization

Welcome to this comprehensive technical guide focused on refining data visualization aesthetics using ggplot2, the preeminent plotting system within the R environment. Achieving professional-grade plots often requires meticulous attention to detail, and one crucial element is managing the spacing between the axis title and the axis line itself. Adjusting this distance—a seemingly minor modification—can dramatically improve a plot’s readability, reduce clutter, and elevate its overall presentation quality.

Precise control over the positioning of axis titles is facilitated by ggplot2’s powerful and flexible theming architecture. We primarily utilize the theme() function, targeting specific axis title components and applying customized margin settings. This approach allows developers and analysts to push the titles further away from the plot area or closer to the edges, according to aesthetic requirements.

The core mechanism for this adjustment involves nesting the `margin()` function within the element_text() call, which is then passed to the appropriate axis title argument within theme(). The foundational syntax required to modify axis label position in ggplot2 is illustrated below:

theme(axis.title.x = element_text(margin=margin(t=20)), #add margin to x-axis title
      axis.title.y = element_text(margin=margin(r=60))) #add margin to y-axis title

This critical snippet defines the targeting mechanism (axis.title.x or axis.title.y) and introduces the essential components for spacing control: the `margin()` helper function, which dictates the precise spacing values, and the wrapper function, element_text(), which specifies the title as a modifiable text element. Understanding how these functions interact is key to mastering axis title placement.

Understanding Directional Margin Control in ggplot2

The core principle governing axis title placement relies on the concept of margins, a practice borrowed from typography and web layout design. This system uses invisible padding around the target element—in this case, the axis title text box—to push it away from adjacent elements. In ggplot2, this spacing is handled exclusively by the `margin()` helper function, which must be correctly embedded within the element_text() structure.

The `margin()` function provides directional control through four distinct arguments: t (top), r (right), b (bottom), and l (left). These arguments define the padding applied to each side of the axis title element. When working with the X-axis title, for example, which resides below the axis line, increasing the t (top) margin adds space above the title, effectively pushing the title downwards toward the bottom of the visualization frame.

It is important to note that the default unit for margin values in theme() adjustments is the point (pt), a standard unit in typographic measure. This unit ensures that spacing remains consistent relative to the text size used in the plot. The successful application of t, r, b, and l is dependent on the orientation of the axis title itself, which requires different directional adjustments for the horizontal (X) and vertical (Y) axes.

For the horizontal X-axis title, the primary adjustment used to create separation is the t (top) margin, pushing the title away from the plot area. Conversely, the Y-axis title is typically rotated 90 degrees and positioned vertically to the left of the plot. To move this title outward, away from the axis line and tick labels, we must increase the r (right) margin, as the title’s right boundary is closest to the plot panel.

Integrating element_text() for Text Property Modification

The mechanism for applying visual changes to textual elements in ggplot2 relies on explicitly declaring the element as text that can be customized. This declaration is performed using the crucial element_text() function. By wrapping the target element—such as an axis title—with element_text(), we unlock the ability to adjust a wide range of aesthetic properties.

Within the overarching theme() function, we use specific targeting arguments like axis.title.x and axis.title.y to select the titles for the X and Y axes, respectively. Assigning these arguments to element_text() gives us granular control over attributes, including font family, size, color, rotation, and, critically for this tutorial, the spatial margin.

The process of defining the spacing involves passing the `margin` parameter directly into element_text(), which in turn accepts the output of the `margin()` function. This hierarchical nesting—theme(...) -> element_text(margin=...) -> margin(t=..., r=...)—is the standard pattern for controlling textual placement. The subsequent examples will provide practical demonstrations of this syntax, illustrating how to achieve specific and measurable spacing objectives for both horizontal and vertical axis titles.

Example 1: Adjusting Position for the Horizontal (X) Axis Title

We begin our practical demonstration by constructing a basic scatterplot. First, we define a small, representative data frame in R, followed by the code necessary to generate the foundational visualization using geom_point():

library(ggplot2)

#create data frame
df <- data.frame(x=c(1, 2, 4, 5, 7, 8, 9, 10),
                 y=c(12, 17, 27, 39, 50, 57, 66, 80))

#create scatterplot of x vs. y
ggplot(df, aes(x=x, y=y)) +
  geom_point()

The resulting default plot illustrates the standard behavior of ggplot2: the X-axis title (labeled ‘x’) is placed immediately adjacent to the axis tick marks and labels. While functional, this default proximity can sometimes feel cramped, especially when the plot is integrated into a larger document or presentation requiring more visual breathing room.

To effectively increase the vertical distance between the X-axis title and the axis line, we must apply a margin to the side of the title element closest to the axis. Since the title sits below the axis, we target the top (t) margin of the title box. For instructional clarity, we will use a large margin value of 70 points to demonstrate the effect dramatically. This pushes the entire title element significantly further down the plot:

#create scatterplot of x vs. y with margin added on x-axis title
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  theme(axis.title.x = element_text(margin = margin(t = 70)))

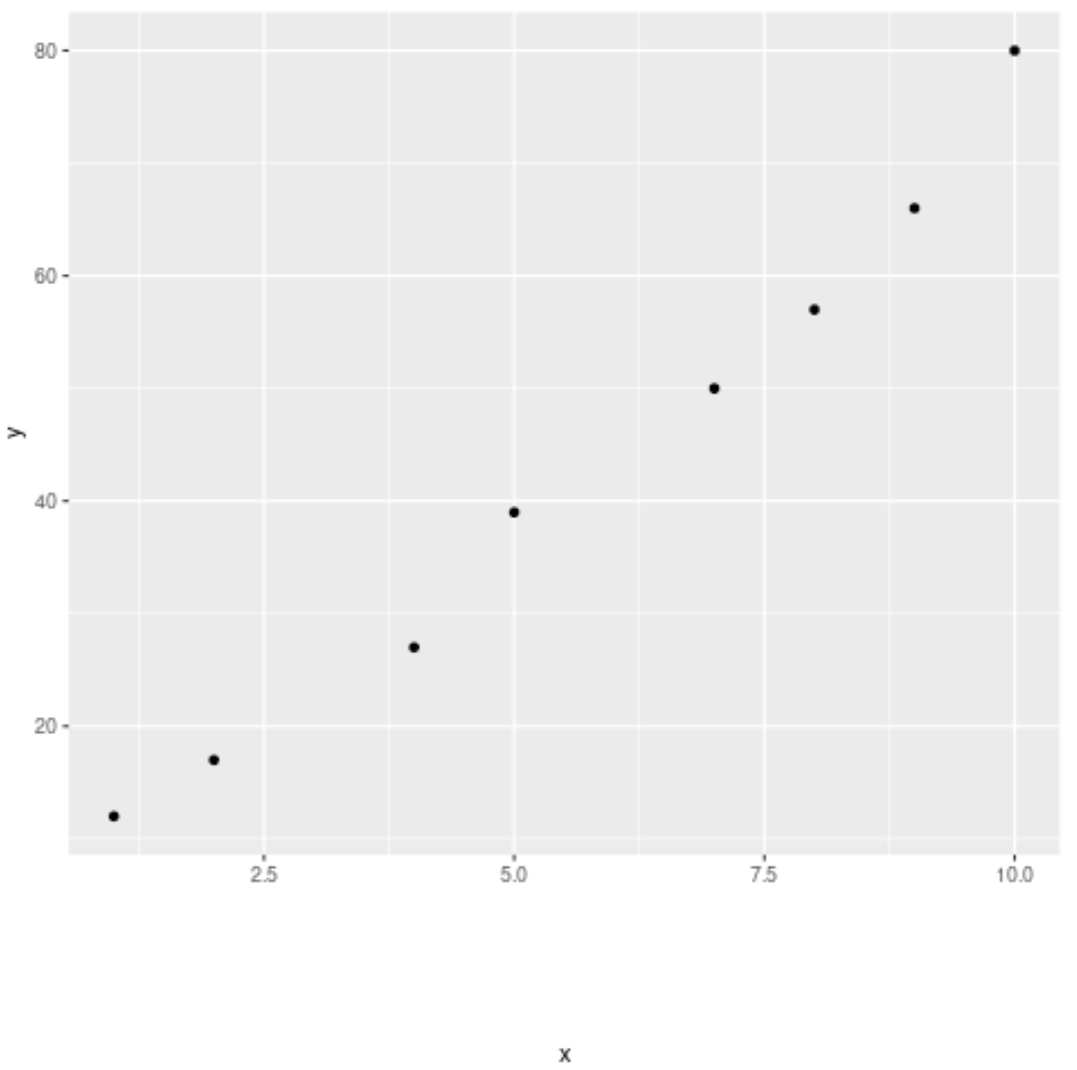

The visualization above confirms that by applying the t = 70 margin within the element_text() function, we successfully relocated the X-axis title, creating a substantial visual separation from the axis elements. This confirms the utility of the t argument for controlling the vertical offset of horizontal axis titles.

Example 2: Adjusting Position for the Vertical (Y) Axis Title

Adjusting the vertical Y-axis title requires a shift in directional thinking compared to the X-axis. Since the Y-axis title is typically rotated 90 degrees counter-clockwise and positioned to the far left of the plotting area, the margin closest to the plot panel is the element’s right side. Therefore, to push the title further away from the axis line, we must increase the r (right) margin.

Using the same data frame and basic scatterplot structure established in Example 1, our objective here is to introduce a substantial right margin (70 points) specifically to the Y-axis title using the r argument within the margin() function:

#create scatterplot of x vs. y with margin added on y-axis title
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  theme(axis.title.y = element_text(margin = margin(r = 70)))

By targeting axis.title.y and applying this large right margin, we instruct the theme() system to increase the distance between the title box and the nearest axis elements (ticks and labels). This creates a noticeable visual gap between the title and the plotted data:

The resulting visualization clearly demonstrates the efficacy of using the r margin for vertical axis title separation. This technique is highly effective not only for improved aesthetics but also as a practical solution when dealing with custom plot sizes or when axis labels are excessively long and risk overlapping with the axis title text.

Advanced Margin Control: Utilizing All Four Directions

While specific directional margins (t for X-axis, r for Y-axis) are generally sufficient for basic separation from the axis, the true power of the margin function lies in its ability to define all four sides—t (top), r (right), b (bottom), and l (left)—simultaneously. This comprehensive control is essential for complex thematic designs, allowing analysts to manage the title’s position relative to the axis, the plot border, and any neighboring elements such as legends, captions, or footnotes.

For example, to achieve precise visual balance for the X-axis title, one might need to increase the standard separation from the axis (using the top margin) while simultaneously ensuring a small buffer remains between the title and the bottom edge of the plot area (using the bottom margin). This dual adjustment enhances the title’s isolation and structure, as shown in the following syntax:

theme(axis.title.x = element_text(margin = margin(t = 30, b = 10))) # 30pt space above, 10pt space below

Mastering the simultaneous application of the t, r, b, and l arguments grants the data analyst complete mastery over the spatial placement of textual elements within the visualization. This detailed level of customization ensures that the final output not only conveys data accurately but also meets the highest standards of professional design, resulting in highly readable and aesthetically polished plots.

A key consideration when applying these settings is that margin values are cumulative, meaning they add spacing relative to the element’s default position. Since finding the perfect balance is often subjective, practical experimentation with different point values is highly recommended to discover the optimal spacing that complements the unique design requirements of each data visualization project.

Further Customization and Resources for ggplot2 Theming

The strategies for adjusting axis title position detailed in this guide leverage only one facet of the extensive theming architecture inherent in ggplot2. Producing truly polished, professional-grade visualizations frequently demands concurrent customization of numerous visual components, ranging from the background and plot panel gridlines to the detailed appearance of legends and titles.

To achieve a comprehensive understanding of plot customization, analysts should explore related operations that complement axis title positioning. Mastering these techniques ensures that all elements of the visualization work together harmoniously. Key areas for further study include:

• Methods for altering the font size, typeface, and color properties of axis tick labels.

• Techniques for suppressing or modifying major and minor gridlines, as well as axis ticks.

• Strategies for advanced customization of overall plot titles, subtitles, and captions using functions like labs().

Ultimately, the combination of accurate data mapping and meticulous thematic refinements—such as the precise management of axis title spacing—empowers users to generate visualizations that are not only statistically sound but also highly informative and aesthetically superior.
