Learning to Define Axis Limits in ggplot2 for Enhanced Data Visualization

When crafting compelling data visualization using the indispensable ggplot2 package in R, meticulous control over plot aesthetics is paramount for effective communication. One of the most essential tasks statisticians and developers face is setting explicit axis limits. Defining these boundaries allows a visualization to precisely focus on specific data ranges, thereby dramatically enhancing clarity or revealing subtle trends that might otherwise be obscured by the software’s default scaling. However, achieving this precision requires understanding a critical conceptual difference in ggplot2: the distinction between methods that remove data points outside the specified range (known as clipping) and those that merely adjust the visual scope without altering the underlying dataset (termed zooming).

Understanding Data Clipping: The xlim() and ylim() Functions

The standard methodology within ggplot2 provides two primary functions designed for rapid, straightforward limit setting: xlim() and ylim(). Crucially, these functions operate by clipping the data. Clipping signifies that any observation whose coordinate falls outside the predefined bounds is permanently excluded from the plot generation process for that specific aesthetic layer. This aggressive exclusion happens early in the plotting pipeline, meaning these data points are disregarded before statistical transformations (like calculating means or regression lines) are applied. This behavior frequently triggers the notable “Removed N rows containing missing values” warning, a clear signal that the visual representation no longer reflects the complete original dataset.

Understanding the specific function of each clipping tool is vital for accurate data representation:

• xlim(): This function is dedicated to specifying both the lower and upper bounds of the x-axis. When employed, xlim() evaluates all data points; any point falling beyond the defined minimum or maximum x-value is fundamentally treated as a missing value and subsequently removed from all relevant plot layers. Using this function effectively filters the data.

• ylim(): Analogously, ylim() specifies the lower and upper limits exclusively for the y-axis. Similar to its counterpart, using ylim() results in the removal of data observations that do not fall within the specified vertical range. Developers must exercise caution, as this data removal can potentially introduce bias or skew interpretations if the goal was simply visual adjustment.

If the analytical intent is to filter the data—that is, to explicitly exclude certain observations from all subsequent calculations and visualizations—then xlim() and ylim() are the appropriate tools. However, if the intent is merely to adjust the viewport, or to zoom in on a specific region while retaining all original data observations for accurate statistical calculations, a distinct approach is mandatory. To modify the visual axis limits without the consequential act of dropping data observations, developers must utilize the coordinate system modification function.

The Preferred Approach: Zooming with coord_cartesian()

When statistical integrity is paramount, the function coord_cartesian() offers the superior solution. This function avoids the pitfalls of premature data clipping by operating on the plot’s coordinate system late in the rendering process. Instead of filtering the raw data, coord_cartesian() acts as a visual cropping tool, only modifying the plot’s visible boundaries after all statistical transformations and calculations have been fully completed using the entire dataset. This is the definition of zooming.

• coord_cartesian(): This robust function allows developers to specify the limits for both the x-axis and y-axis simultaneously using the xlim and ylim arguments within the function call. The key advantage here is that it modifies the plot’s coordinate system, effectively zooming the plot window without discarding any underlying data points. Consequently, this method ensures that smoothing lines, boxplot statistics, and other calculations are based on the full complement of observations, thereby maintaining statistical accuracy.

This tutorial will now provide a comprehensive demonstration of these methods using a classic scatterplot derived from R’s built-in mtcars dataset. This accessible dataset provides a clear example to illustrate how each limiting function affects the final visualization and crucially, how it impacts the data integrity warnings generated.

# Load the essential ggplot2 library for visualization
library(ggplot2)

# Create the base scatterplot visualizing mileage (mpg) versus weight (wt)
ggplot(mtcars, aes(mpg, wt)) +
  geom_point()

Example 1: Implementing Data Clipping with xlim()

The primary reason for explicitly setting limits using the clipping method involves focusing the visual narrative on a specific, relevant segment of the independent variable, which is often mapped to the x-axis. Utilizing the xlim() function grants this precise control. However, as established, this method carries the inherent risk of data removal, a consequence that must be carefully considered during subsequent data interpretation. By supplying two numeric arguments to xlim(), we define the exact minimum and maximum horizontal values to be displayed.

Consider the practical implementation below, where we restrict the plot to only display data points where the miles per gallon (mpg) falls strictly between 15 and 30. This decision actively clips any observations with mpg values below 15 or above 30. The code structure remains straightforward, requiring only the addition of the xlim() layer to the existing base plot definition. The resulting warning message in the R console confirms the exact number of rows that were discarded because they fell outside these newly imposed boundaries, concretely demonstrating the data-clipping behavior of this function.

# Create scatterplot with x-axis ranging strictly from 15 to 30
ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  xlim(15, 30)

Warning message:
“Removed 9 rows containing missing values (geom_point).”

Furthermore, developers often require the flexibility to define only one boundary while permitting ggplot2 to automatically determine the other based on the remaining visible data. This flexibility is achieved by substituting the boundary to be automatically calculated with the special constant NA (Not Available). For instance, if the goal is only to ensure the x-axis does not exceed a maximum value of 30, but the lower bound should dynamically adapt to the minimum observed value within the dataset, we use NA as the first argument. This technique ensures that only data points exceeding 30 are clipped, thereby minimizing unnecessary data loss while still enforcing a strict upper limit.

# Create scatterplot setting only the x-axis upper limit at 30, allowing ggplot2 to choose the lower bound automatically
ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  xlim(NA, 30)

Warning message:
“Removed 4 rows containing missing values (geom_point).”

Example 2: Applying Data Clipping to the Y-Axis with ylim()

Controlling the vertical range, or the y-axis, becomes necessary when the distribution of the dependent variable is highly concentrated, or when outliers disproportionately stretch the vertical scale. The function ylim() operates identically to xlim(), but applies its powerful clipping mechanism exclusively to the vertical dimension. When we define a range using ylim(min, max), any data point whose y-coordinate (in this case, weight, or ‘wt’) falls outside this range is removed from the dataset before plotting occurs. This is a common and appropriate technique used to effectively normalize the visual space or to intentionally exclude extreme values that distort the apparent relationship between variables.

In the subsequent demonstration, we aim to constrain the weight axis (y-axis) to range only between 2 and 4. This restriction will likely exclude both very light and very heavy vehicles from the visualization. By integrating ylim(2, 4) into the plot construction, we compel the visual display to concentrate solely on the mid-range vehicle weights. Consistent with the nature of the clipping functions, the console output will promptly alert the user to the precise number of observations that have been dropped, unequivocally highlighting the consequences of using this data-modifying method for axis specification.

# Create scatterplot with y-axis constrained to range from 2 to 4
ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  ylim(2, 4)

Warning message:
“Removed 8 rows containing missing values (geom_point).”

The established ability to use NA for flexible limit setting applies equally to the ylim() function. If, for instance, we only wish to establish a lower bound—ensuring the y-axis starts exactly at 2—while allowing ggplot2 to automatically calculate the maximum value based on the remaining data points, we pass NA as the second argument. This approach proves highly beneficial when the upper range of the data is either dynamic or unknown, but a specific minimum value is strictly required for consistent visual comparison across a series of plots. This intelligent strategy minimizes unnecessary data removal by only clipping values that fall below the specified minimum threshold.

# Create scatterplot setting only the y-axis lower limit at 2, automatically determining the upper bound
ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  xlim(2, NA)

Warning message:
“Removed 4 rows containing missing values (geom_point).”

Example 3: Zooming without Data Loss via coord_cartesian()

While xlim() and ylim() are undeniably effective for data clipping, their utility drastically diminishes when the primary goal is purely aesthetic zooming. In scenarios where crucial statistical transformations (such as calculating smoothing lines, computing confidence intervals, or generating boxplot whiskers) rely fundamentally on the integrity of the entire dataset, removing observations via clipping functions can result in profoundly inaccurate representations of the underlying statistics. This is precisely the context where coord_cartesian() becomes absolutely indispensable. This function does not operate on the scale layer of the plot but rather modifies the coordinate system itself, effectively acting as a final “camera lens” adjustment applied after all data processing steps have been thoroughly completed.

The fundamental operational difference lies in the timing of execution: xlim() and ylim() are applied early in the plot generation pipeline, often before statistical summaries are computed, leading to clipped statistics. Conversely, coord_cartesian() is applied much later, effectively cropping the visual output of the calculated layers. This critical distinction ensures that if a developer applies a smoothing function (like geom_smooth), the regression line will still be calculated accurately using all 32 observations in the mtcars dataset, even if the plot is visually zoomed to show only a subset of those points. This mechanism rigorously preserves the integrity of statistical inferences derived from the visualization.

Using coord_cartesian() is highly recommended as the general best practice unless the explicit intention is to permanently filter or truncate the data visually and statistically. It supports both xlim and ylim arguments, which are supplied using R’s standard vector notation (c(min, max)). This provides a singular, consistent, and powerful mechanism for defining both axes simultaneously without incurring the confusing “Removed N rows” warning message, thereby maintaining a cleaner and far more transparent code execution environment for reproducible research.

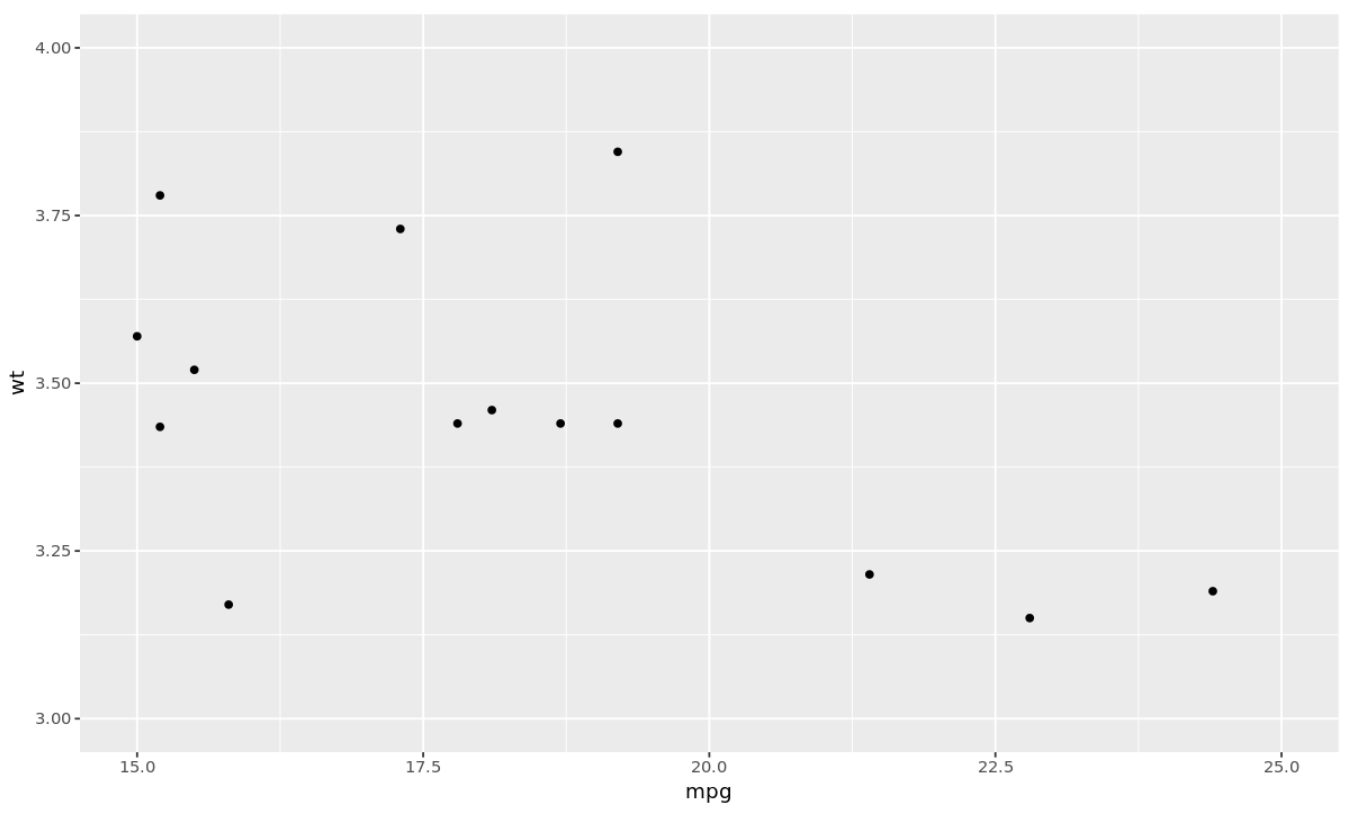

To demonstrate the superior utility of this zooming function, we will apply limits to both the x-axis (mpg) and the y-axis (wt) using coord_cartesian(). We aim to restrict the horizontal view between 15 and 25 and the vertical view between 3 and 4. Notice the crucial absence of a warning message upon execution, which confirms definitively that no data observations were removed from the underlying dataset; they were simply rendered invisible outside the defined viewport. This method allows the developer to inspect a specific quadrant of the data space while fully preserving the complete context of the dataset for any auxiliary analyses or critical visual elements.

# Create scatterplot using coord_cartesian to zoom the view between x=15 to 25 and y=3 to 4
ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  coord_cartesian(xlim =c(15, 25), ylim = c(3, 4))

Comparative Analysis: Clipping vs. Zooming for Statistical Integrity

The choice between employing xlim()/ylim() (data clipping) and coord_cartesian() (visual zooming) is fundamentally a decision concerning data integrity versus data filtering. When a user utilizes the clipping functions, they are essentially filtering the data at the very beginning of the plotting stage. This means that if they subsequently add a statistical layer, such as a regression line (geom_smooth), that line will be calculated exclusively based on the subset of data points that remain visible (i.e., those not clipped). This early filtering can often lead to a misleading representation, particularly if the original intent was simply to focus the viewer’s attention on a dense area of the plot.

Consider a practical scenario where a developer uses xlim(10, 20) on a dataset where crucial data points for accurately calculating the intercept or slope of a trend line exist outside that narrow range. If xlim() is used, the resulting trend line calculated will be based only on the truncated data, potentially resulting in a poorly fitted, biased, or statistically inaccurate summary being displayed. Conversely, if coord_cartesian() is used with the exact same limits, the trend line is calculated using the full, unclipped dataset and then merely cropped to the specified viewing window. This preserves the statistical validity of the added layers, unequivocally making the latter approach the generally preferred method for simple visualization adjustments and refinement.

Furthermore, coord_cartesian() offers superior fine-grained control over minor padding around the plot area using the expand argument, which allows for small, deliberate spaces between the data points and the axis limits. While xlim() and ylim() adjust the scales directly, coord_cartesian() provides a cleaner, more robust interface for simultaneous control over the viewport, particularly when combining various statistical and geometric layers in complex plots. Developers are strongly encouraged to default to the coordinate system method unless specific, analytically justified data truncation is required.

Conclusion: Selecting the Appropriate Axis Control Method

Mastering axis control is an absolutely vital skill for generating insightful, reproducible, and technically sound data visualizations in ggplot2. The package flexibly provides tools catering to two fundamentally different needs: data clipping via xlim() and ylim(), and visual zooming via coord_cartesian(). The primary, overarching takeaway for developers is the profound impact these functions have on the underlying data processing pipeline.

If the explicit intention is to filter out data points based on their coordinate values, potentially and knowingly affecting subsequent statistical summaries and calculations, then xlim() or ylim() is the correct, albeit cautious, choice. The accompanying warning messages generated by R serve as essential, non-negotiable reminders of this data modification. This method should be reserved for analytical filtering.

However, for the vast majority of visual refinement and presentation tasks—where the objective is merely to adjust the perceived boundaries of the plot to focus attention or standardize visualization without corrupting the integrity of the full dataset—coord_cartesian() stands as the superior and significantly safer option. It guarantees that all statistical calculations are meticulously performed on the complete set of observations, thereby preserving the integrity, accuracy, and statistical robustness of complex visual elements like smoothers or confidence intervals, regardless of the visual cropping applied.

By understanding the precise mechanisms of clipping versus zooming, developers can ensure their ggplot2 visualizations are not only aesthetically precise and engaging but also statistically robust and transparent. This detailed technical understanding elevates visualization from mere presentation to accurate, reproducible scientific communication. We encourage further exploration into advanced coordinate system controls offered by ggplot2 for specialized plotting needs.
