Automating Print Areas in Excel with VBA: A Step-by-Step Tutorial

The Critical Need for Dynamic Print Area Definition in Excel

In professional environments, users frequently work with extensive datasets within Excel workbooks. When these complex sheets must be printed, the goal is rarely to output the entire worksheet. Instead, only a specific, relevant subset of data is required. Manually selecting and configuring the print range for every report or task is highly inefficient and significantly increases the likelihood of human error. This is precisely why automation is necessary, and VBA (Visual Basic for Applications) provides the perfect solution. By integrating a straightforward macro, power users and developers gain the ability to programmatically dictate the exact boundaries of the printed output, thereby guaranteeing consistency and dramatically improving workflow efficiency.

Automating this aspect of report generation unlocks truly dynamic printing capabilities. Imagine needing to print only the records selected by a user, or perhaps defining the print range based on the results of a complex filter, calculation, or external data feed. The foundation for achieving this granular control resides within the PageSetup object, which is exposed by the VBA object model for every worksheet. Within this object, the critical PrintArea property is utilized. This property accepts a string argument that must conform to a valid cell range address format, such as the absolute reference "$A$1:$F$50".

Beyond the simple definition of a cell range, robust printing workflows demand a verification step. VBA offers comprehensive methods not only to set the area but also to immediately display a print preview to the user. This crucial step is a fundamental best practice because it prevents the waste of paper and toner. It allows the user to confirm vital elements like pagination, layout, scaling, and orientation before committing to the physical printing process. The seamless integration of range setting and immediate visual confirmation significantly enhances document management within intricate Excel environments.

Implementing the Core VBA Syntax for Dynamic Range Assignment

The most intuitive and flexible method for defining the print area involves leveraging the user’s current selection. This approach requires accessing the specific active worksheet, navigating to its page setup properties, and dynamically assigning the address of the selected range to the sheet’s PrintArea property. The following foundational VBA syntax achieves this primary goal, coupling the definition of the print area with the immediate initiation of the print preview function.

Sub SetPrintArea()

    With Sheets("Sheet1")
     .PageSetup.PrintArea = Selection.Address
     .PrintPreview
    End With

End Sub

Within this specific macro, the structure begins with the With Sheets("Sheet1") block. This ensures that all subsequent operations are strictly confined and applied to the worksheet explicitly named Sheet1, which is vital for maintaining the correct context of the action, especially in multi-sheet workbooks. The central instruction is .PageSetup.PrintArea = Selection.Address. This line dynamically captures the address of whatever cell range the user has highlighted before executing the code and instantly assigns this address as the new print area for that sheet. This mechanism provides maximum operational flexibility to the end-user.

Immediately following the definition of the print range, the line .PrintPreview is executed. This method reliably calls up the standard Excel Print Preview window. This immediate invocation provides the user with visual confirmation of the defined print boundaries, page breaks, and layout. This rapid feedback loop is essential for a positive user experience, particularly when dealing with data that might unexpectedly span multiple pages or require specific scaling. If the preview meets the user’s expectations, they can proceed to print; otherwise, they can cancel, adjust their selection, and rerun the VBA routine.

Practical Application: Defining Print Area Based on User Selection

To effectively illustrate the utility of this functionality, let us consider a common business scenario: managing a worksheet containing detailed metrics, such as a table of basketball player statistics. Our objective is to ensure that only the relevant player data is printed, and this relevant section must change dynamically depending on the user’s immediate focus or analysis requirements.

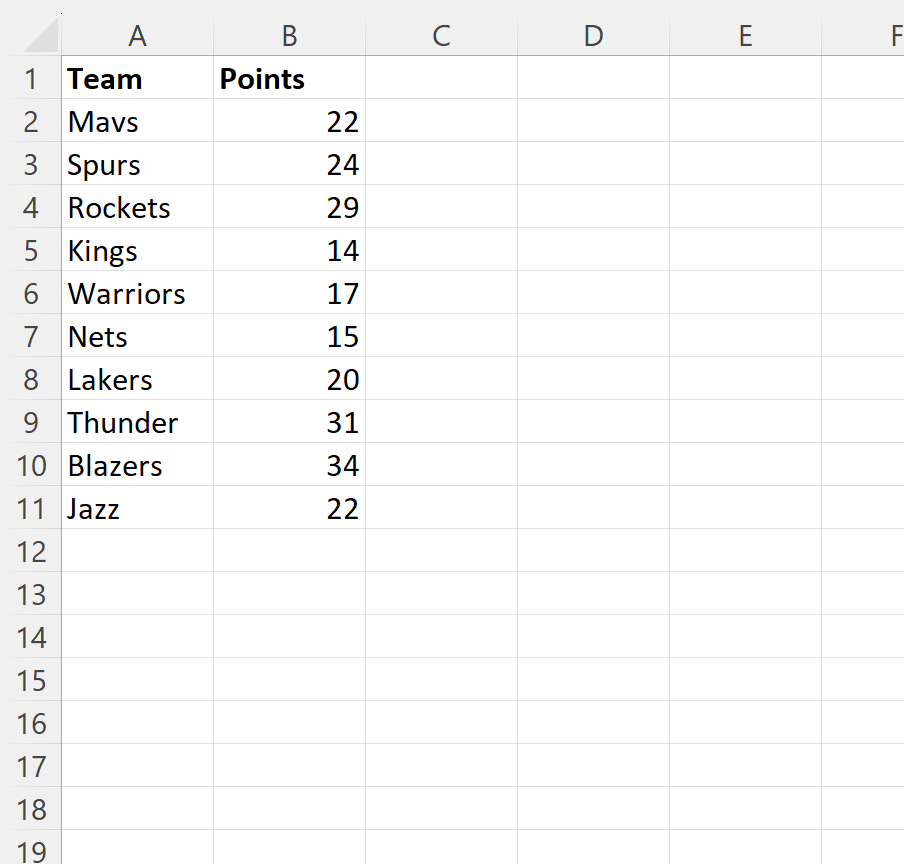

We start with a standard sheet in Excel populated with several columns and rows of data, as shown below:

We implement the standard VBA macro previously introduced to handle the dynamic print setup. This code must be housed within a standard module inside the VBA Editor. The primary goal remains consistent: set the print range based on the user’s current selection prior to execution, and then automatically display the output preview for verification.

Sub SetPrintArea()

    With Sheets("Sheet1")
     .PageSetup.PrintArea = Selection.Address
     .PrintPreview
    End With

End Sub

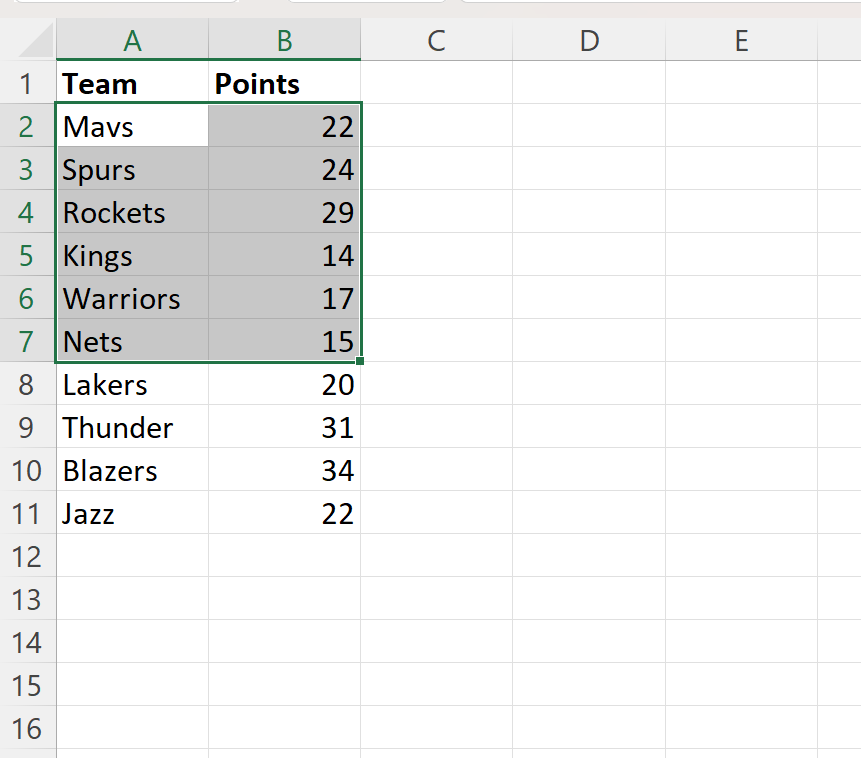

Consider that we only require the first six rows of data to be printed, specifically excluding the column headers for this output. The user would first select the cell range A2:B7 on Sheet1 before triggering the macro execution. The selected area is visually confirmed as follows:

Once the SetPrintArea routine is run, the PrintArea property is immediately set to the string value "$A$2:$B$7". The subsequent .PrintPreview command then displays the output exactly as it will appear on paper, providing confirmation that only the specific, selected player data is included within the print job boundaries:

Workflow Control: Deciding Between Previewing and Direct Printing

A crucial architectural decision in developing any automated printing solution is determining whether the process should display a preview or proceed directly to the physical printer. The .PrintPreview method, as demonstrated throughout the examples, is optimal for quality assurance, testing, and any user-driven printing where the selected range or layout parameters may change frequently. It builds accountability into the process and is the primary defense against unnecessary physical output.

Conversely, if the print process is designed for high-volume, standardized output—such as printing batch reports or standardized invoices where the range is either fixed or already programmatically validated—the .PrintOut method is significantly more efficient. The .PrintOut method completely bypasses the user interface associated with the print preview, sending the document immediately to the default or a specified printer, thereby dramatically accelerating the workflow for routine tasks.

To transition from a verification workflow to an immediate printing workflow, only a minor modification to the existing VBA code is required. Developers simply replace the .PrintPreview line with .PrintOut. Furthermore, the PrintOut method provides extensive optional arguments, allowing the developer to specify detailed parameters such as the number of copies, whether to ignore existing print areas, or to define a specific range of pages to print (e.g., printing only pages 2 through 5 of a multi-page output).

Advanced Considerations for Print Area Management and Error Handling

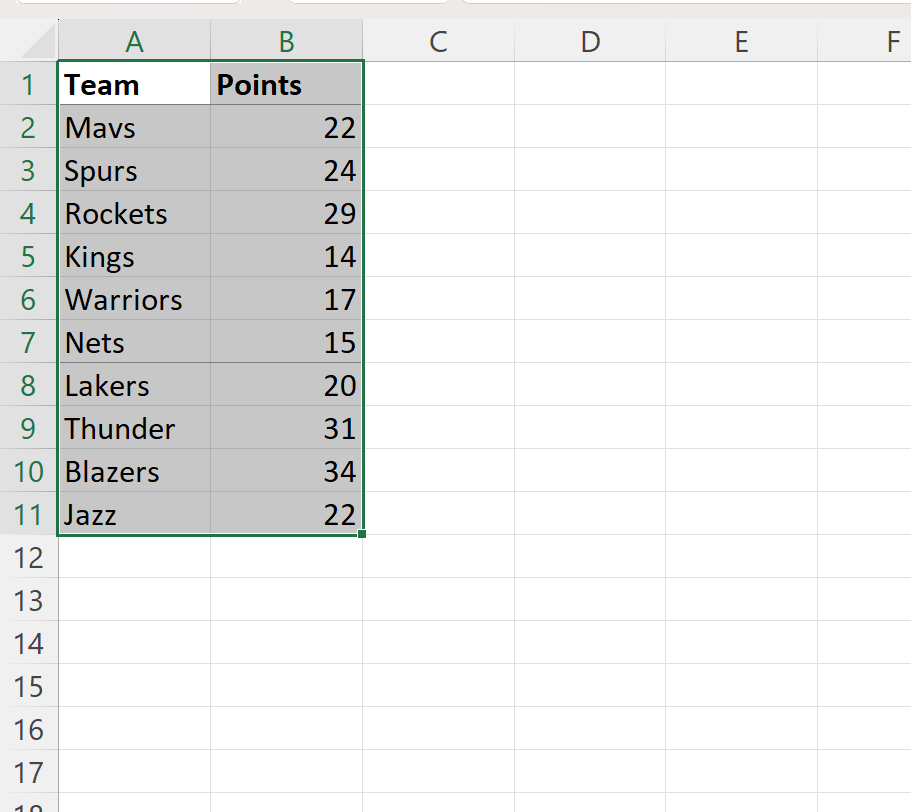

The inherent dynamic nature of the SetPrintArea macro ensures that if the user modifies their selection and executes the code again, the defined print area is updated automatically to reflect the new boundaries. For instance, if the user decides to include the column header row and a few more players for a comprehensive report, they might select the expanded range A1:B11 instead:

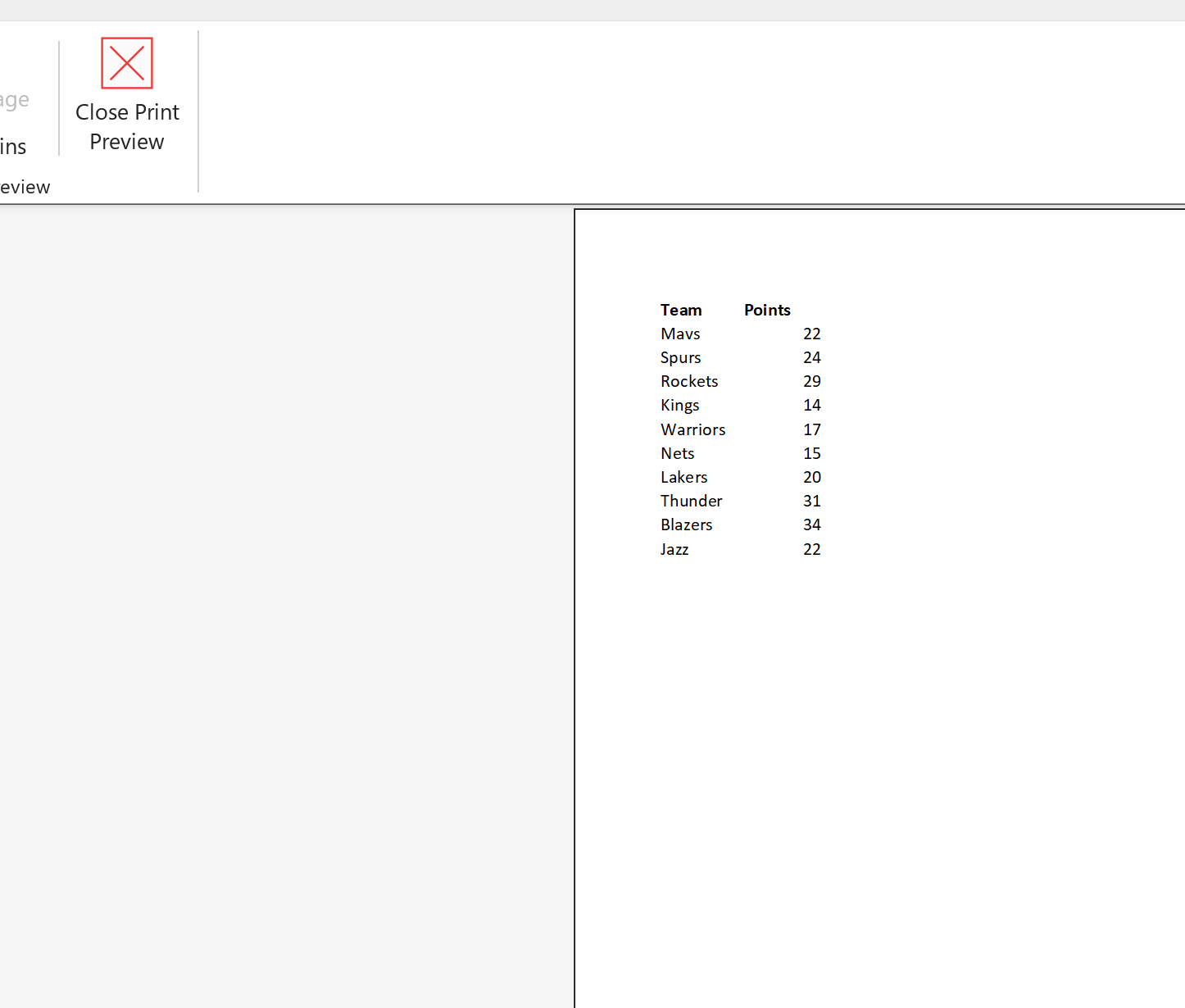

Running the identical VBA routine will instantaneously reset the PageSetup.PrintArea property to the new string value "$A$1:$B$11". The resulting preview confirms the inclusion of the expanded data set:

This automatic adaptation underscores the power and flexibility derived from utilizing Selection.Address. However, in enterprise or complex application development, developers often need to define the print area explicitly, regardless of the user’s current selection. If the requirement is to hardcode the print area to always be A1:E20, the dynamic selection property is simply replaced with a fixed string value: .PageSetup.PrintArea = "A1:E20". This hardcoded method provides stability and predictability in environments where user interaction should not influence the final printed output. Furthermore, if the requirement is to completely reset the print area (thereby allowing the entire sheet to print, as is the default behavior), the property should be set to an empty string: .PageSetup.PrintArea = "".

A crucial professional practice when automating processes involving the Selection object is implementing robust error handling. What happens if the user inadvertently runs the macro without having a valid cell range selected? The Selection object might refer to a chart, a shape, or another non-range object, potentially causing a run-time error. While a single cell is a valid print range, unexpected behavior can occur. Therefore, reliable VBA solutions must include checks (e.g., using TypeName(Selection)) to ensure the Selection object is a valid Range before attempting to access its Address property, ensuring the routine runs smoothly under various user conditions.

Conclusion and Resources for Further Learning

Mastering the manipulation of the PrintArea property through VBA is a foundational skill for automating document generation within Excel. Whether the need is to dynamically set the print range based on user interaction via Selection.Address or to define a static output area for standardized reports, the PageSetup object offers the necessary control. The developer’s final choice between using .PrintPreview for verification and .PrintOut for direct execution determines the speed and quality control steps of the final output process.

For deeper technical exploration, the complete official documentation for the PrintArea property is the authoritative source, providing details on all accepted string values, error codes, and its interactions with other critical page setup properties like scaling, headers, and orientation.
