Shannon Diversity Index: Definition & Example

The Shannon Diversity Index, often alternatively termed the Shannon-Wiener Index, is a cornerstone metric in quantitative ecology. Its primary function is to accurately measure and quantify the diversity of species within a defined biological community or ecosystem. This index moves beyond simple species counting, offering critical insight into community structure by simultaneously considering two vital factors: the number of species present (known as richness) and their relative abundances (referred to as evenness).

Unlike basic measures of species richness, the Shannon Index applies a weight to each species based on its proportional abundance. This characteristic makes it highly sensitive to the presence of rare species while simultaneously applying a penalty to communities where the population is overwhelmingly dominated by just a few species. Due to its robust nature, the index sees widespread application across diverse scientific fields, from assessing forest health and analyzing microbial populations to understanding complex economic distribution patterns.

Derivation and Definition of the Shannon Index (H)

The Shannon Index, symbolized by the letter H, draws its theoretical foundation from the mathematical discipline of information theory. In this context, H represents the inherent uncertainty involved in predicting the identity of a species if an individual is randomly selected from the community. A high value of uncertainty directly correlates with high diversity, as it implies that no single species holds a disproportionately dominant share of the population.

To calculate this measure of uncertainty and diversity, the index utilizes a specific mathematical definition. It involves summing the negative product of each species’ proportion and the natural logarithm of that same proportion. This summation process ensures all species contribute appropriately to the final diversity score.

The mathematical formula for the Shannon Diversity Index is expressed as:

H = -Σp_i * ln(p_i)

Accurate calculation and proper interpretation of the Shannon Index rely entirely on a solid understanding of each variable within the equation. These components are essential building blocks for quantifying the structural complexity of any biological community being studied:

• Σ (Summation): This Greek symbol mandates that the calculation be performed for every single species identified in the community, indexed by i, and then all resulting values must be added together.
• ln (Natural Logarithm): This represents the natural log, which is the logarithm to the base e. Utilizing the natural log serves a crucial role in normalizing the effects of potentially vast differences in the relative abundances of species.
• p_i (Proportion): This term is perhaps the most critical input, quantifying the proportion of the entire community sample that is composed of species i. It is practically determined by dividing the count of individuals belonging to species i by the total count of all individuals sampled in the community.

Since the value of $p_i$ (proportion) is mathematically constrained to be between 0 and 1, the resulting value of $ln(p_i)$ will inherently be negative. Multiplying $p_i$ by $ln(p_i)$ therefore yields a negative product. The initial negative sign included in the formula is necessary to counteract this mathematical property, ensuring that the final calculated diversity index H is always a meaningful, positive value.

Interpreting the H Value: High vs. Low Diversity

The resulting calculated value of H provides a robust, quantitative metric of diversity, allowing ecologists to make direct comparisons between different geographic sites, monitor changes in a single community over time, or assess the impact of environmental disturbances. Typically, the scale for H ranges from 0 up to about 5, although values exceeding 4 are rarely encountered in most natural ecosystems.

A higher value of H directly indicates a greater Shannon Diversity Index, which signifies greater overall species diversity within that particular community. High diversity is achieved when the community is not only rich in the absolute number of species but also exhibits a relatively equal or even distribution of individuals among those species.

Conversely, a significantly lower value of H points to reduced diversity. If the diversity value approaches zero (specifically, if H = 0), this is the mathematical indicator of a monoculture—a community containing only a single species. More commonly, low H values result when one or two species exhibit extreme numerical dominance over all others. This sharp drop in the index value effectively highlights a critical lack of evenness within the population structure, even if the total species count remains moderate.

Isolating Evenness: The Shannon Equitability Index (E_H)

While the core Shannon Diversity Index successfully combines the concepts of species richness and evenness into a single score, ecological analysis often requires a separate, isolated metric to quantify evenness alone. The Shannon Equitability Index is specifically engineered for this purpose, offering a clear measure of how similar the abundances of the various species are within the sampled community.

The concept of “evenness” refers specifically to the dispersion of individual organisms across the different species categories. A community achieves perfect evenness if, hypothetically, every species recorded possesses the exact same number of individuals. The equitability index, denoted as E_H, standardizes the calculated diversity (H) against the maximum theoretical diversity possible for that specific number of species present.

This standardization is achieved through a simple ratio calculation:

E_H = H / ln(S)

The variables used in this calculation are defined as follows:

• H: The previously calculated Shannon Diversity Index value.
• S: Represents the total number of unique species identified in the sample, which is also known as species richness.
• ln(S): This term calculates H_max, representing the absolute maximum diversity score that could occur given the observed species richness S.

The resulting range for the Equitability Index E_H spans from 0 to 1. An ideal value of 1 signifies absolute evenness, where every species is represented by an identical count of individuals. Values trending closer to 0 indicate that the community is highly dominated by one or a few species, meaning the abundance distribution is skewed, regardless of whether the total species richness (S) is high.

Detailed Practical Example: Calculating H and E_H

To fully grasp these ecological principles, we will now walk through a step-by-step practical example. This demonstration illustrates precisely how to calculate both the Shannon Diversity Index (H) and the Shannon Equitability Index (E_H) for a hypothetical biological community.

Step 1: Data Collection and Initial Tally

Consider an ecologist surveying a local forest plot to measure the diversity of plant and insect life. After meticulous sampling, she compiles a count of individuals for each species encountered in the study area. The initial raw data might be structured as follows:

From this initial tally, the first critical calculation is determining the total number of individuals in the community. Summing the counts yields 105 individuals (40 + 25 + 20 + 15 + 5). This total count is the denominator required for calculating the proportional abundance of every species.

Step 2: Calculating Proportional Abundance ($p_i$)

The subsequent step involves calculating the proportion ($p_i$) that each species contributes relative to the total community size. This calculation is straightforward: divide the number of individuals of species i by the grand total count (105).

For instance, if Species A accounts for 40 individuals out of the 105 total, its proportion ($p_A$) is calculated as 40 / 105, which is approximately 0.38. This derived proportion signifies that Species A constitutes 38% of the entire community sample. Applying this calculation consistently to all species yields the necessary proportion column:

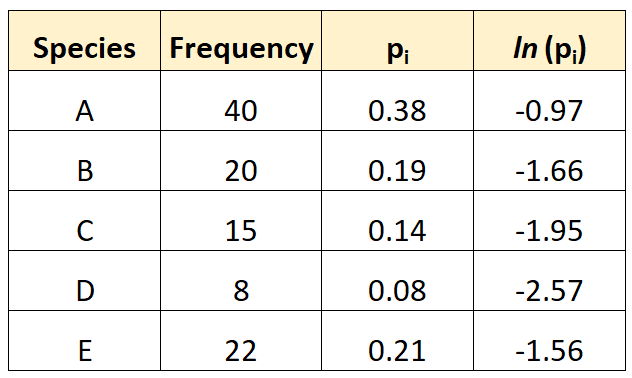

Step 3: Calculating the Natural Log of the Proportions ($ln(p_i)$)

Adhering strictly to the formula H = -Σp_i * ln(p_i), the next mathematical requirement is to compute the natural log ($ln$) of each calculated proportion ($p_i$). This operation must be performed individually for every species’ proportional value.

As anticipated, given that all proportions are values less than 1, the resulting natural log values are negative. This confirms the inherent mathematical relationship of logarithms when dealing with fractional inputs:

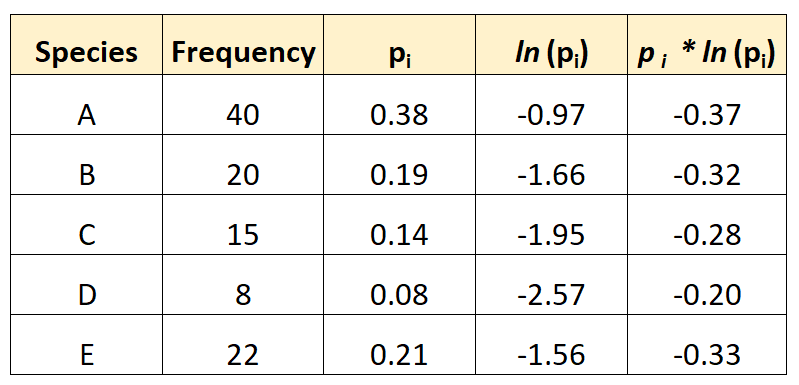

Step 4: Finding the Weighted Contribution ($p_i * ln(p_i)$)

The penultimate step in calculating the index is determining the product of the proportion ($p_i$) and its corresponding natural log ($ln(p_i)$). This specific calculation determines the weighted contribution of each individual species to the overall uncertainty measure of diversity.

By multiplying the values listed in the second column (Proportion) by the values in the third column (Natural Log), the following set of negative results are obtained, preparing the data for the final summation:

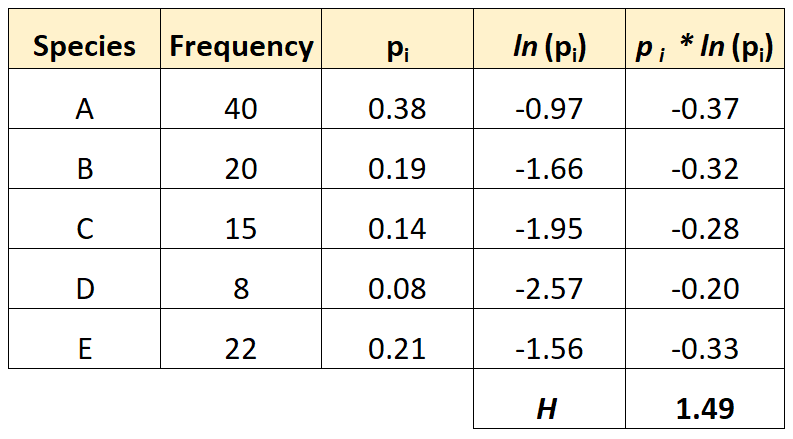

Step 5: Final Calculation of the Shannon Diversity Index (H)

The final stage involves applying the summation (Σ) and the necessary negative sign from the complete formula:

H = -Σp_i * ln(p_i)

First, we must calculate the sum (Σ) of the values in the last column. This total represents the aggregate negative uncertainty measure for the entire community. Subsequently, multiplying this sum by negative one transforms the value into the final, positive diversity index score:

The sum of the $p_i * ln(p_i)$ column is calculated to be approximately -1.49. Therefore, the Shannon Diversity Index (H) for this specific forest community sample is concluded to be 1.49.

Calculating and Interpreting Equitability

Having successfully derived the Shannon Diversity Index (H), the ecologist can now proceed to quantify the evenness of the species distribution using the Shannon Equitability Index:

E_H = H / ln(S)

In our demonstrated example, the species richness S equals 5 (Species A, B, C, D, and E). We incorporate this value along with the calculated H of 1.49 to find the equitability:

1. Calculate the maximum possible diversity (H_max): $ln(S) = ln(5) approx 1.609$
2. Calculate Equitability: $E_H = 1.49 / 1.609 approx 0.92$

An Equitability Index (E_H) of 0.92 is exceptionally high, nearing the maximum possible value of 1. This result decisively indicates that the species in this forest community are very evenly distributed; although Species A has the highest count, no single species overwhelmingly dominates the population. This strong evenness is the primary driver behind the moderately high Shannon Diversity score of 1.49, suggesting a healthy and balanced community structure.

Utilizing Automated Tools for Diversity Analysis

For researchers and students working with extensive datasets, performing these calculations manually can be tedious and prone to error. To streamline the complex mathematical processes involved in ecological analysis, numerous specialized computational tools are available. We encourage the use of automated calculators designed to efficiently process large datasets and instantly provide the final Shannon Diversity Index score.
