Learning to Sort Bar Charts in ggplot2: A Guide to Ordering for Data Clarity

The Critical Importance of Ordered Visualizations

When analysts craft statistical visualizations, particularly bar plots, the inherent arrangement of categories along the axis is not merely an aesthetic choice; it is absolutely critical for effective data interpretation. An unordered visualization, typically sorted alphabetically or by input sequence, forces the viewer to exert cognitive effort, jumping haphazardly between bars to compare magnitudes. This disorganization significantly diminishes clarity and slows down the discovery process. Conversely, sorting bars based on their corresponding values—whether in ascending order or descending order—instantly transforms the chart into a powerful tool. This structure allows for the immediate identification of top performers, outliers, and fundamental trends within the dataset, making the principle of value-based sorting fundamental to robust exploratory data analysis (EDA).

Within the powerful R programming environment, the renowned ggplot2 package offers unmatched flexibility for generating complex and publication-quality graphics. However, by default, ggplot2 often treats categorical variables, such as team names or distinct categories, as factors. It then plots these categories according to their predefined factor level order, which is frequently alphabetical or simply the order of appearance in the source data frame. This default setting often results in charts that lack the necessary comparative structure, thereby requiring a specific, intentional technique to override the automatic sorting and implement a logical, value-based hierarchy.

The objective of this comprehensive guide is to detail the precise methodology required within ggplot2 to achieve data-driven sorting. We will explore how to dynamically manipulate the factor levels of the categorical variable directly within the aesthetic mapping function. This manipulation relies on a specific utility provided by the base R installation. Mastery of this capability is essential for creating high-quality, professional visualizations where categories are logically sequenced based on the numeric data they represent, thereby ensuring that the visual narrative perfectly aligns with the underlying statistics and provides maximum insight to the viewer.

Understanding the Factor Level Challenge in ggplot2

The primary obstacle encountered when generating a bar plot in ggplot2 and subsequently attempting to sort the bars by magnitude is rooted in how the package handles the aesthetic mapping of categorical variables—typically those assigned to the x-axis. When a variable, such as team, is mapped to the horizontal axis, ggplot2 internally converts or treats it as a factor. Factors inherently maintain a predefined set of levels, and these levels exclusively dictate the physical order in which the bars are rendered on the plot. If these factor levels are not explicitly redefined or reordered to reflect the associated numeric values, the resulting visualization will appear disorganized and ineffective from a comparative standpoint.

A standard ggplot2 syntax structure, such as ggplot(df, aes(x=team, y=points)) + geom_bar(stat='identity'), will successfully generate a bar chart. However, the sequence of the team variable will strictly adhere to its alphabetical or initial input order, entirely disregarding the corresponding quantitative measure of points. To overcome this critical limitation, we must proactively re-map the order of the categorical variable (team) based on the quantitative values of the metric variable (points) before the final visualization layer is rendered. This essential step is executed by wrapping the categorical variable within a reordering function directly inside the aes() call, ensuring that the underlying factor levels are dynamically adjusted during the plotting operation itself.

Furthermore, when sorting by value, it is imperative to distinguish the context of the data being plotted. We are typically visualizing raw, pre-calculated totals (like aggregate scores or predefined counts) rather than instructing ggplot2 to count the occurrences of categories within the dataset. For this specific purpose, we must explicitly include the argument stat='identity' within the geom_bar() layer. This command instructs ggplot2 to interpret the values supplied to the y-axis (e.g., the points column) as the true, literal heights of the bars, instead of calculating a count statistic for each category. Failing to use stat='identity' when plotting pre-aggregated totals will inevitably result in an incorrect visualization, commonly displaying all bars at the same height (the default count).

The Essential Role of the reorder() Function in R

The fundamental utility for achieving precise value-based sorting within the ggplot2 ecosystem is the highly useful reorder() function, which is readily available in base R. This function is specifically engineered to adjust the factor levels of a categorical variable based on a calculated summary statistic of a corresponding numeric variable. It requires at least two primary arguments: first, the factor (categorical variable) whose levels need rearrangement, and second, the numeric variable used to calculate the sorting order and magnitude.

When seamlessly integrated within the aes() mapping of ggplot2, reorder() operates by calculating the mean (this is the default behavior) of the numeric variable for every unique level of the factor. It then sorts the factor levels according to those calculated means. In common scenarios, such as our example involving unique total values for each team, the calculated mean is simply the value itself. Therefore, the syntax structure reorder(factor_variable, numeric_variable) effectively instructs the plotting system to arrange the bars according to the magnitude of the numeric data, successfully overriding the default alphabetical or input order.

Crucially, the reorder() function defaults to sorting the resulting factor levels in ascending order (from smallest value to largest). To reverse this direction and achieve a descending order sort (where the highest value is presented first), a simple yet powerful modification is necessary: placing a negative sign (-) directly in front of the numeric variable within the reorder() argument list. This mathematical inversion effectively reverses the standard sorting behavior, granting the user complete control over the visual hierarchy and narrative of the bar plot.

Preparing the Data and Establishing the Setup

Prior to implementing the specific plotting syntax, it is essential to establish a foundation by creating a sample data frame in R. This sample data is designed to simulate a real-world scenario where categories must be compared based on a specific performance metric. Our foundational example utilizes a simple data frame named df, which contains two core columns: team (the categorical variable destined for the x-axis) and points (the numeric variable serving as the y-axis magnitude and the sorting metric).

The following code snippet demonstrates the creation and subsequent inspection of this sample data frame within the R environment. This carefully constructed data set will serve as the necessary input for demonstrating both the ascending and descending sorting methods that follow. Note that we rely on the library(ggplot2) command to ensure that the required plotting package is successfully loaded into the session memory prior to attempting any visualization execution.

#create data frame
df <- data.frame(team=c('A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J'),
                 points=c(22, 25, 18, 13, 41, 23, 30, 40, 22, 15))

#view data frame
df

   team points
1     A     22
2     B     25
3     C     18
4     D     13
5     E     41
6     F     23
7     G     30
8     H     40
9     I     22
10    J     15

By examining the output, we can observe that the initial sequence of teams adheres to an alphabetical order (A through J). However, their corresponding point values are scattered across the range, from the minimum of 13 (Team D) to the maximum of 41 (Team E). If this data were plotted without any explicit sorting, Team A would appear first, followed by Team B, and so on, making it exceptionally difficult to instantly gauge which teams were the highest or lowest performers. Our subsequent examples will leverage the reorder() function to successfully reorganize this visual presentation based strictly on the magnitude of the points variable.

Method 1: Sorting Bars in Ascending Order

To construct a bar plot where the bars are arranged from the smallest value to the largest value (known as ascending order), we utilize the standard, unmodified syntax of the reorder() function directly within the aesthetic mapping (aes()). In the resulting visualization, the smallest bar will be precisely positioned on the far left of the x-axis, providing a clear visual starting point for the lowest-performing categories. This particular type of sorting is highly valuable when the analyst’s primary goal is to highlight the categories that require the most immediate attention or strategic improvement.

The syntax provided below maps the reordered team variable to the x-axis, using the points variable as the definitive sorting criterion. It is crucial to note the explicit inclusion of stat='identity', which remains necessary because we are plotting the raw numeric values contained in the points column of our data frame, df. Since the reorder() function defaults to ordering based on increasing values, no additional modifier or negative sign is required to achieve the desired ascending sort direction.

library(ggplot2)

#create bar plot with bars sorted in ascending order
ggplot(df, aes(x=reorder(team, points), y=points)) +
  geom_bar(stat='identity')

The resulting visualization graphically confirms the successful application of the sorting logic. The x-axis now clearly and logically displays the team names ordered strictly by their accumulated points, beginning with the minimum value (Team D, 13 points) and progressing incrementally toward the maximum value. This reorganized structure dramatically enhances the chart’s readability compared to an alphabetically sorted chart, making immediate and accurate comparison between teams exceptionally straightforward. The height of the y-axis confirms that stat='identity' functioned correctly by plotting the actual data values supplied.

Method 2: Implementing Descending Order Sorting

In the vast majority of business and scientific contexts, data visualizations are optimized to prioritize the highest values, placing the top performers or most influential categories prominently at the beginning of the axis. This highly requested structure necessitates sorting the bars in descending order. Achieving this hierarchy in ggplot2 requires a process that is nearly identical to the ascending method, but it involves a critical, simple modification to the numeric variable supplied to the reorder() function.

To effectively reverse the function’s default ascending sort mechanism, we simply introduce a negative sign (-) immediately preceding the numeric variable (points) within the aes() mapping. This specific mathematical trick instructs reorder() to treat larger positive values as smaller negative values, thereby mathematically inverting the entire sorting process. The result is a bar plot where the bar representing the maximum value is strategically placed at the far left of the x-axis, instantly setting the visual priority for the viewer.

The following syntax demonstrates this essential modification, ensuring that the team factor levels are ordered based on the highest points values down to the lowest. As standard practice dictates, stat='identity' is retained to ensure the plot accurately reflects the true values of the data points, rather than generating counts.

library(ggplot2)

#create bar plot with bars sorted in descending order
ggplot(df, aes(x=reorder(team, -points), y=points)) +
  geom_bar(stat='identity')

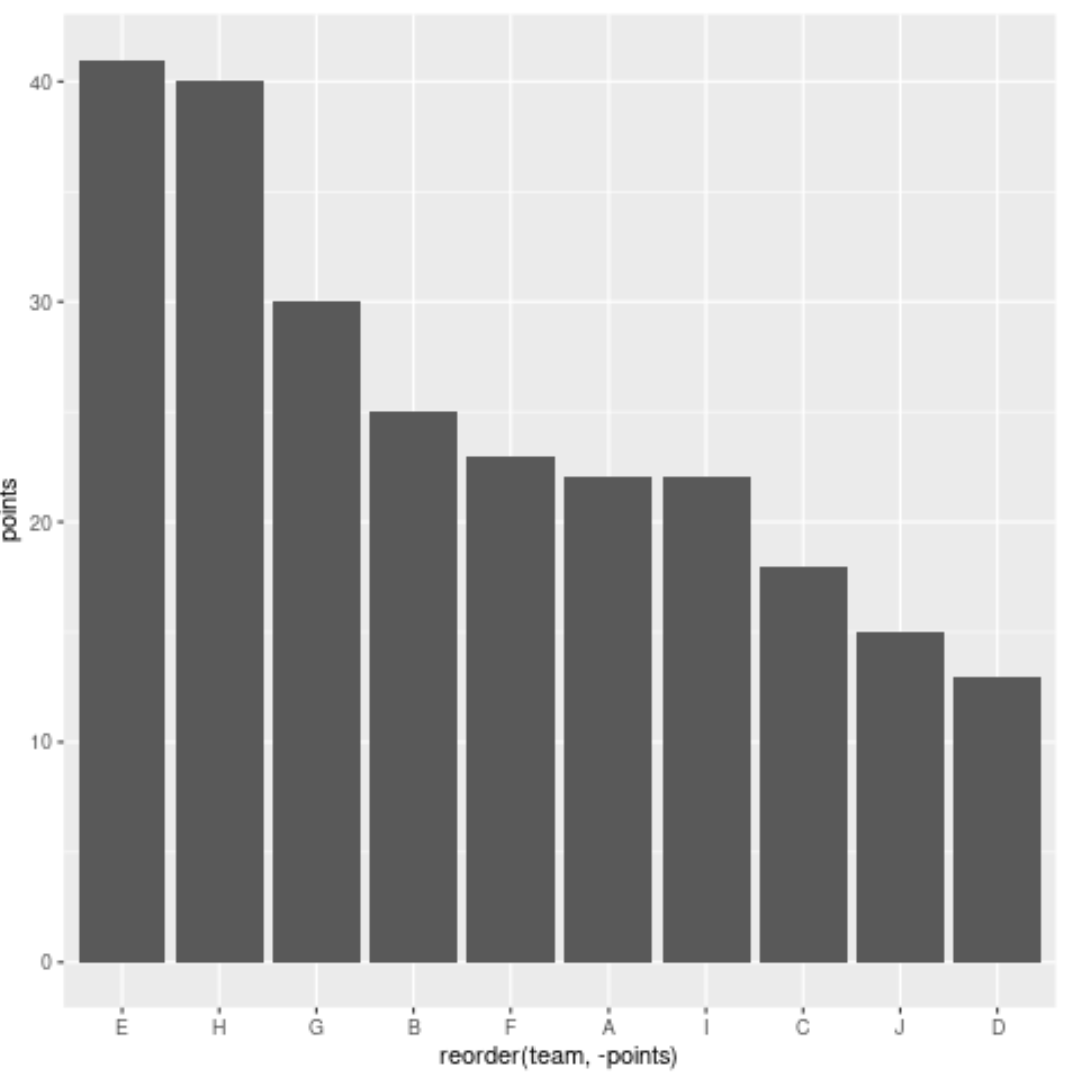

This modification successfully produces the following highly structured bar plot:

As is clearly evident in the visualization, the bars are now arranged in descending order. Team E (41 points) is prominently positioned first, followed immediately by Team H (40 points), and the sequence continues logically down to Team D (13 points). This arrangement maximizes the visual impact for viewers interested in identifying the top performers and highest values immediately, serving as the preferred method for rankings, performance summaries, and comparative reports.

Conclusion and Key Takeaways for Data Visualization

Sorting categorical variables in a bar plot based on their corresponding numeric values represents a fundamental requirement for generating informative, professional, and easily digestible data visualizations in R using the ggplot2 package. By effectively leveraging the built-in reorder() function, analysts gain the ability to bypass the often misleading default alphabetical ordering of factors and impose a structure that is driven entirely by the data magnitudes. This crucial manipulation ensures that the visual hierarchy of the chart accurately and immediately reflects the statistical importance of each category.

We have successfully established two indispensable principles for achieving reliable value-based bar sorting within ggplot2:

• The use of reorder(categorical_variable, numeric_variable) embedded within the aes() mapping is mandatory for dynamically changing the factor level order based on the corresponding numeric values.

• The explicit inclusion of stat='identity' in the geom_bar() layer is always necessary when plotting pre-calculated totals (such as our points variable) to prevent ggplot2 from incorrectly counting occurrences instead of utilizing the supplied bar heights.

Furthermore, we demonstrated the simple yet highly effective technique for toggling between the sorting directions: omitting the negative sign for ascending order and including the negative sign (-) directly before the numeric variable for the preferred descending order. Mastery of these specific techniques allows for the rapid and confident generation of highly refined, aesthetically pleasing, and easily digestible statistical graphics, significantly enhancing the communication of data insights across all fields.
