Sorting IP Addresses Numerically in Excel: A Comprehensive Tutorial

For network administrators and data analysts, the efficient management and sorting of large datasets containing IP addresses (Internet Protocol addresses) within Microsoft Excel is a frequent operational necessity. However, the standard behavior of Excel’s sorting algorithm presents a significant hurdle. Because these addresses are structured as four sets of numbers separated by dots (e.g., 192.168.1.1), Excel interprets them as simple text strings rather than complex numerical quantities. This default lexicographical sorting logic inevitably fails to produce the mathematically correct sequence when attempting to order the data from smallest to largest, leading to inaccurate results in network inventory or analysis reports.

Fortunately, this core limitation can be systematically bypassed. The definitive solution involves implementing a custom technique that utilizes a dedicated “Helper” column combined with sophisticated Excel functions. This methodology transforms the verbose dotted-decimal notation of the address into a single, massive integer. This continuous numerical value preserves the underlying hierarchical magnitude of the address, enabling Excel to accurately and reliably sort the data. This guide provides a precise, step-by-step walkthrough, demonstrating the required formula construction and subsequent sorting process necessary to achieve the correct numerical order for your network data.

Understanding the Challenge of Sorting IP Addresses in Excel

The root of the sorting problem lies in how Excel processes alphanumeric data. When the program executes its default Sort functionality, it applies lexicographical sorting. This process compares character by character, moving from left to right, similar to how entries are ordered in a dictionary. For instance, if you sort the strings ‘100’ and ’20’, Excel places ‘100’ first because the initial character ‘1’ precedes ‘2’. When applied to IP addresses, this means that addresses starting with ‘1.’ are erroneously grouped before addresses starting with ‘2.’, irrespective of the actual numerical value of the subsequent octets. This fundamentally breaks the numerical hierarchy crucial for correctly ordering network addressing schemes.

To properly sort an IPv4 address—which consists of four distinct octets (numbers ranging from 0 to 255) separated by periods—we must devise a way for all four parts to be evaluated simultaneously based on their positional magnitude. The technical solution requires us to convert the four-part string (e.g., 122.45.65.90) into a single, sortable numerical key. This conversion is achieved through two crucial steps: first, padding each octet with leading zeros until it consistently reaches a uniform three-digit length (e.g., 122.045.065.090); and second, concatenating these padded parts into one large, continuous integer (122045065090).

If this vital padding and concatenation method is omitted, Excel will inevitably misplace critical data points. In the example we will analyze shortly, the address 122.45.65.90 holds the smallest overall numerical value and should occupy the first row when sorted ascendingly. However, without the Helper column conversion, it appears incorrectly in the middle of the list. This failure vividly illustrates the inadequacy of relying on Excel’s default text-based sorting mechanism when dealing with structured numerical network data.

Illustrating the Failure of Default Text Sorting

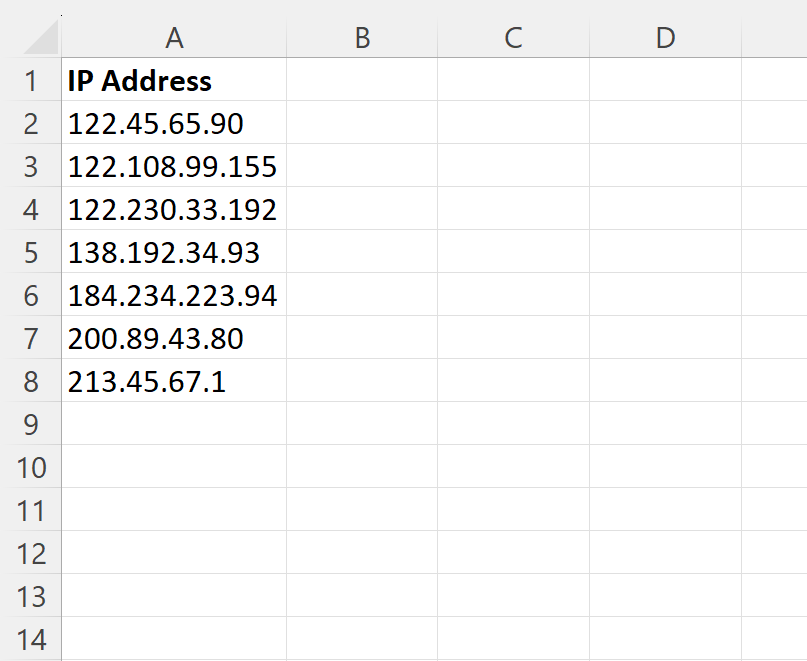

To begin, let us establish our working dataset. Assume we have the following column of IP addresses located in column A of our Excel sheet, starting at cell A1:

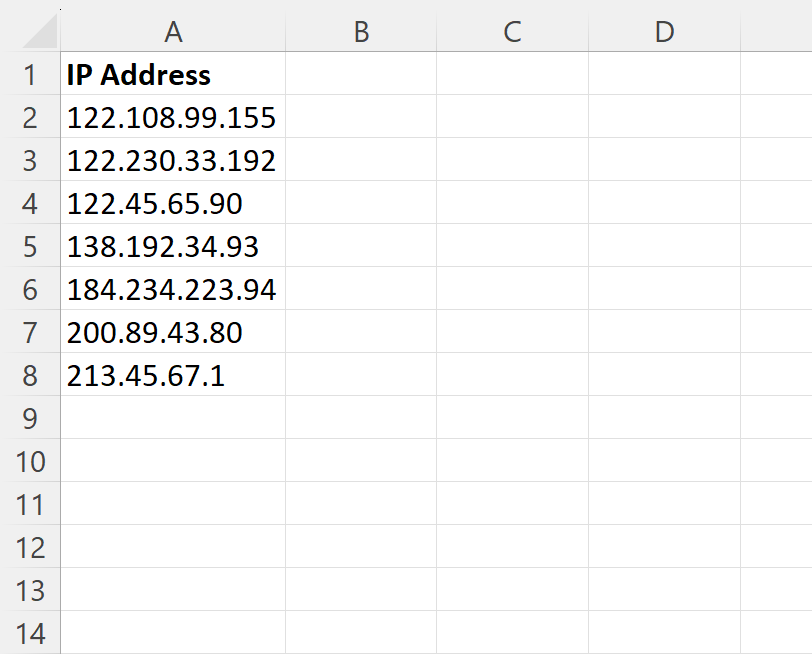

If we attempt to sort this range (A1:A8) using Excel’s standard sorting procedure—by highlighting the data and clicking the Sort button under the Data tab—the application applies its text-sorting logic. The resulting order, displayed below, is demonstrably incorrect from a networking perspective because it only sorts based on the first character of the string, ignoring the true numerical magnitude of the octets:

As this incorrect result highlights, the IP addresses are not sequentially ordered. The address 122.45.65.90, despite possessing the lowest numerical value among the entries, is incorrectly placed lower in the list. To correct this critical error and enforce a true numerical sort based on the underlying IP structure, we must introduce a designated ‘Helper’ column. This column will serve as the engine for converting the text strings into sortable numerical keys.

Constructing the Helper Column using Advanced Excel Functions

The core technological solution relies on engineering a sophisticated formula capable of performing four distinct, sequential actions: first, isolating each of the four octets; second, padding each isolated octet with leading zeros to maintain uniform length; third, concatenating the resulting padded strings; and finally, converting this lengthy string into a single, usable numerical value. We will designate column B as our Helper column, starting the formula entry in cell B2. This complex process necessitates the integration of several powerful Excel functions, including TEXTBEFORE, TEXTAFTER, the TEXT function, and NUMBERVALUE.

The construction of this formula centers on meticulous extraction using the period (“.”) as the primary delimiter. For example, the first octet is easily captured using TEXTBEFORE(A2,".",1). The extraction of the subsequent second and third octets requires careful nesting of the TEXTAFTER function to sequentially skip the already identified segments. Most critically, once an octet is isolated, the TEXT(value, "000") function is applied. This formatting step ensures that any octet consisting of fewer than three digits (such as ‘5’ or ’45’) is padded with leading zeros (transforming them into ‘005’ or ‘045’). This uniform padding is essential, guaranteeing that the final concatenated string is precisely 12 digits long (4 octets multiplied by 3 digits each), thereby maintaining the numerical significance of each segment.

Enter the following comprehensive formula into cell B2. This single line integrates the extraction, padding, concatenation, and final numerical conversion for the IP address found in cell A2:

=NUMBERVALUE(TEXT(TEXTBEFORE(A2,".",1),"000")&TEXT(TEXTBEFORE(TEXTAFTER(A2,".",1),".",1),"000")&TEXT(TEXTBEFORE(TEXTAFTER(A2,".",2),".",1),"000")&TEXT(TEXTAFTER(A2, ".",3), "000"))

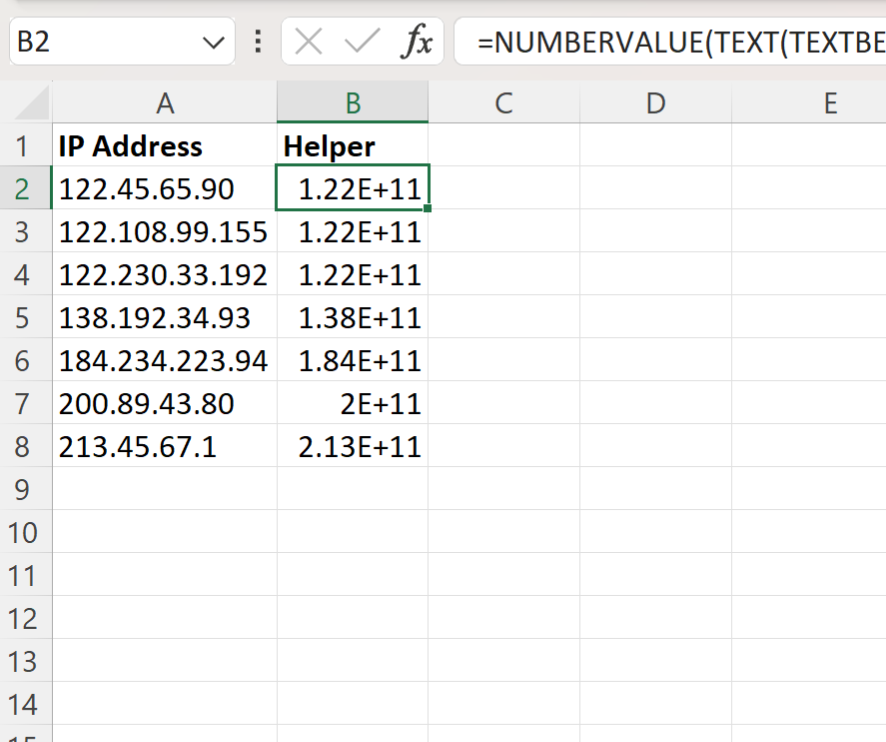

Once the formula is entered, use the fill handle to drag the calculation down, applying it to all corresponding IP addresses in column A. This action instantly populates column B with the unique numerical key for each address, providing Excel with the necessary data points for an accurate numerical sort:

Executing the Numerical Sort based on the Helper Key

With the Helper column successfully populated with the sortable numerical keys, the final step is to execute the custom sort operation. It is paramount to select the entire data range, encompassing both the original IP addresses and the newly created Helper column, to ensure that the integrity of the rows is maintained throughout the sorting process. Highlight the complete range, such as A1:B8, or whatever range covers your dataset.

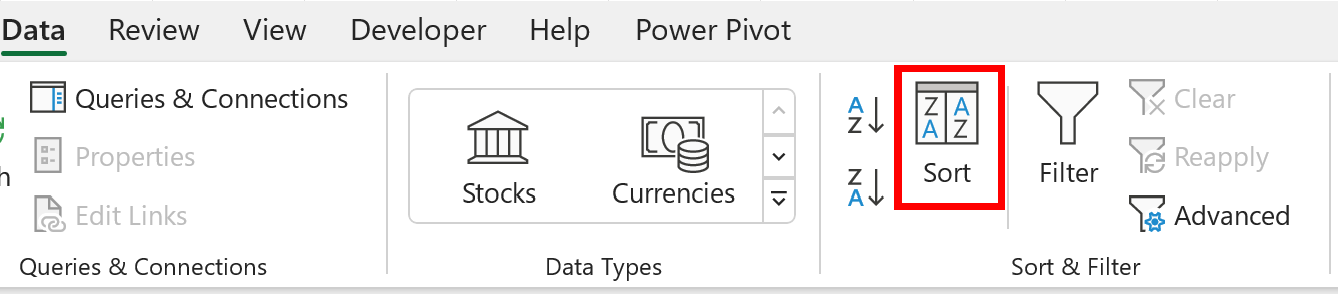

Navigate to the Data tab located on the Excel ribbon and click the Sort button within the Sort & Filter group. This action opens the dedicated Sort dialog window, where we will define the criteria for this specialized sort:

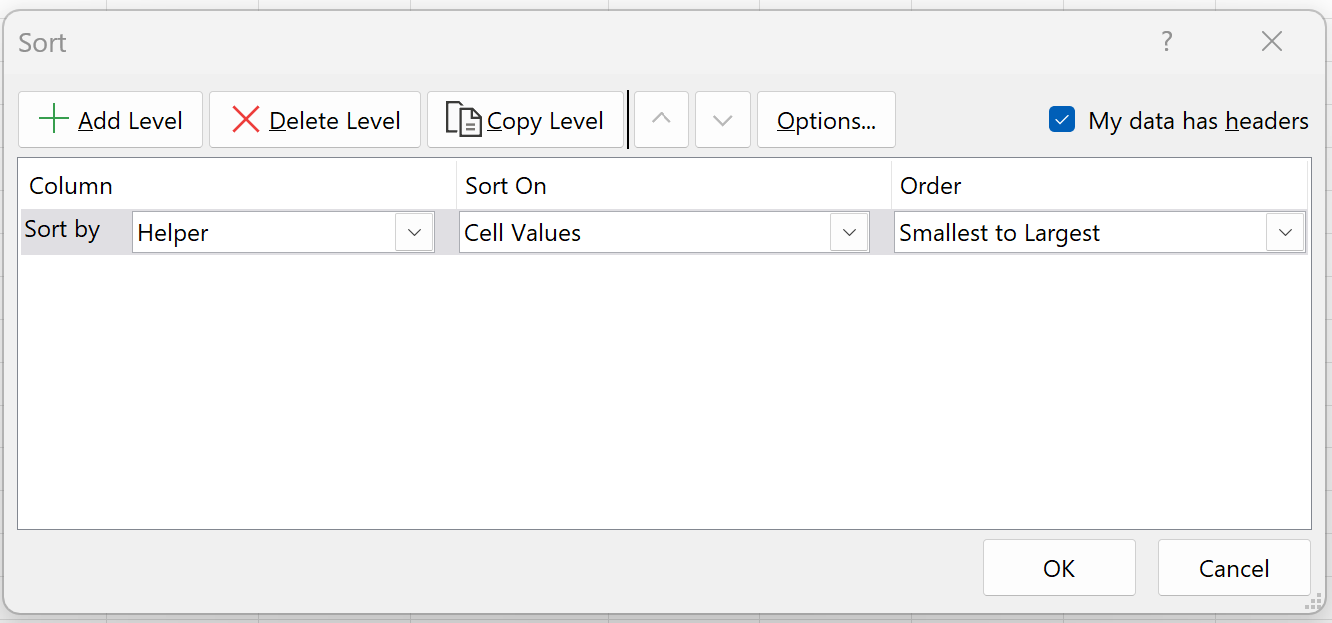

Within the Sort dialog box, the crucial maneuver is designating the correct sort key. From the Sort by dropdown menu, you must select the column labeled Helper (Column B). Confirm that the sort order is set to Smallest to Largest. This configuration directs Excel to use the accurate, calculated numerical values in Column B to drive the arrangement of the rows, resulting in the desired sequential order of the IP addresses. Always review your selection criteria before clicking OK.

Verifying the Final Sorted IP Address List

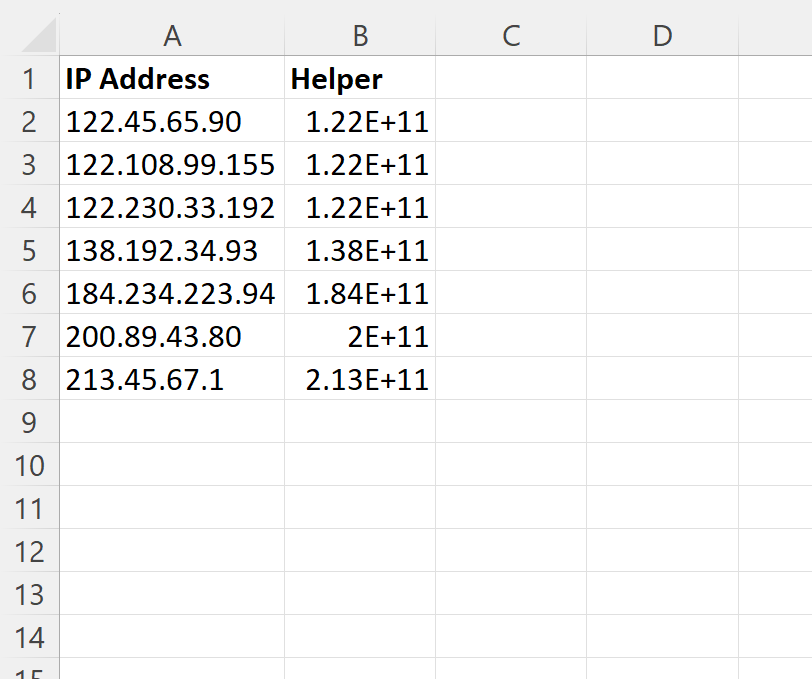

Upon clicking OK, Excel instantly rearranges the entire dataset based solely on the numerical ranking established in the Helper column. Because the Helper values accurately represent the numerical magnitude of the network addresses, the IP addresses are now correctly sorted in sequential order, adhering precisely to standardized network addressing conventions:

A quick inspection of the final list confirms the success of the methodology: the IP address 122.45.65.90, which had been incorrectly placed, is now correctly positioned as the very first entry. This sophisticated technique successfully overrides Excel’s text-based default, providing a robust and reliable methodology for managing and analyzing network data within a spreadsheet environment.

Note on Data Integrity: The Helper column’s purpose was purely transitional—to translate the string data into sortable numerical keys. Since the sorting process is complete and the IP addresses in column A are now correctly ordered, the Helper column (Column B) can be safely deleted to streamline and clean up the worksheet. Its function in establishing data integrity is finished.
