Learning to Create Histograms in R: A Guide to Specifying Breaks

The Critical Role of Bin Selection in Histogram Visualization

A histogram stands as a foundational graphical instrument in statistical analysis, designed to provide a visual approximation of the probability distribution of numerical data. Its effectiveness hinges entirely on how the range of data is segmented into a series of non-overlapping intervals, commonly referred to as bins or breaks. By counting the frequency of data points falling into each bin, the histogram reveals the underlying shape, symmetry, and spread of the dataset.

The decision regarding the optimal number of bins is arguably the most critical step in generating a meaningful histogram. An insufficient number of bins can over-smooth the data, potentially masking vital characteristics such as multimodality, skewness, or outliers, rendering the visualization overly simplistic and uninformative. Conversely, setting the number of bins too high results in a jagged, sparse plot that may amplify statistical noise, making it challenging for the observer to distinguish genuine data trends from random fluctuations.

The R programming environment facilitates histogram generation through the built-in hist() function. When this function is called without explicit instructions regarding bin boundaries, R automatically defaults to established statistical algorithms to calculate a reasonable starting point for the visualization, ensuring that even novice users can generate sensible plots immediately.

Deconstructing R’s Default Binning Strategy: Sturges’ Rule

By default, the hist() function in R typically relies on Sturges’ Rule—or a slight adaptation thereof—to determine the suggested number of bins. This rule is a long-standing standard in data visualization due to its simplicity and effectiveness, especially for datasets whose distribution approximates a normal (Gaussian) curve.

Sturges’ Rule provides a mathematically derived guideline for the ideal number of intervals based exclusively on the size of the dataset. The formula employed is:

Optimal Bins = ⌈log₂n + 1⌉

This formula incorporates two essential components:

• n: This variable represents the total count of observations within the dataset.
• ⌈ ⌉: These brackets denote the ceiling function, which mandates that the calculated result must be rounded up to the nearest whole integer, ensuring a discrete number of bins.

For example, if an analyst is working with a dataset comprising 31 observations, Sturges’ Rule dictates the bin count as follows: Optimal Bins = ⌈log₂(31) + 1⌉. Calculating the logarithm yields 4.954, resulting in ⌈5.954⌉, which rounds up to 6. Therefore, R’s default logic would generate a histogram with six bins for this specific dataset. The power of the default function is its ability to execute this calculation automatically when provided only with the data vector:

hist(data)

The Limitations of Using an Integer in the `breaks` Argument

While R’s default binning provides a reliable starting point, data analysts frequently require explicit control over the number of bins. This control is necessary to standardize visualizations for comparative reports, align the breaks with specific domain knowledge, or intentionally highlight fine-grained details within the data distribution. The hist() function accommodates this customization through the critical breaks argument.

A common pitfall for R users is assuming that supplying an integer value to the breaks argument will enforce that exact number of bins. For instance, an attempt to request seven bins using the following syntax often leads to unexpected results:

hist(data, breaks=7)

In reality, R does not treat this integer as a strict command; rather, it interprets it as a suggestion or a target value. The function then often overrides the suggested integer count to select “nicer” break points—those that align cleanly with whole numbers or round values on the axis scale. This internal optimization is designed to enhance the readability of the resulting plot, but it fundamentally compromises the user’s ability to enforce an exact bin count, which can be highly problematic for reproducible analysis.

To genuinely override R’s internal binning heuristics and ensure the histogram utilizes a precise, non-negotiable number of intervals, analysts must move beyond simple integer suggestions and explicitly define the exact boundaries of those breaks.

Enforcing Precision: Defining Boundaries Using the `seq()` Function

The definitive method for bypassing R’s bin optimization logic and forcing a histogram to use a specific number of equally-spaced bins involves generating the exact boundary points using the seq() function. By supplying a vector of calculated break points directly to the breaks argument, we remove all ambiguity and control the visualization precisely.

The strategic implementation requires determining the minimum and maximum values of the dataset and then generating a sequence that spans this range, segmented into the required number of intervals. The robust code structure necessary for this enforcement is as follows:

#Create histogram with (n) bins
hist(data, breaks = seq(min(data), max(data), length.out = n+1))

This solution hinges on three critical parameters: min(data) and max(data) establish the absolute start and end points of the sequence, covering the entire data range. Crucially, the length.out parameter defines the total number of boundary points required. To achieve n desired bins, one must always specify n+1 boundary points. For instance, if the goal is to create 10 bins, we need 11 break points (the starting point, 9 intermediate dividers, and the ending point) to define those 10 intervals.

By utilizing seq() in this manner, we compel R to define the breaks mathematically, guaranteeing that the resulting histogram will contain the exact, equally-spaced number of bins specified by the analyst, irrespective of R’s default axis optimization routines or what Sturges’ Rule might suggest.

Practical Demonstration: Comparing Default, Suggested, and Forced Breaks

To fully appreciate the necessity of explicitly defining break points, let us examine a practical scenario using a small sample vector of numerical data. This demonstration will highlight the differences between R’s automatic binning, its interpretation of an integer suggestion, and the forced specification method.

First, we initialize a sample vector containing 16 data points:

#create vector of 16 values
data <- c(2, 3, 3, 3, 4, 4, 5, 6, 8, 10, 12, 14, 15, 18, 20, 21)

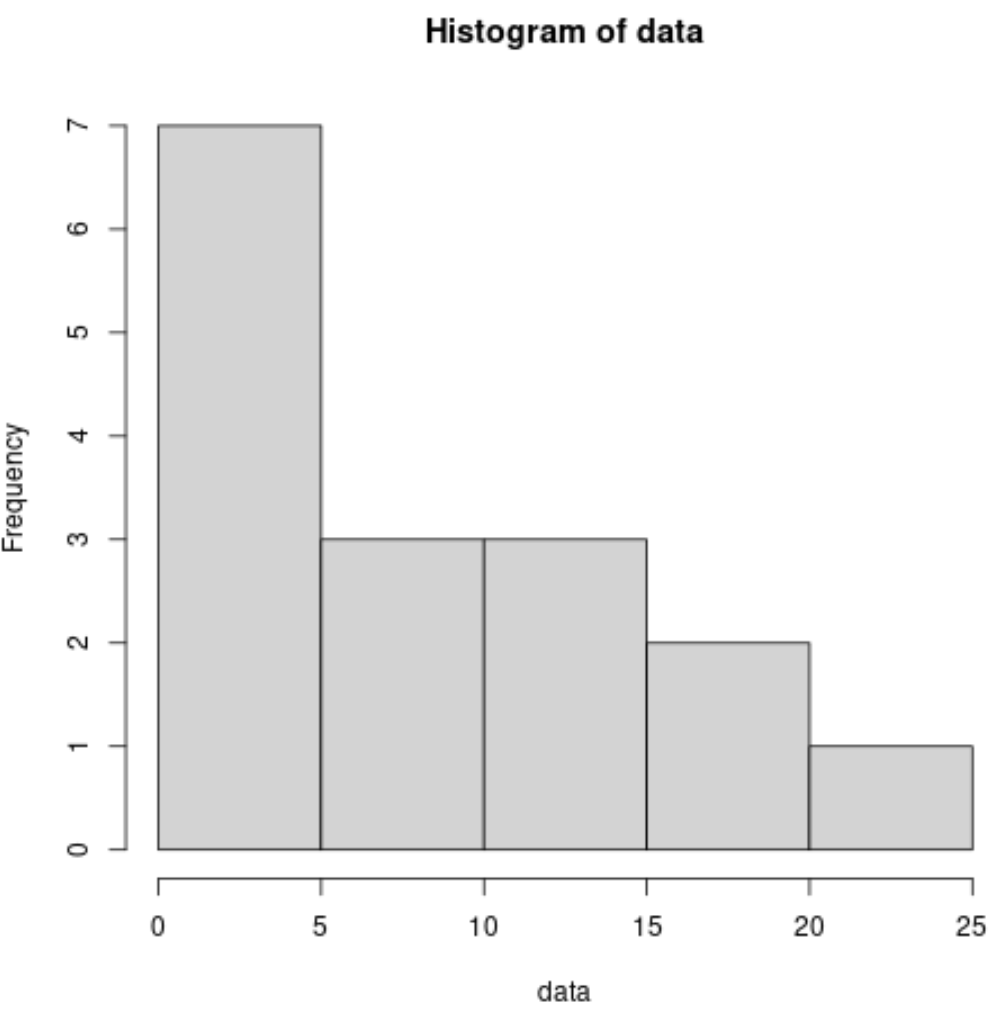

We begin by invoking the basic hist(data) command. With n = 16 observations, R automatically applies Sturges’ Rule, calculating the optimal bin count: ⌈log₂(16) + 1⌉ = 5 bins. The resulting visualization correctly displays 5 bins:

#create histogram using default settings
hist(data)

Next, assume the analyst requires 7 bins to better analyze specific characteristics of the data distribution. The analyst attempts to achieve this by supplying the integer 7 to the breaks argument:

#attempt to create histogram with 7 bins (suggestion)
hist(data, breaks=7)

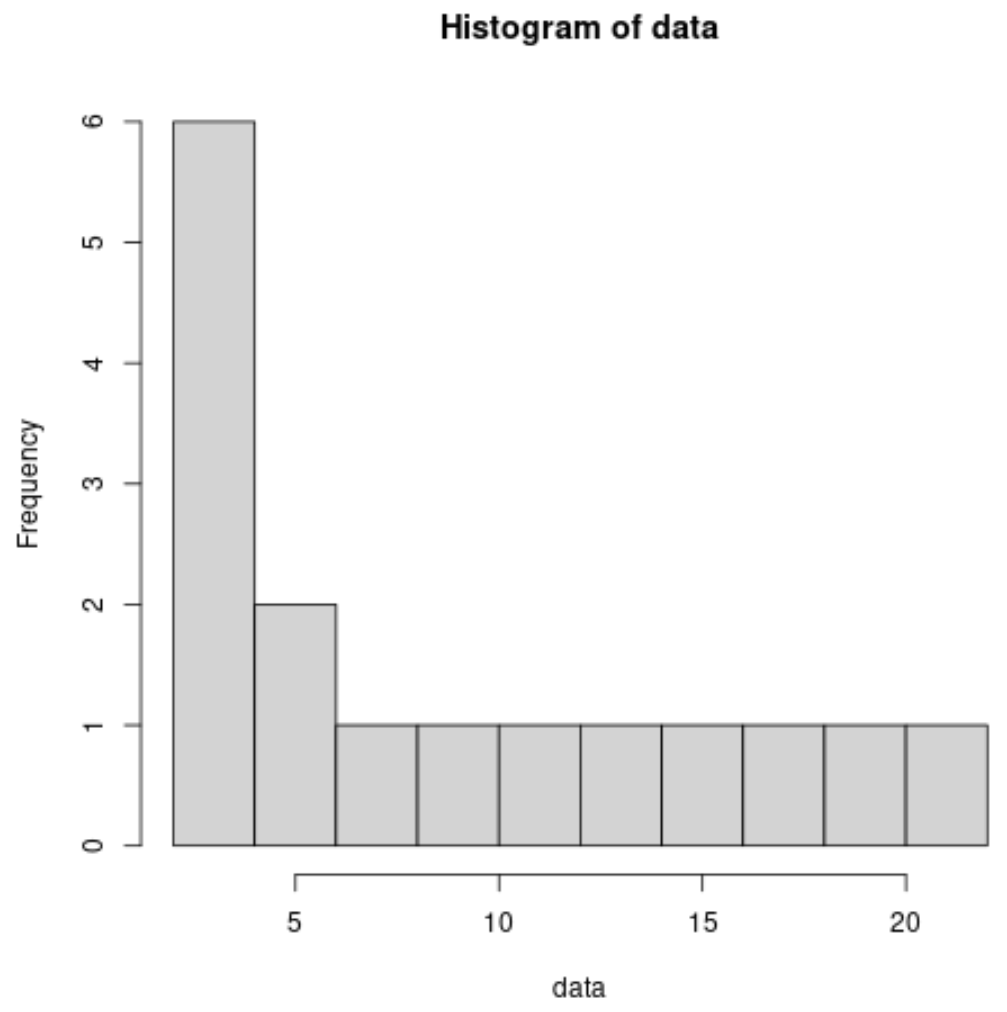

As anticipated, R treats this as a suggestion and prioritizes axis readability. Instead of producing 7 bins, R adjusts the break points to fall on round numbers, consequently generating a histogram with 10 bins, significantly altering the visual interpretation of the dataset:

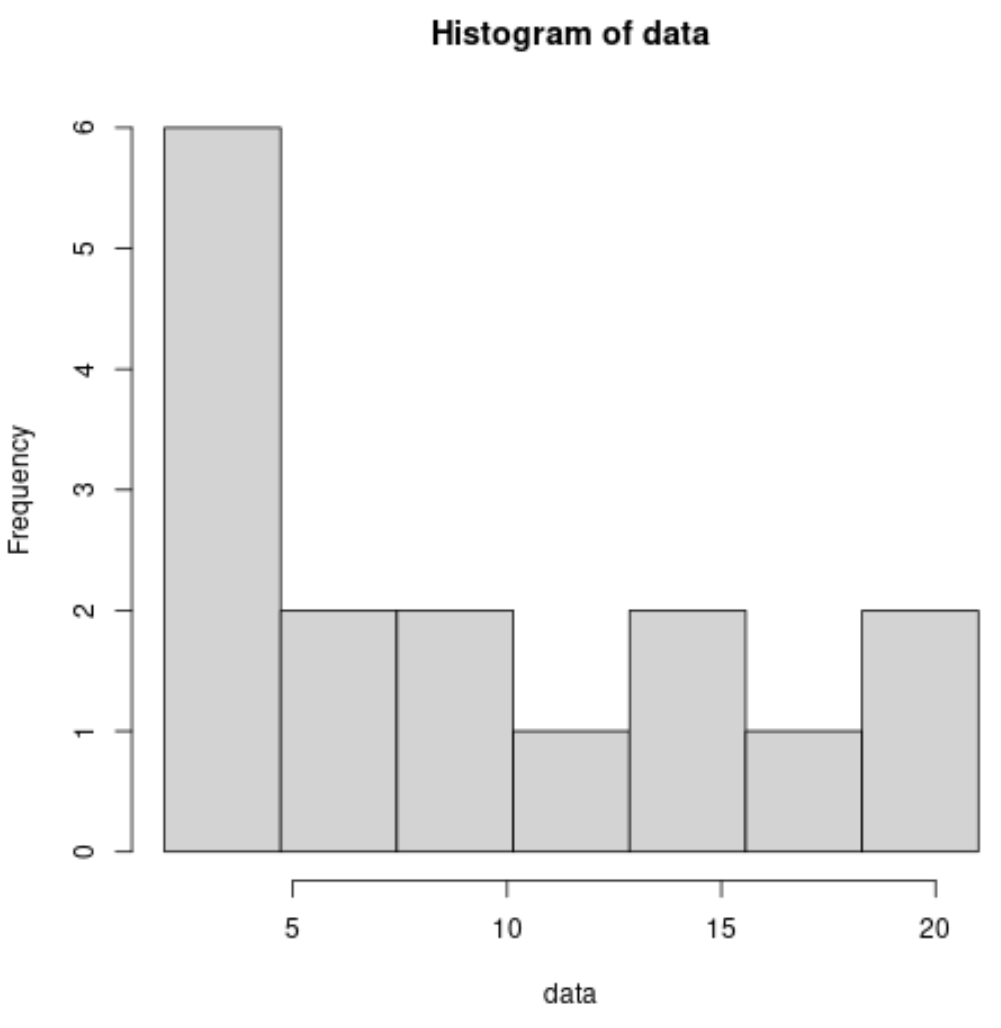

Finally, we apply the explicit boundary specification method. Since 7 bins are desired, we set the length.out parameter to 8 (n+1). This forces R to calculate 8 equally spaced break points spanning from 2 (min) to 21 (max), resulting in exactly 7 bins:

#create histogram with exactly 7 bins (forced specification)
hist(data, breaks = seq(min(data), max(data), length.out = 8))

This final result confirms that the use of the seq() function is the only reliable way to enforce precise, equally-spaced bin counts in R, overriding all internal optimization attempts.

Conclusion and Consideration of Alternative Binning Rules

Achieving explicit control over histogram bins is a vital requirement for accurate and reproducible data visualization. The distinction between merely suggesting a bin count (using an integer in breaks) and mandating the exact break points (using seq() with length.out = n+1) is fundamental to mastering histogram generation in R.

It is important to acknowledge that Sturges’ Rule is not universally applicable. For datasets that exhibit strong skewness, contain extreme outliers, or are exceptionally large, alternative bin selection algorithms often provide a more statistically appropriate representation. R’s hist() function supports these advanced rules, including the Freedman-Diaconis Rule and Scott’s Rule, which can be invoked by passing their names as character strings to the breaks argument (e.g., breaks="FD" or breaks="Scott").

However, when the requirement is absolute, non-negotiable control over the number of bins—regardless of the underlying distribution or statistical theory—the combination of seq(), min(), and max() remains the most robust and versatile technique available in the R ecosystem.
