Understanding Standardization and Normalization in Data Preprocessing

In the critical world of data science and statistical modeling, effective data preprocessing is paramount to achieving accurate and reliable results. Before feeding raw input into any machine learning model, data must undergo a process known as feature scaling. Two fundamental and often confused techniques used for this purpose are Standardization and Normalization. While both methods aim to rescale data, they achieve this goal using fundamentally different mathematical approaches, which have significant practical implications for model performance.

The selection between standardization and normalization is not trivial; it depends heavily on the characteristics of the dataset and the requirements of the specific algorithm being used. An incorrect scaling method can lead to slow convergence during training or, worse, negatively impact the model’s ability to learn meaningful patterns. Therefore, a deep understanding of the mathematical underpinnings and situational applicability of each technique is an essential skill for any data practitioner.

Understanding Data Standardization (Z-Score Scaling)

Standardization, commonly referred to as Z-score scaling, is a powerful linear transformation method. Its primary objective is to transform the data distribution such that the resulting set of values has a mean (average) of 0 and a standard deviation of 1. This process effectively centers the data around zero, allowing features measured in vastly different units (e.g., age vs. income) to be compared on a unified scale of deviation.

This scaling technique is particularly advantageous when dealing with algorithms that rely on distance calculations, such as K-Nearest Neighbors (KNN) or Support Vector Machines (SVM), and those that incorporate regularization terms. Furthermore, standardization is the preferred approach when the raw data is known to follow or is assumed to follow a normal (Gaussian) distribution, as it preserves the original distribution shape while ensuring that all features contribute equally to the distance metrics.

The conceptual basis of standardization is measuring how many standard deviations a particular observation lies away from the dataset’s central tendency. The mathematical formula used for this transformation is the standard score calculation:

x_new = (x_i – x) / s

The components of this equation are defined as follows:

• x_i: The i^th individual observation or data point being transformed.
• x: The sample mean (average) of the entire feature set.
• s: The sample standard deviation, which quantifies the spread of the data values.

Defining Data Normalization (Min-Max Scaling)

In stark contrast to standardization, Normalization—most commonly implemented as Min-Max scaling—rescales the data into a specific, predetermined range, usually [0, 1]. This technique linearly transforms the data points such that the original minimum value maps directly to 0, and the original maximum value maps directly to 1. All intermediate values are scaled proportionally within this fixed boundary.

Normalization is critical for machine learning algorithms that are sensitive to the magnitude of input values or those that require input features to be strictly positive and bounded. A prime example is deep learning neural networks, which often use activation functions like the sigmoid or hyperbolic tangent (tanh). These functions perform optimally when inputs are confined to a narrow, defined range, preventing issues like vanishing gradients during training.

Because Min-Max scaling relies solely on the highest and lowest observed values, it is mathematically simple and guarantees the output will never exceed the specified bounds. The formula underpinning Min-Max normalization is:

x_new = (x_i – x_min) / (x_max – x_min)

The key variables involved in this calculation are defined below:

• x_i: The i^th data point currently undergoing transformation.
• x_min: The absolute minimum value found across the entire dataset feature.
• x_max: The absolute maximum value found across the entire dataset feature.

To demonstrate the tangible differences between these two scaling techniques, we will now analyze how each method transforms a common sample dataset.

Practical Example: Standardizing a Sample Dataset

We begin with a small, representative dataset to illustrate the step-by-step standardization process. Imagine this dataset represents a single feature column, such as student test scores or sensor readings:

For Z-score scaling, the crucial first step is to calculate the descriptive statistics for this sample. For the data points shown above, the calculated sample mean is approximately 43.15, and the sample standard deviation is 22.13. These two constants are essential for centering and scaling the entire feature column.

To standardize the first data point, which has an original value of 13, we apply the Z-score formula:

• x_new = (x_i – x) / s = (13 – 43.15) / 22.13 = -1.36

The resulting value, -1.36, provides immediate statistical context, indicating that the raw value of 13 is located 1.36 standard deviations below the dataset’s mean. We repeat this process for the second value, 16, utilizing the same mean and standard deviation:

• x_new = (x_i – x) / s = (16 – 43.15) / 22.13 = -1.23

Finally, the calculation for the third value, 19, is performed:

• x_new = (x_i – x) / s = (19 – 43.15) / 22.13 = -1.09

Once applied to all observations, the entire feature column is transformed into a standardized vector. Note that the resulting values are typically unbounded, ranging from negative to positive infinity, though in most real-world scenarios, they cluster closely around the range of [-3, +3]. The table below shows the complete standardized results.

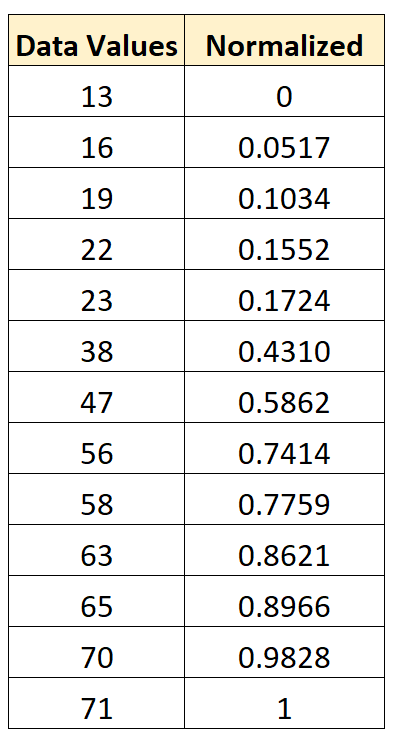

Practical Example: Normalizing a Sample Dataset

We will use the identical dataset to demonstrate normalization, allowing for a clear comparison of the resulting transformed scales. The objective here is strictly to compress the entire distribution into the fixed range of [0, 1].

Min-Max scaling requires identifying the absolute boundary values within the feature column. For this specific dataset, the minimum value (x_min) is 13 and the maximum value (x_max) is 71. The range, calculated as (x_max – x_min), is 58, which serves as the denominator in the normalization formula.

To normalize the first data point, 13, which is the minimum value:

• x_new = (x_i – x_min) / (x_max – x_min)  = (13 – 13) / (71 – 13) = 0 / 58 = 0

As expected with Min-Max scaling, the minimum value transforms precisely to 0. Next, we normalize the second value of 16:

• x_new = (x_i – x_min) / (x_max – x_min) = (16 – 13) / (71 – 13) = 3 / 58 ≈ 0.0517

Finally, the calculation for the third value of 19 is performed:

• x_new = (x_i – x_min) / (x_max – x_min)= (19 – 13) / (71 – 13) = 6 / 58 ≈ 0.1034

When this formula is applied across the entire dataset, all resultant values are guaranteed to reside within the [0, 1] interval. The original maximum value (71) would be transformed exactly to 1, completing the defined scale boundaries. The table below provides the full normalized vector.

The Influence of Data Distribution and Outliers

The most critical factor influencing the choice between standardization and normalization is often the presence of outliers in the data. An outlier is any observation that deviates significantly from other observations in the dataset, and these extreme values can disproportionately affect scaling methods.

Because Normalization explicitly uses the absolute minimum and maximum values (x_min and x_max) in its denominator, it is extraordinarily susceptible to outliers. If a single severe outlier exists, the Min-Max scale becomes heavily skewed, causing the vast majority of useful data points to be compressed into a tiny range near 0 or 1. This “squishing” of the data range severely limits the variance available for the machine learning model to learn from, thus diminishing performance.

Conversely, Standardization is generally considered far more robust to outliers. While the mean and standard deviation are inherently influenced by extreme values, standardization centers the data based on deviation rather than fixed boundaries. This process helps maintain the relative spread and preserves the characteristics needed for many statistical assumptions, particularly those relying on Gaussian behavior. When working with complex, noisy, or real-world datasets where outliers are expected, standardization is typically the safer default choice.

It is important to note that if the data distribution is severely non-Gaussian (not bell-shaped), even standardization may not be sufficient. In such cases, data scientists may first apply non-linear transformations (such as logarithmic or power transformations) to make the feature distribution more normal before applying Z-score standardization.

Standardization vs. Normalization: When to Use Each

The fundamental purpose of feature scaling remains the same: ensuring that features measured on inherently different scales do not bias the model toward variables with larger numerical magnitudes. For instance, a variable representing housing price (in hundreds of thousands) should not overpower a variable representing the number of rooms (single digits) simply due to its scale.

We should choose Normalization (Min-Max scaling) whenever the specific algorithm or domain requirement demands that feature values be confined within a fixed, strict boundary, such as [0, 1]. Practical applications include image processing (where pixel intensity ranges from 0 to 255 and needs bounding) and certain deep learning architectures that utilize bounded activation functions for optimal performance.

We should choose Standardization when the primary goal is to transform the data into a comparable metric based on its deviation from the central tendency, without imposing strict bounds. This method is preferred when the data distribution is unknown, when robustness to potential outliers is required, or when using algorithms dependent on gradient descent optimization, such as Linear Regression, Logistic Regression, and certain distance-based clustering techniques like K-Means.

Consider the clarity standardization offers: if a financial analyst standardizes stock returns, a result of +2.0 immediately signifies that the return was two standard deviations above the average, providing a universal measure of extremity regardless of the raw currency value. This statistical context is the core advantage of Z-score scaling.

Summary of Key Differences and Implementation

To facilitate quick decision-making, here is a consolidated summary contrasting the characteristics and use cases of the two feature scaling methods:

• Normalization (Min-Max): Scales data to a predefined fixed range (e.g., 0 to 1). It is extremely sensitive to outliers because it uses the maximum and minimum values directly. It is typically used for algorithms requiring bounded, positive inputs, most notably in Deep Learning and image processing tasks.
• Standardization (Z-Score): Transforms data to achieve a mean of 0 and a standard deviation of 1. It is generally more robust against outliers and preserves the shape of the original distribution. It is the preferred method for models relying on distance measures, gradient descent, or Gaussian distribution assumptions (e.g., SVM, K-Means, Linear Models).

In practical machine learning development, if a practitioner is initially uncertain about the best scaling approach, standardization is often recommended as the safer default, particularly for datasets prone to noise or extreme values. However, model constraints—such as the need for non-negative or strictly bounded inputs—will necessitate the use of normalization.

Implementation in Data Science Frameworks

Fortunately, modern data science libraries provide highly optimized tools for implementing these scaling methods efficiently. For Python users, the Scikit-learn library is the industry standard for preprocessing. It abstracts the complex manual calculations into simple, reliable class methods.

The StandardScaler class is designed specifically for standardization, while the MinMaxScaler handles Min-Max normalization. Implementing these transformations requires only a few lines of code, significantly streamlining the data preprocessing pipeline and allowing data scientists to dedicate more attention to model tuning and evaluation.

The implementation structure in Python often looks like this:

# Example of using StandardScaler (Standardization)
from sklearn.preprocessing import StandardScaler
scaler = StandardScaler()
data_standardized = scaler.fit_transform(raw_data)

# Example of using MinMaxScaler (Normalization)
from sklearn.preprocessing import MinMaxScaler
min_max_scaler = MinMaxScaler()
data_normalized = min_max_scaler.fit_transform(raw_data)

These frameworks eliminate the need for the tedious arithmetic demonstrated in the examples above, ensuring both accuracy and speed in large-scale data processing tasks.

Further Reading and Resources

To further enhance your mastery of feature engineering and data preparation, exploring documentation on the mathematical consequences of scaling methods and their specific application within different machine learning model contexts is highly recommended.
