Learning to Sum Filtered Data in Excel: A Step-by-Step Guide

The Core Dilemma: Calculating Aggregates on Filtered Data in Excel

When professionals work with extensive datasets within the powerful environment of Excel, the need to perform quick and accurate calculations on specific subsets of that data is paramount. A particularly frequent task involves summing numerical values after criteria have been applied to display only relevant rows, a process typically achieved through Excel’s built-in filtering mechanisms. While the fundamental and ubiquitous SUM() function is perfectly suited for aggregating values across an entire, static range, it introduces a significant, often misleading, challenge when the data is dynamically filtered. This discrepancy necessitates the use of a more specialized function designed to respect the visible state of the worksheet.

The inherent limitation of the traditional SUM() function stems from its operational scope: it calculates the total of all cells within a designated reference range, irrespective of whether those rows have been hidden by a filter or manually hidden by the user. Consequently, if a user filters a list of sales figures to view only those from a specific region and then applies SUM() to the total column, the resulting figure will incorrectly include values from the rows that are currently filtered out and invisible. This behavior defeats the purpose of filtering for focused data analysis and can lead to costly errors and flawed conclusions in financial reporting or statistical review.

To effectively circumvent this critical limitation and ensure calculations accurately reflect only the visible portion of the spreadsheet, Excel provides the highly versatile and indispensable SUBTOTAL function. This function is explicitly engineered to recognize and adapt to the visibility state of rows, making it the definitive tool for performing aggregate calculations—including summing, counting, and averaging—on a filtered range of data. Mastering SUBTOTAL is essential for anyone requiring dynamic and accurate data summaries in a filtered environment.

Deconstructing the SUBTOTAL Function Syntax and Functionality

The SUBTOTAL function represents a cornerstone of dynamic data analysis within Excel, offering a powerful mechanism to aggregate information based on row visibility. Its adaptability is derived from its two core arguments, allowing users to specify both the type of calculation required and the data upon which it should operate. The general syntax is designed for clarity and efficiency, enabling rapid implementation across various data structures, regardless of their complexity or size.

SUBTOTAL(function_num, range)

In this structure, function_num is a numerical code that dictates the specific aggregate function SUBTOTAL will execute, such as calculating the maximum, minimum, count, or, critically, the sum. The subsequent range argument defines the contiguous block of cells where the calculation will be applied. For the specific task of summing a filtered range of rows—that is, calculating the total of only the visible cells—the designated function_num that must be utilized is 109. This number is not arbitrary; it is specifically reserved to instruct Excel to perform a sum while intentionally bypassing any rows that have been hidden using the AutoFilter feature.

It is crucial to understand the subtle but significant difference between the two codes used for summing: 9 and 109. While code 9 also instructs SUBTOTAL to calculate a sum, it ignores rows hidden by AutoFilter but still includes values from rows that were hidden manually by the user (right-click, Hide). Conversely, 109 is the function code required when dealing exclusively with filtered data, as it excludes any rows hidden by an active filter. By consistently employing 109 for filtered sums, analysts guarantee that their total reflects only the data currently visible on the sheet, providing an accurate and contextually relevant summation for dynamic reporting and exploration.

Practical Application: Setting Up the Basketball Score Dataset

To effectively demonstrate the power and necessity of the SUBTOTAL(109) function, we will apply it to a practical, real-world scenario involving sports statistics. Imagine you are managing a dataset that tracks the individual scores of players across several basketball teams. Your primary objective is to dynamically find the total points scored by players belonging to only specific, selected teams, thereby excluding all others from the final tally. This example clearly highlights where a standard sum operation would fail and how the specialized function provides the required accuracy.

Our sample data consists of three columns: Player Name, Team Affiliation, and Points Scored. The teams included are the Dallas Mavericks (Mavs), the Golden State Warriors (Warriors), and the Boston Celtics. The data is organized in a simple table format, ready for the application of Excel’s powerful filtering tools. Before any calculations can be performed, it is essential to visualize the original, unfiltered state of the data to appreciate the comprehensive scope of the information we are working with.

For this demonstration, our specific analysis goal is to isolate and calculate the aggregate points scored exclusively by the players of the Mavs and the Warriors. This means we must filter out all rows corresponding to the Celtics. By setting up this controlled environment, we can subsequently contrast the misleading result generated by the standard SUM() function against the precise, filtered total delivered by the SUBTOTAL function, thus solidifying the necessary methodology for accurate dynamic calculations in Excel.

Step-by-Step Guide to Applying Data Filters in Excel

The initial and most fundamental step in isolating a subset of data for focused analysis is the correct application of filters. This process involves toggling the AutoFilter feature, which inserts interactive dropdown menus into the header row, allowing users to define specific criteria for row visibility. To begin this operation, you must first select the entire range of your dataset, ensuring that the column headers are included in the selection. In our basketball example, this corresponds to the cell range A1:C10.

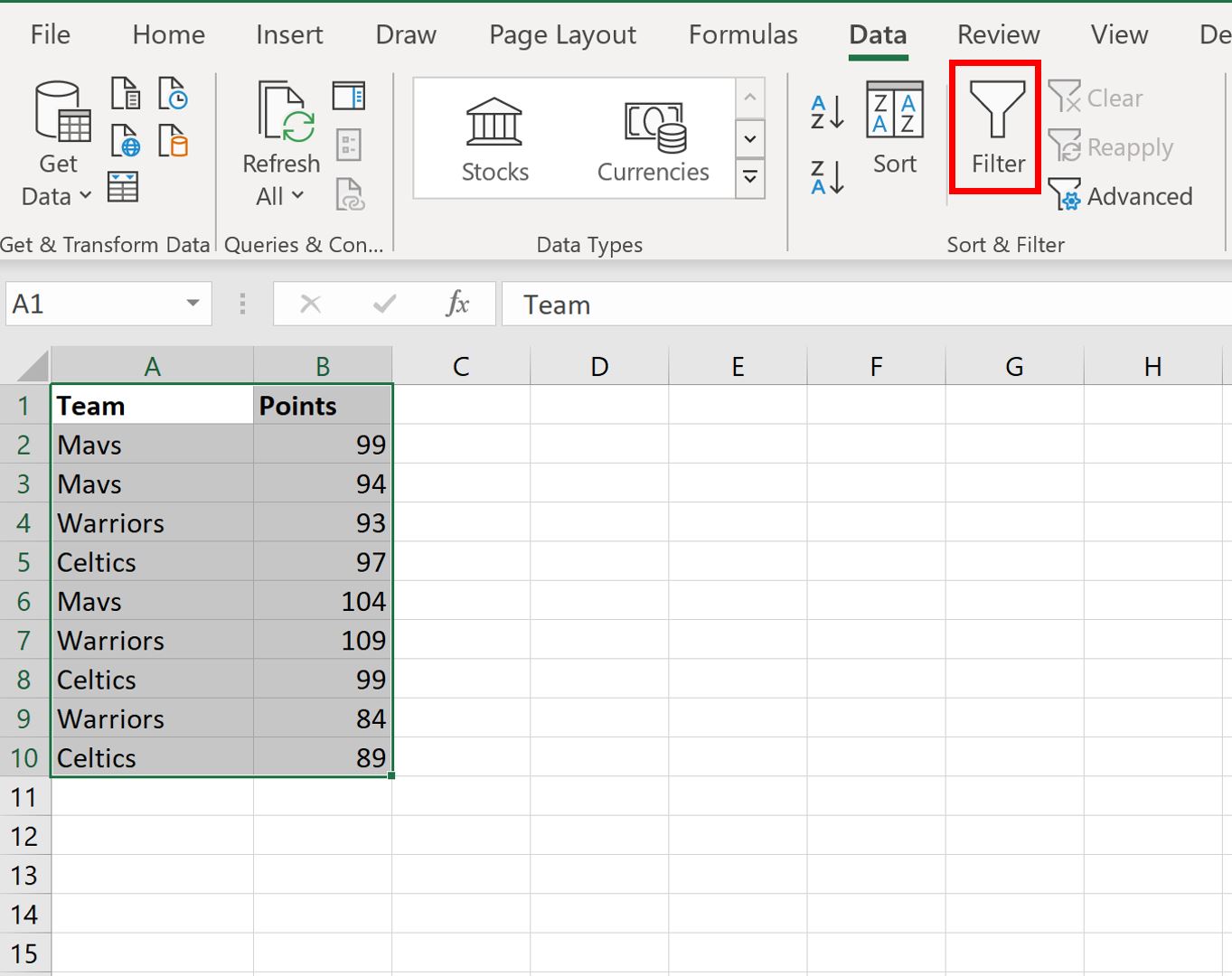

Once the data range is correctly highlighted, the next action is to activate the filtering feature. This is typically accomplished by navigating to the Data tab located in Excel’s main ribbon interface. Within the ‘Sort & Filter’ group on this tab, you will find the dedicated Filter button, usually represented by a funnel icon. Clicking this button immediately applies the filter controls, recognizable by the appearance of small dropdown arrows next to each column header name. These arrows signify that the filtering capabilities are now active and ready for use across your entire dataset, allowing for precise control over which rows remain visible.

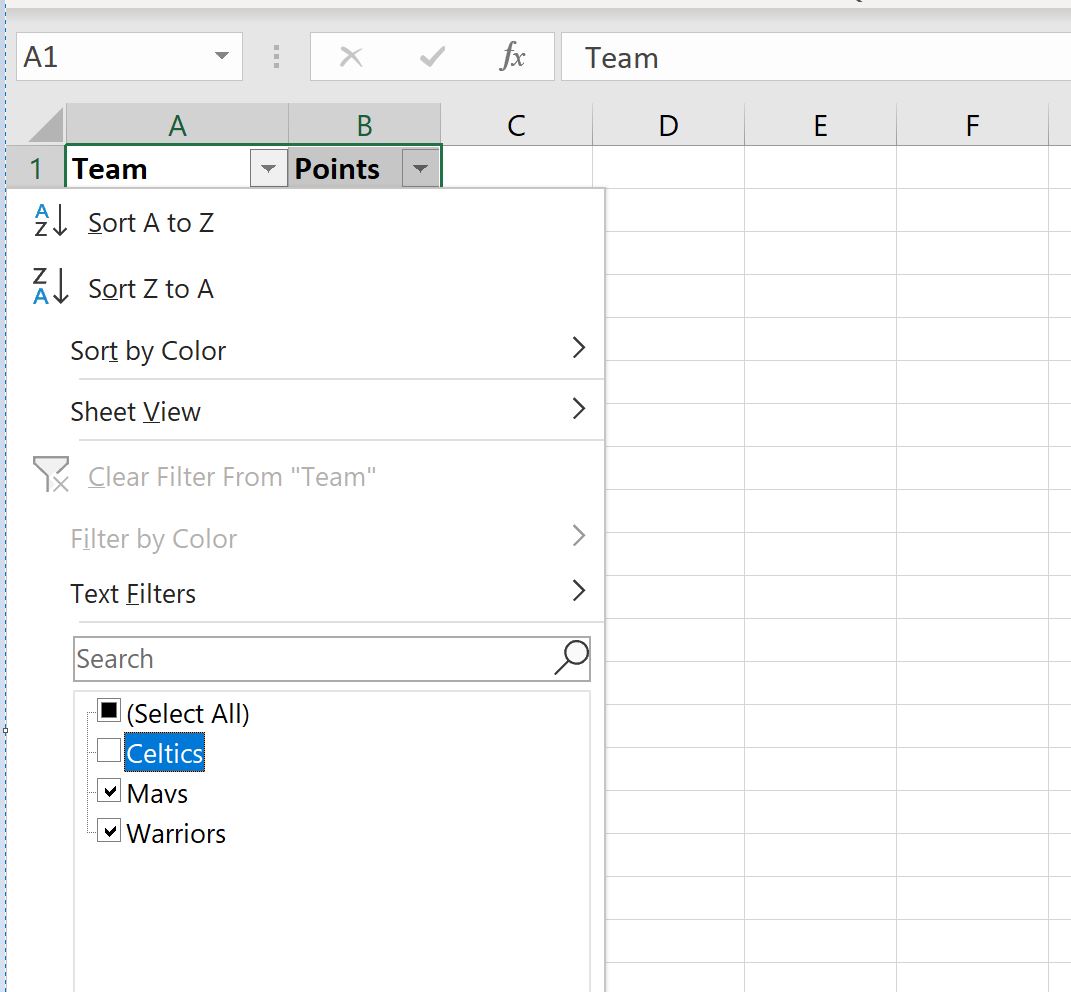

To execute the filter based on our requirement—showing only the Mavs and Warriors—click the dropdown arrow located on the “Team” column header. This action reveals a checklist menu containing every unique value present in that column. To exclude the Celtics data, you must uncheck the box corresponding to “Celtics.” After confirming that only “Mavs” and “Warriors” remain selected, click the OK button to apply the filter. Excel will instantaneously update the worksheet, dynamically hiding all rows that do not match the specified criteria, thereby presenting a clean, focused view of the data subset required for accurate calculation.

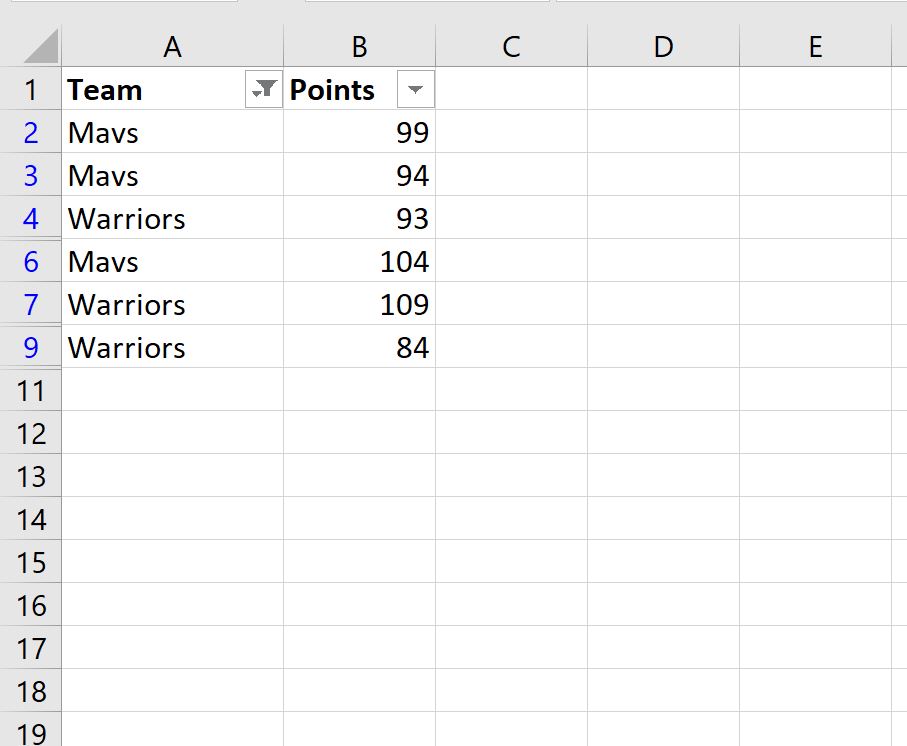

The result of this filtering operation is a visually distinct table where only the rows pertaining to the selected teams are displayed. Note that the row numbers on the left side of the sheet will skip, confirming that the rows for the Celtics have been successfully hidden. This filtered view provides the necessary context for the next step: calculating the aggregate points for only the visible players, which is where the distinction between SUM() and SUBTOTAL() becomes profoundly important.

Comparing Results: Why SUM() Fails Where SUBTOTAL(109) Succeeds

With the data successfully filtered to display only the players from the Mavs and Warriors, many users instinctively reach for the familiar SUM function to total the points column. However, attempting to use the formula =SUM(B2:B10) on this filtered view will immediately expose the core limitation of the standard aggregate functions. As previously detailed, the SUM function is not filter-aware; it operates on the full range specified, including the numerical values in rows B4, B7, and B9—the rows belonging to the Celtics that are currently hidden from view.

When =SUM(B2:B10) is executed, the result will reflect the total points scored by *all* players in the original dataset, completely ignoring the rigorous filtering process applied. This behavior is a common source of calculation error in Excel, leading to an overestimation of the filtered subset’s true total. The visual discrepancy between the visible data and the calculated sum should serve as a clear indicator that the incorrect function has been used for dynamic data analysis, underscoring the necessity of selecting a calculation method that dynamically respects the current display state of the spreadsheet.

The image above vividly illustrates this failure: despite the filter being active, the SUM() function returns a large total, which is the sum of all points (including the hidden Celtics rows). This outcome fundamentally necessitates the use of the SUBTOTAL function. By using the dedicated function_num 109, we instruct Excel to bypass all non-visible cells resulting from the filter, thereby providing a summation that is logically consistent with the data currently being viewed. The SUBTOTAL(109) approach is the authoritative solution for generating accurate results on actively filtered data.

Finalizing the Calculation and Verifying Accuracy

The definitive method for achieving the desired, accurate sum of only the visible rows is by implementing the SUBTOTAL function, specifically utilizing the code for summing visible cells. By entering the formula =SUBTOTAL(109, B2:B10) into an empty cell, we explicitly command Excel to execute a summation across the specified range (B2 to B10) but restrict the calculation strictly to rows that have not been concealed by the applied filter. This ensures that the calculation is dynamically linked to the current visible state of the data, providing a result that is both trustworthy and contextually correct for the Mavs and Warriors players only.

The computed result from =SUBTOTAL(109, B2:B10) yields 583. This figure represents the true aggregate of the points column for the rows that match the filtering criteria. To confirm the accuracy of this powerful function, a simple manual verification can be performed by summing the visible values: 99 (Mavs) + 94 (Mavs) + 93 (Warriors) + 104 (Warriors) + 109 (Mavs) + 84 (Warriors). The sum of these visible points is indeed 583. This precise match confirms that the SUBTOTAL(109) method is the accurate and professional way to handle aggregations on dynamic, filtered data in Excel.

The successful implementation of this technique is vital for anyone involved in building dynamic reports, crafting interactive dashboards, or performing iterative data analysis where filtering is a routine part of the workflow. Relying on the filter-aware functionality of SUBTOTAL ensures that reports remain truthful and responsive, adapting automatically as the user changes the filter criteria, thereby significantly enhancing the integrity and utility of the data output.

Maximizing Efficiency: Advanced Uses of the SUBTOTAL Function

The capacity to accurately sum filtered rows is just one of the many benefits offered by the SUBTOTAL function. By varying the function_num argument, you can instruct Excel to perform a comprehensive suite of aggregate calculations, all while adhering strictly to the visibility of the rows. This single function effectively replaces ten separate statistical functions when working with dynamic or partially hidden datasets, streamlining complex data manipulation tasks and centralizing calculation logic.

For instance, by changing 109 (Sum) to 101 (Average), you can instantly calculate the average points scored only by the visible players. Similarly, using 103 provides the count of visible rows, a crucial metric for verifying the size of the filtered subset. Understanding this versatility allows users to move beyond simple summation and unlock the full potential of dynamic reporting in Excel, minimizing the need for manual row selection or complex array formulas. This comprehensive approach significantly enhances the speed and reliability of professional data analysis.

In conclusion, while the standard SUM() function remains foundational, the filter-aware SUBTOTAL(109, range) is the essential formula for anyone analyzing data that is subject to filtering or hiding. By incorporating this technique into your skill set, you ensure that your calculations are always precise and reflective of the displayed information, transforming your data handling capabilities and boosting confidence in your analytical outcomes. We strongly encourage exploring the entire range of function_num codes within SUBTOTAL to maximize its utility.
