How to Calculate Totals from Two Columns in an Excel Pivot Table

In the modern discipline of data analysis, the Microsoft Excel application stands out as an indispensable tool, primarily due to the robustness of its Pivot Table feature. While these tables are exceptionally adept at summarizing and organizing vast, complex datasets through default aggregation, analysts frequently face situations requiring the combination of data from several existing fields. This comprehensive guide delivers a precise, step-by-step methodology for summing two distinct columns directly within an Excel Pivot Table. By utilizing a powerful feature known as a Calculated Field, you can significantly enhance your analytical capabilities without making any modifications to the underlying source data.

Unlocking Deeper Insights Using Calculated Fields

A fundamental skill in advanced reporting is understanding how to extend and manipulate the inherent functionality of Pivot Tables to extract more meaningful insights from raw data. In many analytical scenarios, the standard summarizations provided by Excel—such as simple sums, counts, or averages—may not meet specific reporting requirements. For instance, a user might need a single metric that represents the combined value of two distinct financial metrics, like total revenue plus total commissions, or in our case, sales combined with returns.

This tutorial addresses the common need to sum values derived from two distinct columns already summarized within your existing Pivot Table structure. Achieving this requires us to employ Calculated Fields, a robust feature allowing the creation of new data fields based on mathematical operations performed on existing fields. This approach is highly advantageous because it ensures the derived data remains dynamic, automatically updating whenever the Pivot Table is refreshed.

By mastering this technique, you will gain the ability to confidently incorporate custom, complex calculations into your reports, significantly expanding the utility of your Pivot Tables for various demanding data analysis tasks. We will now proceed with the practical implementation steps.

Step 1: Preparing Your Source Data

The success of any effective analysis using an Excel Pivot Table hinges on the quality and organization of the underlying source data. Before initiating the Pivot Table creation process, you must ensure your data is meticulously structured in a clean, tabular format, complete with clear, unique headers. This structure is paramount for Excel to correctly interpret the fields and perform accurate aggregation.

For the purposes of this walkthrough, we will use a straightforward dataset that tracks financial metrics—specifically, successful sales and subsequent returns—across three distinct sales teams. This information will form the foundation for our Pivot Table and the custom calculation we intend to implement. Please enter the following data precisely into your Excel worksheet:

Observe that each record is classified by Team, alongside corresponding numerical values for Sales and Returns. This consistent, column-based format enables Excel to seamlessly identify and aggregate the data points based on the selected criteria.

Step 2: Constructing Your Basic Pivot Table

With the source data validated and prepared, the essential next phase is to construct the initial Pivot Table framework. This base structure will serve as the canvas upon which we layer our custom calculations.

To begin the creation process, ensure any cell within your defined data range (e.g., cell A1) is selected. Navigate to the Insert tab positioned in the upper ribbon of the Excel interface, and then click the designated PivotTable icon.

The “Create PivotTable” dialog box will prompt you to define two critical parameters: the data range and the placement of the new table. Confirm that the selected data source encompasses the entire dataset—in this example, A1:C16. For placement, selecting an existing worksheet location, such as cell E1, is often most practical. Finalize these selections by clicking OK.

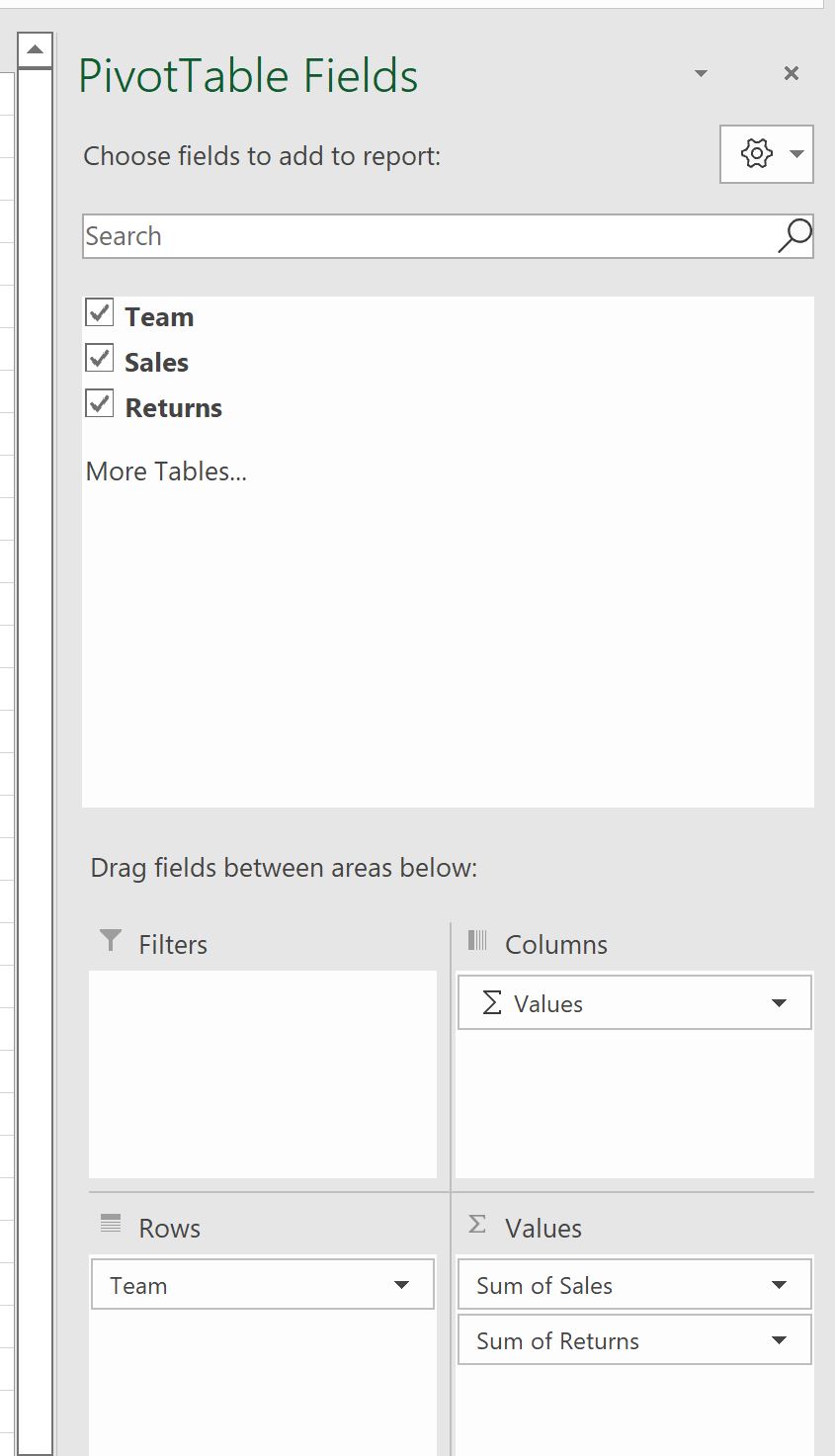

Once the table is initialized, the crucial PivotTable Fields panel will appear on the right side of the screen. This interactive panel is utilized to drag and drop fields, thus defining the structure and the values to be summarized. Drag the Team field into the Rows area to categorize the data by sales team. Subsequently, drag both the Sales and Returns fields into the Values area. Excel automatically applies the Sum function to these numerical fields by default.

At this point, your Pivot Table provides an initial summary, displaying the sum of sales and the sum of returns aggregated for each respective team.

Step 3: Implementing a Calculated Field for Column Summation

The core objective of this guide is accomplished in this step: adding a custom metric that sums the already aggregated “Sum of Sales” and “Sum of Returns” columns. This essential calculation is executed through the creation of a Calculated Field.

A Calculated Field enables users to define custom mathematical or logical operations using the fields available in the source data. The results of this formula are then presented as a new field within the Pivot Table, effectively creating derived metrics without altering the original data structure.

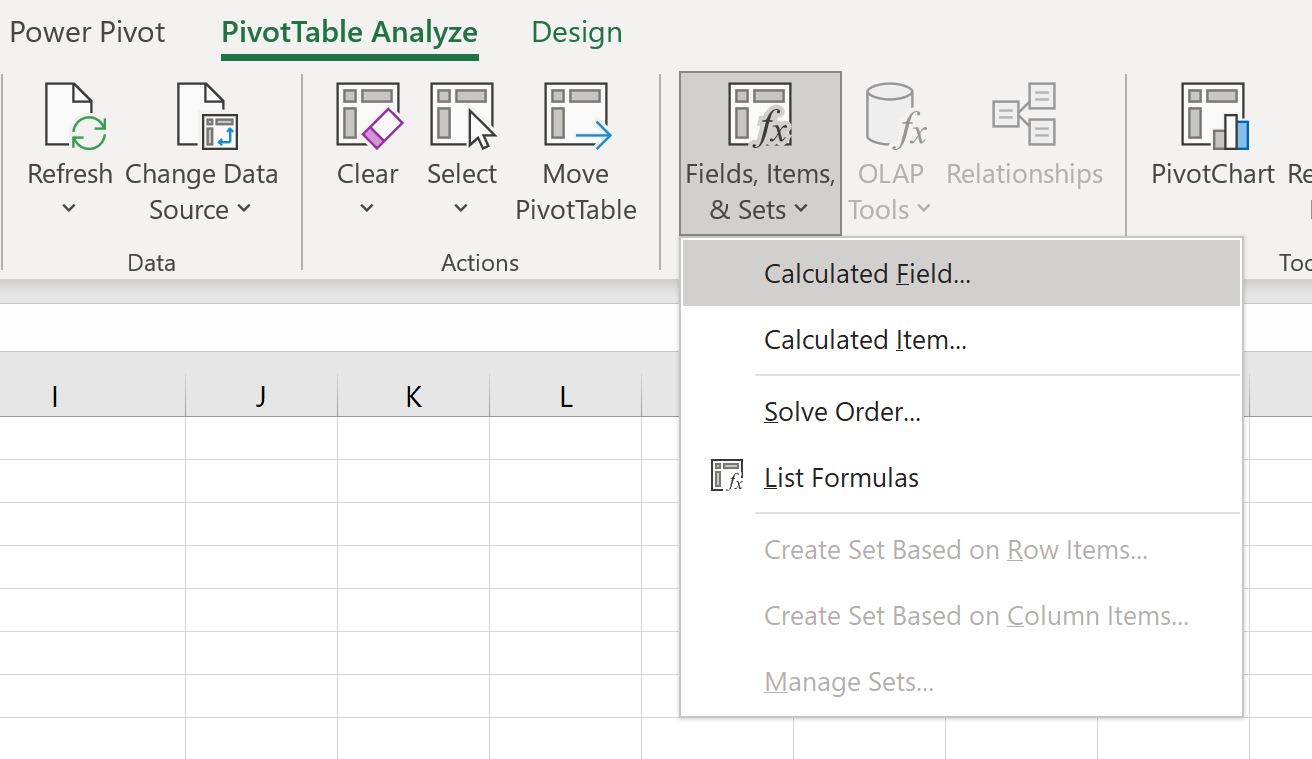

To activate this feature, ensure you have clicked on any cell within your Pivot Table. This action makes the contextual ribbon tabs visible. Navigate to the PivotTable Analyze tab, locate the Fields, Items & Sets group, and select Calculated Field from the subsequent dropdown menu.

The “Insert Calculated Field” window requires the definition of the new metric. In the Name input box, enter a descriptive title, such as “Total Transactions.” This name will be used as the column header in the resulting table. In the Formula box, input the simple arithmetic operation: = Sales + Returns. It is crucial to verify that the field names “Sales” and “Returns” are typed identically to their representation in the source data. After verification, click Add, and then confirm by clicking OK.

Step 4: Verifying and Utilizing Your Enhanced Pivot Table

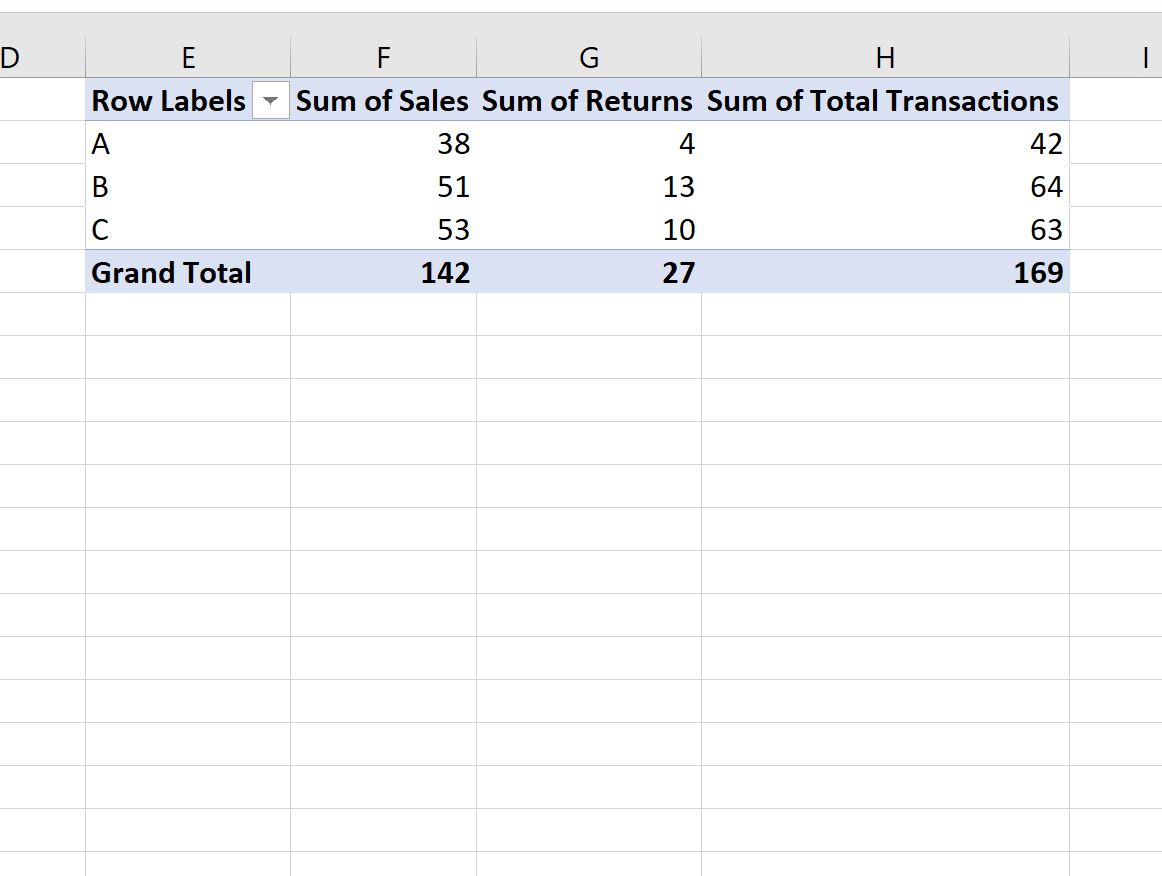

The moment the Calculated Field is confirmed, it is automatically integrated into the Values area of your Pivot Table. You will immediately observe a new column labeled “Sum of Total Transactions” appended next to the original “Sum of Sales” and “Sum of Returns” columns.

This newly derived column accurately reflects the sum of the two source columns for each corresponding sales team. For instance, if Team A had 1,000 in sales and 150 in returns, the “Total Transactions” column displays 1,150. This consolidated metric provides a superior, integrated view of all transactional activity, offering a more holistic perspective on overall team performance or metric volume.

Crucially, this “Total Transactions” field behaves exactly like any other standard data field within the Pivot Table environment. You can use it for sorting, filtering, and further analysis. This powerful technique minimizes manual calculation errors and ensures that complex analyses and custom metrics are dynamically linked to your underlying source data.

Conclusion: Expanding Your Data Analysis Capabilities

The ability to master the utilization of Calculated Fields within Excel Pivot Tables represents a significant advancement in one’s data analysis toolkit. By following the precise steps outlined in this tutorial, you can effortlessly combine and sum data from multiple columns, thereby generating crucial new metrics and insights that may not be obvious from simply reviewing the raw data alone.

This versatile technique is widely applicable across numerous professional contexts—ranging from detailed financial reporting and budget tracking to operational performance monitoring and resource allocation. Implementing custom calculations ensures your reports are not only dynamic but also highly informative, transforming basic summaries into comprehensive analytical tools.

We encourage you to experiment with other arithmetic and logical operations within the Calculated Field feature to further tailor your reports to complex business requirements.
