The Complete Guide: Change Font Size in Base R Plots

Creating effective data visualizations is crucial for communication, and often, the default settings in statistical software do not meet presentation standards. When working with Base R Plots, adjusting visual elements like font size is essential for improving readability, especially when preparing charts for reports or academic papers.

This comprehensive guide details the exact syntax required to manipulate the font size of titles, subtitles, axis labels, and axis tick marks using the built-in graphical parameters within the plot() function. Mastering these simple arguments allows for precise control over your visualization aesthetics.

Understanding the Core Font Scaling Parameters

In Base R, font size adjustments are managed using the graphical parameters, specifically those prefixed with cex (Character Expansion factor). These parameters accept a numeric value that scales the text size relative to the default size (where 1 represents the default). For instance, setting a parameter to 2 will double the font size.

The four primary cex arguments relevant to plot text elements are:

• cex.main: Controls the font size of the main plot title.
• cex.sub: Controls the font size of the plot subtitle.
• cex.lab: Controls the font size of the X and Y axis labels (the descriptive text).
• cex.axis: Controls the font size of the axis annotation (the numbers/tick mark labels).

You can apply all these parameters simultaneously within a single plot() call, as shown in the general syntax below:

plot(df$x, df$y, main='Title', sub='Subtitle',
     cex.main=2, #change font size of title
     cex.sub=2, #change font size of subtitle
     cex.lab=2, #change font size of axis labels
     cex.axis=2) #change font size of axis text

Setting Up the Demonstration Data

To illustrate the effect of these parameters, we will first create a simple data frame and generate a default scatterplot. This baseline plot uses the standard R font sizes (i.e., all cex values are implicitly set to 1).

The following code defines our sample data, consisting of six (x, y) coordinates. This will be the foundational data structure used in all subsequent examples:

#create data frame
df <- data.frame(x=c(1, 2, 3, 4, 5, 6),
                 y=c(5, 8, 12, 16, 25, 33))

#create scatterplot with all default font sizes
plot(df$x, df$y, main='Title', sub='Subtitle')

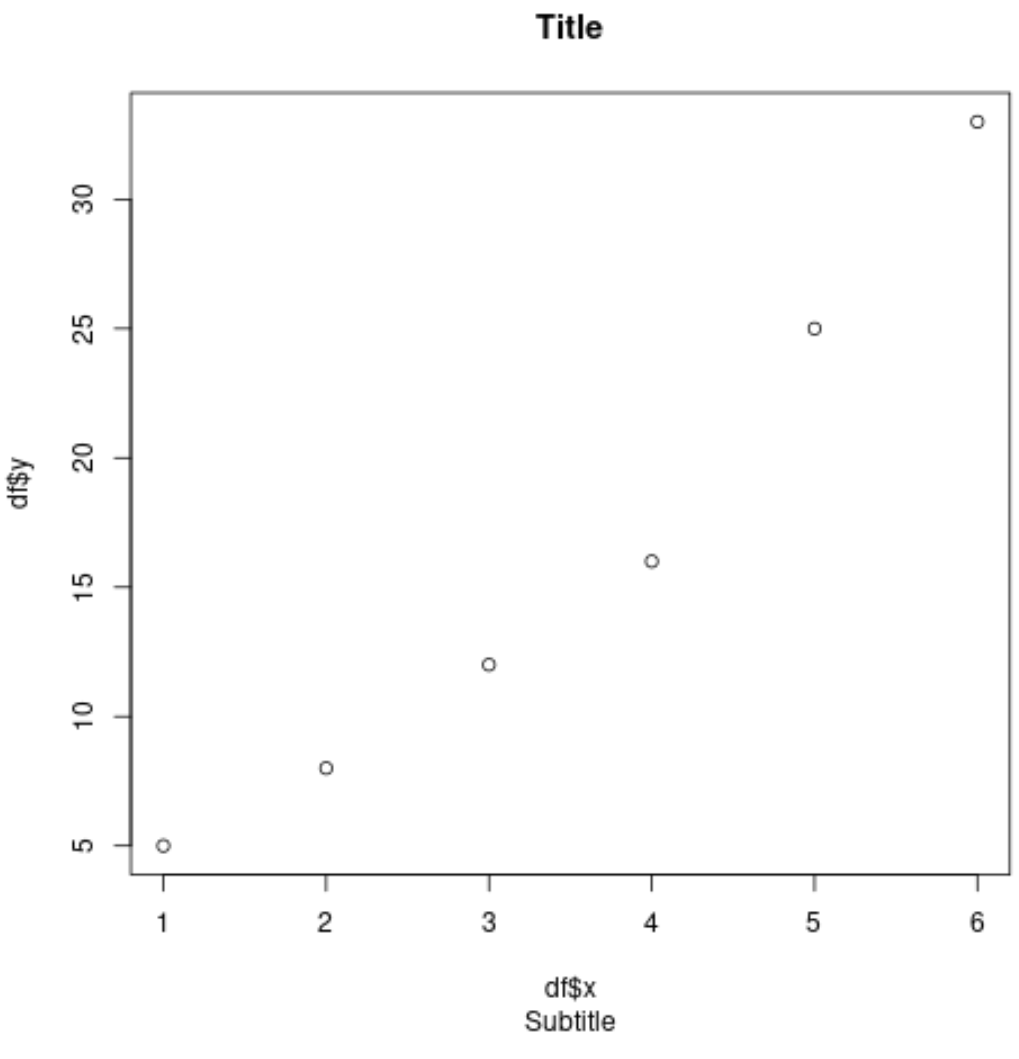

The resulting visualization, shown below, serves as our benchmark for comparison against the modified plots:

Example 1: Adjusting the Main Plot Title (cex.main)

The main title of a plot is often the most important textual element, summarizing the entire visualization. If the title text is too small, it can be easily overlooked. We use the cex.main parameter to control its size.

In this example, we set cex.main=2, doubling the size of the title relative to the default setting. Note that other font elements (subtitle, axes) remain at their default size, highlighting the selective application of this parameter.

#create scatterplot with increased font size of title
plot(df$x, df$y, main='Title', sub='Subtitle',
     cex.main=2)

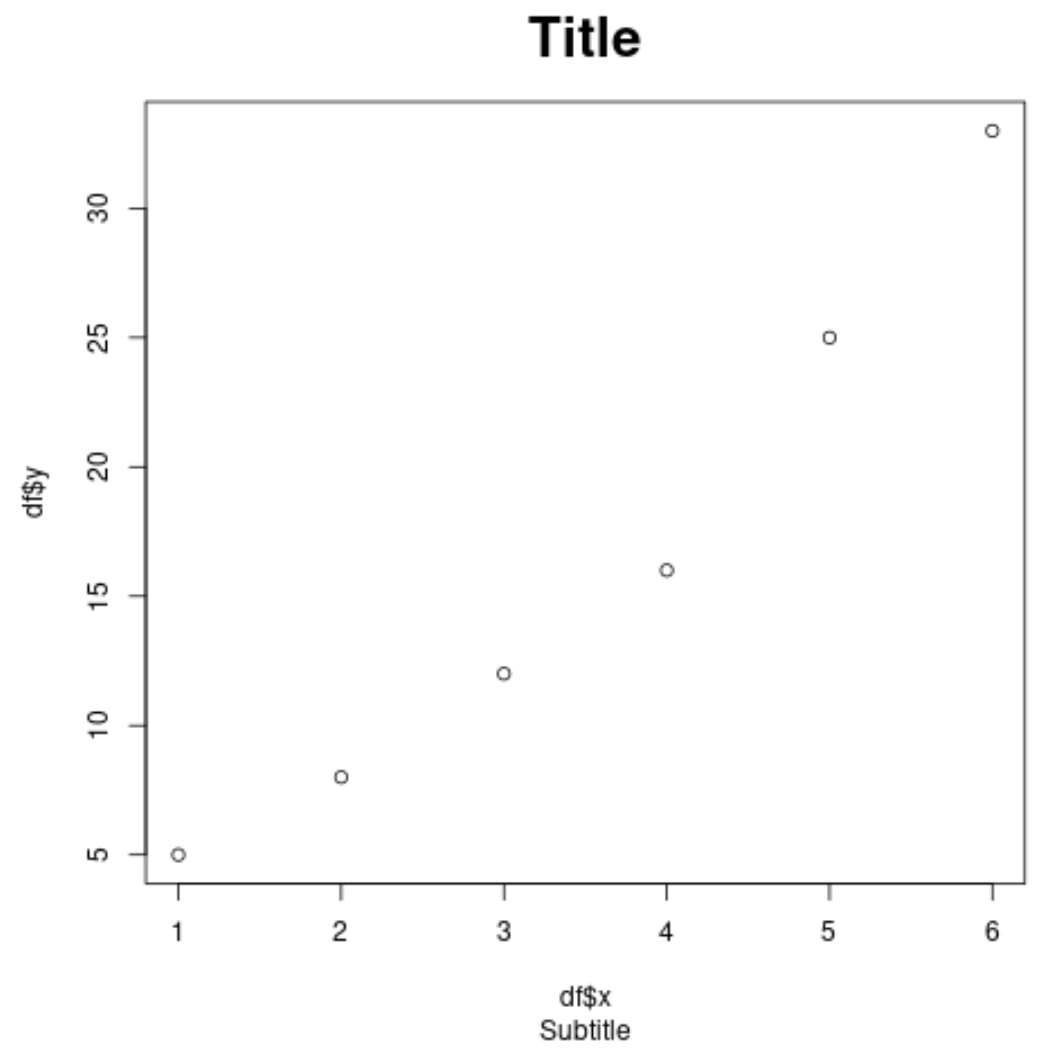

Observe how the title, “Title,” is now significantly larger and more prominent, drawing immediate attention:

Example 2: Controlling the Subtitle Font Size (cex.sub)

Subtitles are useful for providing secondary information, data sources, or specific experimental details. While important, they should typically be smaller than the main title to maintain visual hierarchy. The cex.sub argument manages this element.

By setting cex.sub=2, we increase the subtitle size dramatically for demonstration purposes. Using this parameter allows the user to balance the prominence of the subtitle against the main title and the rest of the plot elements.

#create scatterplot with increased font size of subtitle
plot(df$x, df$y, main='Title', sub='Subtitle',
     cex.sub=2)

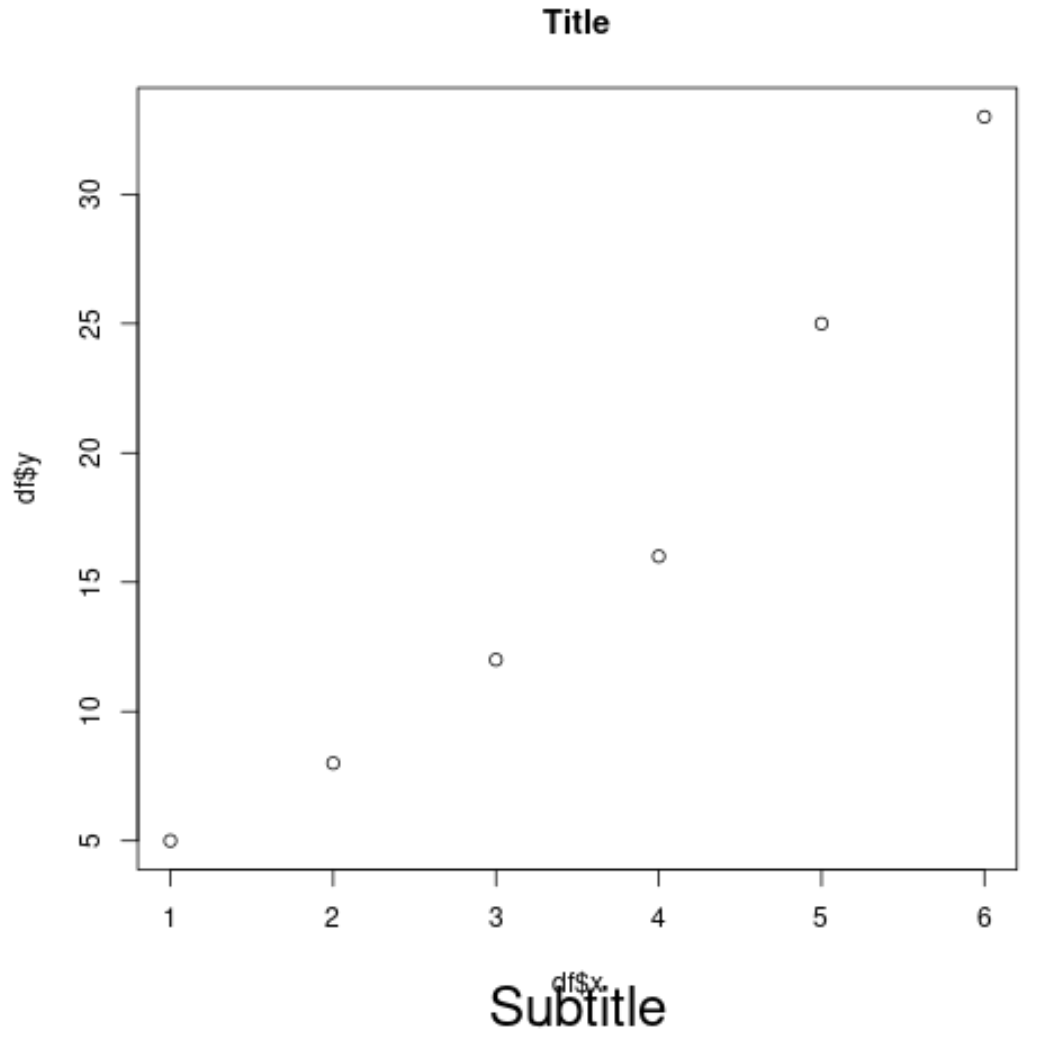

The resulting plot clearly shows the enlarged subtitle, “Subtitle,” confirming the effect of the cex.sub parameter:

Example 3: Scaling Axis Labels (cex.lab)

The axis labels (which describe the data shown on the axes, such as “x” and “y” in our example) are vital for interpreting the plot dimensions. If these labels are too small, the audience may struggle to understand what is being measured, rendering the plot ineffective.

The cex.lab parameter controls the font size of these descriptive labels. We again use a scale factor of 2 to ensure high visibility in our demonstration, illustrating how to prioritize the description of the variables.

#create scatterplot with increased font size of axis labels
plot(df$x, df$y, main='Title', sub='Subtitle',
     cex.lab=2)

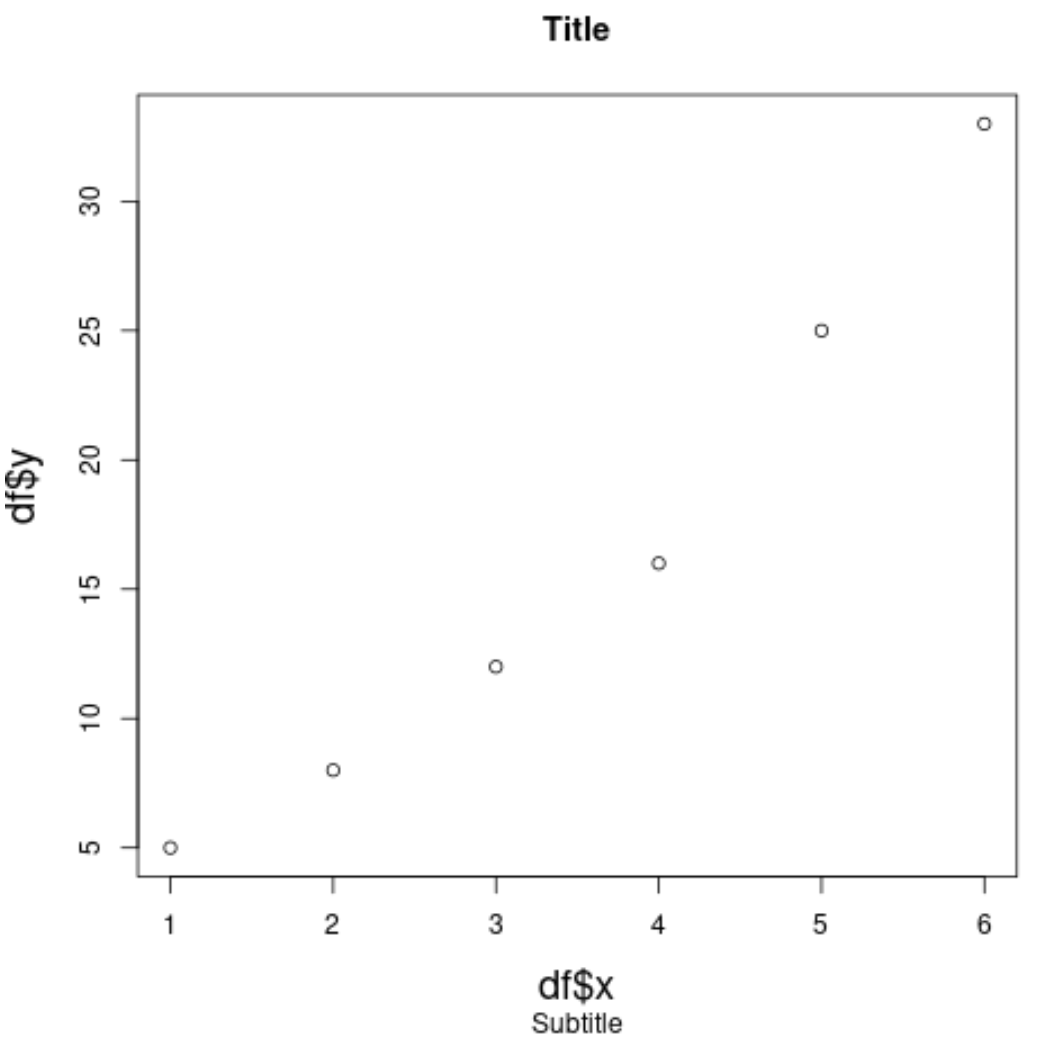

Notice the increased size of the ‘x’ and ‘y’ axis descriptions, making the variables easier to identify and enhancing overall plot clarity:

Example 4: Changing Axis Tick Mark Annotations (cex.axis)

The axis text refers to the actual numerical values or categories displayed alongside the tick marks (also known as axis annotations). Readability of these numbers is paramount for accurate data reading, especially in complex plots or when dealing with small increments.

To control the size of these numerical annotations, we utilize the cex.axis parameter. Setting this value higher ensures that the quantitative scale of the Base R plot remains legible, preventing users from having to strain to read the specific values.

#create scatterplot with increased font size of axis text
plot(df$x, df$y, main='Title', sub='Subtitle',
     cex.axis=2)

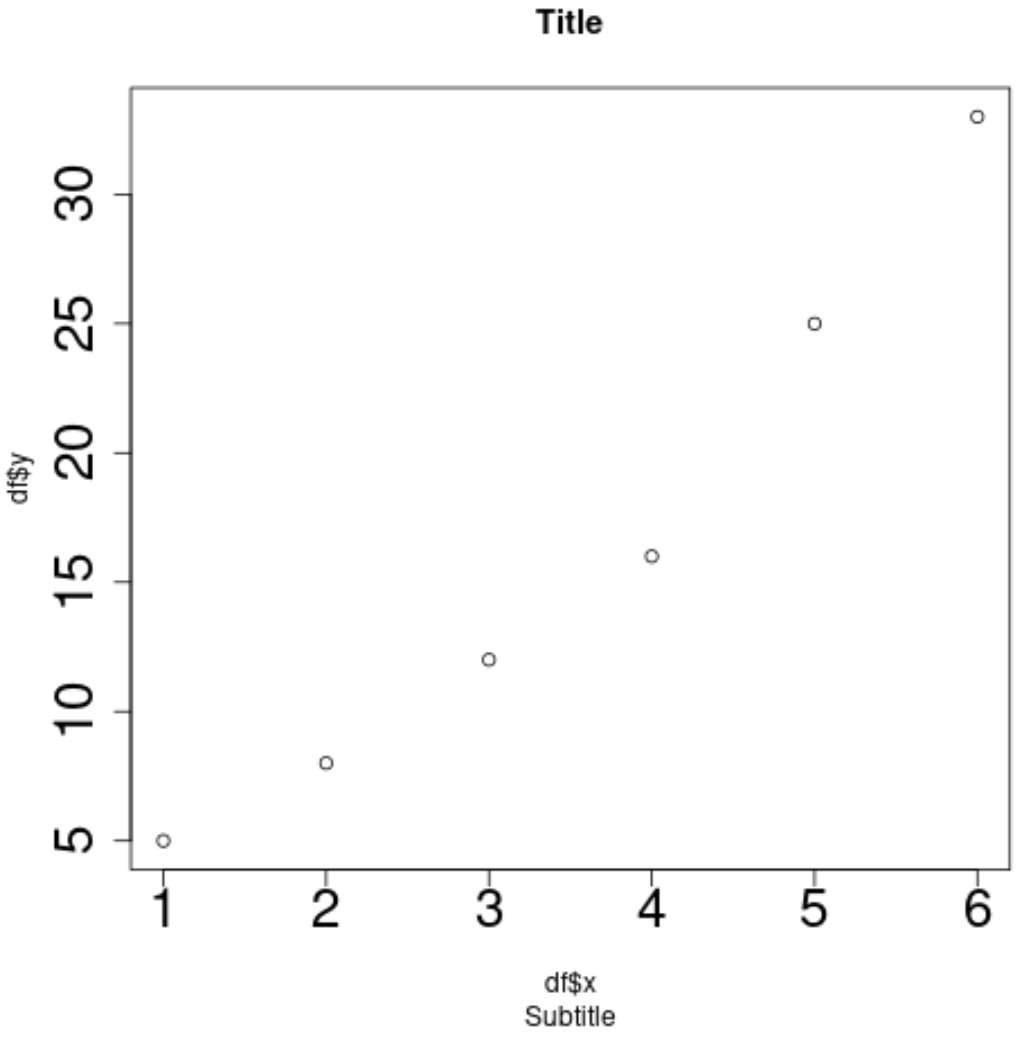

The resulting image displays significantly larger numbers along both the horizontal and vertical axes, improving the precision with which the audience can interpret the data points:

Summary and Further Customization

By using the specific cex graphical parameters—cex.main, cex.sub, cex.lab, and cex.axis—users can achieve precise control over the font sizes of all key textual elements in their R visualizations. Remember that these values are relative scaling factors; a value of 1.5 increases the size by 50%, while a value of 0.8 decreases it.

For even broader control over all text elements simultaneously, you can use the general cex argument within the plot() function, which scales all text elements uniformly. However, for professional reporting and fine-tuning individual elements for optimal hierarchy, the specific arguments demonstrated above are the optimal approach.

We encourage you to experiment with different scaling factors to find the ideal balance for your specific presentation needs, ensuring your plots are both informative and aesthetically pleasing across all display sizes.
