Understanding Q-Q Plots: A Tutorial on Assessing Data Distribution

The Foundation of Distribution Assessment: Q-Q Plots Explained

The Q-Q plot, short for “quantile-quantile plot,” is an essential diagnostic visualization tool used extensively in statistics. Its primary function is to rigorously evaluate whether a given sample of empirical data likely originated from a specific reference theoretical distribution. This powerful graphical technique operates by comparing the quantiles derived from the observed sample data against the quantiles that would be theoretically expected if the data perfectly followed the hypothesized distribution.

In applied statistical modeling, the Q-Q plot is most frequently deployed to determine if a dataset satisfies the critical assumption of normality. Establishing that data conforms to the normal distribution, often referred to as the Gaussian distribution, is a necessary prerequisite for employing a wide variety of parametric inferential methods (such as t-tests and ANOVA). Therefore, the Q-Q plot serves as a fundamental preliminary step in data validation and model assumption checking.

It is vital to understand the precise role of this plot: a Q-Q plot is not designed to replace a formal statistical test, such as the Shapiro-Wilk test, for confirming normality. Instead, it provides a highly intuitive, visual assessment of fit. This visual approach allows analysts to quickly pinpoint systematic deviations, such as asymmetry (skewness) or excessively heavy tails (kurtosis), which could significantly invalidate the assumptions underlying subsequent statistical procedures.

Decoding the Visuals: How to Interpret Q-Q Plot Patterns

The fundamental principle guiding Q-Q plot interpretation revolves around the relationship between the plotted data points and a straight diagonal reference line. This line represents the ideal scenario: if the sample data perfectly matches the hypothesized theoretical distribution, every single point on the plot should align precisely along this diagonal.

The core rule for interpretation is straightforward and powerful: the closer the points in a Q-Q plot adhere to the straight diagonal line, the stronger the evidence that the data are drawn from the specified distribution. Small, permissible deviations, particularly those occurring at the extreme ends of the plot (known as the tails), are often considered insignificant, especially when dealing with large sample sizes that stabilize central tendencies.

Conversely, any pronounced departure of the plotted points from the straight diagonal indicates that the data are unlikely to follow the specified theoretical distribution. These deviations often manifest in specific, recognizable shapes—such as S-curves, concave bows, or sharp sweeps—which are invaluable clues. These characteristic shapes allow data analysts to diagnose the specific nature of the non-normality present, helping distinguish issues like positive skewness, negative skewness, or problems related to kurtosis (tail thickness).

To solidify this interpretation framework, the following case studies, utilizing the R statistical programming environment, demonstrate how to generate and understand these various characteristic patterns observed in Q-Q plots.

Case Study 1: Establishing the Baseline of Normal Distribution

To establish a clear visual benchmark for what constitutes a perfect fit, we begin by generating a dataset that is explicitly normally distributed. The following code snippet demonstrates how to create a dataset of 500 observations following the standard normal curve and subsequently generate the corresponding Q-Q plot.

#make this example reproducible
set.seed(1)

#generate dataset that follows a normal distribution
normal_data <- rnorm(500)

#create Q-Q plot to visualize distribution of dataset
qqnorm(normal_data, main='Q-Q Plot of Normally Distributed Data')

The resulting visual output below confirms the highly linear pattern expected when data adheres closely to the theoretical distribution.

As clearly illustrated by the graph, the vast majority of the data points lie directly on or extremely close to the straight diagonal line. While minor deviations are visible at the extreme ends, these are typical and acceptable for real-world data samples. Based on this compelling visual evidence, we can confidently conclude that the dataset is adequately modeled by a normal distribution.

Case Studies 2 & 3: Identifying Asymmetry and Skewness

When a dataset is not symmetrical around its mean, it exhibits skewness. The Q-Q plot is particularly effective at diagnosing this issue, as the points deviate from the linearity in predictable, curved patterns. Understanding these characteristic shapes is essential for diagnosing data issues before advanced modeling.

Left-Skewed Data (Negative Skewness)

The presence of left-skewness (or negative skew) signifies that the distribution has a long, elongated tail extending toward the lower values (the left side). When plotted against the theoretical normal quantiles, the Q-Q plot will display a distinct upward curvature or concave shape, which is most noticeable in the lower quantiles.

The following code snippet generates a dataset of 500 observations designed to exhibit this characteristic left-skewness:

#make this example reproducible
set.seed(1)

#generate left-skewed dataset
left_skewed <- rbeta(500,7,2)

#create Q-Q plot to visualize distribution of dataset
qqnorm(left_skewed, main='Q-Q Plot of Left-Skewed Distribution')

The resulting graph below clearly illustrates the signature upward S-curve associated with data that is negatively skewed.

This pronounced curvature confirms that the data are not symmetrical around the mean, indicating that the observed lower values are significantly smaller than what would be expected under a normal assumption.

Right-Skewed Data (Positive Skewness)

Conversely, right-skewed data (or positive skew) occurs when the distribution’s tail extends primarily toward the higher values (the right side). On a Q-Q plot, this pattern manifests as a deviation that curves downwards and to the right, often forming an inverted S-shape or a concave down curve.

We generate a new dataset of 500 observations exhibiting right-skewness for visual comparison:

#make this example reproducible
set.seed(1)

#generate right-skewed dataset
right_skewed <- rbeta(500,2,7)

#create Q-Q plot to visualize distribution of dataset
qqnorm(right_skewed, main='Q-Q Plot of Right-Skewed Distribution')

The corresponding plot reveals the characteristic deviation:

The data points display a noticeable dip on the bottom right side of the plot. This pronounced curvature downwards is a definitive visual indicator of a right-skewed distribution, confirming that the observed high values are significantly larger than expected if the data followed a standard normal distribution.

Case Study 4: Severe Departure from Theoretical Distribution

This final case study examines a dataset drawn from a distribution that is inherently non-normal and highly asymmetric: the exponential distribution. Unlike the previous examples of slight skewness, this distribution is fundamentally different from the normal curve. We generate 200 observations and assess the resulting Q-Q plot against the normal theoretical quantiles.

The following code produces the data and the visualization:

#make this example reproducible
set.seed(1)

#generate dataset that follows an exponential distribution
exponential_data <- rexp(200, rate=5)

#create Q-Q plot to visualize distribution of dataset
qqnorm(exponential_data, main='Q-Q Plot of Exponential Distribution'))

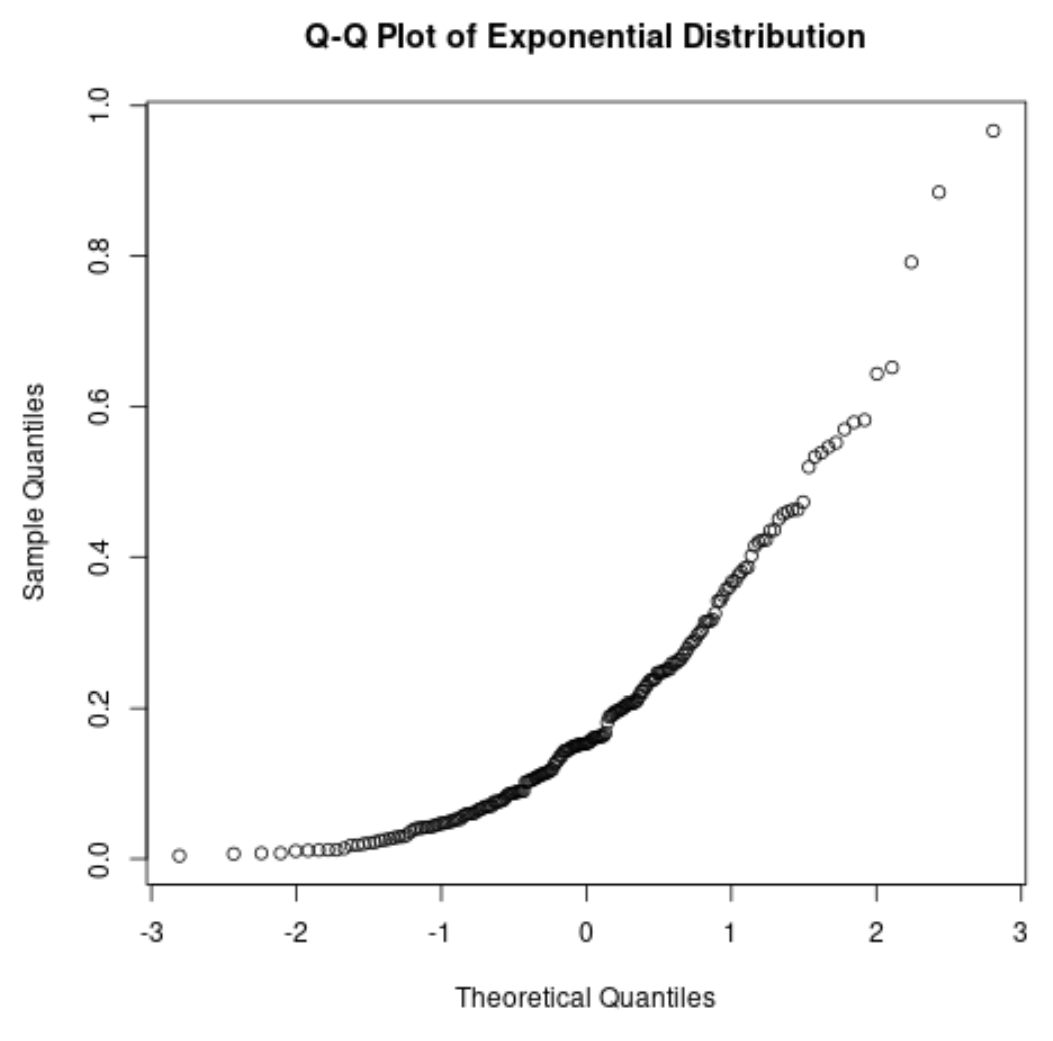

The plot below demonstrates a severe and undeniable departure from linearity, providing immediate confirmation of the lack of normality.

We observe that the points deviate drastically from the straight diagonal line, particularly in the upper tail, where they sweep sharply upwards and away from the reference line. This extreme non-linearity offers powerful visual proof that the dataset does not align with a normal distribution. This result is entirely consistent with the fact that the data were generated using an exponential distribution, which belongs to a fundamentally different class of probability distribution.

Conclusion: Leveraging Q-Q Plots in Data Analysis

The Q-Q plot remains a foundational and highly effective tool in exploratory data analysis. It empowers statisticians and researchers to visually validate or challenge the critical assumption of distributional fit, usually normality, before committing to complex analytical models. Understanding the nuanced visual language of deviation—from minor tail wiggles to dramatic S-curves and sweeps—is essential for making empirically grounded decisions about subsequent model selection, transformation needs, or the choice between parametric and non-parametric methods.

To reinforce the interpretation skills required for effective data diagnosis, here is a summary of the key visual patterns:

• Linear Alignment: Indicates an excellent fit, suggesting high confidence that the data follows the reference distribution.
• Concave Up Curve (S-shape upward): Strongly suggests negative skewness (left-skew).
• Concave Down Curve (Inverted S-shape or downward sweep): Strongly suggests positive skewness (right-skew).
• Heavy Tails (Points far from the line at both extremes): Indicates leptokurtosis, meaning the distribution has heavier, thicker tails compared to the hypothesized theoretical distribution.

For continued professional development, exploring the implementation of Q-Q plots across various statistical computing environments is highly recommended:

• Guides for generating Q-Q plots in Python (e.g., utilizing libraries such as SciPy or statsmodels).
• Instructions for leveraging built-in Q-Q plot functions within proprietary statistical software like SPSS and SAS.

Mastering the Q-Q plot allows analysts to move beyond basic descriptive statistics and gain true insight into the underlying shape and structure of their data, providing a robust foundation for statistical inference.
