The Complete Guide to ggplot2 Titles

The transformation of raw data into meaningful charts is a process known as data visualization, and its success hinges on clarity. A visualization, no matter how complex or aesthetically pleasing, is incomplete and potentially misleading without clear, descriptive text. The R programming language and its ecosystem of packages provide powerful tools for this task, most notably the ggplot2 library. This package is the cornerstone for creating sophisticated statistical graphics built upon the robust foundation of the grammar of graphics.

While ggplot2 excels at rendering complex visual elements like geometries and coordinate systems, it deliberately leaves charts untitled by default. This design choice necessitates explicit instruction from the user to provide critical metadata, such as a main title. A well-crafted title serves as the viewer’s primary guide, immediately establishing the chart’s context and central narrative, thereby significantly boosting the communication effectiveness of the data story being presented.

This comprehensive guide provides an expert walkthrough of defining, styling, positioning, and formatting titles within the ggplot2 framework. Mastery of these techniques is essential for any data analyst aiming to produce statistical graphics that are not only visually appealing but also instantaneously understandable to a diverse audience. We will explore the core functions and parameters required to achieve granular control over all aspects of title customization.

The Foundational Methods for Adding a ggplot2 Title

The initial step in annotating any plot is to assign a title. We begin by constructing a basic graphic using the widely accessible iris dataset, which is conveniently built into R. For our demonstration, we will generate a boxplot designed to compare the Sepal Length across the three different species found within the dataset.

The first code block below sets up the base plot structure. This involves defining the aesthetic mappings (using the aes() function) for the X and Y axes, followed by adding the geometric layer (geom_boxplot()) which dictates the chart type. As expected, this initial output lacks any primary descriptor or title.

library(ggplot2)

ggplot(iris, aes(x=Species, y=Sepal.Length)) +
  geom_boxplot()

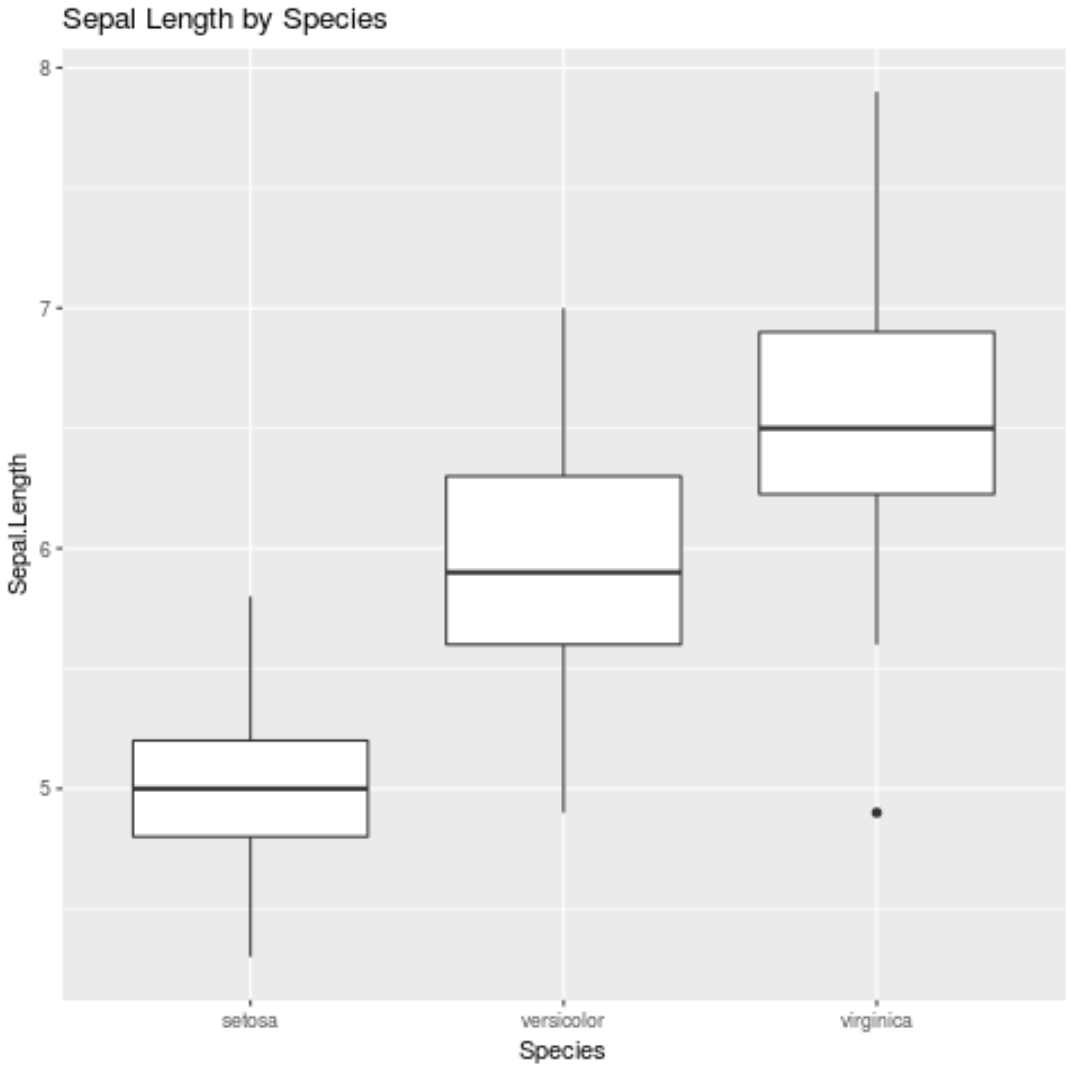

To immediately assign a title, the most direct approach is to employ the specialized function ggtitle(). This function accepts a character string as its sole required argument, seamlessly appending the title text directly above the plotting area. This single addition dramatically improves the chart’s interpretability by providing instant context.

ggplot(iris, aes(x=Species, y=Sepal.Length)) +
  geom_boxplot() +
  ggtitle('Sepal Length by Species')

While ggtitle() is efficient, the preferred method for managing all plot annotations is the versatile labs() function. When utilizing labs(), you explicitly define the title argument (e.g., labs(title='...')). Both ggtitle() and labs(title=...) yield identical results for the main title, but labs() is generally considered best practice as it centralizes control over titles, subtitles, captions, and axis labels, offering superior organization for complex visualizations.

Controlling Title Position: Centering and Justification

By default, titles generated by ggplot2 are rendered with a left-justification (flush left). This alignment choice, advocated by package creator Hadley Wickham, is intended to improve readability and create a consistent visual hierarchy when titles are paired with accompanying subtitles, a format popular in sophisticated data journalism.

Despite this design philosophy, many traditional charting standards require a centered title for visual symmetry. To override the default left alignment, we must interact with the plot’s non-data elements using the powerful theme() system. The theme() function provides granular control over aesthetics such as fonts, colors, borders, and, crucially, text positioning.

To achieve centering, we target the specific element responsible for the title: plot.title. We then pass attributes to this element using element_text(), which manages all text rendering properties. To center the text, we set the horizontal justification parameter, hjust, to a value of 0.5. It is important to remember that hjust accepts values ranging from 0 (representing full left-justification) to 1 (representing full right-justification).

theme(plot.title = element_text(hjust = 0.5))

By incorporating this customization layer into our existing plot code, we achieve a perfectly centered title. This layering process, facilitated by the + operator, beautifully illustrates the modular nature of ggplot2, where foundational data mapping and aesthetic changes are built upon incrementally.

ggplot(iris, aes(x=Species, y=Sepal.Length)) +
  geom_boxplot() +
  ggtitle('Sepal Length by Species') +
  theme(plot.title = element_text(hjust = 0.5))

Comprehensive Font Modification and Styling

Beyond simple alignment, ggplot2 provides robust control over the visual appearance of the title text. All font modifications are managed by passing additional parameters to the element_text() function, which is nested within the theme(plot.title = ...) setting. Adjusting these parameters allows developers to align chart aesthetics precisely with specific corporate branding guidelines or stringent publication standards.

The primary parameters available for detailed styling of the plot title text include:

• family: Specifies the **font family** (e.g., “serif”, “sans”, “mono”). This parameter controls the overall typeface design.
• face: Controls the **font face** or weight. Standard options include "plain", "italic", "bold", and "bold.italic". Using bold styling is highly recommended to ensure the title stands out as the most dominant textual element.
• color: Sets the **font color**, accepting standard color names (e.g., “red”, “blue”) or hexadecimal codes (e.g., “#0000FF”).
• size: Determines the **font size**, usually measured in points (pts). Increasing this value makes the title larger and more commanding.
• hjust: Defines **horizontal justification** (0 to 1), controlling the horizontal alignment relative to the plot area.
• vjust: Defines **vertical justification** (0 to 1), controlling the vertical distance between the title and the boundary of the plotting area.
• lineheight: Critical for **multi-line titles**, this parameter controls the spacing between lines of text, preventing the title from looking crowded or compressed.

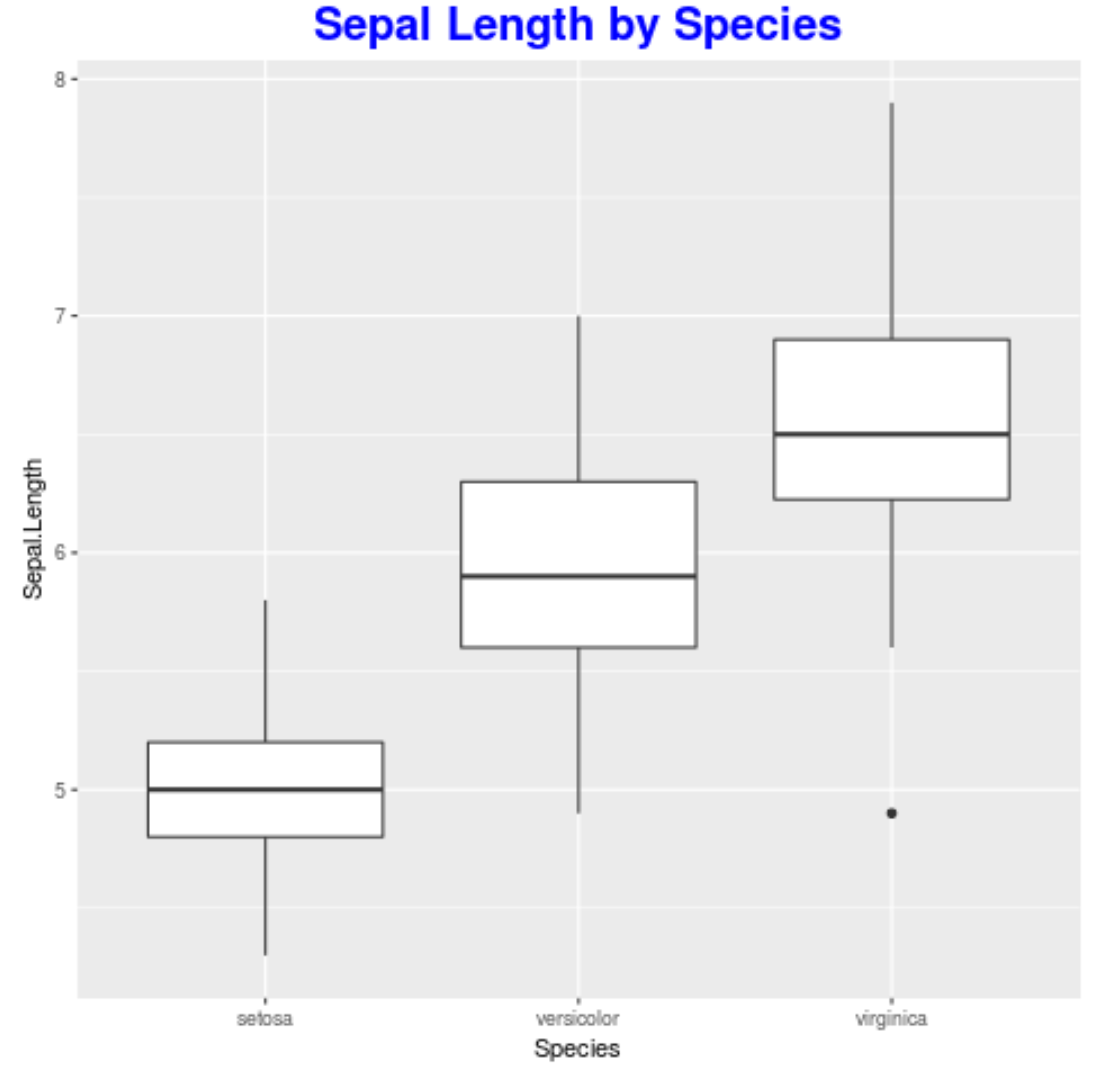

In the following powerful example, we combine centering (using hjust=0.5) with significant stylistic modifications. We set the text color to a vivid blue, increase the size to 20 points, and apply a bold font face. This combination generates a visually distinct and highly impactful title, showcasing the extensive level of aesthetic control provided through the element_text() function.

ggplot(iris, aes(x=Species, y=Sepal.Length)) +
  geom_boxplot() +
  ggtitle('Sepal Length by Species') +
  theme(plot.title = element_text(hjust=0.5, color="blue", size=20, face="bold"))

Strategies for Managing Multi-Line Titles

When visualizations require highly detailed or descriptive headlines—perhaps incorporating contextual information like date ranges or data collection notes—the main title string can become excessively long. Such length often results in poor visual balance or requires truncation. Fortunately, ggplot2 gracefully supports multi-line titles, which are invaluable for incorporating secondary information directly beneath the primary headline without cluttering the plot.

The mechanism for forcing a line break within a title string is remarkably simple: insert the standard newline character, n, exactly where the line division is desired. This technique grants the chart creator the ability to structure the title text vertically, allowing for a clear separation between the main topic (e.g., the variable plotted) and supplementary details (e.g., methodology or sample size).

The code below demonstrates how to append a sample size detail to the title by embedding n within the character string passed to the ggtitle() function. Observe how the title is subsequently split into two distinct rows in the resulting visualization, offering a clean and hierarchical presentation of the textual information.

ggplot(iris, aes(x=Species, y=Sepal.Length)) +
  geom_boxplot() +
  ggtitle('Sepal Length by SpeciesnSample size (n = 150)')

Should the default vertical spacing between these lines appear either too tight or too loose, the lineheight parameter within element_text() should be adjusted. Increasing the lineheight value (typically to 1.5 or 2) increases the vertical distance, significantly enhancing the overall readability of stacked text elements.

Utilizing Subtitles and Captions for Comprehensive Context

While the primary title delivers the main focus, professional visualizations frequently demand supplemental text to elaborate on methodologies, sources, or specific limitations. In ggplot2, this additional context is managed most effectively using dedicated subtitles and captions, rather than attempting to embed all information directly into the main title string. This structure is exclusively controlled via the flexible labs() function.

The subtitle argument places text immediately below the main title. It is typically used for providing a brief, explanatory summary, scope limitation, or time frame for the analysis. Conversely, the caption argument places text in the lower right corner of the plot area. This position is traditionally reserved for citing data sources, acknowledging contributors, or including copyright information, ensuring complete transparency regarding data provenance.

Styling these secondary text elements requires targeting specific components within the theme() function. Subtitles are controlled via plot.subtitle, and captions via plot.caption. Both elements accept styling parameters through element_text(), allowing for independent control over their font size, color, and justification, distinct from the main title. This separation is crucial for maintaining a clear visual hierarchy where the main title remains the most prominent element.

For instance, to ensure the subtitle is italicized and the caption is significantly smaller than the main text—serving purely as a background reference—you must utilize distinct theme elements as shown in this template:

ggplot(...) +
  labs(title="Primary Analysis", subtitle="Detailed Findings (Q3 2024)", caption="Source: Internal R&D Data") +
  theme(
    plot.subtitle = element_text(face = "italic", size = 14),
    plot.caption = element_text(size = 9, hjust = 1) # Right justified caption
  )

Conclusion and Further Resources

Effective chart titling is not merely an optional step, but a critical component of producing high-quality data visualization. By mastering the core application of ggtitle() or the more comprehensive labs() function, and subsequently customizing the appearance using the versatile theme() function, you gain complete control over the narrative and presentation structure of your plots within the ggplot2 environment.

Remember that consistency is paramount in professional analysis. When developing a series of related charts or dashboards, it is essential to maintain uniform positioning and styling (font, size, color) for titles, subtitles, and captions across all visualizations. This rigorous practice ensures a cohesive and professional presentation of your analytical work in R, significantly enhancing the overall user experience and credibility of your findings.
