Understanding `facet_wrap()` vs. `facet_grid()` for Data Visualization in R

Introduction to Faceting in ggplot2

When conducting data visualization, especially with complex datasets, it is often necessary to examine relationships across distinct subsets of the data simultaneously. This powerful technique is known as faceting, and it involves creating a grid of plots, where each individual panel represents a unique subgroup defined by one or more categorical variables. The ggplot2 package, a cornerstone of visualization in R, provides two primary functions for this purpose: facet_grid() and facet_wrap(). These tools allow analysts to construct sophisticated multi-panel displays that unlock deeper insights into the underlying structure and patterns of their information.

Although both facet_grid() and facet_wrap() achieve the fundamental goal of generating a grid of subplots, their operational mechanics and layout philosophies differ significantly. The key divergence lies in how they arrange the panels and, crucially, how they manage combinations of variables that may not be present (or are sparse) in the source data frame. Understanding these functional distinctions is essential for selecting the correct tool to effectively communicate specific data stories and analytical findings. This article will provide a rigorous comparison, detailing the unique characteristics and practical implementation of each function to clarify their roles in data presentation.

Understanding facet_grid(): Comprehensive and Structured Layouts

The facet_grid() function is specifically engineered to produce a complete, two-dimensional matrix of plots. This matrix is defined by the cross-product of two or more faceting variables. Its standard syntax follows the pattern rows ~ cols, where the variables designated before the tilde (`~`) define the rows of the grid, and those after the tilde define the columns. This highly structured approach guarantees that every conceivable combination of the specified row and column variables is represented in the final visualization, thereby presenting a complete view of the defined variable space.

A defining characteristic of facet_grid() is its commitment to creating a holistic inventory. If a particular combination of row and column variables does not contain any corresponding observations in the original data frame, facet_grid() will still render a panel for it, but this panel will remain visibly empty. This behavior is deliberate; it is not a flaw, but a feature that allows viewers to immediately identify missing data combinations. It provides a visual confirmation of the entire factorial design space, which is critical when the absence of data itself holds analytical meaning or when confirming that certain combinations were simply not recorded or collected.

Furthermore, facet_grid() is the preferred choice when precise alignment and consistent comparison across the visualization are paramount. By default, all panels within a given row share the exact same y-axis scale, and all panels within a given column share the same x-axis scale. This strict, consistent scaling prevents visual distortion caused by varying axis ranges, greatly facilitating the direct comparison of trends, distributions, and magnitudes across the specified categories. This makes facet_grid() an ideal function for formal analytical reports and scientific publications where consistency and completeness are highly valued.

Illustrative Example with facet_grid()

To clearly illustrate the structured output of facet_grid(), we will utilize a small sample data frame. This synthetic dataset tracks performance metrics (points and assists) for players across different teams and positions. Importantly, this data is intentionally designed to lack one combination: there are no records for ‘Team B’ in ‘Position F’.

# Create data frame
df <- data.frame(team=c('A', 'A', 'A', 'A', 'B', 'B', 'B', 'B'),
                 position=c('G', 'G', 'F', 'F', 'G', 'G', 'G', 'G'),
                 points=c(8, 14, 20, 22, 25, 29, 30, 31),
                 assists=c(10, 5, 5, 3, 8, 6, 9, 12))

# View data frame
df

  team position points assists
1    A        G      8      10
2    A        G     14       5
3    A        F     20       5
4    A        F     22       3
5    B        G     25       8
6    B        G     29       6
7    B        G     30       9
8    B        G     31      12

Next, we apply facet_grid() to visualize the relationship between assists and points, segmented by both team (columns) and position (rows). The code below constructs a scatterplot for every possible combination using the formula position~team.

library(ggplot2)

ggplot(df, aes(assists, points)) +
  geom_point() +
  facet_grid(position~team)

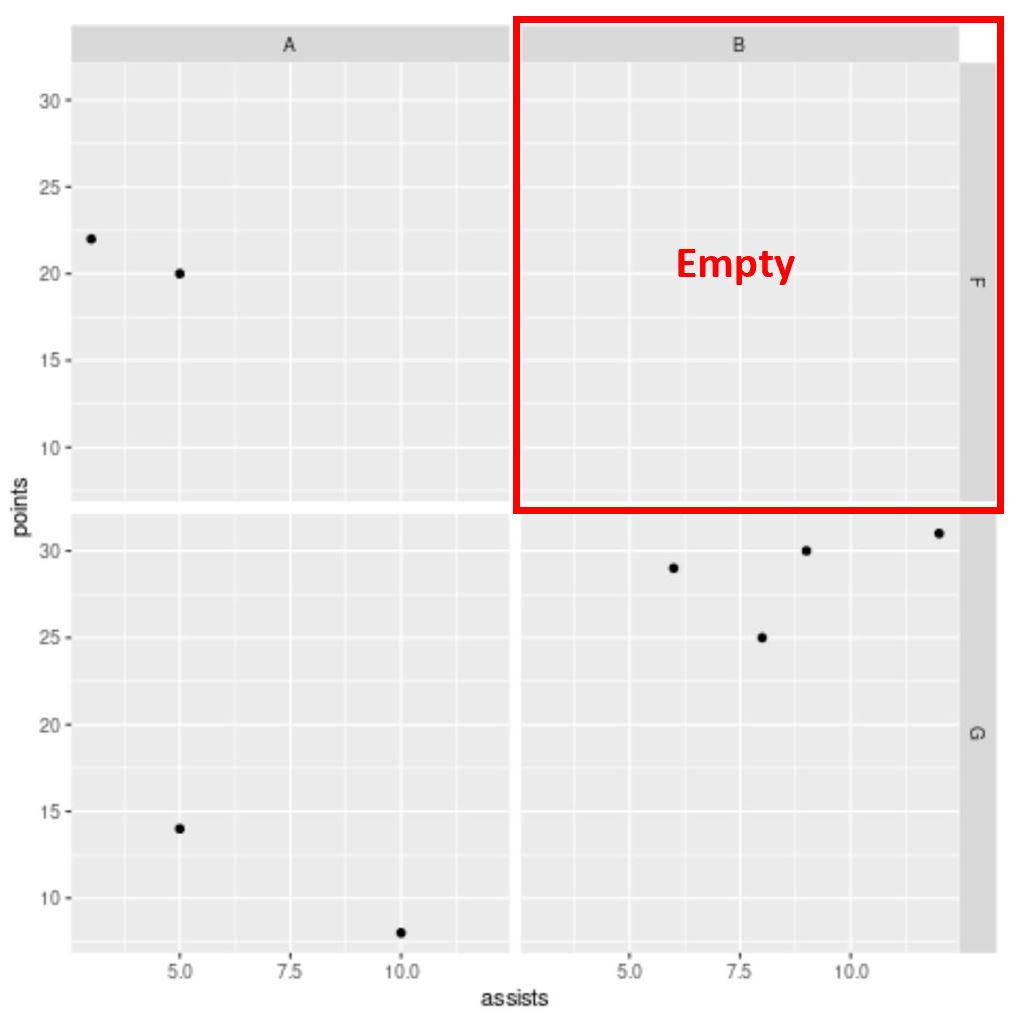

Upon reviewing the resulting plot structure, the rigid nature of facet_grid() is immediately apparent. A panel is generated for every logical intersection of team and position. Crucially, the panel corresponding to the combination ‘Team B’ and ‘Position F’ is clearly present in the grid structure, yet it remains completely empty. This visual element serves as an explicit cue, signaling the absence of data for this specific categorical intersection, demonstrating the function’s commitment to a complete representation of the faceting variables.

This unwavering behavior is central to the design of facet_grid(). It meticulously constructs a plot for every combination specified in its formula, even if those combinations yield zero data points. This systematic approach ensures a comprehensive and organized display of the entire factorial design space, making it easy for the viewer to quickly identify any structural gaps in the underlying data or to observe patterns across a full spectrum of conditions.

Understanding facet_wrap(): Flexible and Space-Efficient Layouts

In direct contrast to the rigid matrix produced by facet_grid(), the facet_wrap() function is optimized for generating a more flexible and space-efficient arrangement of plots. It is typically employed when faceting by one or a combined set of variables, using a syntax like ~ variable. Rather than adhering to a strict row-column structure based on the cross-product of all variables, facet_wrap() arranges the individual plots in a one-dimensional sequence that “wraps” around to fill the available space, much like text flows across a page.

The most defining characteristic of facet_wrap() is its selective generation of panels: it produces plots exclusively for combinations of variables that actually contain data within the source data frame. This means that facet_wrap() will never render an empty plot. This selective approach makes it an outstanding choice for datasets characterized by many categories or sparse intersections, as it eliminates the visual clutter associated with uninformative blank panels. By prioritizing the display of only relevant data, facet_wrap() creates more compact and highly focused visualizations, which is often desirable in exploratory data analysis.

Furthermore, facet_wrap() provides superior control over the layout’s aspect ratio. Users can explicitly dictate the number of rows (nrow) or columns (ncol) to arrange the facets, offering invaluable flexibility when a large number of panels must be fitted into a specific display area or publication format. While facet_wrap() defaults to consistent axis scaling across all panels, it also allows scales to be made independent using the scales argument, accommodating situations where large variations in data magnitude would otherwise compress the visual representation of smaller subsets.

Illustrative Example with facet_wrap()

We will now apply facet_wrap() to the identical data frame used previously, which, recall, deliberately lacked data for the ‘Team B’ and ‘Position F’ combination. We will facet the scatterplot by the combination of team and position, using the function’s wrapping mechanism. Note that when faceting by the interaction of two variables in facet_wrap(), the formula structure variable1 ~ variable2 effectively treats the combinations as a single set of factors.

library(ggplot2)

ggplot(df, aes(assists, points)) +
  geom_point() +
  facet_wrap(position~team)

By observing the resulting plot, the fundamental difference from the facet_grid() output is immediately clear. Here, scatterplots are only produced for the three combinations of team and position that were actually represented in our input data. The panel corresponding to ‘Team B’ and ‘Position F’ is completely absent from the visualization.

This selective panel generation is the cornerstone of facet_wrap()‘s operation: it intelligently creates plots exclusively for the data subsets that are present in the dataset. Consequently, it avoids generating empty panels, leading to a more streamlined and data-dense visualization. This approach is highly efficient when dealing with data sparsity or when the primary objective is to focus entirely on the existing data distributions without explicitly drawing attention to missing data combinations.

facet_grid() vs. facet_wrap(): A Comparative Summary

While both functions are integral to multivariate visualization in ggplot2, their core design philosophies diverge significantly. Mastery of these distinctions is crucial for creating effective and purposeful data presentations.

• Layout Structure: facet_grid() enforces a rigid, two-dimensional matrix (rows by columns) based on the cross-product of variables, ensuring all specified combinations are represented. Conversely, facet_wrap() arranges plots in a flexible, wrapping layout, treating all facets as a single sequence and allowing explicit control over the number of rows or columns (nrow/ncol) for space optimization.
• Handling of Empty Combinations: facet_grid() will always produce a panel for every possible combination of faceting variables, resulting in empty panels where data is missing. This explicitly signals the absence of data. In contrast, facet_wrap() only generates plots for combinations that exist within the data, thereby never producing empty panels and maximizing visual space efficiency.
• Axis Sharing and Consistency: By default, facet_grid() mandates consistent x-axes across columns and consistent y-axes across rows. This rigorous sharing is intended to facilitate precise, direct comparisons. facet_wrap() typically shares axes across all panels by default but offers more flexibility to independently scale axes for each facet using the scales argument, which can be useful when panel data ranges vary drastically.
• Optimal Use Cases: Utilize facet_grid() when the objective is a comprehensive overview of all possible variable combinations (a complete factorial design), especially when highlighting missing data is important, and when precise comparisons along axes are necessary. Choose facet_wrap() when dealing with numerous facets, sparse data, or when the primary goal is space efficiency and a flexible, visually concise layout.

Choosing the Right Faceting Function

The decision between employing facet_grid() and facet_wrap() ultimately hinges on the characteristics of your dataset and the specific analytical narrative you intend to convey. If your project requires the presentation of a complete factorial matrix, where the absence of data for certain combinations is considered meaningful data in itself, then facet_grid() is the clearly superior choice. It imposes a rigid structure that rigorously exposes every potential interaction, making it indispensable for reporting experimental results or assessing conditions where a full matrix must be accounted for.

Conversely, if your dataset is characterized by sparse combinations, or if the number of faceting variables is large—which would lead to an overwhelming number of empty panels with facet_grid()—then facet_wrap() provides a more efficient and aesthetically pleasing solution. Its ability to dynamically arrange plots and omit non-existent subsets ensures that the visualization remains focused entirely on the existing data, thereby minimizing unnecessary visual clutter. Furthermore, the explicit control over layout dimensions (ncol, nrow) allows for optimal adaptation to various output formats and aspect ratios.

Analysts should carefully consider three factors: the density of their data, the number of grouping variables, and whether the absence of a specific data combination holds significant analytical meaning. For example, if you are analyzing large-scale survey data where certain demographic intersections might simply not exist in the population, facet_wrap() prevents the generation of empty panels for non-existent groups. However, if you are comparing controlled experimental treatments and need visual confirmation that all treatment combinations were attempted, facet_grid()’s empty panels serve as a necessary and important visual artifact.

Conclusion and Further Exploration

Faceting is an essential component of modern data visualization, facilitating the clear exploration and presentation of complex, multi-dimensional relationships. Both facet_grid() and facet_wrap(), provided by the ggplot2 package, offer robust capabilities for creating faceted plots in R. The critical functional difference rests on their approach to layout and their management of data sparsity: facet_grid() constructs a rigid, comprehensive matrix that includes empty plots to show all possible combinations, while facet_wrap() delivers a flexible, space-efficient layout that only displays plots for the combinations that actually exist in the data.

By internalizing these core differences, you can confidently select the most appropriate faceting function to generate visualizations that are not only accurate in their representation but are also highly informative and perfectly tailored to your specific analytical objectives. Mastering these functions is a significant step toward effectively communicating insights derived from complex datasets.

Note: We recommend consulting the official ggplot2 documentation for a comprehensive guide to both the facet_grid() and facet_wrap() functions, including detailed information on advanced arguments for scaling, labeling, and fine-tuning layout control.
