Learning the Normal Distribution: An Introduction to Gaussian Statistics

The normal distribution, frequently termed the Gaussian distribution or simply the bell curve, is the bedrock of modern inferential statistics. It represents the most critical and widely applied probability distribution across scientific, engineering, and financial disciplines. Its profound significance is derived from the Central Limit Theorem (CLT), which mathematically guarantees that when averaging a large sequence of independent random variables, the resulting distribution will tend towards a normal shape, regardless of the variables’ original distribution. This fundamental principle justifies its extensive use in modeling real-world phenomena.

This characteristic bell shape is far more than a theoretical construct; it is routinely observed in nature and human systems. Examples include the distribution of physical characteristics like the height of adult populations, the random measurement errors in meticulous scientific experiments, and the results of large-scale standardized testing. A deep comprehension of the normal distribution is therefore indispensable for executing robust statistical procedures, including performing reliable hypothesis testing, accurately estimating population parameters, and constructing valid confidence intervals. It provides the framework necessary to quantify uncertainty and make informed decisions based on sample data.

Defining the Parameters of the Gaussian Curve

The geometry and position of the normal distribution curve are entirely determined by just two fundamental parameters: the mean ($mu$) and the standard deviation ($sigma$). These parameters function as the blueprint for the distribution, allowing us to precisely describe any normally distributed data set.

The mean ($mu$) serves as the measure of central tendency, defining the precise center, or peak, of the bell curve. If the mean shifts, the entire curve translates left or right along the horizontal axis without changing its shape. Conversely, the standard deviation ($sigma$) quantifies the dispersion or variability of the data points. A large standard deviation indicates that data points are widely spread out from the mean, resulting in a flatter, wider curve. A small standard deviation signifies low variability, causing the data to cluster tightly around the mean, resulting in a taller, narrower curve.

Understanding the interplay between these two values is essential for data interpretation. For instance, two populations might share the same average (mean), but if one population has a much larger standard deviation, it implies a greater diversity in measurements, with more individuals residing at the extreme ends of the distribution.

Essential Mathematical Properties of the Normal Distribution

Beyond its defining parameters, the normal distribution adheres to several inherent mathematical properties that make it uniquely useful for statistical modeling and inference. These characteristics distinguish it from other probability distributions and underpin the validity of many statistical tests.

The critical characteristics that define the classical bell curve shape are:

• Perfect Symmetry: The curve is symmetrical about the mean. If the curve were folded along the vertical line passing through the mean, the two halves would perfectly overlap. This symmetry implies that 50% of the observations lie to the left of the mean, and 50% lie to the right.
• Coincidence of Central Tendency: In a perfectly normal distribution, the mean, median, and mode are all identical and situated at the exact center of the distribution, which is the apex (peak) of the curve. This equality is a defining feature of its symmetry.
• Asymptotic Tails: The curve’s tails extend infinitely in both the positive and negative directions. They continually approach the horizontal axis but theoretically never touch it. This asymptotic behavior signifies that while extremely rare events are highly improbable, their probability is never truly zero.
• Unit Total Area: The total area bounded by the curve and the horizontal axis is exactly equal to 1.0 (or 100%). This represents the entire sample space, ensuring that the distribution satisfies the requirements of a valid probability density function, where the sum of all possible probabilities must equal one.

These rigid properties enable statisticians to leverage the distribution to make precise calculations regarding the proportion of data expected to fall within certain specified intervals.

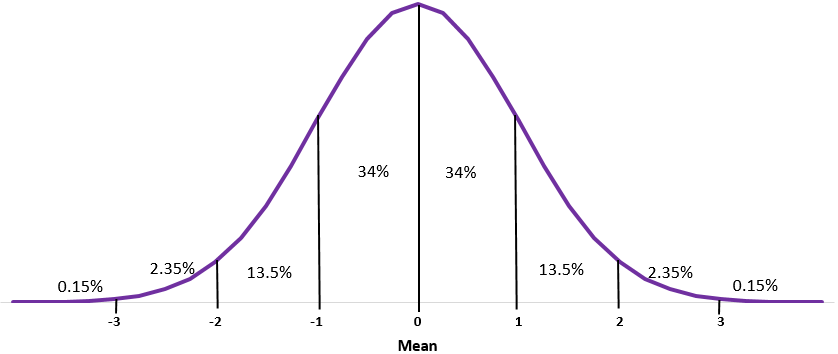

Applying the Empirical Rule (The 68-95-99.7 Rule)

A cornerstone application of the normal distribution is the Empirical Rule, often referred to by its percentages: the 68-95-99.7 rule. This rule provides a powerful shortcut for approximating probabilities and data proportions without resorting to complex integration or consulting detailed tables, provided the data is assumed to be normally distributed.

The rule establishes a fixed relationship between the standard deviation ($sigma$) and the cumulative area under the curve. It dictates specific percentages of data that must fall within one, two, and three standard deviations away from the mean ($mu$):

• Approximately 68% of the data is contained within one standard deviation of the mean ($ mu pm 1sigma $).
• Approximately 95% of the data is contained within two standard deviations of the mean ($ mu pm 2sigma $).
• Approximately 99.7% of the data is contained within three standard deviations of the mean ($ mu pm 3sigma $).

The practical utility of the Empirical Rule lies in its ability to quickly categorize observations. Any data point that falls outside of two standard deviations is considered unusual, and those outside of three standard deviations (representing only 0.3% of the total population) are classified as extremely rare outliers. This rapid assessment is invaluable in quality control, finance, and scientific observation where identifying anomalies is crucial.

Related: Empirical Rule (Practice Problems)

Visualizing Data: Steps to Sketch a Normal Curve

Accurately representing a normal distribution visually requires grounding the sketch with the specific values of the mean ($mu$) and the standard deviation ($sigma$). These values allow us to correctly center the curve and mark the crucial inflection points on the curve, which correspond precisely to the standard deviation markers.

To illustrate the process, consider two distinct data sets. First, assume the height of males at a certain school is normally distributed with a mean of 70 inches and a standard deviation of 2 inches. Second, consider the weight of otters with a mean of 30 lbs and a standard deviation of 5 lbs. The process for sketching both involves the same three definitive steps, demonstrating how the standard deviation dictates the curve’s spread.

1. Sketch the Curve Profile: Draw the basic, symmetrical bell shape, ensuring the tails are asymptotic (approaching but not touching the horizontal axis).
2. Locate and Label the Mean: Place the mean value (e.g., 70 inches or 30 lbs) directly beneath the absolute peak of the curve. This serves as the central reference point.
3. Mark Standard Deviations: Calculate and label the values corresponding to one, two, and three standard deviations above and below the mean. For the height example ($sigma = 2$ inches), the markers are 68, 66, 64 (below) and 72, 74, 76 (above). For the otter weight example ($sigma = 5$ lbs), the markers are 25, 20, 15 (below) and 35, 40, 45 (above).

The resulting visualizations immediately make the data range clear. For instance, the height distribution will appear significantly taller and narrower than the otter weight distribution, reflecting the lower variability (smaller $sigma$).

Calculating Probabilities using the Empirical Rule

When working with a normally distributed random variable, the area under the curve between two points represents the probability that a randomly selected observation will fall within that range. The Empirical Rule simplifies this calculation dramatically for intervals defined by whole standard deviations.

Let’s return to the male height example, where $mu = 70$ inches and $sigma = 2$ inches, to demonstrate how these established percentages are combined to solve probability questions.

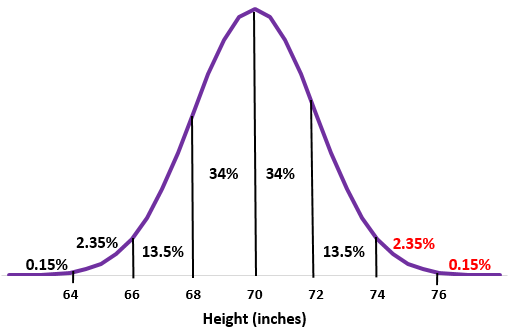

Question A: Approximately what percentage of males at this school are taller than 74 inches?

To solve this, we must first recognize that 74 inches is exactly two standard deviations above the mean ($70 + 2sigma = 74$). We are seeking the percentage of data located in the upper tail beyond the $2sigma$ mark. Utilizing the predefined segments of the normal curve (2.35% between $2sigma$ and $3sigma$, and 0.15% beyond $3sigma$), we sum these small tail regions.

The resulting calculation is: 2.35% + 0.15% = 2.5%. This indicates that approximately 2.5% of the male population at this school exceeds 74 inches in height.

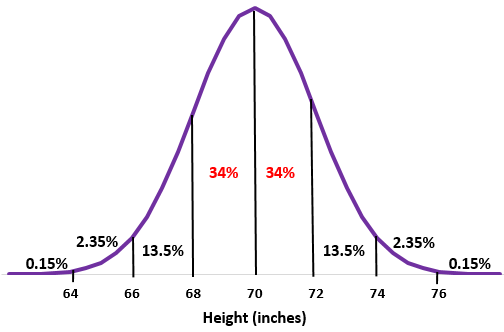

Question B: Approximately what percentage of males at this school are between 68 inches and 72 inches tall?

The range from 68 inches to 72 inches corresponds precisely to the interval between one standard deviation below the mean ($70 – 2 = 68$) and one standard deviation above the mean ($70 + 2 = 72$). By direct application of the Empirical Rule, we know that 68% of the data falls within $pm 1sigma$. Alternatively, we can sum the two adjacent central segments of the curve (34% below the mean and 34% above the mean). The calculation is $34% + 34% = 68%$.

Extending Calculations: Finding Expected Counts

Once probabilities are established using the standard deviation intervals, these percentages can be utilized to determine the expected frequency or count of items within a total population. This conversion is crucial for making actionable predictions in demographic studies, resource planning, or inventory management.

Consider the otter colony example: $mu = 30$ lbs, $sigma = 5$ lbs, and the total colony size is 200 otters.

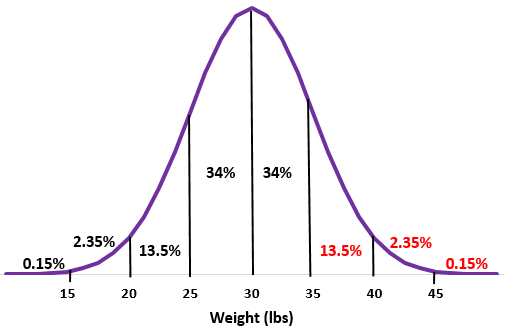

Question C: Approximately how many of these 200 otters weigh more than 35 lbs?

A weight of 35 lbs is exactly one standard deviation above the mean ($30 + 5 = 35$). We must sum the percentages for all regions lying above the $1sigma$ marker. These regions include the area between $1sigma$ and $2sigma$ (13.5%), the area between $2sigma$ and $3sigma$ (2.35%), and the extreme tail beyond $3sigma$ (0.15%).

The total percentage of otters weighing more than 35 lbs is: $13.5% + 2.35% + 0.15% = 16%$. To find the expected count, we multiply this percentage by the total population: $0.16 times 200 = mathbf{32}$ otters. Therefore, we expect approximately 32 otters in the colony to weigh over 35 pounds.

Question D: Approximately how many of the otters in this colony weigh less than 30 lbs?

Since 30 lbs is the mean, and the normal distribution is perfectly symmetrical around this point, exactly 50% of the data falls below this value. We calculate $0.5 times 200 = mathbf{100}$ otters. The symmetry property simplifies probability calculations significantly when the mean or median is the cutoff point.

Beyond the Empirical Rule: Introduction to Z-Scores

While the Empirical Rule is highly effective for rapid assessments at intervals of one, two, or three standard deviations, real-world data rarely aligns perfectly with these exact breakpoints. For precise probability calculations involving specific raw scores that fall between standard deviation markers, statisticians must utilize z-scores.

A z-score standardizes a data point by calculating how many standard deviations it is away from the mean. By converting any normally distributed raw score into a standard z-score, one can use standard statistical tables (or computational tools) to find the exact cumulative probability corresponding to that score. This process allows for the determination of probabilities for any value, not just those predefined by the 68-95-99.7 rule, thus enabling a full exploration of the distribution’s continuous nature.
