Transform Data in R (Log, Square Root, Cube Root)

The Crucial Need for Normality in Statistical Modeling

A foundational assumption underpinning many powerful statistical tests, particularly those derived from the General Linear Model (GLM), is that the variability not explained by the model—specifically the residuals—must follow a normal distribution. This assumption ensures that statistical inferences, such as p-values and confidence intervals, are accurate and reliable. When data adheres to this bell-shaped curve, we can proceed with standard parametric analyses with confidence.

However, datasets collected from the real world rarely conform perfectly to this ideal. It is extremely common for collected data, especially in fields like biology, economics, and social sciences, to exhibit significant positive or negative skewness. This non-normality leads directly to non-normal residuals when modeled. When this fundamental assumption is violated, the validity of subsequent statistical conclusions is seriously compromised, potentially leading to inaccurate hypothesis testing and flawed interpretations of the data.

To mitigate the detrimental effects of skewness and non-normality, statisticians frequently employ data transformation techniques. These mathematical operations are applied directly to the response variable (the dependent variable) in an attempt to reshape its distribution, moving it closer to the target normal distribution, thereby stabilizing variance and improving the fit of the resulting statistical model.

Understanding the Power Transformations

We primarily rely on a suite of three powerful mathematical transformations, often referred to as power transformations, to systematically address skewness and non-normality in the response variable. These transformations vary in their severity and their suitability for different types of data distribution problems. Choosing the correct one depends on the nature and magnitude of the initial skew.

The three core transformations are detailed below, ordered from most aggressive to least aggressive in their effect on highly skewed positive data:

• Log Transformation: This is the most potent tool for tackling severe positive (right) skew. It involves converting the original variable, y, into log(y). Because the distance between log values shrinks dramatically as the original values increase, it effectively compresses the long tail of the distribution.
• Square Root Transformation: A moderate solution where the variable y is transformed into √y. This method is particularly useful for count data (which often follows a Poisson distribution) or distributions exhibiting moderate skewness, as it helps stabilize the variance.
• Cube Root Transformation: The least severe of the three power transformations, it converts y into y^1/3. Its distinct advantage is its ability to handle both positive and negative values while still inducing some degree of normalization, a feature not shared by the standard log or square root transformations (which require non-negative inputs).

By successfully implementing the most appropriate transformation, the distribution of the response variable is shifted toward symmetry and the desired normal distribution. The following sections provide step-by-step practical examples demonstrating how to execute and evaluate each of these essential transformations within the statistical programming environment, R.

Implementing the Log Transformation in R: Addressing Severe Skew

The Log Transformation is the go-to technique when dealing with datasets that exhibit a high degree of positive skewness, meaning the tail extends far to the right due to a few extremely large values. By applying the logarithm function, we significantly reduce the influence of these outliers, as the differences between large numbers become much smaller in log scale than in their original scale. In R, we typically use the base 10 logarithm (log10()) or the natural logarithm (log()).

The R code below illustrates how to construct a small, highly skewed sample data frame and then apply a base 10 log transformation to the response variable y. Note that log transformations are only defined for positive numbers; if your data contains zeros or negative values, a slight adjustment (e.g., adding a small constant before logging) may be necessary, though this should be done cautiously.

#create a sample data frame for demonstration
df <- data.frame(y=c(1, 1, 1, 2, 2, 2, 2, 2, 2, 3, 3, 3, 6, 7, 8),
                 x1=c(7, 7, 8, 3, 2, 4, 4, 6, 6, 7, 5, 3, 3, 5, 8),
                 x2=c(3, 3, 6, 6, 8, 9, 9, 8, 8, 7, 4, 3, 3, 2, 7))

#perform log base 10 transformation on the response variable 'y'
log_y <- log10(df$y)

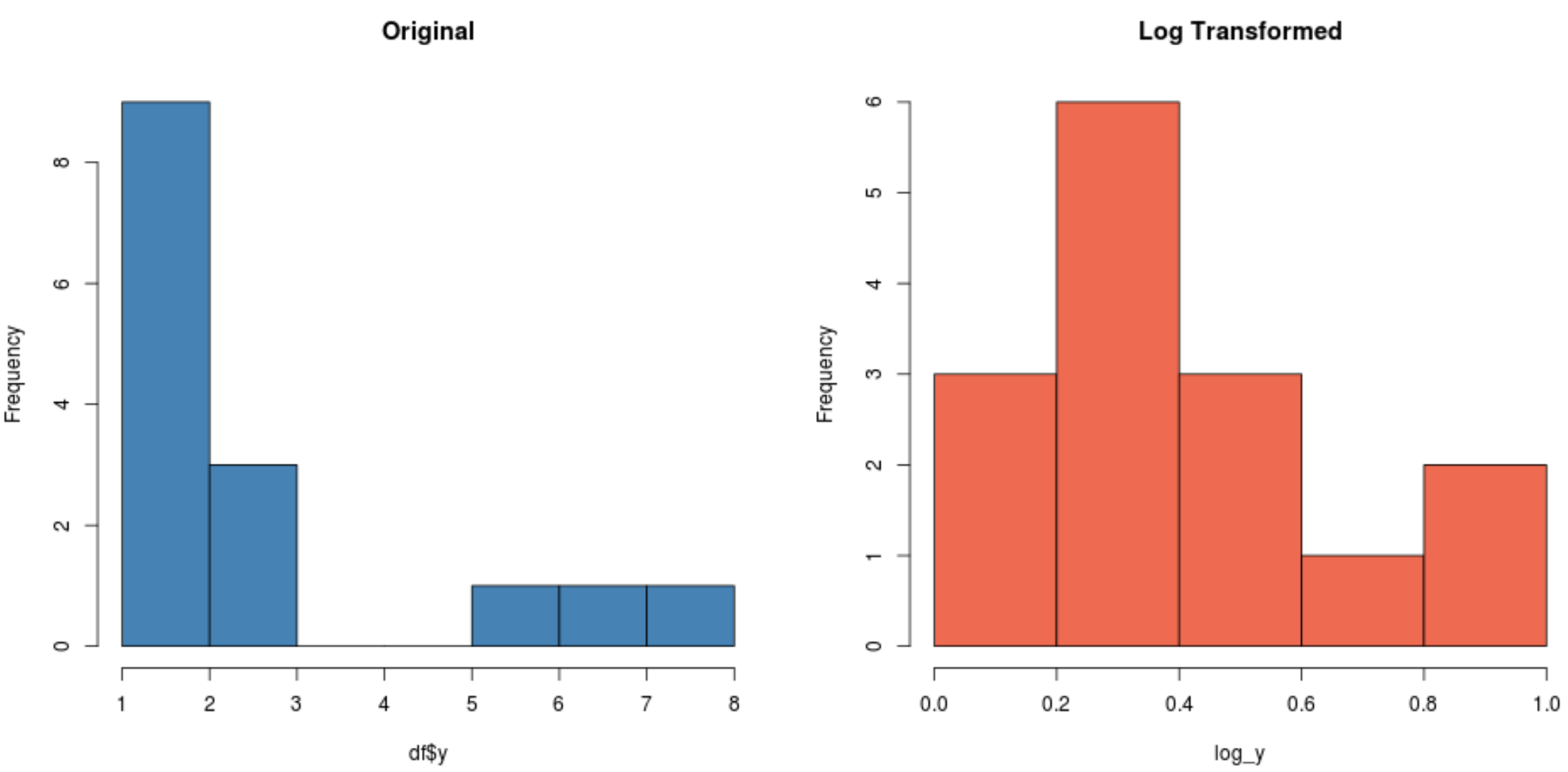

To gain immediate insight into the transformation’s efficacy, a visual comparison using histograms is indispensable. We generate two histograms side-by-side: one for the original, untransformed data (y) and one for the transformed data (log_y). This visual check provides rapid feedback on the shift in the distribution’s shape and how much closer it now approximates a symmetrical form.

#create histogram for the original distribution (df$y)
hist(df$y, col='steelblue', main='Original')

#create histogram for the log-transformed distribution (log_y)
hist(log_y, col='coral2', main='Log Transformed')

Upon visual inspection of the resulting plot, it is clear that the distribution of the log-transformed variable has been dramatically normalized. While the original data was intensely skewed to the right, the transformed distribution exhibits a shape significantly closer to the symmetrical, bell-shaped curve that characterizes the normal distribution. This substantial improvement makes the data far more amenable to parametric statistical analysis, even if perfect normality is not attained.

Quantifying Normality: Using the Shapiro-Wilk Test

While visual inspection using histograms offers compelling evidence, a more rigorous, quantitative assessment of normality is often required, especially in formal research. The Shapiro-Wilk test provides a formal statistical method for testing the null hypothesis that a given sample data set was drawn from a normally distributed population. It is widely considered one of the most powerful tests for normality.

The decision rule for the Shapiro-Wilk test is straightforward: if the resulting p-value is less than the chosen significance level (commonly α = 0.05), we reject the null hypothesis, concluding that the data is non-normal. Conversely, a p-value greater than 0.05 suggests that we fail to reject the null hypothesis, indicating sufficient normality. We apply this test to both the original data and the log-transformed data in R to formally evaluate the success of our data transformation.

#perform Shapiro-Wilk Test on original data
shapiro.test(df$y)

	Shapiro-Wilk normality test

data:  df$y
W = 0.77225, p-value = 0.001655

#perform Shapiro-Wilk Test on log-transformed data
shapiro.test(log_y)

	Shapiro-Wilk normality test

data:  log_y
W = 0.89089, p-value = 0.06917

The quantitative results emphatically support our visual assessment. The original data yielded a p-value of 0.001655, which is significantly lower than the standard α = 0.05, forcing us to reject the normality assumption decisively. In contrast, the log-transformed data resulted in a p-value of 0.06917. Since this value exceeds the 0.05 threshold, we fail to reject the null hypothesis, providing strong statistical evidence that the log-transformed data is now sufficiently normally distributed to proceed with parametric analyses.

Applying the Square Root Transformation in R: Stabilizing Variance

The Square Root Transformation represents a gentler approach to normalization compared to the log function. It is particularly well-suited for datasets that show moderate skewness or, more importantly, for count data where the variance tends to be correlated with the mean (a characteristic of the Poisson distribution). By taking the square root of the response variable, this transformation not only addresses skew but also plays a vital role in stabilizing heteroscedasticity (unequal variance) within the data.

In R, the square root transformation is easily performed using the intrinsic function sqrt(). We reuse the same initial data frame, df, to ensure a consistent comparison across all three transformation methods. This allows us to directly evaluate the relative impact of the square root method on the identical set of skewed values.

#create data frame (reused for continuity)
df <- data.frame(y=c(1, 1, 1, 2, 2, 2, 2, 2, 2, 3, 3, 3, 6, 7, 8),
                 x1=c(7, 7, 8, 3, 2, 4, 4, 6, 6, 7, 5, 3, 3, 5, 8),
                 x2=c(3, 3, 6, 6, 8, 9, 9, 8, 8, 7, 4, 3, 3, 2, 7))

#perform square root transformation
sqrt_y <- sqrt(df$y)

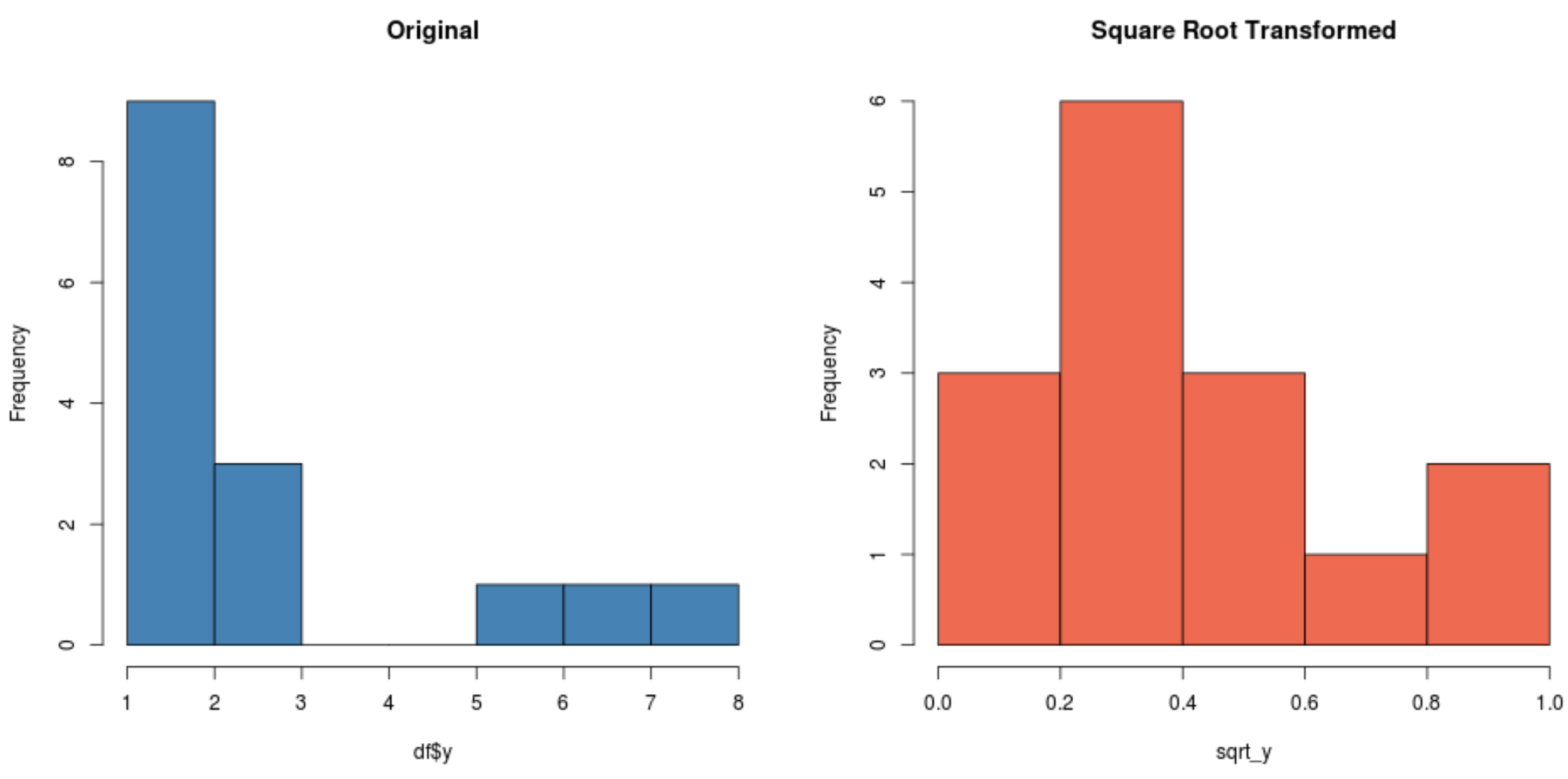

As with the log transformation, immediate visualization is paramount. We compare the histogram of the original response variable (df$y) against the histogram of the square root-transformed variable (sqrt_y). This visual assessment helps determine if the moderate correction provided by the square root is sufficient for the level of skewness present in the data.

#create histogram for original distribution
hist(df$y, col='steelblue', main='Original')

#create histogram for square root-transformed distribution
hist(sqrt_y, col='coral2', main='Square Root Transformed')

The resulting histograms confirm that the square root transformation substantially improves the distribution’s symmetry, resulting in a shape that is significantly more bell-shaped than the initial skewed data. In practice, if a Log Transformation over-corrects the skew (leading to negative skewness), the square root method often provides the optimal balance, making it a highly valuable tool in the data transformation process.

Executing the Cube Root Transformation in R: Handling Zero and Negative Values

The Cube Root Transformation (y^1/3) is another critical method in the arsenal for correcting non-normality. While generally less powerful than the log transformation for extreme positive skew, its key advantage lies in its mathematical properties: unlike the log and square root transformations, the cube root can be applied effectively to datasets containing zero values and even negative values, all while preserving the relative order of the observations. This robustness makes it an excellent choice when dealing with symmetrical but heavy-tailed data, or data spanning both positive and negative ranges that still suffer from skewness issues.

In the R environment, the cube root is calculated by raising the variable to the power of one-third, using the syntax y^(1/3). We apply this calculation to our familiar response variable y to generate the transformed variable cube_y, again reusing the initial data frame for comparison consistency.

#create data frame (reused for continuity)
df <- data.frame(y=c(1, 1, 1, 2, 2, 2, 2, 2, 2, 3, 3, 3, 6, 7, 8),
                 x1=c(7, 7, 8, 3, 2, 4, 4, 6, 6, 7, 5, 3, 3, 5, 8),
                 x2=c(3, 3, 6, 6, 8, 9, 9, 8, 8, 7, 4, 3, 3, 2, 7))

#perform cube root transformation (raising y to the power of 1/3)
cube_y <- df$y^(1/3)

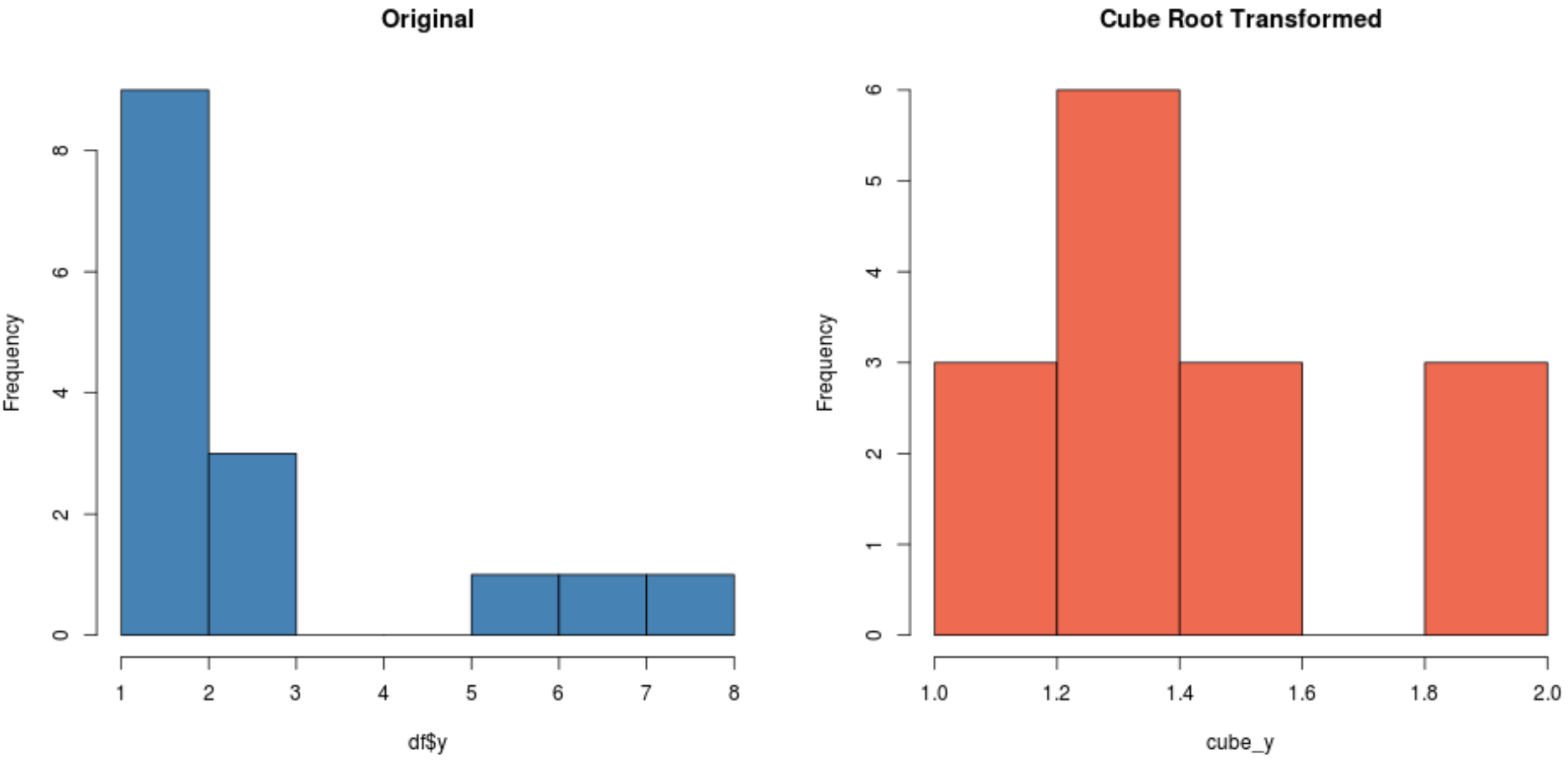

Following the calculation, we generate comparative histograms to assess the degree of normalization achieved by the cube root transformation. While the visual improvement may be less dramatic than the log transformation on this specific, highly-skewed sample data, the cube root provides a valuable intermediate option, especially for distributions where only moderate adjustment is required or where handling non-positive values is a necessity.

#create histogram for original distribution
hist(df$y, col='steelblue', main='Original')

#create histogram for cube root-transformed distribution
hist(cube_y, col='coral2', main='Cube Root Transformed')

The cube root transformation visibly moves the distribution closer to the target normal distribution. When analysts encounter a novel dataset with unclear distributional properties, the best practice is often to test all three power transformations (Log, Square Root, and Cube Root) and then quantitatively evaluate which one yields the distribution that is closest to normality, both visually and statistically.

Choosing the Optimal Transformation

Data transformation is fundamentally an empirical process; there is no universal formula that dictates which transformation will be most effective for every dataset. The selection of the optimal method must be guided by a combination of visual analysis (examining histograms and Q-Q plots) and quantitative rigor (utilizing formal tests like the Shapiro-Wilk test). The primary objective is to minimize both skewness and kurtosis, ensuring that the model’s residuals satisfy the critical normality assumption.

When determining the best approach, analysts should consider the underlying nature of the data: is it count data (favoring square root), does it have severe skew (favoring log), or does it contain zero/negative values (favoring cube root)? Ultimately, the most effective transformation is the one that produces the most statistically robust results while simultaneously ensuring that the transformed variable remains interpretable in the context of the research question. Always prioritize the method that leads to the greatest improvement in normality without sacrificing the ability to explain the findings clearly.
