Understanding Heteroscedasticity: A Beginner’s Guide to Non-Constant Variance in Regression Analysis

In the advanced domain of regression analysis, a critical statistical phenomenon known as heteroscedasticity describes a condition where the dispersion, or variability, of the error terms (also called residuals) is not uniform across the range of observed values of the predictor variables. Simply put, it signifies that the spread or scatter of the model’s errors systematically changes as the magnitude of the independent variable increases. This violation is paramount because it directly undermines one of the fundamental assumptions necessary for drawing reliable inferences from standard regression models.

To fully grasp heteroscedasticity, it is essential to understand its statistical opposite: homoscedasticity. Standard estimation techniques, most notably the ubiquitous Ordinary Least Squares (OLS) method, rely on the strict premise that the error terms possess a constant variance across all levels of the predictors. When this core assumption of constant variance is breached, the model’s foundation is compromised. This dramatically impairs the model’s capability to accurately estimate true relationships and conduct valid statistical hypothesis tests, requiring immediate diagnostic investigation and corrective action by the data analyst.

This comprehensive guide systematically explores the serious consequences arising from non-constant variance. We will detail practical, visual methods for detecting this issue using diagnostic plots, examine the typical causes rooted in real-world data structures, and finally, outline robust, proven strategies for remediation, ensuring the derived statistical findings are both accurate and trustworthy.

The Critical Impact of Heteroscedasticity on OLS Regression

The presence of heteroscedasticity in a dataset renders the outcomes produced by an Ordinary Least Squares (OLS) regression model statistically problematic. While the coefficient estimates themselves remain unbiased—meaning they are correctly centered around the true population parameters—a severe penalty is paid in terms of efficiency. Crucially, the non-constant nature of the error variance leads to estimates of the standard errors for these coefficients that are biased and inconsistent.

This flawed calculation of standard errors is the core issue. The regression model fails to account for the increased variability in predictions at certain ranges of the data. Because the standard errors are typically underestimated, particularly for the areas of the predictor range exhibiting high variance, the reliability of critical statistical tests is destroyed. Hypothesis tests, such as t-tests and F-tests, lose their validity. This distortion significantly inflates the chance of committing a Type I error, where a researcher incorrectly rejects a true null hypothesis. The practical result is falsely concluding that a predictor variable is statistically significant when, in reality, its relationship might be unreliable.

Therefore, addressing non-constant variance is not merely a formality of statistical hygiene. It is fundamental to guaranteeing that the confidence intervals surrounding the model’s predictions are correctly calibrated and that any conclusions drawn about the relationships between variables are statistically sound. Ignoring this pervasive issue can lead directly to severe misinterpretations of the underlying data and the deployment of flawed predictive models in practical decision-making scenarios.

Visual Diagnosis: Utilizing the Residual Plot

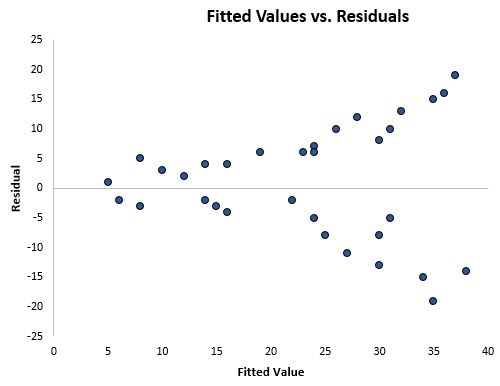

The most accessible, intuitive, and often the most powerful technique for detecting heteroscedasticity involves a careful visual examination of the model’s residuals. After generating the regression model, the analyst must produce a specialized scatterplot known as the fitted value vs. residual plot. In this diagnostic visualization, the horizontal axis represents the predicted (or fitted) values of the dependent variable, while the vertical axis displays the corresponding residual—the absolute difference between the actual observed value and the predicted value.

Under the ideal statistical scenario where the assumption of homoscedasticity holds true, the resulting plot would show the residuals scattered completely randomly around the horizontal zero line. This pattern forms a uniform, horizontal band or cloud, indicating that the vertical spread of the error points remains perfectly constant across the entire spectrum of fitted values, demonstrating uniform prediction accuracy.

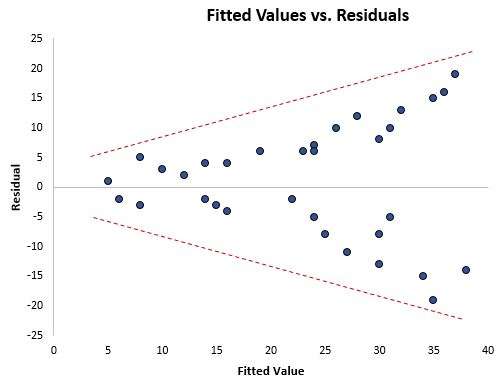

Conversely, the definite sign of heteroscedasticity is the manifestation of a clear, systematic pattern within this plot. The classical and most frequent pattern observed is the “cone” or “fan” shape, where the vertical spread of the residuals either expands dramatically (widening) or contracts substantially (narrowing) as the fitted values increase. This widening pattern, explicitly demonstrated in the figure below, serves as undeniable visual evidence that the variance of the error terms is fundamentally non-constant.

This visual evidence is an indispensable diagnostic tool. Observing the illustration, note how the vertical distance of the data points from the central zero line significantly increases as we move towards higher fitted values. This distinct pattern tells us that the model makes relatively precise predictions (low error) for smaller values but produces highly inaccurate and unpredictable errors for larger values. This systematic variation confirms the presence of non-constant variance.

Identifying the Root Causes of Non-Constant Error Variance

The phenomenon of Heteroscedasticity frequently arises naturally in datasets, especially those involving cross-sectional observations where the units of analysis—such as individuals, companies, or geographical areas—differ vastly in scale, size, or capacity. When key variables span an extensive range of potential values, the absolute magnitude of the error associated with larger values tends to be greater. This occurs simply because the potential for deviation from the mean is inherently higher for large-scale entities. This effect is often intrinsic to the data’s structure, rather than a mere consequence of a mis-specified model.

A classic, detailed example involves analyzing financial data: imagine a regression aimed at modeling the total annual expenses based on annual income across 100,000 individuals. For individuals earning low or minimum wages, their expenditure is severely limited and highly predictable—they must allocate most of their income to essential necessities like rent and food, resulting in very low variability in their spending habits. In contrast, individuals with extremely high incomes possess vast discretionary spending power. Some high earners may choose extreme frugality, spending a minimal percentage of their income, while others might spend extravagantly on luxury items. This divergence results in immense variability in their total expenses. When modeling this relationship, the residual errors will be tightly clustered near zero for the low-income data points, but widely dispersed for the high-income points, flawlessly reproducing the classic cone shape indicative of heteroscedasticity.

Another pertinent example can be found in urban planning or retail statistics. Consider a dataset linking a city’s population size to the total count of flower shops within its limits across 1,000 different municipalities. In small towns with populations under 5,000, the count of flower shops is highly constrained, typically being one or two, leading to negligible variance in that bracket. Conversely, colossal metropolitan areas with populations exceeding one million might host anywhere from 10 to 100 flower shops. If we use population to predict the flower shop count, the potential prediction error is significantly larger for the major cities simply because the range of possible outcomes is dramatically wider. This fundamental scaling effect confirms that the error term’s variance is systematically dependent on the magnitude of the population variable, making such datasets inherently susceptible to this statistical challenge.

Remediation Strategies: Transformative and Definitional Solutions

Once heteroscedasticity is confirmed, analysts must employ corrective strategies to restore the validity of their statistical inference. These solutions primarily fall into two categories: transforming the data to stabilize the variance, or using estimation methods that accommodate non-constant variance.

1. Transforming the Dependent Variable

One of the most effective and widely adopted techniques to mitigate non-constant variance is applying a mathematical transformation to the dependent variable. The goal of transformation is to stabilize the distribution of the error terms, making their variance more uniform across the predictor range. A frequently utilized and powerful tool for this purpose is the application of the natural logarithm (log) to the dependent variable.

By using the log transformation, we effectively compress the scale of the dependent variable, particularly impacting the large values that typically contribute to high variability. In the flower shop example, instead of modeling population size against the raw number of flower shops, we would model population size against the log of the number of flower shops. This compression process is often successful in restoring the assumption of homoscedasticity, thereby enabling the OLS model to yield reliable standard errors and valid hypothesis tests.

2. Redefining the Dependent Variable as a Ratio

A second highly effective approach involves fundamentally redefining the dependent variable, typically by converting the raw count or magnitude into a rate or ratio. This technique directly addresses the underlying problem where non-constant variance is driven by inherent differences in the scale or size of the observational units.

For example, instead of attempting to predict the total number of flower shops based on city population, the analyst can redefine the dependent variable as the number of flower shops per capita (i.e., the count divided by the population size). By shifting the focus to a rate, the variable is normalized relative to the size of the unit. This normalization typically reduces the massive variability that naturally occurs among larger populations, as the rate (e.g., shops per 1,000 residents) tends to fluctuate far less dramatically than the raw count, thus substantially diminishing the severity of the heteroscedasticity problem.

Advanced Solutions: Weighted Regression and Robust Estimation

When simple transformations or redefinitions prove inadequate or inappropriate for the research question, analysts must turn to more sophisticated estimation methods designed specifically to handle non-constant variance.

1. Using Weighted Least Squares (WLS) Regression

   When transformation is unsuitable, analysts can utilize specialized regression techniques such as Weighted Least Squares (WLS) regression. Unlike standard OLS, which implicitly assumes equal reliability for all observations, WLS assigns a specific weight to each data point based on the estimated variability of its error.

   The core logic of WLS is elegant: data points associated with higher error variance (those contributing to the widening “cone”) are given smaller weights in the calculation of the regression coefficients. Conversely, data points exhibiting lower, more reliable variance receive larger weights. By minimizing the influence of high-variance observations, WLS effectively stabilizes the overall error variance, resulting in efficient and reliable parameter estimates. The primary technical hurdle in WLS is the accurate estimation of the appropriate weights, which often requires a preliminary understanding or model of the functional form of the heteroscedasticity itself.

2. Employing Robust Standard Errors (Huber–White)

   A final, highly practical, and increasingly standard method, particularly in contemporary econometric and statistical software, is to maintain the original OLS coefficient estimates but calculate robust standard errors that are mathematically consistent even in the presence of heteroscedasticity. These are formally known as Huber–White standard errors, or simply “robust standard errors.”

   This approach strategically avoids attempting to fix or eliminate the non-constant variance within the model. Instead, it adjusts the standard error calculations to ensure they remain accurate and reliable despite the violation of the homoscedasticity assumption. This allows the analyst to utilize the easily interpretable OLS estimates for the coefficients while relying on corrected standard errors for valid hypothesis testing, thereby preserving the integrity of statistical inference without the need for complex variable transformation or migration to a different estimation routine like WLS.

Conclusion: Ensuring Model Integrity

Heteroscedasticity is a prevalent and unavoidable challenge in regression modeling, especially when working with real-world, cross-sectional datasets where observational units naturally operate at different scales. Since non-constant variance directly leads to unreliable standard error estimates and, consequently, potentially flawed conclusions regarding statistical significance, its rigorous detection and appropriate correction are absolutely essential steps for maintaining the integrity of data analysis.

The good news is that diagnostic tools, such as the powerful fitted value vs. residual plot, make the visual identification of this structural problem relatively straightforward. Once identified, analysts are equipped with a comprehensive suite of powerful remediation strategies. These range from fundamental solutions like mathematical variable transformations and redefinitions to advanced econometric techniques such as Weighted Least Squares or the application of robust standard errors. By diligently employing these corrective measures, researchers can ensure the maximum validity and reliability of their regression models, leading directly to more trustworthy statistical insights and conclusions.
