Learning to Unhide Excel Sheets: A VBA Automation Tutorial

Automating Sheet Visibility Management with VBA

In large or complex Excel workbooks, effective management of sheet visibility is a critical necessity for maintaining data integrity and simplifying the user interface. Developers frequently hide sheets that contain raw source data, complicated intermediary calculations, or setup configurations, ensuring that end-users focus only on input and output tabs. While manually unhiding a single sheet is trivial, the process rapidly becomes cumbersome when dealing with dozens of hidden components. Fortunately, VBA (Visual Basic for Applications) provides a powerful, robust solution for programmatically controlling all sheet properties, allowing for instantaneous restoration of visibility across the entire workbook.

The core mechanism for achieving this automation involves manipulating the Visible property associated with the Worksheet object. This property dictates whether a sheet is fully displayed, hidden from view, or designated as “very hidden”—a state that prevents manual unhiding via the standard Excel interface. Relying on the built-in user interface to unhide multiple sheets requires repeated navigation of dialog boxes, a time-consuming task that is easily replaced by a concise script. Programmatic control through VBA ensures complete and swift restoration of all components with a single, reliable command.

To unhide every sheet in an Excel workbook simultaneously, we utilize the iterative structure known as the For Each loop. This highly efficient construct is designed to cycle through every object within a specified collection—in this case, the comprehensive collection of all worksheets within the active file—and apply a uniform action to each member individually. By leveraging this structure, we can write a remarkably clean and efficient procedure that requires only a few lines of code to achieve a powerful and universal result: setting the visibility state of every sheet to True.

Deconstructing the Worksheet Visible Property

Understanding the underlying object model is crucial before implementing the code. The Visible property of a worksheet object in VBA does not simply accept a Boolean value; rather, it accepts one of three defined constants from the Excel object library. Recognizing these distinct states is essential for effective sheet management, particularly when distinguishing between sheets intended for temporary concealment and those meant to remain truly inaccessible to the average end-user.

The three possible states that define a sheet’s visibility are:

• xlSheetVisible (Value: -1): This is the default setting, indicating the sheet is fully displayed and readily accessible to the user. Setting the Visible property to True in VBA achieves the same result as setting it explicitly to xlSheetVisible.
• xlSheetHidden (Value: 0): This state corresponds to a sheet being hidden through the standard right-click context menu option within the Excel interface. Sheets in this state can be easily revealed by the user through the “Unhide” dialog box.
• xlSheetVeryHidden (Value: 2): This restrictive state is only accessible through VBA programming. Sheets set to xlSheetVeryHidden are deliberately excluded from the standard “Unhide” dialog, providing an enhanced layer of protection for configuration tables, proprietary algorithms, or sensitive background data.

Our objective—to unhide absolutely everything—simplifies this complexity. We simply need to ensure that the Visible property for every single sheet in the collection is set to True. This assignment automatically forces the sheet state back to xlSheetVisible, effectively overriding both the standard xlSheetHidden and the more restrictive xlSheetVeryHidden states. This built-in universality is what makes the automated procedure so reliable and robust for a blanket visibility restoration across the entire Excel workbook structure.

Implementing the Core Automation Code

To execute the task of revealing all worksheets, we must encapsulate the iterative logic within a procedure, conventionally known as a subroutine or Sub, which will iterate through the Worksheets collection. This collection serves as a container for every sheet—visible or hidden—that exists within the active workbook. By declaring a placeholder variable to represent each individual sheet as the loop processes, we can systematically apply the visibility change to every component without exception.

The following code snippet provides the necessary structure. It first declares a variable, typically named ws, of the type Worksheet and then employs the For Each loop to execute the visibility command across the entire collection of worksheets.

Sub UnhideAllSheets()

Dim ws As Worksheet

    For Each ws In Worksheets
        ws.Visible = True
    Next ws

End Sub

Let’s analyze the mechanics of this code block to clarify its function. The line Dim ws As Worksheet initializes a variable, ws, which acts as a temporary pointer, holding a reference to one worksheet object at a time. The subsequent statement, For Each ws In Worksheets, initiates the central iteration, instructing VBA to process every sheet found within the Worksheets collection. Crucially, ws.Visible = True is the core instruction, setting the visibility state of the currently referenced sheet (ws) to visible. This combination of straightforward iteration and direct property manipulation guarantees that all sheets are successfully restored to their visible status, regardless of their prior hidden setting.

Practical Walkthrough: Restoring Visibility

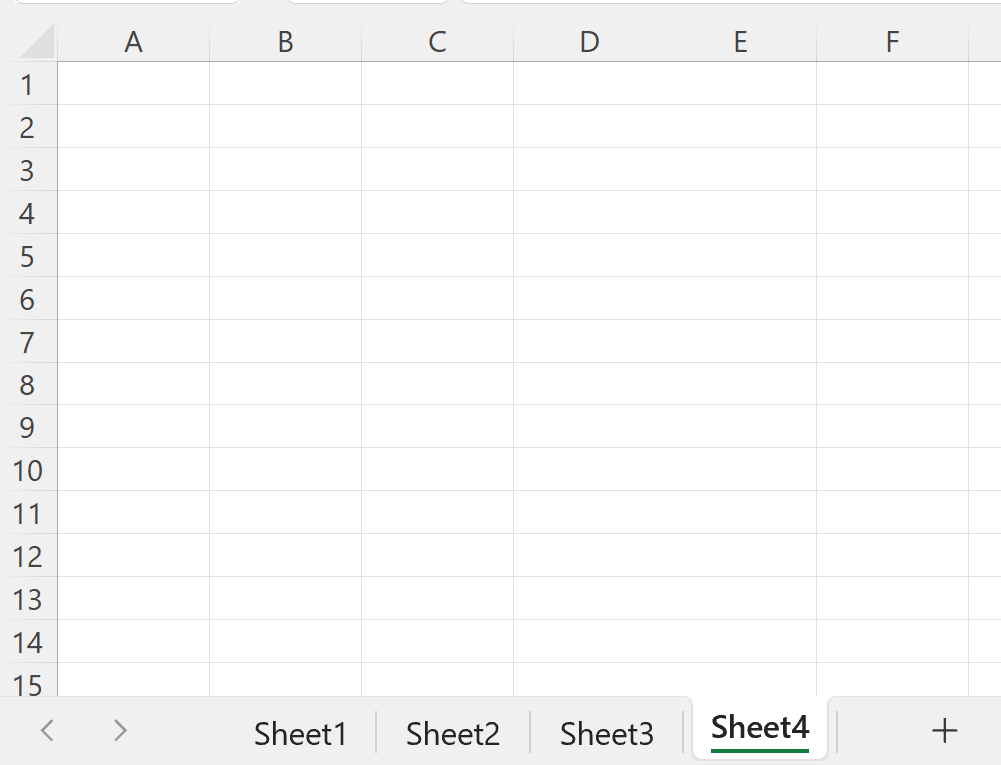

To fully illustrate the effectiveness of this automated approach, consider a typical data management scenario where an Excel workbook begins with four clearly labeled sheets, all initially visible, representing the baseline state before any concealment actions are taken.

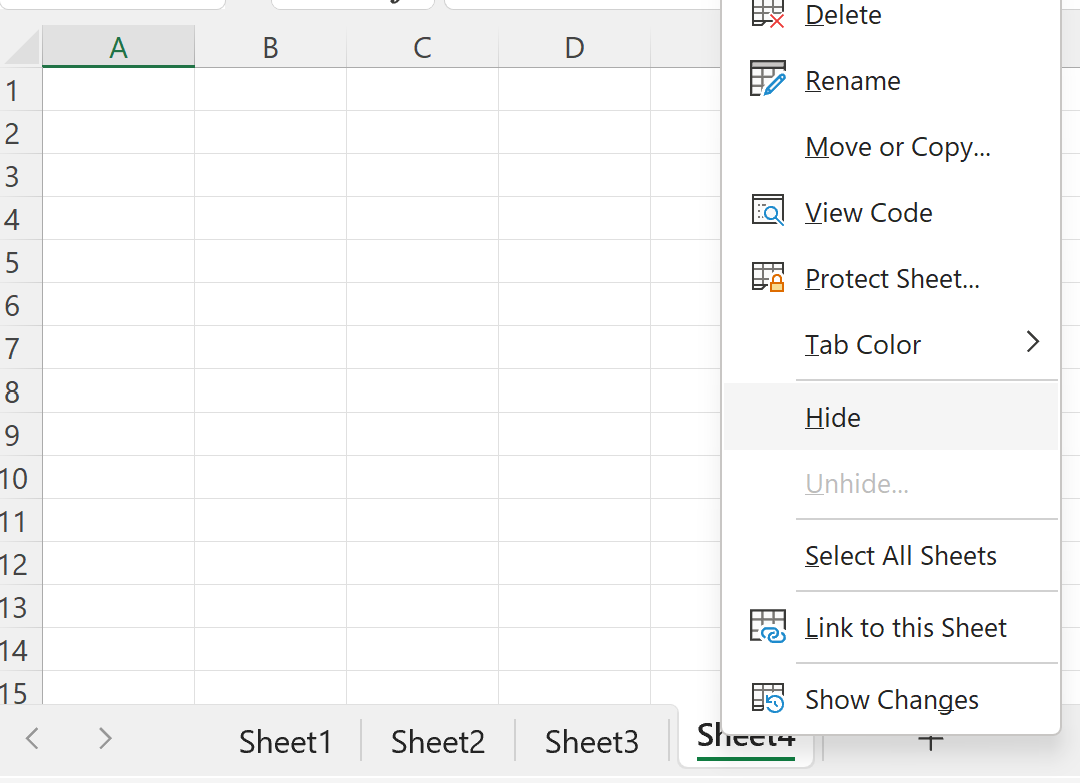

Next, imagine the requirement is to simplify the user interface by manually hiding certain components. For instance, we might right-click on Sheet4 and select the Hide option from the context menu, thereby setting its Visible property to xlSheetHidden (0). This action removes the sheet tab from view, making the workbook cleaner but less transparent.

This hiding process is repeated for Sheet2. At this stage, only Sheet1 and Sheet3 are displayed as visible tabs. The sheets that contain supporting data are now inaccessible without navigating the “Unhide” dialog box, a task that becomes inefficient if dozens of sheets have been hidden. This situation necessitates a quick, centralized command to restore full transparency.

To restore full visibility instantaneously, we execute the previously defined macro. We insert the code into a standard module within the VBA Editor (accessed via Alt + F11):

Sub UnhideAllSheets()

Dim ws As Worksheet

    For Each ws In Worksheets
        ws.Visible = True
    Next ws

End Sub

Once this code is executed, perhaps through the Macros dialog or an assigned button, the For Each loop runs instantaneously. It forces the Visible property of Sheet2 and Sheet4 back to True. Consequently, all sheets in the workbook are immediately unhidden, returning the workbook to its original, fully visible state, completing the restoration process with speed and precision.

Addressing Very Hidden Sheets (Advanced Use)

A substantial benefit of employing this automated macro approach, in contrast to relying solely on Excel’s native “Unhide” dialog, is the capability to seamlessly reveal sheets designated with the highly restricted xlSheetVeryHidden state. As established, sheets marked as very hidden are typically intended to be protected from casual viewing and are explicitly omitted from the standard manual unhide list. Developers often use this state to safeguard critical data models, proprietary calculations, or sensitive configuration parameters that must not be easily tampered with or viewed by the end-user.

If a sheet’s visibility is explicitly set to 2 – xlSheetVeryHidden, a standard user has no conventional means to restore its visibility without direct access to the VBA Editor itself. However, the UnhideAllSheets procedure we defined handles this state gracefully and automatically. Since the code explicitly mandates ws.Visible = True, this command overrides the xlSheetVeryHidden status just as effortlessly as it overrides xlSheetHidden. This procedure provides a universal, “nuclear option” for visibility restoration—a powerful tool essential for diagnostics, security auditing, or complete structure review when the hidden status of sheets is unknown or highly complex. It completely removes the need for tedious manual inspection of sheet properties within the VBA environment.

Best Practices for Visibility Management

While the ability to instantly unhide all sheets is crucial for maintenance, debugging, and review, responsible development necessitates thoughtful implementation of sheet visibility from the outset. Hiding sheets should be employed strategically to optimize the user experience and protect data integrity, not as a primary measure of security. True security requires password protection of the VBA project or the workbook itself.

When designing an Excel workbook solution intended for distribution or long-term use, consider the following best practices:

1. Use xlSheetVeryHidden Strategically: Reserve the xlSheetVeryHidden state exclusively for critical, non-user-facing sheets, such as embedded database connection strings, data query definitions, or sensitive parameters. The standard xlSheetHidden state should be used only for supporting sheets that the user might occasionally need to reveal, such as detailed transaction logs or intermediate calculation steps.
2. Implement Paired Macros: For advanced solutions, it is highly recommended to create a pair of macros: one named UnhideAllSheets() for temporary viewing, and another named RestoreDefaultVisibility(). The restoration macro should specifically set the visibility of each sheet back to its predetermined state (Visible, Hidden, or Very Hidden) after a temporary audit period.
3. Enhance User Control: If the workbook is designed for use by others, provide a dedicated control button or toggle switch on a main dashboard sheet that executes the UnhideAllSheets() macro. This approach makes the powerful restoration function accessible to advanced users without requiring them to interact directly with the VBA Editor, improving overall usability.

Adopting these practices ensures that your workbooks are not only easy to manage internally for maintenance and debugging but also provide a clean, intuitive experience for the end-user, thereby minimizing confusion and maintaining the necessary structural separation between input/output layers and underlying data structures.

Summary and Next Steps

The technique of manipulating the Visible property through an efficient For Each loop represents one of the most fundamental and universally useful techniques in VBA programming. This simple yet powerful routine enables developers and advanced users to instantly audit or restore the full structure of any Excel workbook, drastically reducing the manual effort traditionally required to manage sheet visibility, especially in large, legacy, or highly complex files. By gaining a clear understanding of the three visibility states and applying the provided code, you achieve immediate, centralized, and complete control over your workbook structure.
