Understanding Upper and Lower Fences: Identifying Outliers in Data Analysis

In the expansive field of statistics, establishing precise and objective boundaries for data distribution is absolutely fundamental for conducting robust and reliable analysis. The concept of the upper and lower fences provides standardized thresholds, rigorously defining the critical limits beyond which specific data observations are statistically categorized as potential outliers. These calculated limits are essential tools for data scientists, ensuring that extreme values are identified systematically, thereby preventing them from unduly skewing or influencing sophisticated statistical models and resulting conclusions.

The methodology for calculating these crucial fences relies heavily on measures derived from the center of the data distribution, specifically utilizing the Interquartile Range (IQR), which is a measure of statistical dispersion representing the spread of the middle 50% of the observations within a given dataset. This approach makes the fences inherently resistant to the influence of extreme values, offering a stable reference point. The precise mathematical formulas that govern the definition of these boundaries are defined clearly as follows:

• Lower fence = Q1 – (1.5 × IQR)
• Upper fence = Q3 + (1.5 × IQR)

It is important to understand that the IQR itself is simply the difference between the 75th percentile (known as the third quartile (Q3)) and the 25th percentile (the first quartile (Q1)). Consequently, any single observation that exists outside this established range—either falling above the calculated upper fence or below the calculated lower fence—is designated as an anomaly that warrants immediate and thorough investigation by the analyst.

The Fundamental Role of Fences in Robust Data Analysis

The core objective of implementing upper and lower fences is to establish an objective, non-subjective criterion for the identification of potential outliers. An outlier, by definition, is a data point that deviates significantly or unusually far from other observations. Such points might be benign, representing natural but extreme variation, or they could signify critical issues like measurement variability, human input errors, or instrument malfunctions that compromise the integrity of the data stream.

The selection of the specific 1.5 multiplier, which is applied directly to the Interquartile Range, is a widely accepted convention in statistics. This technique was pioneered and popularized by the renowned mathematician and statistician, John Tukey. Tukey’s method is universally regarded as a highly reliable and efficient diagnostic tool because it relies on the internal spread of the data rather than absolute minimum or maximum values. By systematically setting these boundaries, analysts gain a powerful method to determine precisely which data points must be rigorously scrutinized for potential errors, or, if confirmed to be highly detrimental, removed from the final analysis to prevent excessive skewing of the overall distribution.

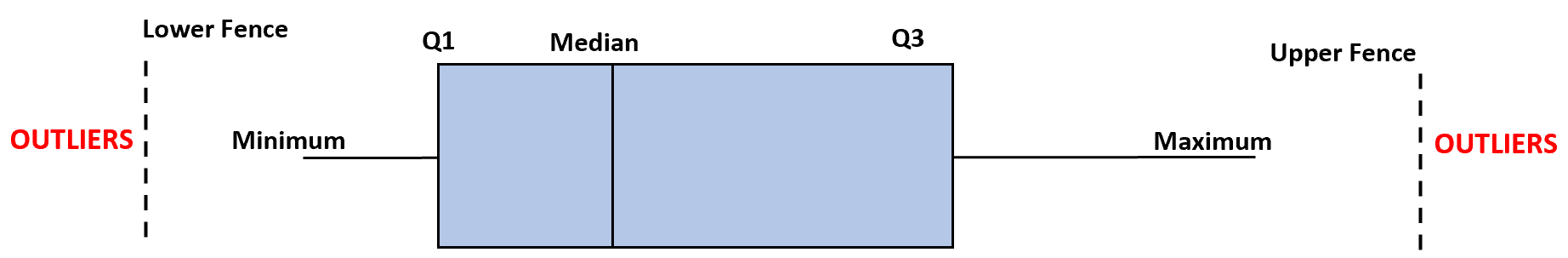

This systematic demarcation is often visually represented in graphical tools, providing immediate clarity on data integrity. The illustration below captures how these fences define the acceptable region of data points versus those potential anomalies, which frequently extend visibly beyond the standard whiskers of a box plot:

Deconstructing the Interquartile Range (IQR) and the 1.5 Multiplier

To ensure the accurate calculation and meaningful interpretation of the fences, a comprehensive understanding of the Interquartile Range is absolutely necessary. The IQR serves as a robust measure of statistical dispersion, quantifying the precise distance between the third and first quartiles. This metric is overwhelmingly favored over the simple total range (calculated as the maximum value minus the minimum value) primarily because the IQR is inherently resistant to the destabilizing effects of extreme outliers, offering a more stable and representative measure of spread derived from the core of the data.

The first quartile (Q1) is the specific value below which 25% of the total data points fall, effectively marking the lower boundary of the central half of the data. Conversely, the third quartile (Q3) is the value below which 75% of the data points fall, marking the upper boundary. Consequently, the IQR successfully encapsulates the central tendency and spread of the most representative middle 50% of the entire data distribution, providing a stable snapshot of the core density without being distorted by extreme values.

The critical step in fence calculation involves multiplying the IQR by 1.5. This multiplication effectively creates a necessary buffer zone extending outward from the central 50% of the data. When this buffered value (1.5 × IQR) is subsequently added to Q3 or subtracted from Q1, it defines the conservative, statistically sound limits known as the fences. Data points that lie outside this calculated 1.5*IQR distance are statistically deemed highly unusual, suggesting they possess properties significantly different from the core distribution and must be flagged as potential outliers.

Step-by-Step Calculation: Determining Fence Boundaries

To solidify the theoretical understanding of the upper and lower fences, we will now apply these formulas to a specific, illustrative dataset. This detailed, practical example will clearly demonstrate the calculation process from start to finish, providing a model for real-world application. Consider the following set of ordered observations, which represents a typical sample data distribution:

Dataset: 11, 13, 14, 14, 15, 16, 18, 22, 24, 27, 34, 36, 38, 41, 45

The calculation requires three distinct and mandatory steps. It is paramount to ensure that the necessary foundational components—Q1, Q3, and the Interquartile Range (IQR)—are derived with absolute accuracy before proceeding to the final determination of the fence values. Errors in the initial quartile calculation will propagate through the entire analysis.

Step 1: Find Q1 and Q3

The initial and foundational step involves accurately locating the quartiles. It is worth noting that while manual calculation methodologies can vary slightly depending on the specific statistical definition or software used, standard interpolation techniques applied to this ordered dataset yield the following precise values for the 25th and 75th percentiles:

• Q1 (25th percentile): 14
• Q3 (75th percentile): 36

Step 2: Calculate the Interquartile Range (IQR)

Using the quartile values established in Step 1, we now determine the Interquartile Range. This measurement quantifies the exact width of the central box in our data distribution and is key to establishing the buffer zone that protects the analysis from undue influence.

The calculation is a straightforward subtraction:

• Interquartile Range (IQR): Q3 – Q1 = 36 – 14 = 22

Step 3: Define the Upper and Lower Fences

With the IQR firmly established, we can now proceed to calculate the final fence boundaries using the standard 1.5 multiplier, which defines the limits of non-outlier data. This step reveals the protective bounds of the distribution:

• Lower fence: Q1 – (1.5 × IQR) = 14 – (1.5 × 22) = 14 – 33 = -19
• Upper fence: Q3 + (1.5 × IQR) = 36 + (1.5 × 22) = 36 + 33 = 69

By comparing the calculated fences to the dataset, we observe that the lowest recorded value is 11 (which is significantly greater than the lower fence of -19) and the highest recorded value is 45 (which is substantially less than the upper fence of 69). Based on the established 1.5 × IQR rule, we confidently conclude that no observations within this particular sample are categorized as statistical outliers.

Visualizing Outliers: Fences and the Box Plot

Visual tools are perhaps the most indispensable resources for data interpretation, providing immediate clarity that raw numbers often obscure. The box plot, in particular, offers a succinct and powerful summary of the data’s central tendency and spread. This visualization summarizes all the crucial statistical components—Q1, Q3, IQR, and the median—and visually displays precisely where the calculated fences lie. Any observations marked distinctly beyond the defined whiskers of the plot immediately confirm the presence of statistically extreme data points requiring attention.

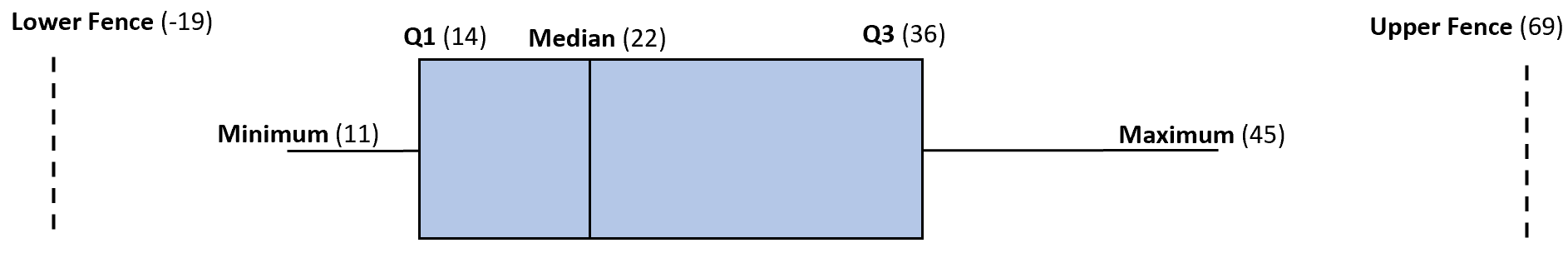

The visualization presented below uses the data values from our detailed example above. It clearly and intuitively demonstrates that all data points fall comfortably within the bounds defined by the calculated upper and lower fences, reinforcing our prior analytical conclusion that no outliers are present:

When analysts confront complex and large-scale data distributions, this visualization technique is crucial. It aids in quickly and accurately distinguishing between data points that are simply high or low (but still statistically normal) and those that meet the rigorous statistical criteria for being true anomalies. Data professionals rely heavily on this systematic and visually intuitive approach to maintain the fidelity and integrity of their analytical models, which is especially critical when working with sensitive methods such as machine learning algorithms that are highly susceptible to unusual input values.

Leveraging Statistical Software for Large Datasets

While manual calculation is essential for educational purposes and understanding the underlying mechanics, attempting to calculate fences for large-scale production datasets is highly impractical and prone to arithmetic error. Fortunately, modern statistical computing environments—such as the R programming language, Python libraries like Pandas and NumPy, and commercial software like SPSS—include robust, built-in functions designed to automatically and rapidly calculate the necessary quartiles and fences, instantly identifying potential deviations from the norm.

For educational validation or simple preliminary checks, numerous online calculators provide an accessible and user-friendly way to input raw data and receive instant fence values. This automation eliminates the significant risk of human error during the tedious manual steps. These powerful computational tools enable data analysts to dramatically reduce the time spent on laborious calculation and significantly increase the time dedicated to critical data interpretation and strategic decision-making regarding data cleansing and modeling strategies.

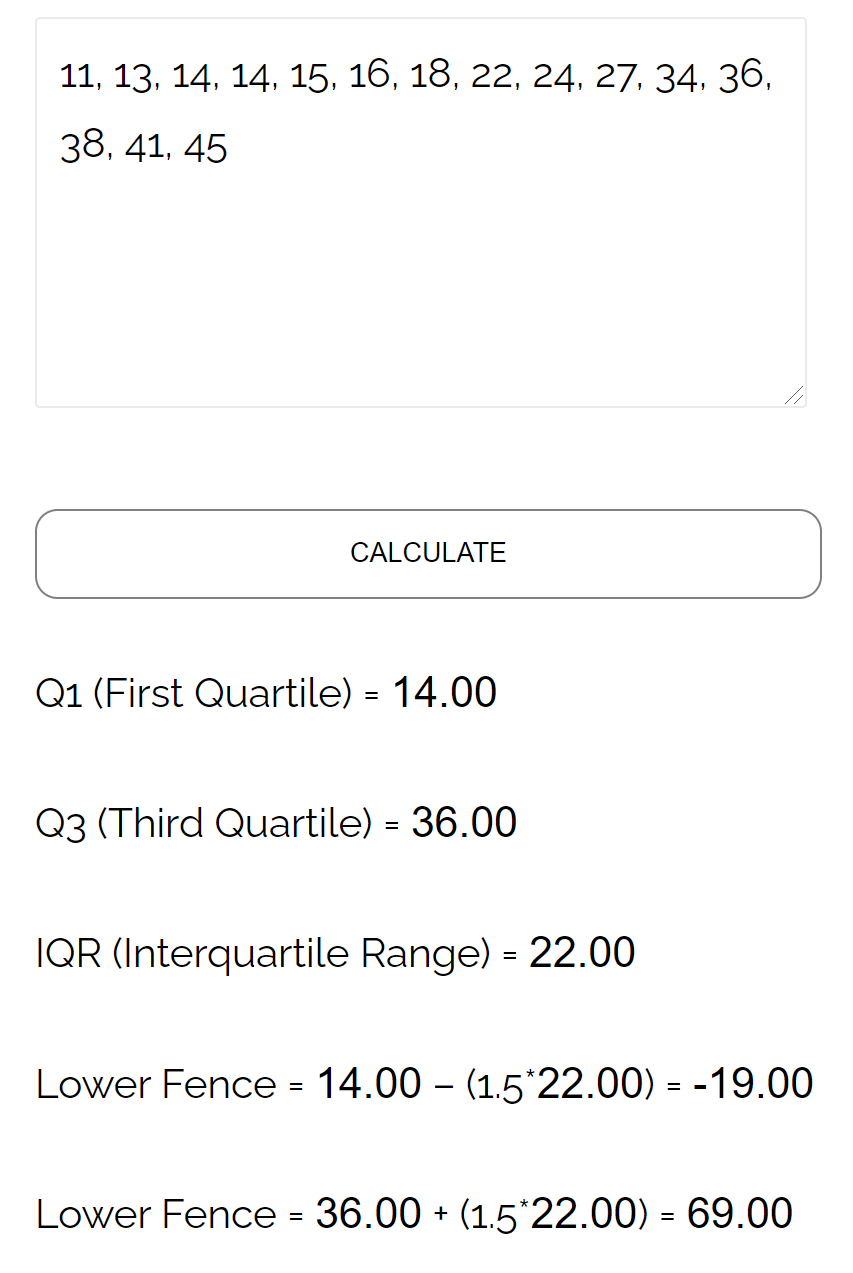

The following image illustrates a typical dedicated utility interface designed specifically for this fence calculation:

Further authoritative resources for statistical computation and detailed methodological explanations, including advanced considerations related to quartile calculation methods in different contexts, are consistently available through specialized statistical journals and academic archives. Mastering the concept of the upper and lower fences is a hallmark of rigorous statistical practice and essential for maintaining high data quality.
