Learning the SAS CASE WHEN Statement: A Comprehensive Guide with Examples

Understanding the CASE WHEN Statement in SAS

The conditional logic inherent in the CASE WHEN statement is a fundamental feature of SQL, seamlessly integrated into the SAS programming environment. This powerful construct allows users to implement complex, sequential decision-making processes, defining specific outcomes based on a series of defined criteria. It is particularly invaluable for data manipulation tasks requiring the creation of new variables or the systematic modification of existing values within a dataset, ensuring data transformations are both robust and highly readable.

In the realm of data transformation and reporting within SAS, analysts frequently encounter scenarios necessitating the categorization, flagging, or computation of values contingent upon multiple conditions. For instance, a common application involves mapping continuous numerical ranges—such as sales figures or test scores—into discrete qualitative categories like ‘High’, ‘Medium’, or ‘Low’. The CASE WHEN statement excels in streamlining these intricate operations, offering a clear, declarative structure to specify precise logical rules.

Unlike the traditional IF-THEN-ELSE structures primarily associated with the SAS Data Step, the CASE WHEN statement is predominantly utilized within PROC SQL. This integration facilitates sophisticated conditional processing alongside standard SQL operations, including data selection, joining tables, and aggregation. Its adaptability and native compatibility within the SQL framework establish it as an essential component for handling advanced data tasks efficiently.

Syntax and Components of CASE WHEN in PROC SQL

The fundamental structure of the CASE WHEN statement, when employed within PROC SQL, is designed for both clarity and high functionality. It is initiated by the keyword CASE, followed by one or more conditional pairs using the WHEN...THEN structure. Crucially, it includes an optional ELSE clause to manage default outcomes, and it must conclude with END AS, which is used to assign a name to the newly calculated variable. Understanding the role of each component is vital for constructing effective conditional logic.

The following example illustrates the basic syntax required to apply this conditional logic and generate a new classification variable:

proc sql;
    select var1, case
                 when var2 = 'A' then 'North'
               	 when var2 = 'B' then 'South'
               	 when var2 = 'C' then 'East'
                 else 'West'
                 end as variable_name
    from my_data;
quit;

In this structure, the WHEN clause defines a specific condition that must be satisfied. If that condition evaluates as true, the value designated in the corresponding THEN clause is immediately assigned to the new output variable. A critical feature of the CASE WHEN statement is its sequential evaluation: conditions are assessed in the order they appear. Once a WHEN condition is met for a particular observation (row), its corresponding THEN value is assigned, and all subsequent WHEN clauses are completely disregarded for that row. This sequential nature requires careful consideration when ordering your conditional statements.

The optional ELSE clause functions as the default assignment, acting as a crucial catch-all mechanism. If an observation fails to meet any of the preceding WHEN conditions, the value specified in the ELSE clause is assigned. If the ELSE clause is omitted and no WHEN condition is satisfied, the new variable will typically be assigned a system missing value for that observation. The statement is formally concluded by END AS variable_name, which finalizes the CASE WHEN logic and explicitly names the newly generated column, significantly enhancing overall code readability and maintainability, particularly in complex scenarios.

Practical Demonstration: Categorizing Data with CASE WHEN

To illustrate the fundamental utility and practical application of the CASE WHEN statement, we will examine a common scenario: categorizing data based on identifiers. Imagine we possess a dataset detailing various sports teams, and our objective is to assign these teams into distinct divisions based on their unique team identifier. This classification process is a routine requirement in data analysis, providing the necessary groupings for subsequent reporting, aggregation, or advanced analytical processing.

We begin by defining the raw data structure in SAS. The initial dataset, named original_data, contains essential variables: team (the identifier we will classify), points, and rebounds for each observed game or record.

/*create dataset*/
data original_data;
    input team $ points rebounds;
    datalines;
A 25 8
A 18 12
A 22 6
B 24 11
B 27 14
C 33 19
C 31 20
D 30 17
D 18 22
;
run;

/*view dataset*/
proc print data=original_data;

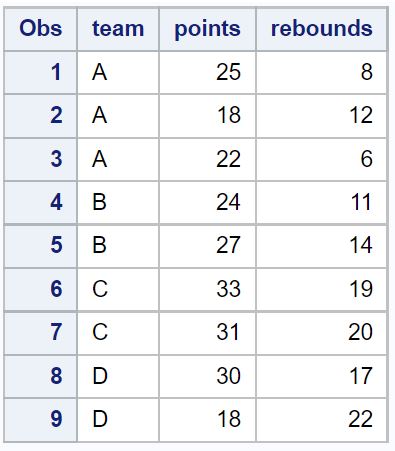

Execution of the preceding SAS code generates the initial original_data dataset. The resulting table, visualized in the image below, provides a clear, untransformed view of the data’s starting structure, confirming the input variables before we apply any conditional logic or transformations.

The subsequent step involves implementing the categorization using the CASE WHEN statement within PROC SQL. Our specific objective is to define a new categorical variable, named Division, whose values are derived by mapping the existing team identifiers (‘A’, ‘B’, ‘C’, etc.) to their corresponding divisional labels (‘North’, ‘South’, ‘East’, etc.).

/*create dataset*/
proc sql;
    select team, points, case
                	 when team = 'A' then 'North'
               	         when team = 'B' then 'South'
               	         when team = 'C' then 'East'
                	 else 'West'
                         end as Division
    from original_data;
quit;

When this PROC SQL statement executes, SAS sequentially processes every record in the original_data. For each row, the value of the team variable is checked against the defined conditions. If team equals ‘A’, ‘North’ is assigned; if ‘B’, ‘South’ is assigned; and so forth. Any remaining observations, such as those with a ‘D’ identifier in our example, automatically fall into the ELSE clause, resulting in the assignment of ‘West’ to the Division variable.

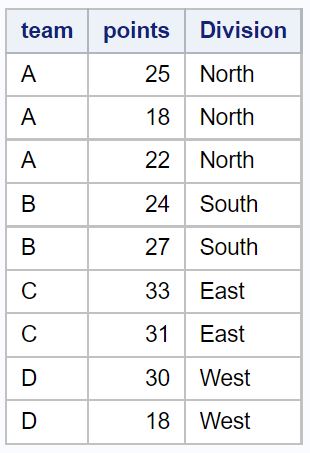

The resultant output dataset, following the CASE WHEN transformation, incorporates both the original input variables and the newly calculated Division variable, as clearly illustrated in the image below. This successful transformation validates the conditional logic, demonstrating how the CASE WHEN statement can effectively classify raw data points into meaningful, structured categories essential for deeper analytical endeavors.

As demonstrated, the new categorical variable, Division, has been seamlessly generated, with its values dynamically determined by the conditional mapping applied to the team variable. This capability for data classification is a cornerstone of preparatory data work, enabling aggregation, filtering, and reporting based on these new, structured categories.

Advanced Techniques: Handling Multiple and Complex Conditions

The versatility of the CASE WHEN statement extends significantly beyond simple, direct mappings. It is engineered to manage far more sophisticated requirements, encompassing multiple interconnected conditions, complex numerical ranges, and combinations of various logical operators. This makes it an indispensable asset for critical tasks such as rigorous data validation, comprehensive risk assessment modeling, and layered performance grading systems, where criteria are inherently multifaceted and hierarchical.

Consider a typical Human Resources scenario where employees must be categorized based on a combination of their performance scores and their duration of experience. The following CASE WHEN structure demonstrates how multiple criteria can be combined within a single statement to achieve highly granular classification:

proc sql;
    select employee_id, score, years_of_experience,
           case
               when score >= 90 and years_of_experience >= 5 then 'Top Performer'
               when score >= 80 then 'High Performer'
               when score >= 60 and years_of_experience < 5 then 'Developing Talent'
               else 'Needs Improvement'
           end as PerformanceCategory
    from employee_data;
quit;

This example clearly illustrates the integration of the AND logical operator within the WHEN clause, facilitating the definition of highly specific segmentation rules. The principle of sequential evaluation is paramount here: an employee scoring 95 with 6 years of experience will be immediately categorized as ‘Top Performer’ by the first WHEN clause. Subsequent conditions, such as ‘High Performer’, are never checked for that individual. Understanding this critical order-of-operations is essential to prevent misclassification and ensure the output accurately reflects the intended conditional logic.

While CASE WHEN statements can technically be nested—useful for establishing hierarchical classifications where a primary category requires secondary sub-categorization—this practice should be approached with caution. Excessive nesting often compromises code clarity and increases debugging complexity. For the majority of advanced scenarios, defining a clear, ordered series of distinct WHEN...THEN clauses provides a more transparent, maintainable, and easily debugged approach. Prioritizing the careful planning of condition order and specificity is the key to harnessing the full analytical potential of this statement.

Best Practices for Robust CASE WHEN Implementation

While the CASE WHEN statement provides exceptional flexibility in SAS coding, adhering to certain best practices is crucial for maximizing efficiency, clarity, and overall code reliability. These guidelines focus primarily on structure and data handling to ensure your conditional logic executes exactly as intended, minimizing the likelihood of errors or unintended data assignments.

One of the most critical aspects to manage is the order of your WHEN clauses. Due to the inherent sequential evaluation mechanism, placing the most specific or restrictive conditions first is essential to preempt incorrect assignments. If, for instance, you are segmenting numerical data (e.g., income tiers), always define the narrowest or highest ranges at the beginning, progressing toward the broadest or lowest ranges. Failing to prioritize specificity can result in observations meeting a general condition early on, thus bypassing the more detailed rules intended for them.

Furthermore, the use of the ELSE clause should be considered mandatory, not optional. Always incorporate an ELSE clause, even if its purpose is only to assign a default missing value or a generic ‘Unclassified’ category. This practice guarantees that every observation passing through the CASE WHEN logic receives an explicit assignment for the new variable, thereby preventing unexpected system missing data and making your logical coverage comprehensive. The ELSE clause serves as a vital safety net, explicitly handling all possible data states not covered by the preceding WHEN conditions.

Finally, data type consistency is non-negotiable. It is imperative to ensure that the resultant values returned by all THEN and ELSE clauses are of a compatible data type. If one THEN clause returns a character string (e.g., ‘North’), all subsequent THEN and the ELSE clauses must also return character strings. Inconsistencies between character and numeric outputs can lead to runtime errors, data truncation, or unexpected type conversions within the SAS environment. By maintaining strict consistency, you ensure the generation of robust and error-free variables.

Conclusion: Leveraging CASE WHEN for Data Transformation

The CASE WHEN statement, particularly when harnessed within the PROC SQL environment, emerges as an exceptionally versatile and effective instrument for implementing advanced conditional logic in data transformation tasks across SAS. Its inherently structured syntax facilitates the clear, concise definition of complex rules necessary for creating or modifying variables based on multifaceted criteria. Whether performing straightforward categorizations or managing highly intricate multi-conditional assignments, the CASE WHEN mechanism provides the necessary flexibility for a broad spectrum of data challenges.

By thoroughly grasping its sequential evaluation process and the distinct functions of its core components—CASE, WHEN, THEN, ELSE, and END AS—SAS users can confidently apply this statement to significantly enrich their datasets. The inherent ability of the CASE WHEN statement to seamlessly manage both categorical and numerical conditions, often integrated with logical operators, solidifies its position as an indispensable tool for every data analyst and programmer utilizing SAS.

Ultimately, mastering the application of the CASE WHEN statement serves not only to refine and streamline your coding practices but also directly contributes to the generation of more accurate, structured, and insightful analytical outputs. It empowers the user to efficiently transform raw, unstructured data into actionable information, unlocking deeper insights necessary for comprehensive analysis and authoritative reporting.
