Learning to Visualize Data with Log Scales in Seaborn

The Necessity of Logarithmic Scales in Data Visualization

When constructing effective data visualizations, the choice of axis scale is paramount for ensuring accurate data representation and revealing hidden insights. Many real-world datasets, particularly those related to finance, population studies, or biological phenomena, exhibit an extremely wide dispersion of values. Their distributions are often severely skewed, meaning that a few extremely large values dominate the range, making smaller values appear indistinguishable near the zero point. When utilizing a standard linear scale, this compression of lower values can completely obscure critical patterns and relationships that exist within the majority of the data points.

The solution to this common challenge lies in employing the logarithmic scale, frequently abbreviated as the log scale. Unlike a linear scale, which represents equal absolute differences across equal distances, a log scale transforms data by applying a logarithmic function. This powerful mathematical transformation compresses larger values exponentially while expanding smaller values, thereby normalizing the visual impact of magnitude differences. This technique is indispensable for plotting data that follows exponential growth patterns, power-law distributions, or whenever the relative change between points is more informative than their absolute difference.

By adopting a logarithmic approach, we achieve a more balanced graphical representation. Extreme outliers, which might otherwise stretch the plot and make the bulk of the data appear flat, are brought closer to the center, allowing the viewer to appreciate the structure and distribution of values across the entire range. Furthermore, in many scientific disciplines, the underlying physical or economic processes dictate that relationships are multiplicative rather than additive, making the log scale the most theoretically appropriate visualization tool.

Integrating Log Scales into Seaborn Plots via Matplotlib

For Python users specializing in statistical graphics, the Seaborn library is the go-to resource for creating informative and aesthetically pleasing plots. While Seaborn provides a high-level interface for complex statistical visualizations, its functionality relies fundamentally on the capabilities of Matplotlib, Python’s foundational plotting library. This symbiotic relationship simplifies advanced plot customization, including the application of logarithmic scaling directly onto the generated axes.

To effectively apply a log scale to a Seaborn visualization, we must leverage specific functions from Matplotlib’s pyplot module. The key functions are plt.xscale() for controlling the horizontal axis and plt.yscale() for controlling the vertical axis. It is essential to note that these functions must be called *after* the Seaborn plotting function has been executed, as they operate directly on the axes object currently active in the Matplotlib figure environment.

The implementation is remarkably straightforward. By passing the string argument 'log' to either plt.xscale() or plt.yscale(), you instruct Matplotlib to transform the specified axis into a logarithmic base-10 scale by default. This method provides fine-grained control, allowing analysts to choose whether to transform one axis, both axes, or neither, depending on the data characteristics.

For datasets where both the independent (x) and dependent (y) variables span several orders of magnitude—a scenario often encountered in scaling laws or complex system analysis—a dual logarithmic plot (known as a log-log plot) provides the most holistic view. This ensures that proportional changes are equally represented across both dimensions of the visualization. The following conceptual code demonstrates the implementation of a log-log plot using a standard scatterplot:

import matplotlib.pyplot as plt
import seaborn as sns

# Create scatterplot using Seaborn
sns.scatterplot(data=df, x='x', y='y')

# Apply log scale transformation using Matplotlib's pyplot
plt.xscale('log')
plt.yscale('log')

Step-by-Step Practical Example: Data with Wide Range

To truly appreciate the visual necessity of logarithmic scaling, we will walk through a concrete example using a synthetic dataset that mimics real-world skewed data. Our focus is on a hypothetical pandas DataFrame containing two numerical columns, ‘x’ and ‘y’. Critically, the ‘y’ values in this dataset exhibit a massive range, spanning two orders of magnitude—from a low of 200 to a high of 11,000. Such a disparity in scale immediately signals the need for non-linear axis treatment to prevent the lower values from being visually marginalized.

First, we must construct our experimental DataFrame. The ‘x’ column is designed to represent a relatively constrained, incrementally increasing variable, while the ‘y’ column captures the expansive, potentially exponential, progression we wish to analyze. By examining the raw data structure below, the challenge becomes evident: the difference between 200 and 1700 is vast in absolute terms, yet on a linear scale stretching to 11,000, these points will be tightly clustered.

import pandas as pd

# Create the DataFrame with disparate magnitudes
df = pd.DataFrame({'x': [2, 5, 6, 7, 9, 13, 14, 16, 18],
                   'y': [200, 1700, 2300, 2500, 2800, 2900, 3400, 3900, 11000]})

# View DataFrame output
print(df)

    x      y
0   2    200
1   5   1700
2   6   2300
3   7   2500
4   9   2800
5  13   2900
6  14   3400
7  16   3900
8  18  11000

Our initial visualization uses the default axis settings—a standard linear scale for both ‘x’ and ‘y’. This serves as the necessary baseline for comparison. The objective here is to confirm the expected outcome: severe visual compression of the lower-magnitude ‘y’ values, making it nearly impossible to distinguish patterns or trends among the points below 4,000. The highest value, 11,000, disproportionately dictates the overall scaling of the plot area, consuming the majority of the vertical space and pushing all other points downward.

import seaborn as sns

# Create scatterplot with default linear axis scales
sns.scatterplot(data=df, x='x', y='y')

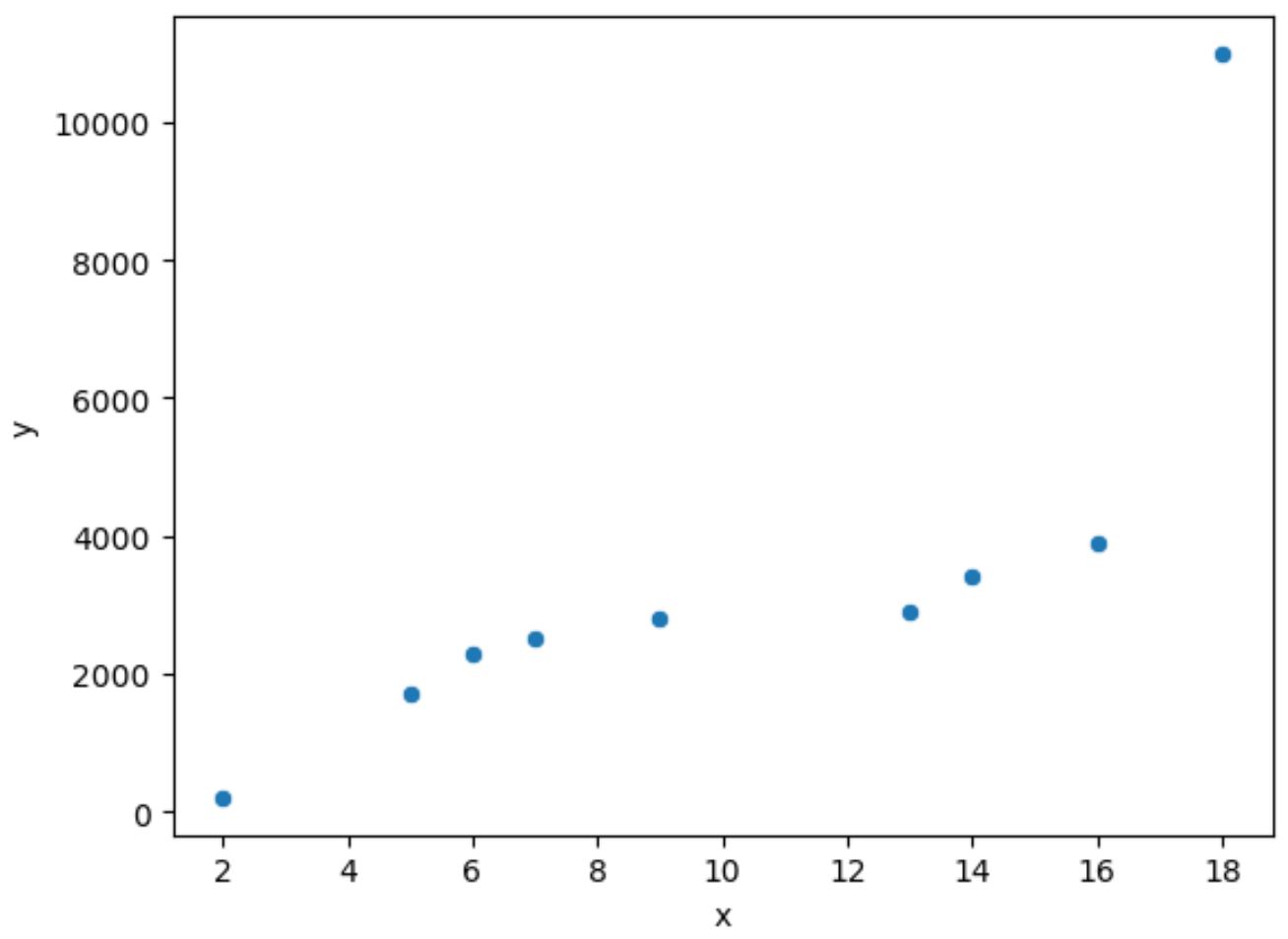

As visualized, the linear scale plot confirms our hypothesis. The data points between 200 and approximately 4,000 are heavily squashed near the bottom of the graph, making fine discrimination between values such as 200 and 1700 visually ambiguous. The shape of the relationship appears highly non-linear, seemingly accelerating dramatically only at the very end of the ‘x’ range. This visual artifact, however, is not necessarily an accurate representation of the underlying relationship but rather a consequence of the inappropriate scaling method for this type of data distribution.

Comparative Analysis: Linear vs. Logarithmic Axes

Having established the limitations of the linear scale, we now proceed to apply targeted logarithmic scaling. Since the ‘x’ variable has a manageable range (2 to 18), we will maintain its linear scale for now, focusing the transformation solely on the highly dispersed ‘y’ axis. This technique, known as a log-linear plot, is often the most effective approach when one variable exhibits multiplicative growth while the other is additive or has a small span.

The transformation is implemented by appending the plt.yscale('log') function call immediately after the scatterplot generation. This single line of code fundamentally alters the interpretation of the vertical axis, ensuring that equal visual distance corresponds to equal multiplicative ratios rather than equal absolute differences. For instance, the distance between 100 and 1,000 will be visually identical to the distance between 1,000 and 10,000.

import matplotlib.pyplot as plt
import seaborn as sns

# Create scatterplot with log scale applied only to the y-axis
sns.scatterplot(data=df, x='x', y='y')
plt.yscale('log')

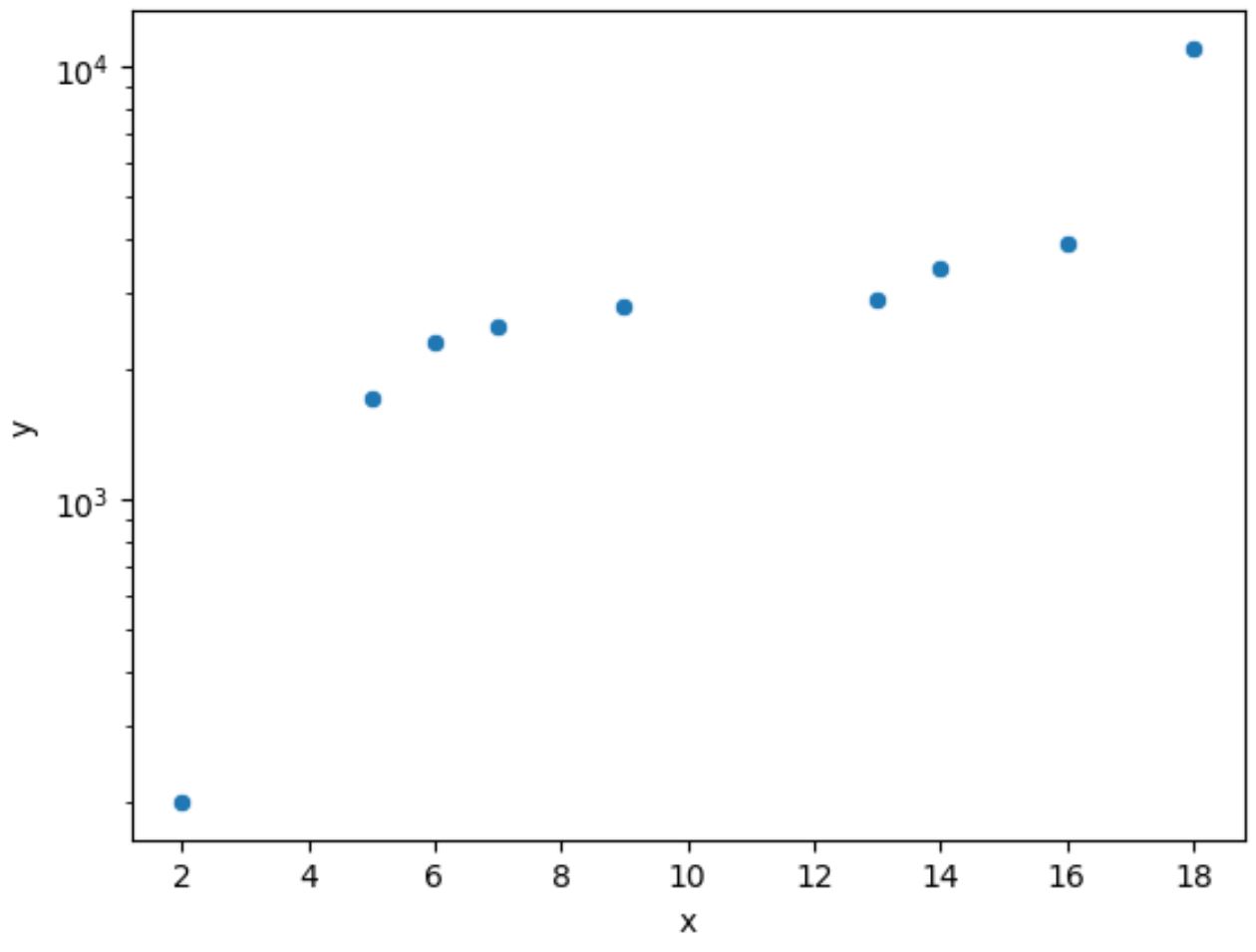

The visual improvement is dramatic. The log-scaled y-axis successfully spreads out the lower ‘y’ values, making the distinction between 200 and 1700 clearly visible. The overall relationship between ‘x’ and ‘y’ now appears far more consistent, suggesting a strong linear or steadily curvilinear trend when viewed on this semi-log scale. This representation is analytically superior, as it allows us to identify potential correlations and assess the rate of change across the entire dataset without the distortion caused by extreme values.

Although the log-linear approach is often sufficient, we must also consider the scenario where both axes require transformation. If the ‘x’ values also spanned a range of, say, 1 to 1,000,000, the only viable option would be to employ a log-log plot. This requires invoking both plt.xscale('log') and plt.yscale('log'). This configuration is essential when analyzing phenomena defined by power laws, where proportional relationships dominate both the independent and dependent variables.

import matplotlib.pyplot as plt
import seaborn as sns

# Create scatterplot with log scale on both axes
sns.scatterplot(data=df, x='x', y='y')
plt.yscale('log')
plt.xscale('log')

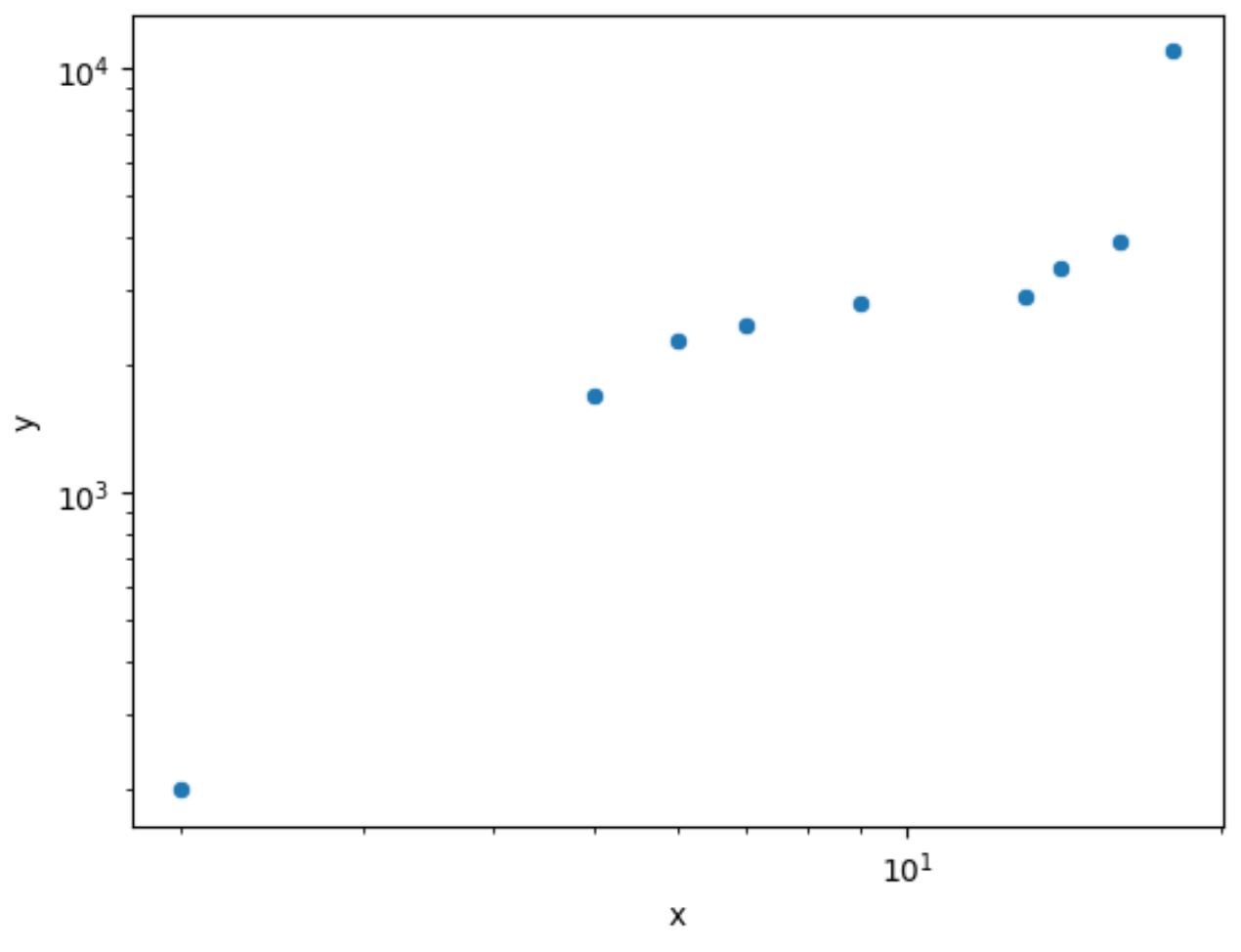

The final plot, featuring the log-log transformation, confirms that for our specific data where ‘x’ is relatively linear, the transformation on ‘x’ slightly stretches the lower values without offering a dramatic analytical benefit. However, this exercise underscores the immense versatility and power of the plt.xscale() and plt.yscale() functions. Choosing the correct scaling—linear, log-linear, or log-log—is a critical analytical decision that dictates the clarity and accuracy of the resulting visualization.

Strategic Use Cases and Critical Considerations

The strategic application of the log scale offers numerous analytical benefits, particularly when addressing complex statistical challenges. One of the primary use cases involves visualizing data that inherently spans several orders of magnitude—think of measuring earthquake Richter scale values, or displaying the distribution of wealth, where differences are multiplicative. By using a log scale, we ensure that both the smallest and largest magnitudes are given appropriate visual weight, preventing the graphical dominance of extreme outliers.

Furthermore, log scales are vital for identifying underlying linear trends in data that exhibits exponential or power-law growth. When exponentially growing data is plotted against a time variable on a log-linear scale, the resulting curve often straightens into a line. This linearization simplifies the process of modeling the data, estimating parameters (such as growth rates), and making future predictions. In data science, log transformations are also a common technique employed to help normalize highly skewed data distributions, thereby fulfilling the distributional assumptions required by many classical statistical tests and machine learning algorithms.

Despite its analytical power, the use of logarithmic scaling demands careful consideration, especially regarding audience comprehension. A key drawback is that logarithmic plots can be counter-intuitive for general audiences who are accustomed to interpreting visual distance as absolute difference. In a log plot, the distance between two points represents a ratio, not an absolute quantity, which requires careful explanation to avoid misinterpretation.

Another critical limitation is the handling of non-positive values. Since the logarithm of zero is undefined and the logarithm of a negative number is a complex number, log scales cannot directly plot zero or negative data points. If a dataset contains these values, analysts must employ pre-processing steps, such as adding a small constant to all values (a technique known as a shifted log transform), or selecting an alternative visualization method. Ultimately, the choice of scale must always be driven by the characteristics of the data, the analytical goal, and the interpretive needs of the intended audience.

Conclusion and Further Resources

The ability to strategically utilize logarithmic scales represents a fundamental skill in modern data analysis and visualization. As demonstrated, the integration of these scales within Seaborn plots is seamlessly achieved through the underlying framework of Matplotlib’s pyplot. By mastering functions like plt.xscale() and plt.yscale(), data scientists gain the capability to effectively manage datasets characterized by vast ranges and inherent skewed distributions.

The transition from a distorted linear visualization to a balanced logarithmic view often unlocks deeper analytical insights, transforming seemingly chaotic data into interpretable trends. Whether you opt for a log-linear or log-log representation, the strategic selection of the axis scale ensures that your data visualization accurately reflects the proportional relationships within the data, leading to more robust conclusions and better-informed decision-making processes. We highly encourage experimentation with these techniques across various datasets to solidify your understanding of their impact.
