Learning to Add Straight Lines to Matplotlib Plots: A Guide to abline Functionality

Introduction to Matplotlib Line Visualization

The ability to quickly overlay straight lines onto a scatterplot is fundamental in statistical analysis and data visualization. In the R environment, this task is efficiently handled by the dedicated abline function. This powerful, intuitive tool allows users to immediately visualize linear relationships, statistical models, or essential reference points simply by defining the Y-intercept and the slope. Its streamlined nature has made it an indispensable utility for analysts accustomed to R’s plotting system, facilitating rapid exploration of underlying data trends.

However, when migrating visualization workflows to Python, specifically utilizing the highly popular Matplotlib library, users quickly discover that a direct, built-in equivalent to R’s abline function does not exist. Matplotlib, designed with a more object-oriented and flexible architecture, requires developers to construct this functionality using lower-level plotting primitives. This difference in design philosophy can initially present a hurdle for those seeking the immediate convenience offered by R. Achieving the same plotting capability—drawing a line that spans the visible plot area based on simple linear parameters—requires a customized approach.

This comprehensive article serves as a crucial guide to bridge this functional gap. We will define and implement a custom Python function definition that replicates the core mechanics of abline within the Matplotlib ecosystem. We will meticulously detail the function’s internal workings, explaining how it interacts with the plot coordinates and leverages mathematical principles to draw accurate lines. By the conclusion of this tutorial, you will possess a robust tool for enhancing your data visualizations in Python, capable of integrating reference lines, thresholds, and complex statistical fits with ease and precision.

Engineering the Custom abline Function in Matplotlib

Since Matplotlib does not natively include an abline command, we must architect a solution that utilizes the library’s existing capabilities, primarily the plt.plot() function. The fundamental mathematical requirement is the standard line equation: $y = mx + b$, where $m$ is the slope and $b$ is the intercept. Our custom function must intelligently determine the current boundaries of the plot’s X-axis, calculate the corresponding Y-values for these boundaries using the provided parameters, and then draw a line segment connecting these calculated points across the entire visualization area.

The implementation relies heavily on interfacing with the current plot object to retrieve its limits. We use the NumPy library for efficient array manipulation and numerical computation, which is standard practice in the Python scientific stack. The resulting function accepts the two necessary parameters—slope and intercept—allowing for highly flexible line plotting. The code block below defines this custom utility, which we will use throughout the subsequent examples:

import matplotlib.pyplot as plt
import numpy as np

def abline(slope, intercept):
    axes = plt.gca()
    x_vals = np.array(axes.get_xlim())
    y_vals = intercept + slope * x_vals
    plt.plot(x_vals, y_vals, '--')

A detailed examination of the function reveals three crucial steps. First, axes = plt.gca() retrieves the current Axes object, which provides the context for our plotting actions. Second, x_vals = np.array(axes.get_xlim()) extracts the minimum and maximum horizontal limits of the plot and converts them into a NumPy array. This array forms the domain over which our line will be drawn, ensuring it spans the entire visible width. Finally, the line is calculated: y_vals = intercept + slope * x_vals, and then rendered using plt.plot(x_vals, y_vals, '--'). The optional '--' parameter ensures the line is displayed as a dashed style, providing clear visual separation from the main data points.

Preparing the Data Environment with Pandas

To effectively showcase the versatility and practical application of our newly defined abline function, we require a well-structured dataset. In the Python data science ecosystem, the Pandas library and its foundational object, the Pandas DataFrame, are the established standards for handling tabular data. Utilizing a DataFrame ensures that our examples reflect real-world data analysis workflows, where data manipulation often precedes visualization.

Our sample data, consisting of two columns labeled ‘x’ and ‘y’, represents a simple bivariate relationship. This structure is perfectly suited for generating a scatterplot, which is the ideal canvas for overlaying a straight line. By initializing the DataFrame with a mix of data points, we create a non-perfectly linear distribution, making the later integration of a regression line highly illustrative and meaningful.

The following code block demonstrates the setup process, importing Pandas and creating the sample DataFrame. We then confirm the data’s integrity by displaying the first few rows, a routine quality check in data preparation. This ensures that the subsequent plotting commands operate on the intended numerical values, setting a stable foundation for our visualization examples.

import pandas as pd

#create DataFrame
df = pd.DataFrame({'x': [1, 1, 2, 3, 4, 4, 5, 6, 7, 7, 8, 9, 10, 11],
                   'y': [13, 14, 17, 12, 23, 24, 25, 25, 24, 28, 32, 33, 35, 40]})

#view first five rows of DataFrame
df.head()

	x	y
0	1	13
1	1	14
2	2	17
3	3	12
4	4	23

Example 1: Plotting a Constant Reference Line

The most straightforward application of the abline function is generating a horizontal line. This type of line is characterized by having a slope of exactly zero. Horizontal lines are exceptionally useful for marking critical thresholds, the mean value of a variable, or a predefined target value against which the data points are compared. They provide an immediate visual baseline for judging data distribution.

To plot a horizontal line, we simply pass 0 as the slope argument to our custom function. The desired constant y-value is supplied as the Y-intercept. In this example, we aim to add a reference line at the value $y=30$ to our visualization. This involves first generating the base scatterplot using our Pandas DataFrame and then invoking the custom function with the specified parameters.

Observe the efficiency of this approach in the code snippet below. After plotting the raw data, the single call to abline(0, 30) seamlessly integrates the reference line into the existing Axes instance. This demonstrates how our custom implementation maintains the simplicity and directness that made R’s abline function so popular for rapid data exploration and annotation.

#create scatterplot
plt.scatter(df.x, df.y)

#add horizontal line at y=30
abline(0, 30)

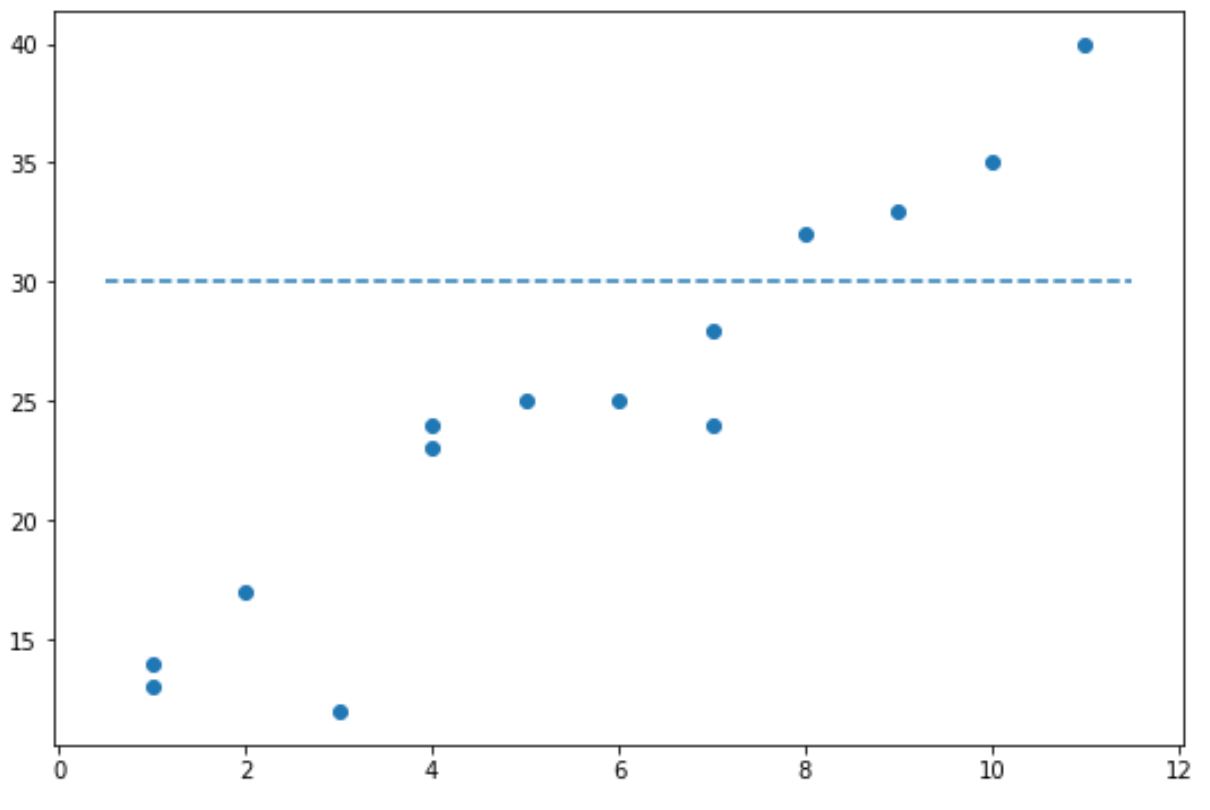

The resulting visualization confirms the successful operation: a distinct, dashed horizontal line is perfectly positioned at $y=30$, spanning the entire domain of the Matplotlib plot. This ability to quickly establish visual benchmarks is fundamental for conveying data context and allowing viewers to assess where data points fall relative to a fixed value.

Example 2: Visualizing Arbitrary Linear Trends

Beyond simple horizontal benchmarks, the true utility of a generalized line-plotting function is its capacity to visualize any linear equation defined by an arbitrary slope and Y-intercept. This capability is essential for comparing observed data against theoretical linear models, illustrating hypothetical growth rates, or demonstrating predefined relationships that are not necessarily derived from the current dataset. The slope dictates the rate of change and direction, while the intercept anchors the line vertically on the y-axis.

In this demonstration, we will plot a straight line characterized by a slope of 3 and a Y-intercept of 15. This arbitrary choice ensures the line crosses the data points at an angle, effectively illustrating how the function handles non-zero slopes. As is our standard procedure, we first initialize the scatterplot to provide the background context for our data points before overlaying the calculated line.

The code below executes this visualization. Notice that only the arguments within the abline call change, reflecting the function’s adaptability. This method allows analysts to rapidly iterate through various potential linear models or hypotheses without needing complex recalculations of coordinate points, upholding the simplicity we sought to replicate from R.

#create scatterplot
plt.scatter(df.x, df.y)

#add straight line with slope=3 and intercept=15
abline(3, 15)

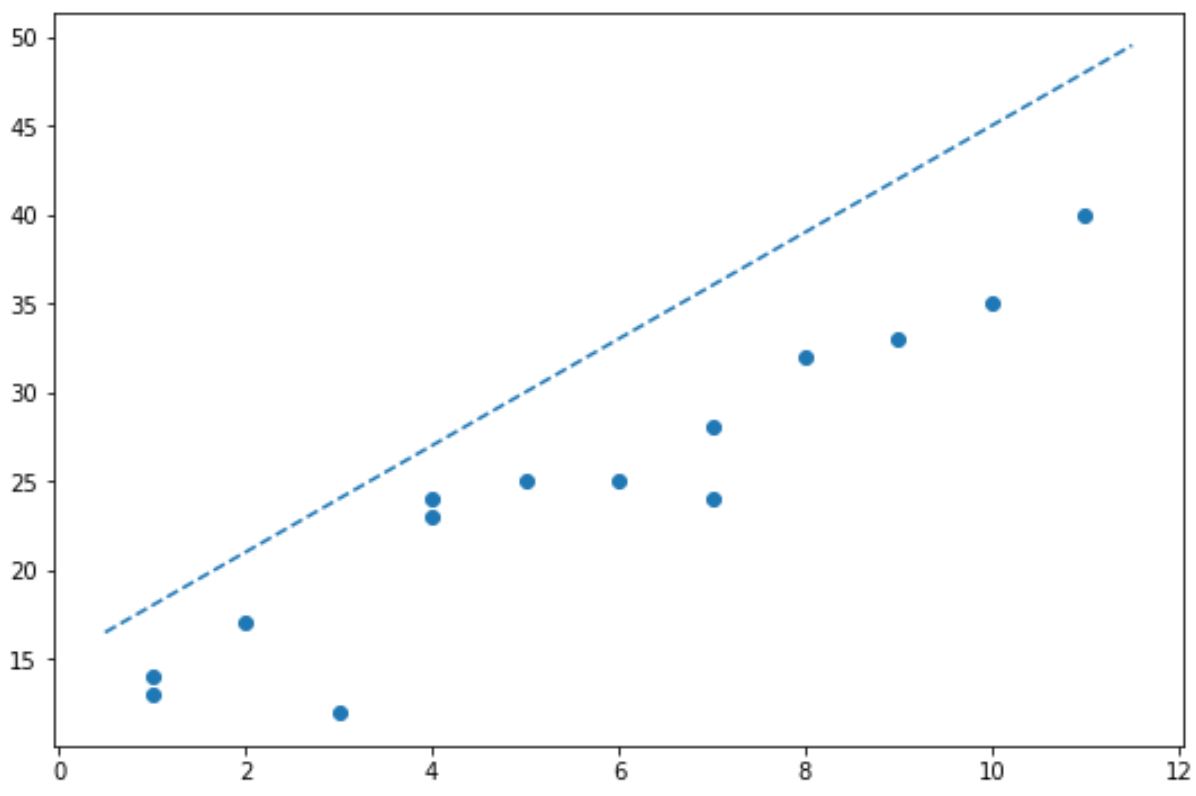

As evidenced by the resulting figure, the custom abline function successfully draws the line $y = 3x + 15$ across the plot boundaries. This capability is vital for exploratory data analysis, enabling immediate visual comparison between data clusters and various linear mathematical constructs. This confirms the function’s reliability in handling general linear equations within Matplotlib.

Example 3: Integrating the Statistical Regression Line

The most advanced and frequently required application of linear overlays is the plotting of a regression line, often referred to as the line of best fit. This line mathematically minimizes the distance to all data points and serves as the visual representation of the linear relationship modeled between the ‘x’ and ‘y’ variables. Unlike the previous examples, where the parameters were arbitrary, here the slope and Y-intercept must first be calculated directly from the dataset.

We utilize the powerful numpy.polyfit() function from the NumPy library for this statistical computation. This function is designed to fit a polynomial of a specified degree to a set of data points. For simple linear regression, we specify a degree of 1. The output of polyfit is an array containing the coefficients: the first element is the calculated slope ($m$), and the second element is the Y-intercept ($b$).

The following code snippet demonstrates the seamless integration of statistical calculation with our custom plotting utility. We first compute the optimal parameters using numpy.polyfit(), store them in variables, and then pass these statistically derived values directly into our abline function. This approach minimizes complexity and ensures the visualization accurately reflects the underlying regression line model.

#calculate slope and intercept of regression line
slope = np.polyfit(df.x, df.y,1)[0]
intercept = np.polyfit(df.x, df.y,1)[1]

#create scatterplot
plt.scatter(df.x, df.y)

#add regression line
abline(slope, intercept)

The resulting plot displays a definitive regression line that accurately models the trend of the data points, running through the center of the scatterplot. This demonstrates the powerful synergy between NumPy for statistical modeling and our custom abline function for visualization. This technique is invaluable for scientific reporting and clear data communication, providing an immediate visual interpretation of the calculated linear correlation.

Conclusion

In summary, while R offers the highly convenient, built-in abline function, we have successfully developed and implemented a robust, custom solution that perfectly replicates this functionality within Python’s Matplotlib environment. By leveraging Matplotlib’s core plotting capabilities and incorporating numerical computation from NumPy, our custom function allows for the effortless addition of straight lines to any visualization, drastically simplifying common analytical tasks.

We have demonstrated the function’s versatility across multiple scenarios, ranging from setting simple, fixed reference points with horizontal lines to visualizing complex, statistically derived regression lines. This integration ensures that analysts transitioning from R, or those seeking a more streamlined visualization approach in Matplotlib, can maintain a high level of productivity and clarity in their data storytelling.

Mastering this custom utility enhances your ability to perform visual data analysis and present complex findings in an intuitive manner. We strongly encourage further experimentation with the custom abline function, perhaps by modifying line colors, thickness, or adding annotations, utilizing the extensive customization options that Matplotlib provides to make your visualizations even more impactful and informative.
