Learning to Add Straight Lines to R Plots with abline()

The abline() function serves as an indispensable utility within the base graphics system of the R programming language. Its core purpose is remarkably straightforward yet profoundly effective: to overlay precise, straight lines onto an already existing plot. This capability is paramount in professional data visualization, enabling analysts and researchers to enhance graphical representations with critical contextual information. These added lines frequently represent statistical benchmarks, regulatory thresholds, or, most commonly, the results of fitted statistical models, such as a linear regression. By providing a clear visual reference, abline() transforms raw data plots into insightful analytical summaries. Whether the goal is to demarcate a predefined control limit, highlight a calculated mean value, or display the predicted trend derived from an analytical model, abline() offers a powerful and highly accessible solution that greatly aids in data interpretation.

The integration of these reference lines allows viewers to quickly assess how individual data points or the overall distribution relates to a specific quantitative standard. For instance, in quality control applications, horizontal lines can define upper and lower tolerance bounds, while in predictive modeling, a diagonal line can illustrate the model’s performance across the variable range. Mastering the arguments and structure of abline() is thus a fundamental skill for anyone performing serious data analysis and graphical reporting using R’s foundational plotting environment.

Understanding the abline() Syntax and Arguments

To leverage the full potential of the abline() function, it is essential to first grasp its syntactic requirements and the four primary arguments that govern the geometric definition of the line. Crucially, abline() is an additive function, meaning it cannot initiate a plot; it must always be called after an initial plotting function, such as plot(), hist(), or boxplot(), has established the graphical coordinates system. This sequential dependency ensures that the line is drawn within the correct existing context.

The fundamental structure of the function call is concise, allowing for flexibility in how the line is defined. Analysts can choose to define the line either through its slope and intercept, or through fixed coordinates on the x or y axes. This adaptability makes it suitable for plotting a wide variety of straight lines encountered in statistical practice. The core structure utilized by the function is as follows, where the arguments specify the line’s position and orientation:

abline(a=NULL, b=NULL, h=NULL, v=NULL, …)

The four core geometric parameters dictate the line type and position:

• a (Intercept) and b (Slope): These numeric values define a diagonal or arbitrary line according to the standard linear equation, y = a + bx (or sometimes y = mx + c, depending on convention). The parameter a specifies the intercept (where the line crosses the y-axis), and b specifies the slope (the change in y for a unit change in x). This method is primarily used for plotting fitted models or specific theoretical relationships.
• h (Horizontal): This argument accepts a numeric value or a vector of values, specifying the y-coordinate(s) at which one or more horizontal lines should be drawn. Using h is the most straightforward method for adding constant reference lines across the entire x-axis range of the plot, such as means or medians.
• v (Vertical): Similar to h, this argument takes numeric value(s) representing the x-coordinate(s) where vertical lines should be drawn. Vertical lines are often employed to denote central tendencies or critical points on distribution plots, such as histograms or density plots.

Beyond these geometric parameters, the ellipsis (…) allows for the inclusion of standard graphical parameters common to many R plotting functions. These parameters are vital for customizing the line’s appearance, ensuring it achieves maximum visual clarity against the underlying data. Key examples include col (defining the color of the line), lwd (controlling the line width or thickness), and lty (specifying the line type, such as solid, dashed, or dotted). Strategic use of these graphical arguments is crucial for differentiating reference lines from the primary data points and from each other, thereby significantly improving the overall readability and informational content of the visualization.

Implementing Horizontal Reference Lines (Using the ‘h’ Argument)

The implementation of horizontal lines via the h argument is perhaps the most common and intuitive application of the abline() function. These lines are fundamentally used to represent constant values that span the entire domain of the x-axis, typically marking a critical threshold, a baseline expectation, or a measure of central tendency derived from the dataset, such as the calculated mean or median. The basic operational pattern is simple: abline(h = Y_VALUE), where Y_VALUE is the specific y-axis coordinate where the line should be placed.

To effectively demonstrate this, we must first initialize a plotting environment using a simple scatterplot. We will define a small, representative data frame containing variables x and y, which exhibit a roughly linear relationship. This plot will serve as the canvas onto which we will add our reference line. The initial code to establish this visualization is foundational to the subsequent steps of adding the line itself.

#define dataset
data <- data.frame(x = c(1, 1, 2, 3, 4, 4, 5, 6, 7, 7, 8, 9, 10, 11, 11),
                   y = c(13, 14, 17, 12, 23, 24, 25, 25, 24, 28, 32, 33, 35, 40, 41))

#plot x and y values in dataset
plot(data$x, data$y, pch = 16)

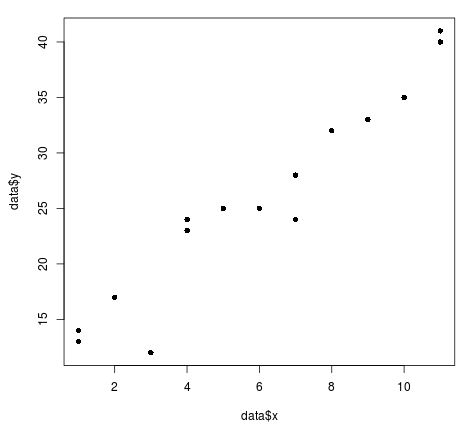

Executing the code above produces the initial visualization, providing a clear graphical representation of the raw input data points. The next step is to introduce a contextual reference. Suppose, in the context of this data, the value y = 20 represents an important benchmark—perhaps a target score or a regulatory minimum. We utilize the h = 20 argument to place the line, and we apply additional graphical parameters, col and lwd, to ensure the line is visually prominent and easily distinguishable from the data points.

abline(h = 20, col = 'coral2', lwd = 2)

The resulting plot vividly illustrates the position of the data relative to the specified threshold. The use of a bright color like ‘coral2’ and a thicker line width (lwd = 2) ensures that the reference line immediately draws the viewer’s attention. This simple yet effective annotation clarifies which observations meet or exceed the critical value, significantly enhancing the plot’s analytical utility and demonstrating the efficiency with which abline() can add meaningful structure to base R graphics.

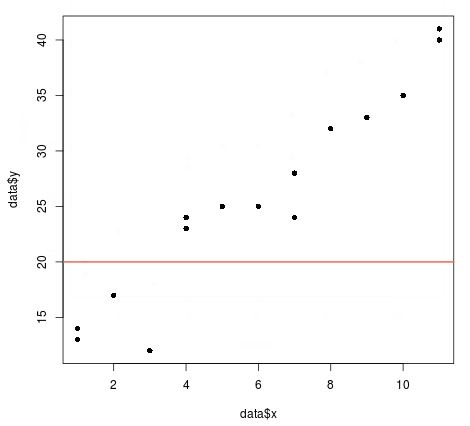

After adding the horizontal line at y=20:

Highlighting Statistical Boundaries with Multiple Horizontal Lines

A more sophisticated and statistically relevant application of the h argument involves visualizing the spread and central tendency of a variable simultaneously. This is commonly achieved by overlaying multiple horizontal lines representing key measures from descriptive statistics, such as the mean and boundaries defined by the standard deviation (SD). By plotting the mean and the mean plus/minus one or two SDs, analysts can immediately visualize which data points fall within the expected range and which constitute potential outliers or unusual observations.

To achieve this effect, abline() must be called multiple times—once for each line desired. It is best practice to use distinct visual attributes (color, line type) to differentiate the central tendency (mean) from the measures of dispersion (SD boundaries). We will calculate the mean and standard deviation of the y variable in our existing dataset using R’s built-in mean() and sd() functions, and then use these calculated values as inputs for the h argument.

The following code sequence first regenerates the scatterplot and then introduces three distinct horizontal markers. The mean is plotted using a solid line (the default), while the standard deviation limits utilize lty = 2, which specifies a dashed line, clearly differentiating the boundaries from the center line. This technique is extremely useful in fields requiring stringent monitoring, such as engineering quality assurance or financial risk assessment.

#create scatterplot for x and y
plot(data$x, data$y, pch = 16)

#create horizontal line at mean value of y (solid, default line type)
abline(h = mean(data$y), lwd = 2)

#create horizontal lines at one standard deviation above and below the mean value
abline(h = mean(data$y) + sd(data$y), col = 'steelblue', lwd = 3, lty = 2)
abline(h = mean(data$y) - sd(data$y), col = 'steelblue', lwd = 3, lty = 2)

The resultant visualization efficiently communicates both the average level of the data and its typical variability. The dashed lines clearly define the range within one standard deviation of the mean, allowing for quick visual inspection of data variability. Points falling outside these blue boundaries signal greater deviation, prompting potential further investigation. This layered visualization demonstrates how simple graphical additions can provide powerful statistical context.

Drawing Vertical Lines (Using the ‘v’ Argument)

In contrast to horizontal lines which mark y-axis values, vertical lines, controlled by the v argument, are essential for marking specific x-axis coordinates. These are particularly valuable when visualizing distributions, where they serve to pinpoint measures of location or cut-off points along the independent variable’s scale. Vertical lines are most frequently employed alongside histograms, density plots, or time-series charts where specific dates or events need to be highlighted. The structure for implementation is analogous to the horizontal method: abline(v = X_VALUE).

To demonstrate this utility, we will generate a large synthetic dataset of 1000 random values drawn from a normal distribution. We use set.seed(0) at the start, which is a critical practice in reproducible research, ensuring that the exact same sequence of random numbers is generated every time the code is run. We then use the hist() function to visualize the frequency distribution of these values.

Once the histogram is plotted, we use abline() to overlay a vertical line precisely at the calculated mean of this simulated data. This line visually anchors the plot’s central tendency, allowing for immediate assessment of the distribution’s symmetry and location. We enhance the line’s visual impact using lwd = 3 for thickness and lty = 2 for a dashed appearance, ensuring it stands out against the backdrop of the histogram bars.

#make this example reproducible
set.seed(0)

#create dataset with 1000 random values normally distributed with mean = 10, sd = 2
data <- rnorm(1000, mean = 10, sd = 2)

#create histogram of data values
hist(data, col = 'steelblue')

#draw a vertical dashed line at the mean value
abline(v = mean(data), lwd = 3, lty = 2)

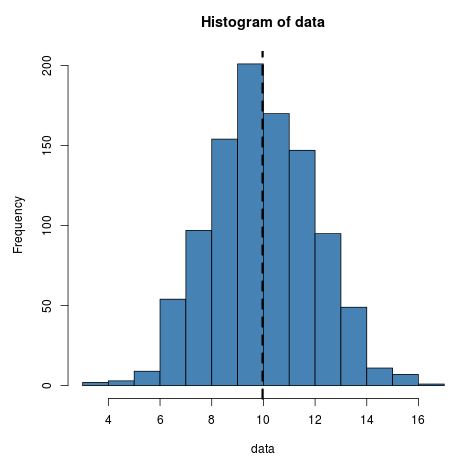

The resulting histogram clearly shows the distribution of the data, and the superimposed vertical line precisely marks the mean value (which, for a normally distributed dataset, also approximates the median and mode). This visual confirmation is invaluable when performing exploratory data analysis, as it confirms the centrality of the data and helps identify any skewness or unusual clusters relative to the expected center of the distribution.

Integrating Fitted Regression Lines (Passing a Model Object)

Perhaps the most powerful and efficiency-boosting application of abline() is its ability to directly interpret and plot the results of a fitted linear model. When the function is provided with an object generated by R’s lm() function (used for calculating linear regression), abline() automatically extracts the necessary coefficients—the intercept and the slope—and plots the corresponding line of best fit onto the existing scatterplot. This capability eliminates the need for manual extraction and input of coefficients, streamlining the visualization workflow significantly.

The methodology is remarkably simple: abline(MODEL_OBJECT). We will reuse our initial dataset, which displays a positive correlation between x and y, and fit a simple linear model predicting y based on x. This model object, stored in the variable reg_model, is then passed directly to abline() immediately after plotting the raw data.

This automated approach guarantees that the line plotted is mathematically precise to the model output, providing immediate visual validation of the regression results. We again use the col argument to color the regression line, ensuring it contrasts clearly with the data points and any other reference lines that might be present on the plot.

#define dataset
data <- data.frame(x = c(1, 1, 2, 3, 4, 4, 5, 6, 7, 7, 8, 9, 10, 11, 11),
                   y = c(13, 14, 17, 12, 23, 24, 25, 25, 24, 28, 32, 33, 35, 40, 41))

#create scatterplot of x and y values
plot(data$x, data$y, pch = 16)

#fit a linear regression model to the data
reg_model <- lm(y ~ x, data = data)

#add the fitted regression line to the scatterplot
abline(reg_model, col="steelblue")

The resulting graphic shows the fitted regression line, representing the best linear relationship between the independent variable x and the dependent variable y. This visual aid is crucial for interpreting the strength and direction of the correlation, confirming the positive trend observed in the raw data, and illustrating how well the model captures the underlying pattern of the observations.

Manual Specification of Regression Lines (Using ‘a’ and ‘b’)

Although passing a model object directly is often the most convenient method for plotting regression lines, there are scenarios where greater explicit control is desired, or when the coefficients (the intercept and slope) are derived externally, perhaps from a theoretical model or a different statistical package. In these cases, abline() allows the user to manually specify the line using the dedicated a (intercept) and b (slope) arguments. This method ensures that any straight line defined by the equation y = a + bx can be accurately superimposed onto the plot.

To illustrate the equivalence of this manual method to the model object approach, we will perform the same linear regression using the lm() function, but instead of passing the entire model, we will explicitly extract the coefficients. The coefficients() function in R is used to retrieve these numerical values, which are then assigned to variables a (for the intercept) and b (for the slope).

The key benefit of this approach is transparency and control. If an analyst needed to plot a counterfactual line or compare the fitted line against a line based on a hypothesis (e.g., a theoretical slope of 3.0), they would use this a and b specification. The following code demonstrates the extraction and explicit application of the coefficients, yielding a result identical to the previous model object example:

#define dataset
data <- data.frame(x = c(1, 1, 2, 3, 4, 4, 5, 6, 7, 7, 8, 9, 10, 11, 11),
                   y = c(13, 14, 17, 12, 23, 24, 25, 25, 24, 28, 32, 33, 35, 40, 41))

#create scatterplot of x and y values
plot(data$x, data$y, pch = 16)

#fit a linear regression model to the data
reg_model <- lm(y ~ x, data = data)

#define intercept and slope values by extracting coefficients
a <- coefficients(reg_model)[1] #intercept
b <- coefficients(reg_model)[2] #slope

#add the fitted regression line to the scatterplot using a and b
abline(a=a, b=b, col="steelblue")

While the visual output remains the same, the underlying process is different: it relies on the analyst’s explicit input of the calculated parameters. Choosing between passing the model object or manually specifying a and b depends entirely on the analytical context and the desired level of manual intervention in the visualization process. Both methods confirm the robust flexibility that abline() offers for integrating statistical findings directly into R’s base graphics.

The abline() function is undoubtedly an essential utility for anyone utilizing R’s base graphics system for serious data analysis. Its inherent simplicity, coupled with its immense flexibility, allows for the creation of far more informative and contextually rich plots than raw data visualizations alone. By mastering its four core arguments—h for constant horizontal lines, v for vertical markers on the x-axis, and a and b for defining arbitrary linear relationships—analysts gain the power to seamlessly overlay statistical benchmarks, theoretical models, and critical thresholds directly onto their data. This ability to integrate analytical findings into graphical summaries is key to producing clear, compelling, and actionable data narratives.
