Understanding Linear Interpolation with the approxfun() Function in R

Introduction to Piecewise Linear Interpolation in R

In the realm of data science and computational modeling, analysts often encounter datasets where observations are discrete, yet the underlying phenomenon is continuous. It is frequently necessary to estimate unknown values that fall precisely between these known, measured data points. This critical process is known formally as linear interpolation. When operating within the powerful statistical environment of R, the ability to derive a continuous function that accurately models a set of discrete observations is foundational for tasks spanning from advanced signal processing to rigorous financial modeling. The central challenge involves translating a series of discrete (x, y) coordinates into a smooth, estimable function that ensures continuity between every adjacent observation.

Linear interpolation offers the simplest and most computationally efficient methodology for estimating these intermediate values. It achieves this by drawing the shortest possible straight-line segment directly between two consecutive known data points. This methodology relies on the assumption of a constant rate of change occurring between these observations, making it highly appropriate for datasets where underlying changes are known to be gradual or locally linear. While the R ecosystem provides numerous sophisticated packages designed for complex curve fitting, the most straightforward and universally accessible tool for this specific, piecewise-linear task is a robust built-in function provided directly by the statistical computing environment.

The most efficient and readily available utility in R for executing this exact operation is the approxfun() function. Since this function is included directly within base R, it eliminates the need for users to install or load any external libraries or dependencies, positioning it as the ideal choice for rapid prototyping, quick analytical tasks, and deployment in production environments where reliance on external packages is minimized. Mastering the mechanics of approxfun()—understanding its inputs, its output, and how to correctly apply its results—is absolutely crucial for anyone who needs to reliably bridge observational gaps within their data sets.

Deconstructing the approxfun() Function and Syntax

A key distinction of the approxfun() function, and one that often confuses beginners, is that its primary purpose is not to return the interpolated values directly. Instead, approxfun() returns a function object. This object, which we typically assign to a variable (such as f or interp_func), then becomes a reusable function itself. This resultant function can be called repeatedly to calculate the interpolated y-value for any given x-value, provided that x falls within the defined range of the original input data. This unique design approach makes the output highly flexible for subsequent analysis, numerical integration, or advanced visualization tasks, as the entire interpolation logic is encapsulated within a single, callable function.

The core syntax required for invoking the approxfun() function is concise, focusing primarily on the necessary coordinate inputs and the desired interpolation methodology. It serves as a user-friendly wrapper for highly optimized C code that executes the underlying mathematical computations necessary for determining the interpolation weights. The structure of the function definition, along with its key arguments, is defined as follows:

approxfun(x, y=NULL, method=”linear”, …)

Each argument passed into the function plays a critical and specific role in defining the behavior and accuracy of the resulting interpolation function. A detailed understanding of the required and optional parameters ensures that users can achieve optimal use of the tool for their specific modeling needs:

• x: This is a required argument that must be supplied as a numeric vector. It represents the x-coordinates, which are typically the independent variable. A strict requirement for accurate and reliable results is that these values must be supplied in strictly increasing order, guaranteeing a monotonic domain.
• y: This required argument is the corresponding numeric vector of y-coordinates, representing the dependent variable. It is absolutely essential that this vector possesses the exact same length as the x vector to ensure the proper one-to-one pairing of coordinate points. If the y argument is mistakenly omitted, the function will attempt to use the x argument as both the x and y coordinates, a highly specialized and rarely used scenario in standard interpolation.
• method: This crucial parameter dictates the specific type of interpolation to be employed. The two fundamental choices available are “linear”, which connects points using straight-line segments and is the default setting, and “constant”, which implements a step function where the y-value of the preceding known point is maintained constantly until the location of the next known point is reached.

Setting Up Data and Initial Exploratory Visualization

To effectively demonstrate the practical application and power of the approxfun() function, we must first establish a small, manageable, and representative dataset. This dataset will consist of five discrete (x, y) coordinate pairs, which we will use to model a simple, non-linear relationship. Defining these input vectors is the mandatory first step that must occur before any interpolation can take place, as these points establish the boundary conditions and anchor points for our subsequent approximation.

We begin by defining the two primary vectors, x and y, representing our independent and dependent variables, respectively. While in a professional production environment these vectors would typically be automatically extracted from a much larger data frame or external file, manual creation for the purpose of this tutorial clearly and concisely illustrates the exact input requirements and data structure necessary for approxfun():

# Create x and y vectors representing discrete observations
x <- c(1, 2, 3, 4, 5)
y <- c(1, 4, 9, 15, 22)

Prior to performing the computational interpolation, it is universally considered best practice in data visualization and analysis to plot the raw data points. This initial exploratory visualization is absolutely vital for several reasons: it allows us to immediately assess the distribution of the points, identify potential outliers that might skew the interpolation, and provides a crucial graphical baseline against which we can compare the resulting interpolated curve. We utilize the standard plot() function, readily available in base R, to generate a simple but effective scatterplot of our input coordinates:

# Create scatterplot of x vs. y to visualize raw data
plot(x, y, col='blue', pch=19))

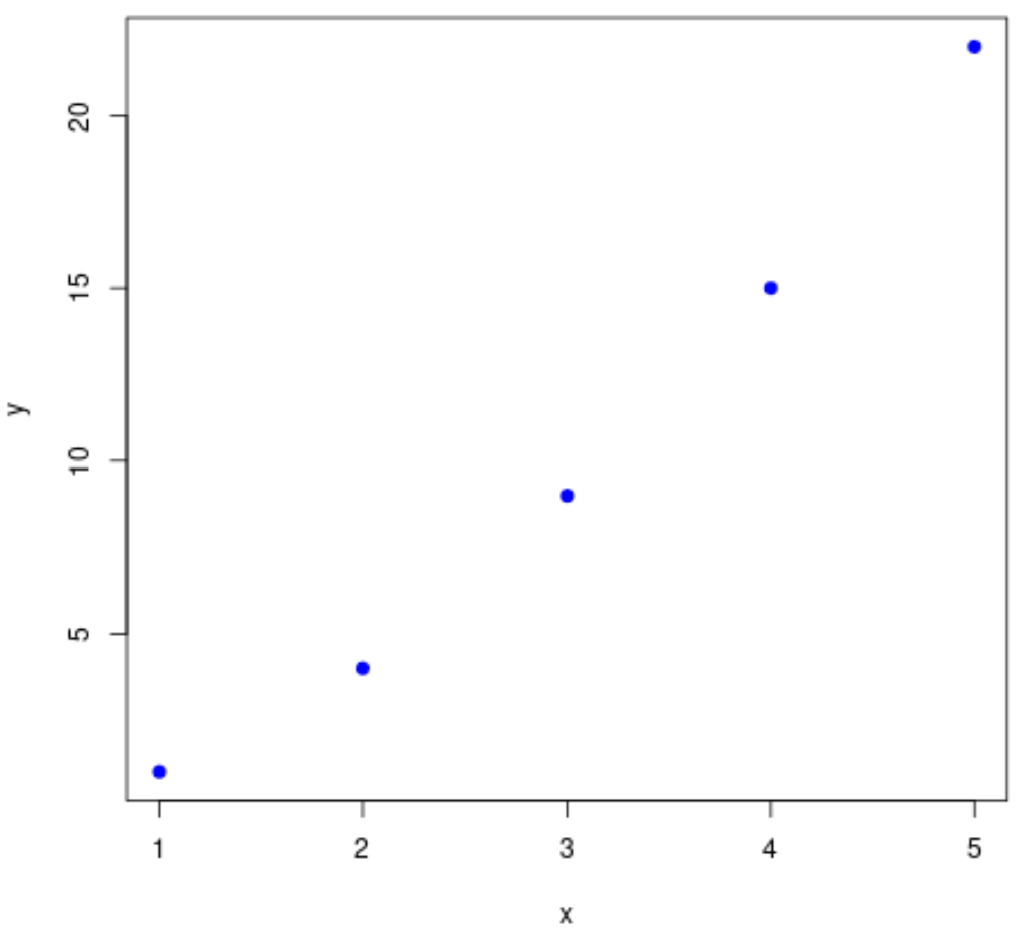

Executing this command immediately generates the initial graphical representation of our five data points, clearly displaying their positions within the Cartesian plane. The resulting scatterplot confirms a relationship that is monotonic—meaning it is always increasing—but one that exhibits a clear curvature rather than following a strict linear path. This visual evidence sets the stage perfectly for the subsequent process of piecewise linear interpolation.

To ensure clarity and reproducibility for future analyses, a quick review of the plotting parameters used in the visualization step is beneficial. We employed the col argument to specify the color of the data points, setting it explicitly to blue. Furthermore, we utilized the pch argument, which is responsible for controlling the specific plotting symbol used for the points. By assigning pch=19, we ensured that the data points appear as solid, fully filled-in circles, which is typically the preferred format for highlighting discrete data points clearly within a visualization.

Implementing and Visualizing the Interpolated Function

Our primary objective now shifts decisively from dealing with a discrete set of points to generating a continuous function that accurately models the path between them using linear interpolation. The approxfun() function is invoked specifically to achieve this transformation by returning the interpolating function, which we store conveniently in the object labeled f. This object f is now a functional, callable entity and can be queried for any x-value falling within the domain defined by our input x vector (i.e., between 1 and 5), reliably returning the linearly interpolated y-value at that specific point.

We initiate the technical process by calling approxfun(x, y), passing our previously defined vectors. Since we consciously omit the optional method argument, approxfun() automatically defaults to “linear” interpolation. This means the resulting function will mathematically connect the input points using precise straight-line segments. This generated function object f thus represents the complete piecewise linear fit across the entirety of the input data.

Once the interpolation function f has been successfully created, we must leverage R’s powerful visualization tools to overlay this resultant continuous curve directly onto our original data points. We utilize the curve() function, which is a specialized utility designed for efficiently plotting mathematical expressions or function objects over a specified range. Subsequently, we use the points() function to re-add the original discrete blue points, providing essential visual context and confirmation that the interpolation passed through the anchors.

# Perform linear interpolation using provided x and y vectors, storing result as 'f'
f <- approxfun(x, y)

# Plot the continuous curve generated by the interpolated function 'f'
curve(f(x), 1, 5, col ='red')

# Add original (x, y) points back to the plot for visual comparison
points(x, y, col='blue', pch=19)

This sequence of commands accomplishes the full visualization: it first defines the interpolated function f, then plots the continuous line generated by that function in red across the domain [1, 5]. It is vital to use the curve() function here, as its internal mechanism automatically samples the function f(x) across a high density of points within the specified range, thereby creating the smooth visual impression of a continuous line segment connecting all the discrete anchor points.

The execution of the plotting script yields a final chart that seamlessly integrates both the raw observational data and the mathematical model derived from it. This resulting visualization serves as the definitive confirmation that the approxfun() operation successfully achieved its goal of piecewise linear interpolation.

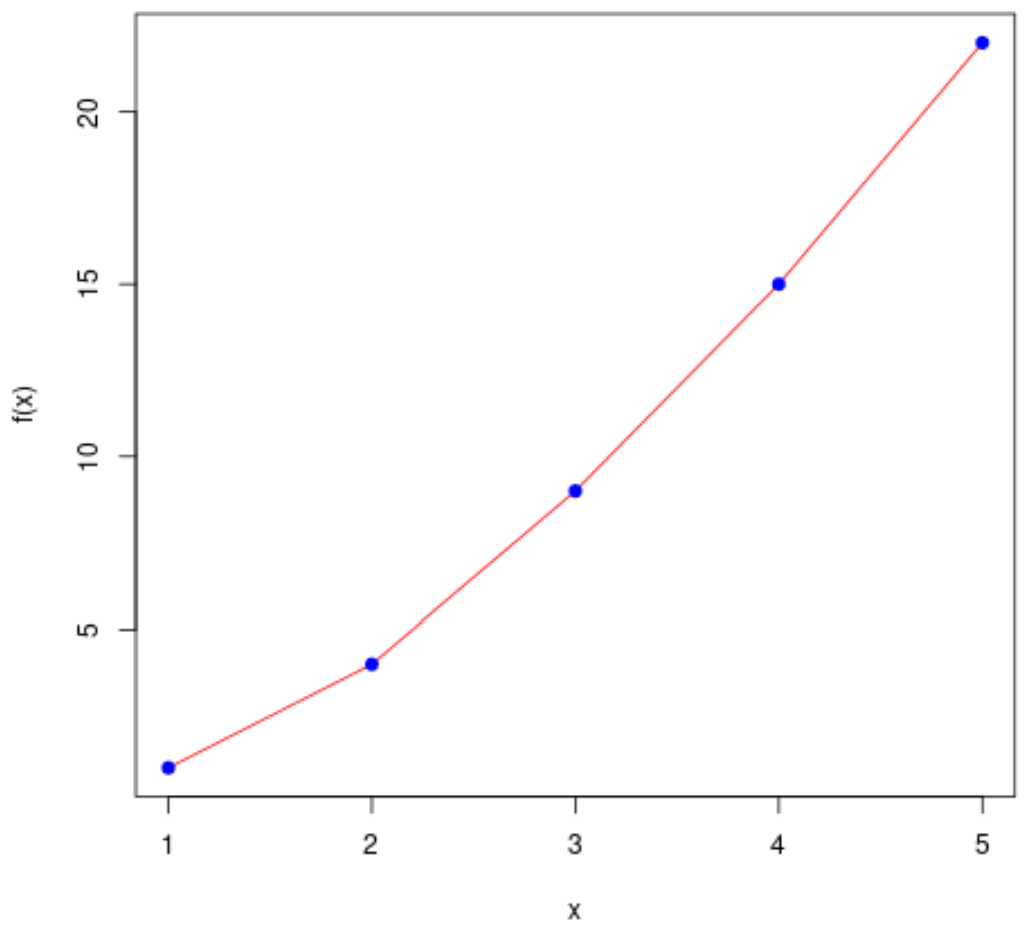

The following detailed chart is generated after running the complete R code block:

In this resulting plot, the distinction between the original data and the interpolated model is immediately clear: the blue points represent the original (x, y) coordinates we defined, while the red line represents the continuous interpolated function derived using approxfun(). Because linear interpolation connects the nearest neighbors directly, it is visually confirmed that the red curve passes precisely through every blue point, demonstrating a perfect, localized fit across the defined domain. The interpolated line segments create the continuous path necessary to estimate values everywhere between the anchors.

It is important to reiterate the fundamental nature of the output from approxfun(). We did not simply generate a new, dense dataset of calculated points; rather, we created a lightweight, reusable function object, f. We then relied completely on R’s robust graphical tools—specifically the plot() function (used indirectly by curve()) and points()—to visualize the behavior of this underlying interpolation function. This methodology is incredibly robust and highly scalable, performing efficiently regardless of whether the input vectors contain five points or hundreds of thousands. The sole technical requirement for successful execution remains that both the x and y numeric vector inputs must contain an identical number of elements for the coordinates to be paired correctly.

Advanced Considerations and Alternatives to approxfun()

While the default linear method of approxfun() is highly effective for basic visualization and simple data gap filling, proficient users should be aware of additional practical considerations and more sophisticated alternatives available within the rich R ecosystem. Firstly, because approxfun() is implemented in base R, its performance is highly optimized at the C-code level. This ensures extremely rapid calculations and function generation even when dealing with extensive data sets, which offers a significant performance benefit over many third-party packages.

One crucial setting that demands careful consideration is the method argument. While we utilized “linear” for our example, the alternative option, “constant” (also known as step-function interpolation), is frequently valuable when the underlying data is better represented by categorical changes or discrete steps rather than smooth, continuous transitions. For instance, financial data illustrating stock price changes that occur only at defined, discrete time intervals might be more accurately and logically represented by the constant method. Furthermore, if the modeling goal is not simply to connect the known points but to create a smoother, more mathematically complex curve that eliminates the sharp corners inherent in piecewise linear models, R offers powerful alternative functions such as splinefun(). This function uses cubic splines for interpolation, resulting in a curve that exhibits continuous first and second derivatives, making it appear much smoother. The choice between approxfun() and splinefun() should depend entirely on the mathematical assumptions that are most appropriate for the underlying physical or financial phenomenon being modeled.

A final, critical technical note concerns the process of extrapolation, which refers to calculating values outside the original range of the input x-data. By default, approxfun() will conservatively return NA (Not Available) for any x-values queried outside the domain defined by the input data (e.g., values less than 1 or greater than 5 in our demonstration). However, users retain control over this default behavior by utilizing arguments such as rule=2, which forces the function to return the value of the nearest endpoint for any extrapolated queries. Although this can be useful for preventing missing values in automated scripts, extreme caution is always warranted when extrapolating. Linear extrapolation often leads to unreliable and physically meaningless estimates when the queried points are far removed from the boundaries of the observed data.

Summary of approxfun() Utility

The approxfun() function is firmly established as an essential and reliable tool in the standard R user’s toolkit. It provides a simple, highly efficient, and integrated solution for generating functions that perform linear interpolation across discrete data points. Its core capability—the ability to return a callable function object rather than just a static list of interpolated points—offers significant analytical flexibility for subsequent computational tasks and is ideal for the creation of high-quality, continuous graphical representations.

We have successfully demonstrated the complete workflow required: defining the input vectors, utilizing the plot() function for initial visual assessment, and finally, combining the powerful output of approxfun() with the specialized curve() function to produce a clear, interpolated graph overlaid precisely on the original data. This robust method is highly scalable and maintains efficiency, irrespective of the size of the input data, provided only that the two input vectors—x and y—maintain the same length.

To further deepen your expertise in data manipulation and visualization within R, consider exploring advanced tutorials on related techniques such as non-linear regression, detailed spline fitting using splinefun() for smoother curves, or advanced parameter control within the plot() function for customized visualization. These resources will help expand your skills beyond simple interpolation to encompass more comprehensive and complex data modeling techniques.
