Learning Matplotlib: How to Use Bold Font for Effective Data Visualization

Effective data visualization is crucial for transforming raw datasets into compelling, easily digestible narratives. Within the ecosystem of Matplotlib, the leading Python library dedicated to creating static, animated, and interactive plots, the smallest details often yield the greatest impact. Customizing text elements—specifically applying bold font—is a fundamental technique used to instantly enhance readability, draw focus to critical information, and ensure your visualizations communicate their intended message with maximum clarity. This comprehensive guide will walk you through the precise methods for implementing bold font across various components of your Matplotlib plots.

The core mechanism enabling text emphasis in Matplotlib is the versatile weight argument. This parameter is integral to controlling the visual presentation of textual data, allowing developers to precisely specify the font weight for titles, labels, and annotations. By mastering the application of this simple argument, you gain granular control over the visual hierarchy of your plots.

Mastering Font Weight with the weight Argument in Matplotlib

The weight argument is a standard, highly flexible parameter available across numerous Matplotlib functions designed for rendering text, including key APIs like plt.title(), plt.xlabel(), and plt.text(). Its purpose is straightforward: to define the perceived thickness or boldness of the font used for the corresponding text element. Developers have several options when specifying the value of weight.

While weight fully supports numerical values, typically ranging from 100 (thin) up to 900 (ultra-bold), it is most commonly and practically utilized with descriptive string keywords. The two most frequent string settings are 'normal', which reverts the text to its default thickness, and 'bold', which applies a strong emphasis. Using these keywords ensures simplicity, clarity, and portability across different font families and rendering environments.

By adjusting the font weight strategically, visualization experts can effectively differentiate primary information (e.g., the plot title) from secondary information (e.g., axis labels or standard annotations). This simple customization is essential for improving the communicative power of your Matplotlib plots, ensuring that key messages immediately capture the viewer’s attention and are not overlooked. Understanding the scope and application of this argument is the first step toward advanced text customization in data visualization.

Core Functions for Applying Bold Font Formatting

Implementing bold font within your Matplotlib visualizations primarily revolves around utilizing the weight='bold' setting within two specific, highly utilized functions. These functions cover the vast majority of annotation and labeling needs within a standard plot environment. Understanding their distinct roles ensures you apply text emphasis correctly according to the context of the data element.

The application of bold formatting is typically categorized based on the element being customized. Here are the two primary scenarios where you’ll most frequently apply this powerful text customization:

• Method 1: Emphasizing Plot Titles using plt.title()
  The title serves as the immediate summary of the plot’s content and should therefore possess the highest visual prominence. Making the title bold significantly enhances its readability and ensures the viewer grasps the context instantly. This is achieved by passing the weight='bold' parameter directly to the plt.title() function.
• Method 2: Highlighting Annotations using plt.text()
  Annotations are used to provide specific context or draw attention to outliers and crucial data points within the plotting area. Applying bold font to these annotations ensures they immediately stand out from background elements and standard text labels, guiding the viewer’s focus precisely where it needs to be. This is implemented by using the weight='bold' parameter within the plt.text() function.

In the following sections, we will explore practical, side-by-side examples using Python code to clearly illustrate how these methods are applied and the resulting visual impact they have on data communication.

Example 1: Emphasizing Plot Titles with Bold Font

Plot titles are the cornerstone of contextualizing any data visualization. By default, Matplotlib renders titles using a standard font weight, which may lack the necessary visual punch in a crowded presentation. Applying bold formatting can instantly elevate the title’s prominence, making the central message of your plot unmistakable. This first example demonstrates the creation of a scatterplot, first with a standard title, followed by the necessary modification to apply a bold title for clear comparison.

We begin by setting a baseline: generating a simple scatterplot featuring a title rendered with the default font weight. This initial result allows us to fully appreciate the dramatic visual impact provided by the weight argument in the subsequent step.

import matplotlib.pyplot as plt

#create data
x = [3, 6, 8, 12, 14]
y = [4, 9, 14, 12, 9]

#create scatterplot
plt.scatter(x, y)

#add title
plt.title('My Title', fontsize=22)

In this initial code block, we import the pyplot module from Matplotlib and define simple coordinates for demonstration. The plt.title() function is used to add the title and specify its size using fontsize, but crucially, we have not yet modified the font weight.

As clearly demonstrated in the image above, the title “My Title” is present but relies on the standard font thickness, making it less assertive. To transform this text into a compelling header that instantly catches the viewer’s eye, we must introduce the weight='bold' parameter into our plt.title() call.

Now, observe the modified code snippet below, which incorporates the essential weight argument. This minor adjustment is all that is required to enable a bold font for the plot title, drastically shifting the visual hierarchy and emphasis within the visualization.

import matplotlib.pyplot as plt

#create data
x = [3, 6, 8, 12, 14]
y = [4, 9, 14, 12, 9]

#create scatterplot
plt.scatter(x, y)

#add title
plt.title('My Title', fontsize=22, weight='bold')

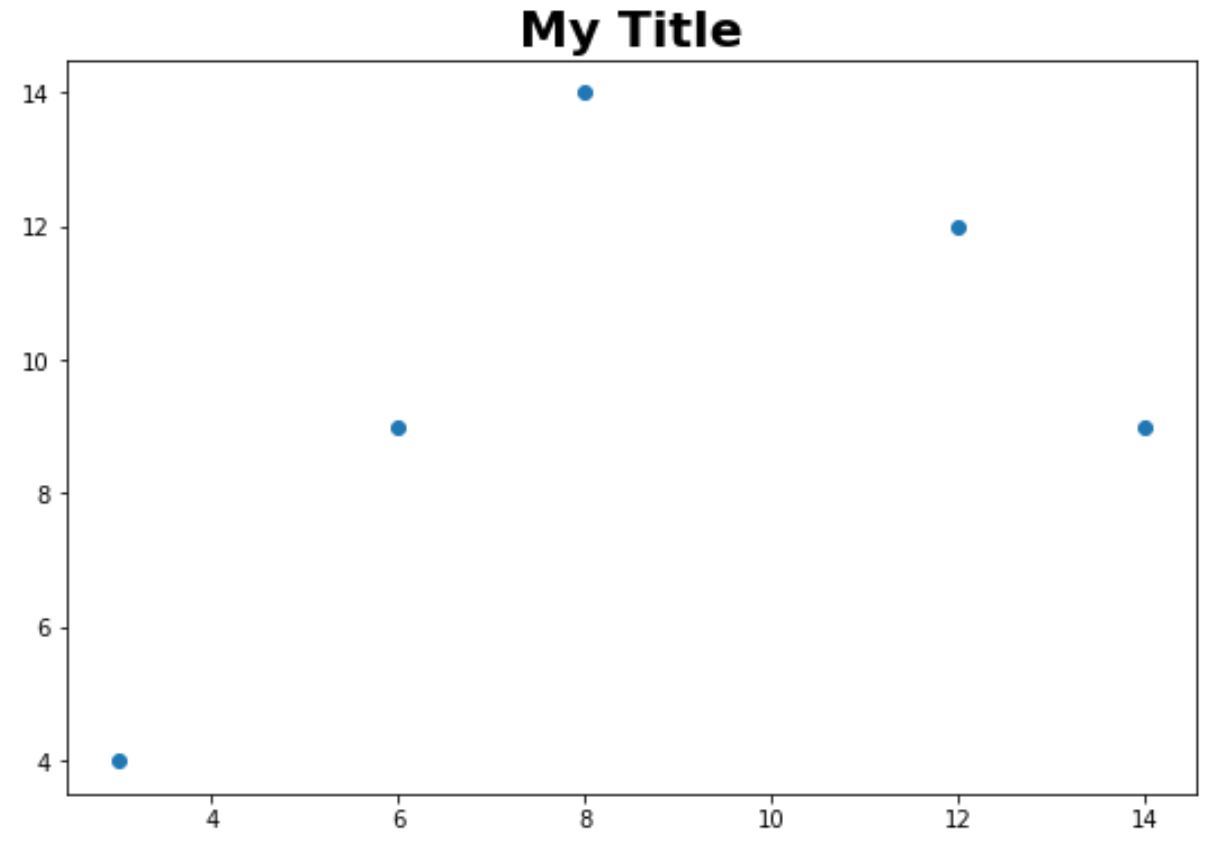

The addition of weight='bold' to the plt.title() function instantly grants the title significant visual authority. This technique is indispensable for improving the communicative effectiveness of your visualizations, ensuring the audience quickly understands the context and key takeaway of the plotted data.

By comparing this plot with the previous baseline, the heightened emphasis of the bold title is undeniable. It stands out prominently, facilitating quicker comprehension of the subject matter. This simple demonstration underscores the power of precise text formatting controls available within Matplotlib.

Example 2: Using Bold Font for Enhanced Data Annotations

While titles provide global context, annotations are vital for offering localized context or highlighting specific outliers within the data. Ensuring these crucial details do not fade into the background requires making them bold, thereby commanding immediate attention from the viewer. This example focuses on utilizing the weight argument specifically with plt.text() to create both standard and bold annotations on a single scatterplot, providing a direct visual comparison.

The following code generates a scatterplot and intentionally includes two distinct text annotations. One annotation maintains a normal font weight, while the other applies the weight='bold' argument. This side-by-side demonstration within the visualization clearly showcases the visual power of font weight differentiation.

import matplotlib.pyplot as plt

#create data
x = [3, 6, 8, 12, 14]
y = [4, 9, 14, 12, 9]

#create scatterplot
plt.scatter(x, y)

#add regular text
plt.text(6, 10, 'Normal Font',  fontsize=16)

#add bold text
plt.text(10, 10, 'Bold Font', fontsize=16, weight='bold')

In this script, after initializing the scatterplot, we invoke plt.text() twice. The first instance positions the text “Normal Font” at (6, 10) using the default font weight. The second instance positions “Bold Font” at (10, 10) and critically includes the weight='bold' argument, instantly setting it apart from the first annotation and the rest of the plot elements.

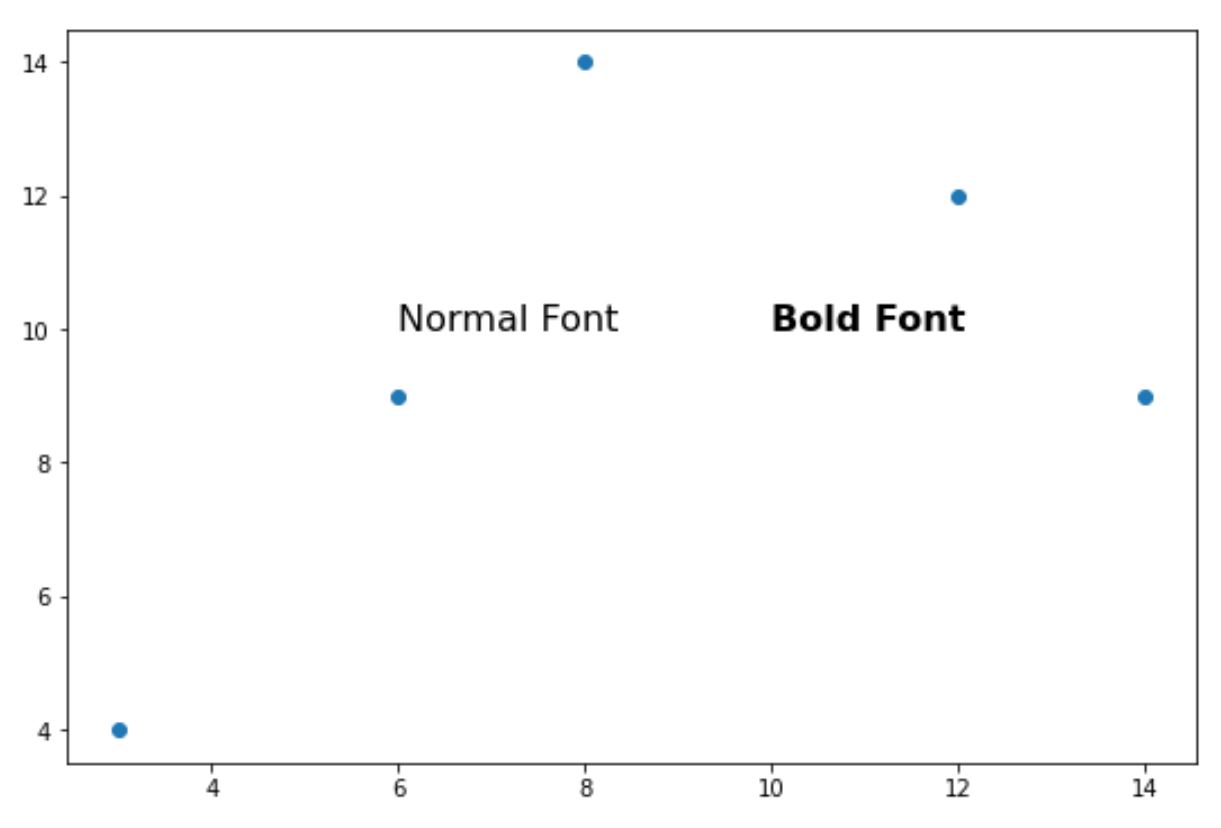

The resulting visualization emphatically illustrates the power of bolding annotations. The “Bold Font” label is far more prominent and visually dominant than the “Normal Font” label. This technique is exceptionally valuable for drawing audience focus to specific points of interest, such as outliers, significant shifts, or key findings that demand immediate interpretation.

Strategic Implementation and Avoiding Overuse

The strategic application of bold font in Matplotlib plots transcends simple aesthetics; it is a powerful design tool that directly contributes to the overall readability and interpretability of your data visualization. By making crucial elements such as titles, axis labels, and key annotations visually distinct, you create a streamlined flow of information for your audience, ensuring that the most important facts are quickly identified and absorbed.

When determining where to apply bold formatting, it is essential to consider the intended hierarchy of information within your plot. Typically, the plot title occupies the highest level of importance, followed by axis labels, legends, and finally, specific data annotations. Applying bold font judiciously to these elements establishes a clear visual path for the viewer, subtly guiding their understanding without overwhelming their senses.

A key principle to remember is restraint: the impact of bold font is inherently tied to its scarcity. Excessive use of bold formatting diminishes its power, effectively making everything appear equally important and leading quickly to visual clutter and reduced clarity. To maintain maximum impact, reserve bold font solely for elements that require absolute, unambiguous emphasis. Effective data communicators use text weight sparingly and purposefully.

Conclusion and Further Exploration

This tutorial has provided a focused demonstration of how to leverage the simple yet highly effective weight='bold' argument within Matplotlib. We have successfully applied bold font to enhance both plot titles using plt.title() and specific annotated text using plt.text(). These fundamental text customization techniques are vital for establishing a clear visual hierarchy and significantly improving the overall readability of your data visualizations. Mastering these options grants you greater command over the narrative and storytelling capabilities inherent in your plots.

As you continue to refine your plotting skills, remember that advanced text formatting is just one component of creating truly compelling visualizations. We strongly encourage further experimentation with other font properties, including color, font family, and rotation, to fully customize and refine the appearance of your plots.

For deeper dives into advanced techniques and comprehensive documentation regarding text control in Matplotlib, consider exploring these essential resources:

• The official Matplotlib documentation for a comprehensive guide on all available text properties and parameters.
• Tutorials focusing on customizing axis labels and ticks to maximize plot clarity and precision.
• Guides detailing the inclusion of legends and colorbars to provide robust context for multi-variable data representation.
• Articles discussing optimal strategies for selecting and applying appropriate colormaps based on data type and presentation goals.
