Understanding the DEVSQ Function: Calculating Sum of Squares in Excel

Introduction to the DEVSQ Function in Excel

The DEVSQ function, a dedicated component of the statistical library within Excel, is engineered to simplify a core concept in data analysis: calculating the sum of squares of deviations (SSD). This measurement is fundamental for determining the internal variability of a sample, providing immediate insight into how individual data points are dispersed around the central tendency. By automating this crucial calculation, DEVSQ saves significant time and reduces the margin for error compared to manual computation.

Mastery of the sum of squares of deviations is indispensable, as it serves as the foundational element for calculating more advanced statistical metrics such as variance and standard deviation. Historically, finding this value required several manual steps, including calculating the sample mean, determining deviations, squaring them, and then summing the results. The DEVSQ function consolidates this entire complex process into a single, efficient command, making sophisticated statistical analysis accessible to all Excel users.

Understanding the DEVSQ Function Syntax

To harness the full power of the DEVSQ function, it is essential to be familiar with its required syntax and argument structure. The function is highly flexible, designed to accept various types of numerical inputs, including individual numerical entries, specific cell references, or contiguous ranges of cells containing your data points.

The fundamental syntax structure for invoking the DEVSQ function is straightforward, requiring the function name followed by the numerical arguments enclosed in parentheses:

=DEVSQ(value1, value2, value3, ...)

The arguments—value1, value2, value3, …—represent the complete set of numerical observations for which you wish to compute the sum of squares of deviations. You are permitted to input up to 255 separate numerical values or reference a single, consolidated range of cells that holds your entire dataset. It is worth noting that Excel intelligently handles data ranges by automatically ignoring any cells within the specified range that contain text, logical values (TRUE/FALSE), or empty cells, thereby ensuring only valid numerical data contributes to the final statistical calculation.

The Statistical Foundation: Sum of Squares of Deviations

To gain a deep appreciation for the efficiency of the DEVSQ function, it is crucial to understand the fundamental statistical formula it executes behind the scenes. The sum of squares of deviations (SSD) quantifies the total variation present within a dataset by calculating the sum of the squared differences between each observation and the sample mean. This metric is foundational not only in descriptive statistics, which summarize data characteristics, but also in inferential statistics, which draw conclusions about populations.

The underlying mathematical formula that the DEVSQ function efficiently computes is universally expressed as:

Sum of squares of deviations = Σ(x_i – x)²

Let us clarify the roles of the specific components within this powerful formula:

• x_i: This symbol denotes the i^th data value, representing each individual observation within the collected sample.
• x: This symbol represents the sample mean. The mean is the arithmetic average of all data points and acts as the central reference point from which all deviations are measured.

The process involves three critical steps: first, calculating the deviation of each point from the sample mean; second, squaring that deviation; and finally, summing all the squared differences. Squaring the deviations is essential because it serves two key statistical purposes: it ensures that positive and negative deviations do not cancel each other out (which would lead to a sum of zero), and it mathematically amplifies the effect of larger deviations (outliers), giving them greater weight in the calculation of total variability.

Practical Application: Using DEVSQ in Excel

Transitioning from theory to application, we will now explore a practical, step-by-step example illustrating exactly how to implement the DEVSQ function within an Excel environment. This hands-on demonstration is designed to solidify your understanding and show the sheer simplicity of calculating the sum of squares of deviations for any given numerical dataset.

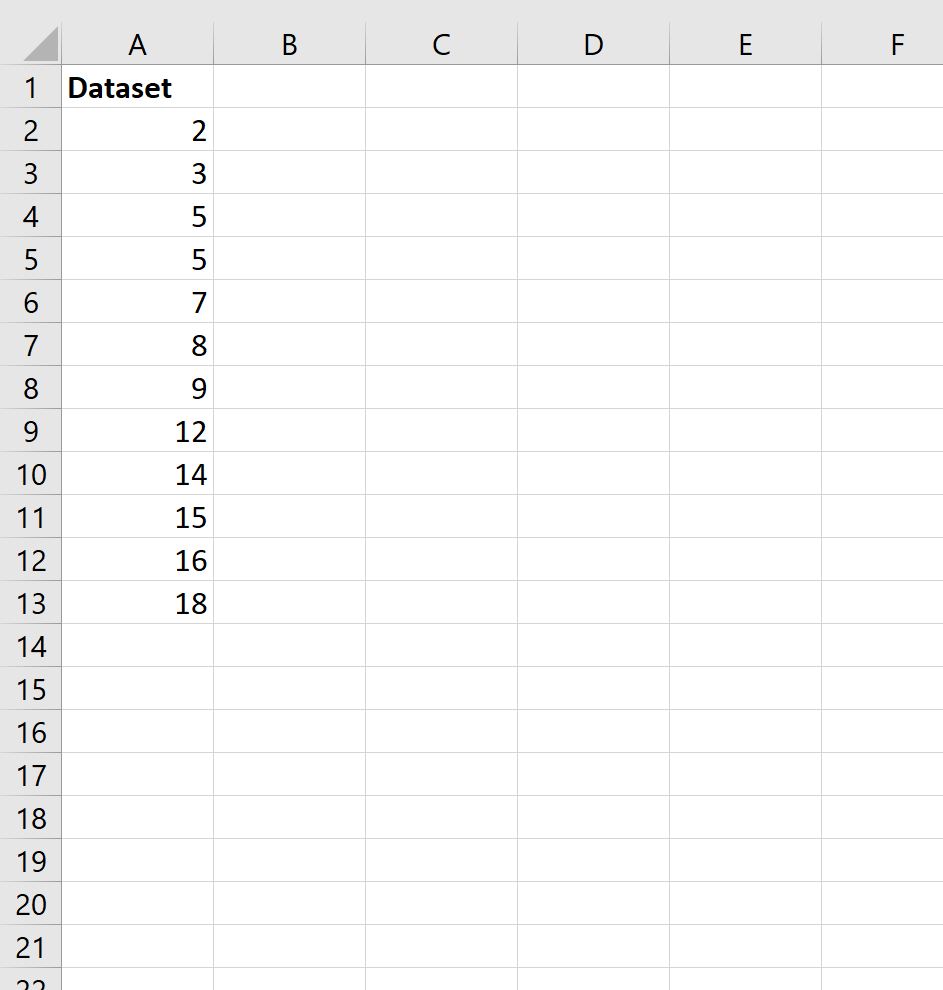

Imagine you have collected the following numerical dataset, which has been meticulously organized and entered into a column within your Excel spreadsheet. Our immediate analytical objective is to determine the measure of total squared variability for these specific values.

To swiftly calculate the required sum of squares of deviations, we only need to input the DEVSQ function and specify the range where our data resides. Assuming that your numerical data points occupy the cells spanning from A2 through A13, the complete and correct formula to be entered into an empty cell would be written as follows:

=DEVSQ(A2:A13)

The visual evidence below confirms how this concise formula is applied directly within a designated cell of the Excel worksheet. Once the formula is typed and executed (by pressing Enter), Excel instantly processes the data.

Following the execution of the formula, Excel returns the calculated sum of squares of deviations for the entirety of the specified dataset. In this specific scenario, the resulting value is computed as 319. This single numerical output effectively summarizes the aggregate squared distance of all data points from their calculated average, providing a robust measure of the dataset’s overall dispersion.

Verifying the DEVSQ Result Through Manual Calculation

While the DEVSQ function in Excel provides unparalleled efficiency, a true expert benefits from understanding and verifying the underlying arithmetic. Performing the calculation manually not only confirms the accuracy of the automated result but also significantly deepens your conceptual grasp of the statistical measure itself.

To confirm the value of 319 obtained from the DEVSQ function, we will meticulously calculate the sum of squares of deviations step-by-step using the original data points. The essential first step is the computation of the sample mean (x). Our dataset comprises 12 data points (2, 3, 5, 5, 7, 8, 9, 12, 14, 15, 16, 18), which sum up to a total of 114. Therefore, the sample mean is calculated as 114 divided by 12, yielding 9.5.

With the sample mean of 9.5 established, we proceed by applying each individual value from the dataset to the SSD formula: Σ(x_i – x)².

• Sum of squares of deviations = Σ(x_i – x)²
• Sum of squares of deviations = (2-9.5)² + (3-9.5)² + (5-9.5)² + (5-9.5)² + (7-9.5)² + (8-9.5)² + (9-9.5)² + (12-9.5)² + (14-9.5)² + (15-9.5)² + (16-9.5)² + (18-9.5)²
• Sum of squares of deviations = 56.25 + 42.25 + 20.25 + 20.25 + 6.25 + 2.25 + 0.25 + 6.25 + 20.25 + 30.25 + 42.25 + 72.25
• Sum of squares of deviations = 319

The meticulous manual summation confirms that the total sum of squares of deviations is precisely 319. This perfect correspondence between the manual calculation and the automated output derived from DEVSQ validates the function’s accuracy and reinforces the conceptual link between the formula and its practical execution in statistical software.

Context and Advanced Considerations for DEVSQ

The DEVSQ function is not merely an isolated calculation tool; it is a foundational step in deriving many other sophisticated statistical measures. Most notably, the resulting sum of squares of deviations forms the necessary numerator in the formula used for calculating sample variance. To transition from SSD to sample variance, you simply divide the SSD by the degrees of freedom, which is calculated as (n-1), where ‘n’ represents the total number of data points in the sample.

Furthermore, the standard deviation, arguably the most common measure of data dispersion, is derived directly from the variance by taking its square root. Understanding how to efficiently obtain the SSD using DEVSQ in Excel is therefore a prerequisite for mastering these higher-level concepts. By utilizing DEVSQ, analysts are empowered to proceed quickly to complex statistical modeling and draw more meaningful, robust conclusions about the characteristics and spread of their data.

Further Learning and Related Functions

The statistical capacity of Excel extends far beyond the DEVSQ function, offering a comprehensive suite of tools for in-depth data analysis and statistical operation. Expanding your knowledge to include related functions can dramatically enhance your efficiency and the scope of your analytical projects.

We highly recommend exploring other key statistical functions readily available in Excel that relate directly to variability and central tendency. These include VAR.S, which calculates the sample variance directly; STDEV.S, which computes the sample standard deviation; and the indispensable AVERAGE function, used to calculate the mean. These functions are often used in tandem with the concepts of deviation and sum of squares, providing a holistic framework for understanding the characteristics of any dataset.

We encourage users to delve deeper into Excel‘s extensive statistical capabilities to fully unlock their potential for sophisticated data modeling and decision-making. The following resources offer further guidance on performing other common statistical operations within Excel:
