Learning VBA: A Comprehensive Guide to the FormulaR1C1 Property

Introduction to the FormulaR1C1 Property in VBA

The FormulaR1C1 property is an exceptionally powerful feature within VBA (Visual Basic for Applications) designed specifically for inserting dynamic formulas into Excel worksheets. Unlike the familiar A1 reference style (e.g., A1, B5), the R1C1 system facilitates enhanced control by referencing cells based purely on their row and column index numbers. This methodology is indispensable when writing complex macros that require efficient handling of both fixed (absolute) and movable (relative) cell targets across large ranges. The adoption of R1C1 notation dramatically simplifies the logic required for automated formula generation, especially when dealing with iterative processes or loops within Excel automation projects.

When working with formulas in VBA, developers generally choose between the standard .Formula property, which accepts A1-style notation, or the specialized FormulaR1C1 property. The key technical advantage of utilizing FormulaR1C1 lies in its inherent capacity to clearly delineate fixed versus movable cell targets directly within the formula string syntax itself. This clarity makes complex coding operations significantly more reliable and easier to maintain compared to attempting to construct dynamic A1 references through string concatenation within a loop.

To leverage the full potential of this property, one must master the two primary applications: defining an absolute reference, which locks the formula onto a specific cell coordinate, and establishing a relative reference, which allows the reference point to shift dynamically based on the formula’s placement. The distinction between these two modes is achieved simply by manipulating the notation used to define the row and column indices.

Mastering the R1C1 Notation: Absolute vs. Relative Addressing

The R1C1 notation serves as the foundational language for utilizing the FormulaR1C1 property effectively. In this system, ‘R’ identifies the row, and ‘C’ identifies the column. An immediate positive integer following R and C specifies an exact cell coordinate. For instance, the reference R1C1 points precisely to the cell located at the first row and first column, which corresponds exactly to the standard A1 cell address. Understanding how to manipulate these row and column indicators is crucial for mastering both absolute and relative referencing techniques within VBA.

To define an absolute reference, you must use positive integers immediately following R and C without any enclosing brackets. For example, the syntax R5C3 will always resolve to cell C5, irrespective of where the formula is placed on the worksheet. This method mirrors the function of using dollar signs (e.g., =$C$5) in standard A1 notation, guaranteeing that the formula consistently retrieves data from that exact, fixed location on the spreadsheet, ensuring data integrity across a copied range.

Conversely, to establish a relative reference, which is essential for dynamic formula application across ranges, the offset numbers must be enclosed within square brackets []. These numbers calculate the positional distance (offset) from the cell currently receiving the formula. A negative number indicates movement up (for rows) or left (for columns), while a positive number indicates movement down or right. If the brackets are empty (R[]C[]), it signifies a self-reference to the cell where the formula is being entered.

Implementing Absolute References using FormulaR1C1

The first critical application of the FormulaR1C1 property is creating an absolute reference. This technique is indispensable when your formula needs to consistently pull data from a fixed source cell, such such as a global multiplier, a defined parameter, or a specific constant located elsewhere on the worksheet. By using the non-bracketed R#C# syntax, we explicitly tell Excel that the reference point is static and must not change, even if the formula is replicated across adjacent cells.

In the following example, we instruct VBA to place a formula into cell C5. This formula takes the value found at the absolute intersection of Row 1 and Column 1 (A1) and multiplies it by 20. The use of R1C1 ensures this link is permanently fixed.

Sub MultipyCell()

Range("C5").FormulaR1C1 = "=R1C1*20"

End Sub

When this particular macro executes, cell C5 will display the calculated result based on the value in A1. Because we used the absolute R1C1 syntax (no brackets), Excel translates this formula into =$A$1*20, ensuring that the reference remains fixed on cell A1, even if the formula in C5 were to be copied to cell D5, E5, or any other location. This confirms the successful enforcement of a fixed reference point using the absolute syntax.

Code Demonstration: Fixed Cell Referencing

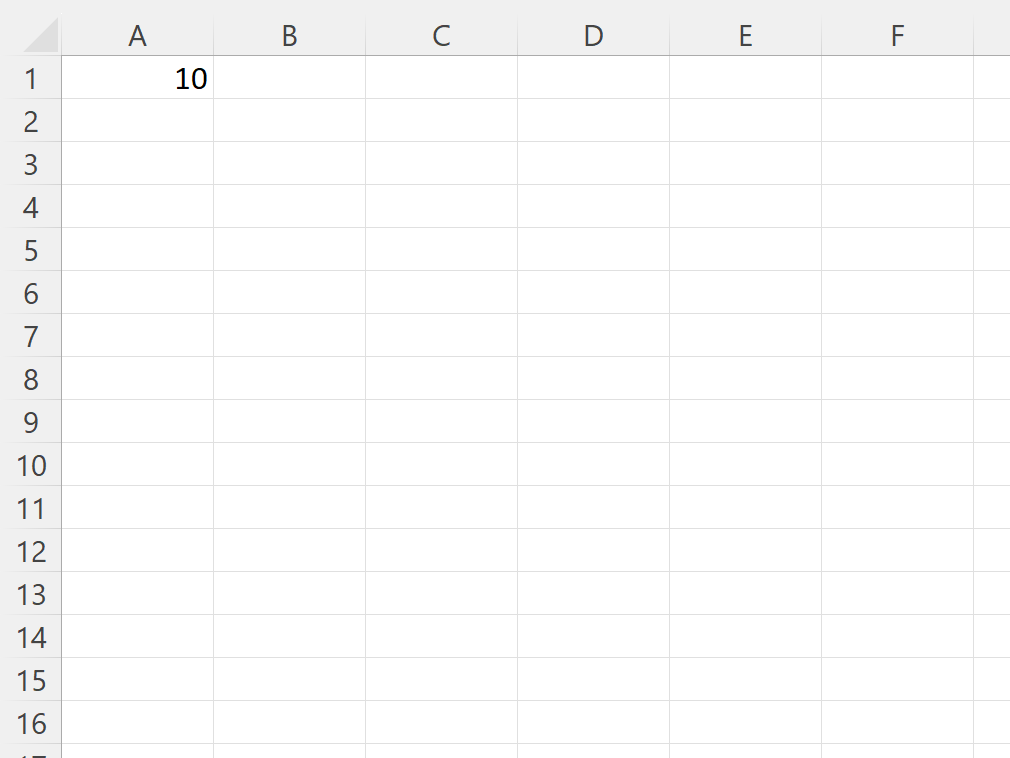

To fully illustrate the effect of an absolute reference, consider a worksheet where we have the value 10 pre-entered in cell A1. We utilize the following macro to multiply the value of the cell located at row 1 and column 1 (A1) by 20 and place the result into cell C5:

Sub MultipyCell()

Range("C5").FormulaR1C1 = "=R1C1*20"

End Sub

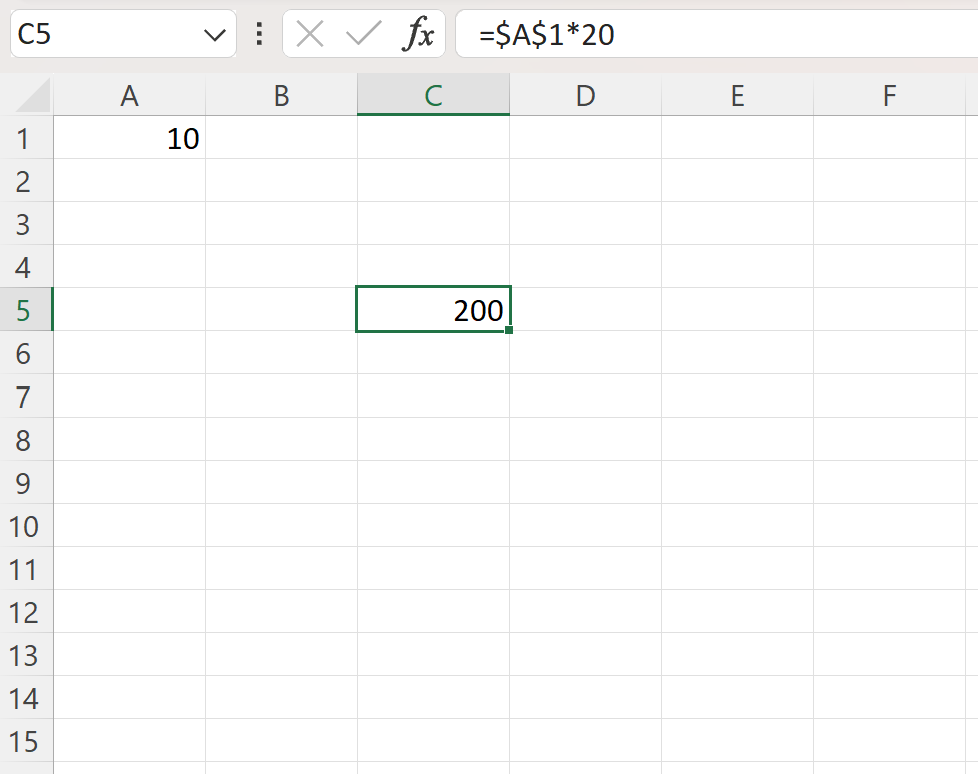

Upon running this macro, Excel calculates 10 multiplied by 20, and cell C5 displays 200. Crucially, inspecting the formula bar for cell C5 reveals that Excel has interpreted the R1C1 code as the absolute A1 formula: =$A$1*20. This operation confirms that the R1C1 syntax without brackets successfully forces a fixed reference point, making this approach reliable for referencing constants or fixed input cells in any complex automation routine.

Implementing Relative References using FormulaR1C1

The second essential application of the FormulaR1C1 property involves creating a relative reference. Relative referencing is vital when you intend to apply a formula across a range of cells, where each cell must reference its neighbors rather than a single fixed source. This dynamic behavior is achieved exclusively by using square brackets [] to define the positional offset from the cell receiving the formula. This mechanism is especially useful when filling down columns or across rows.

In the following scenario, we instruct VBA to place a formula into cell C5. However, this time, the formula looks backward from C5 using relative offsets: R[-4] means four rows above the current row (5 – 4 = Row 1), and C[-2] means two columns to the left of the current column (Column 3 – 2 = Column 1).

Sub MultipyCell()

Range("C5").FormulaR1C1 = "=R[-4]C[-2]*20"

End Sub

When this particular macro runs, cell C5 will display the result of the cell that is 4 rows above it and 2 columns to the left of it, multiplied by 20. This relative calculation points directly to cell A1 (since C5 is Row 5, Column 3). The power of this approach is evident when copying the formula: if this formula were copied to cell C6, the reference would automatically shift to A2 (R[-4]C[-2] relative to C6), allowing for efficient bulk formula placement.

Code Demonstration: Dynamic Cell Offsets

Continuing with our example sheet where cell A1 holds the value 10, we utilize the following macro to demonstrate the relative reference syntax. We aim to multiply the value of the cell that is 4 rows above and 2 columns to the left of cell C5 by 20 and display the result back in C5:

Sub MultipyCell()

Range("C5").FormulaR1C1 = "=R[-4]C[-2]*20"

End Sub

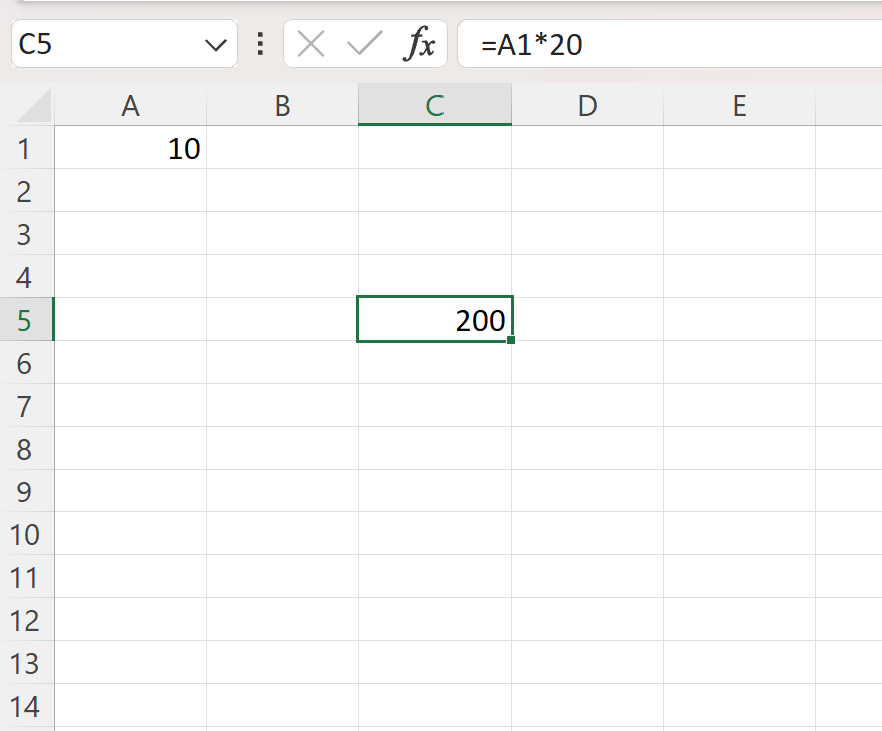

When this macro executes, it successfully calculates the same result (200), as the relative reference from C5 correctly targets A1. However, the crucial difference lies in the underlying formula generated by Excel. When we run this macro, we receive the following output, visually identical to the absolute reference example:

By inspecting the formula bar for cell C5, we can see that Excel used the formula =A1*20 to calculate the result. Since we used brackets with R[-4]C[-2] in our statement to the FormulaR1C1 property, we established a relative reference. If this formula were copied down to C6, the formula would automatically reference A2, illustrating the dynamic and flexible power of relative R1C1 notation for creating scalable Excel routines.

Conclusion and Further Learning

Mastering the FormulaR1C1 property represents a significant step forward in advanced formula manipulation within VBA. By gaining proficiency in the precise distinction between the fixed syntax (R#C#) for absolute reference and the offset syntax (R[#]C[#]) for relative reference, developers acquire granular control over how formulas interact with their surrounding data. This control is crucial for constructing reusable, robust, and scalable macros that can adapt dynamically to varying spreadsheet layouts or data sizes without requiring manual formula adjustments.

The choice between absolute and relative R1C1 notation is driven purely by application intent: whether the formula’s input cell must remain locked onto a specific coordinate throughout a range application, or if the input cell must adjust dynamically based on its placement relative to the formula cell. For anyone involved in serious Excel automation, integrating the R1C1 notation style into their workflow is highly recommended for its clarity and efficiency in formula creation, significantly outperforming string manipulation using standard A1 references in complex scenarios.

For developers seeking comprehensive details on all parameters and capabilities, the complete documentation for the VBA FormulaR1C1 property provides in-depth guidance:

• VBA FormulaR1C1 Property Documentation
