Learning ggplot2: Adding Text Labels with geom_label()

Effective data visualization is paramount in modern data science, serving as the bridge between complex statistical results and clear, actionable insights. The highly celebrated ggplot2 package, built for the R programming environment, provides an elegant and powerful framework for creating informative and aesthetically refined graphics. A frequent requirement in data visualization is the need to annotate specific observations directly on the plot itself. While standard text annotations often suffice, clarity often demands that labels are highly visible and stand out against busy or complex backgrounds. This is precisely where the geom_label() function becomes an indispensable tool. Unlike its simpler sibling, geom_text(), geom_label() automatically incorporates a contrasting rectangular background box—typically white or a light color—behind the text. This crucial feature ensures superior contrast and dramatically enhances readability, making the labels easy to decipher even when data points are densely clustered or overlaid upon other visual elements.

Understanding the Purpose and Syntax of geom_label()

The core function of the geom_label() geometry within the established ggplot2 framework is to embed textual annotations inside a defined, visible rectangular container placed directly onto the plot canvas. This functionality is invaluable when the plotting area features a textured background, overlapping geometries, or a diverse color palette that might otherwise obscure plain text. By generating a solid, non-transparent background for the annotation, geom_label() significantly boosts the visibility and overall communication efficacy of the visualization. This approach is highly recommended for presentations where specific data points, such as influential outliers, category maxima, or critical experimental observations, require instant and unambiguous identification by the audience.

The fundamental structure for integrating this geometry adheres to the layered Grammar of Graphics philosophy championed by ggplot2. Assuming a base ggplot object has been successfully initialized and assigned to a variable, often named p, the function is invoked simply as an additive layer using the + operator. This process demonstrates the minimal syntax necessary to initiate the labeling process, requiring only that the underlying data includes a variable designated for the text content, which is mapped to the label aesthetic either globally within the initial aes() mapping or locally within the geom_label() function call itself.

The following basic syntax structure illustrates how geom_label() is appended to an existing plot object:

p +
  geom_label()

This concise example assumes that a ggplot object has been successfully defined and referenced by the variable p. Subsequently, we utilize the geom_label() layer to add textual labels that correspond to the variable specified in the label argument of the aesthetic mapping, thereby linking the displayed text directly to the coordinates of the underlying data points. The key functional difference here, which differentiates it from standard text addition, is the automatic generation of the bounding box, providing a clean visual separation between the annotation and any complex visual elements of the data beneath it.

Prerequisites: Installing and Loading the ggplot2 Package

Before an analyst can utilize the powerful capabilities of the geom_label() function, it is a crucial prerequisite that the primary visualization package, ggplot2, is correctly installed and loaded into the current R session environment. Since ggplot2 is not included as part of the base R installation, it requires a straightforward installation procedure to ensure all necessary dependencies are properly met. Attempting to call any of its functions, including geom_label(), without installing or loading the package will invariably result in an error, as the R environment will not recognize the function call within the current namespace.

The installation procedure is executed efficiently using the standard install.packages() function directly within the R console. This command initiates the download of the package files from the Comprehensive R Archive Network (CRAN) and installs them locally onto your computing system. Crucially, once the package is installed, it must be explicitly loaded into the current working session using the library() function. It is important to note this procedural distinction: while installation is typically a one-time event (unless updating the package), the loading step using library(ggplot2) must be performed anew every time a fresh R session is started where ggplot2 functionalities are intended for use.

Analysts can use the following syntax to install the required package successfully:

install.packages('ggplot2')

After the ggplot2 package has been successfully installed, the next mandatory step is to load it using the library(ggplot2) command before attempting to define any plot geometry or aesthetic mappings. This critical step ensures that the geom_label() function and all other associated utilities become immediately accessible, preventing common “could not find function” errors and thereby enabling the seamless creation of complex, multilayered visualizations based on the Grammar of Graphics.

Practical Example: Preparing Basketball Player Statistics Data

To provide a clear demonstration of the practical application of geom_label(), we will walk through a concrete example utilizing a synthetic data frame that holds statistical information for several hypothetical basketball players. This dataset is structured with clear variables—Team, Points, and Assists—making it easy to define aesthetic mappings for a scatter plot and apply meaningful, identifying annotations using the team name. This initial stage of preparing and structuring the data is fundamental to any visualization task in R, as ggplot2 is designed to operate directly and efficiently on structured data frame objects.

We begin by constructing the following data frame in R, which contains structured information pertaining to eight distinct basketball players. We use the data.frame() function to build this object, explicitly defining three distinct columns that will serve as our primary data variables for the visualization:

#create data frame
df <- data.frame(team=c('A', 'B', 'C', 'D', 'E', 'F', 'G', 'H'),
                 points=c(22, 39, 24, 18, 15, 10, 28, 23),
                 assists=c(3, 8, 8, 6, 10, 14, 8, 17))

#view data frame
df

  team points assists
1    A     22       3
2    B     39       8
3    C     24       8
4    D     18       6
5    E     15      10
6    F     10      14
7    G     28       8
8    H     23      17

The dataset thus contains columns representing key performance metrics: team (categorical identifier), points (numerical value designated for the X-axis), and assists (numerical value designated for the Y-axis). Our immediate objective is to construct an initial scatter plot to visually explore the correlation and overall distribution of values between the points and assists variables. This base visualization requires defining the aesthetic mappings (aes) for the X and Y dimensions and adding a fundamental point geometry using geom_point(), ensuring ggplot2 is loaded first via the library() command.

We generate this initial base visualization using the following R code sequence:

library(ggplot2)

#create scatter plot of points vs assists
ggplot(df, aes(points, assists)) +
  geom_point()

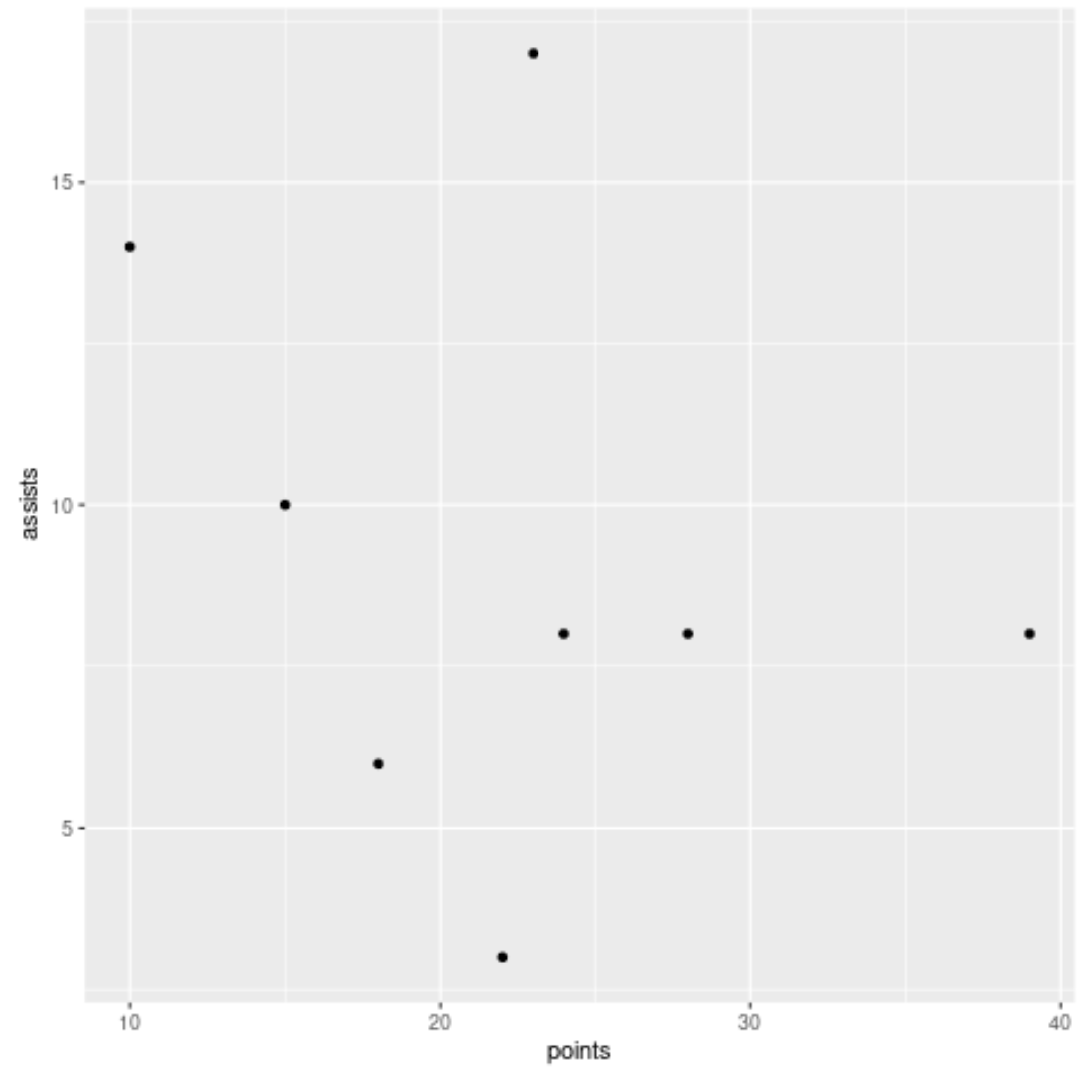

As the initial output illustrates, the X-axis accurately maps the points scored, and the Y-axis displays the total assists. While the plot successfully visualizes the relationship between the variables, it critically lacks contextual information: without labels, we cannot identify which specific point corresponds to which team. The next logical and necessary step is therefore to introduce team labels using geom_label() to drastically improve immediate interpretability and data communication.

Implementing geom_label() for Clear Point Identification

The essential refinement for this visualization is the ability to uniquely identify each plotted data point using its corresponding team name. To achieve this, we must introduce the label aesthetic mapping within the ggplot2 definition, linking the categorical team column from our data frame to the visible text attribute. Following the established grammar of graphics principles, we then seamlessly integrate the geom_label() layer into the existing plot structure. This function is designed to automatically position the label centrally over the exact data point coordinates defined by the X and Y aesthetics, ensuring precise and unambiguous alignment with the raw data.

We utilize the label argument within the aes() function of ggplot() in conjunction with the geom_label() function, ensuring that the team variable is mapped to the label aesthetic alongside the positional mappings (points and assists):

library(ggplot2)

#create scatter plot of points vs assists with labels for team names
ggplot(df, aes(points, assists, label=team)) +
  geom_point() +
  geom_label()

Executing this expanded code sequence yields the following significantly more informative plot, where every single observation is now clearly identified:

It is immediately apparent how distinct labels, each neatly enclosed within a highly contrasting white rectangular background, have been successfully added to the plot, positioned accurately over their corresponding data points. These labels instantly convey the team name associated with the specific combination of points and assists, drastically enhancing the plot’s capability to communicate individual data characteristics effectively. This implementation validates the efficiency and clarity that geom_label() contributes to annotation tasks, especially when numerous data points require unique and prominent identification on a visualization.

Customizing Labels for Enhanced Readability

Although the default appearance of labels generated by geom_label() is inherently functional, the ggplot2 package offers comprehensive control over the visual properties of these annotations. Customization enables analysts to precisely tailor the labels to adhere to specific publication guidelines or to further optimize readability under various viewing conditions. Key aesthetic parameters available for adjustment include the background fill color, the text color, the relative font size, and the font face itself. For instance, modifying the font face is a simple yet high-impact method to ensure labels stand out, often achieved by rendering the text in bold.

To ensure the text inside each rectangular box is more prominent and easier for viewers to read quickly, we can specify the fontface='bold' argument directly within the geom_label() function call. This is applied as an aesthetic setting local to the geometry layer, effectively overriding the default font style defined by the global theme. This specific modification is particularly beneficial when data points are numerous or small, or when the audience needs to scan the labels rapidly. Furthermore, one could specify other parameters like fill (to change the background box color), color (to change the text color), or size (to adjust the font size) to achieve full customization of the label box appearance.

The updated syntax incorporating the bold font face modification is structured as follows:

library(ggplot2)

#create scatter plot of points vs assists with labels for team names
ggplot(df, aes(points, assists, label=team)) +
  geom_point() +
  geom_label(aes(fontface='bold'))

This adjustment results in the following revised plot, where the text within the labels is visually emphasized:

The revised plot successfully maintains the precise structure and positioning from the previous version, but the text labels are now rendered clearly in bold. This seemingly minor modification substantially increases the visual contrast between the text and the solid white background, rendering the labels immediately more legible and visually impactful. Experimenting thoroughly with the various aesthetic parameters available within geom_label() is key for data scientists to fine-tune the visual hierarchy of their plots, guaranteeing that annotations serve their intended purpose effectively without visually overwhelming the primary components of the underlying data display.

geom_label() vs. geom_text(): Choosing the Right Annotation Strategy

A fundamental decision point when annotating visualizations in ggplot2 revolves around selecting the appropriate function: geom_label() or geom_text(). Although both functions are designed specifically to place text annotations onto a plot, their core difference lies entirely in how they handle the background rendering of the text. Grasping this distinction is crucial for generating clear, professional graphics, particularly in scenarios where plot complexity necessitates specific visual treatments for maximum clarity.

The geom_label() function, as demonstrated in our preceding examples, embeds text within a distinct bounding box or rectangular background. This background serves the vital purpose of ensuring the text remains visually separated and distinct, irrespective of what complex graphical elements (such as points, lines, or filled areas) might be positioned directly underneath it. Consequently, geom_label() is the superior and recommended choice when annotating points on a dense scatter plot, or when overlaying text onto areas characterized by varying color gradients or heavy shading. The added background acts as a critical readability buffer, preventing potential color clashes between the text and the plot elements, thereby guaranteeing textual visibility under all conditions.

In contrast, if the goal is to add text labels without the distinct, high-contrast rectangular background, then the analyst should opt for the geom_text() function. geom_text() renders the text characters directly onto the plotting area without any backing, which often results in a cleaner, more minimalist aesthetic. This approach is generally preferred for sparse plots, adding simple titles, or placing annotations in empty regions of the plot where text visibility is not inherently compromised by underlying data points. While geom_text() provides a less cluttered appearance by omitting the boxes, its usage demands careful attention to the contrast between the text color and the background color. Therefore, the strategic choice between geom_label() and geom_text() should always be carefully guided by an assessment of the visual complexity of the plot background and the required level of prominence for the annotation. Users seeking comprehensive details on positioning, styling, and customization—including parameters like padding (label.padding) or justification (hjust and vjust)—should consult the complete official documentation for the geom_label function.

Additional Resources for ggplot2 Mastery

Mastering advanced data visualization techniques requires continuous exploration and utilization of the rich feature set provided by the ggplot2 package. The functions and examples analyzed in this guide represent merely a foundational step in effectively utilizing geometries for annotation purposes. To further develop your skills in creating sophisticated and highly customized plots, exploring tutorials focused on other specialized geometries and advanced annotation methods is strongly advised. Building a comprehensive toolkit ensures that you can handle any data visualization challenge within the R environment.

The following related tutorials offer explanations on how to perform other common and specialized annotation tasks in ggplot2, thereby helping you build a comprehensive skill set for effective data communication in R:

• Exploring geom_text() for unboxed annotations where interference from the background is minimal.
• Using the annotate() function for static text placement that does not rely on data mapping.
• Applying the ggrepel package for intelligent label placement algorithms that minimize text overlap and significantly improve clarity in dense visualizations.
• Customizing scales, themes, and facets to generate high-quality, professional, and publication-ready graphics.

<!–
