Learning Element Positioning in ggplot2: A Guide to hjust and vjust

Mastering Element Positioning with hjust and vjust in ggplot2

Crafting truly compelling data visualizations often demands granularity beyond standard settings. When working within the ggplot2 ecosystem, the premier data visualization package for the R programming language, we frequently encounter situations where the default placement of titles, labels, and annotations falls short of perfection. Achieving a professional, aesthetically pleasing, and highly readable plot requires the ability to precisely fine-tune element positions. This specialized control is provided by the essential arguments: hjust and vjust.

At their core, hjust and vjust govern the justification of textual and graphical elements relative to their anchor points. Specifically, the hjust argument dictates the horizontal justification, controlling whether the element aligns to the left (0), center (0.5), or right (1) of its specified coordinate. Conversely, the vjust argument manages the vertical justification, positioning the element below (0), centered (0.5), or above (1) the anchor. Mastering these parameters is critical for handling complex layouts, such as those involving rotated axis text or custom plot annotations.

This comprehensive tutorial will serve as your guide to leveraging the full potential of these justification controls. We will walk through three distinct and common scenarios: adjusting the overall plot title location, ensuring pixel-perfect alignment of rotated axis labels, and precisely placing text annotations on data points. By the conclusion of these detailed, practical examples, you will possess the specialized knowledge required to elevate the clarity and visual impact of all your ggplot2 visualizations.

Example 1: Customizing Plot Title Position

The plot title is the anchor of any visualization, immediately informing the viewer of the data’s subject. By design, ggplot2 renders titles left-aligned. While this default is functional, centralizing the title often creates a more professional and visually balanced composition, particularly when plots are included in formal documents or dashboards where consistent design is paramount.

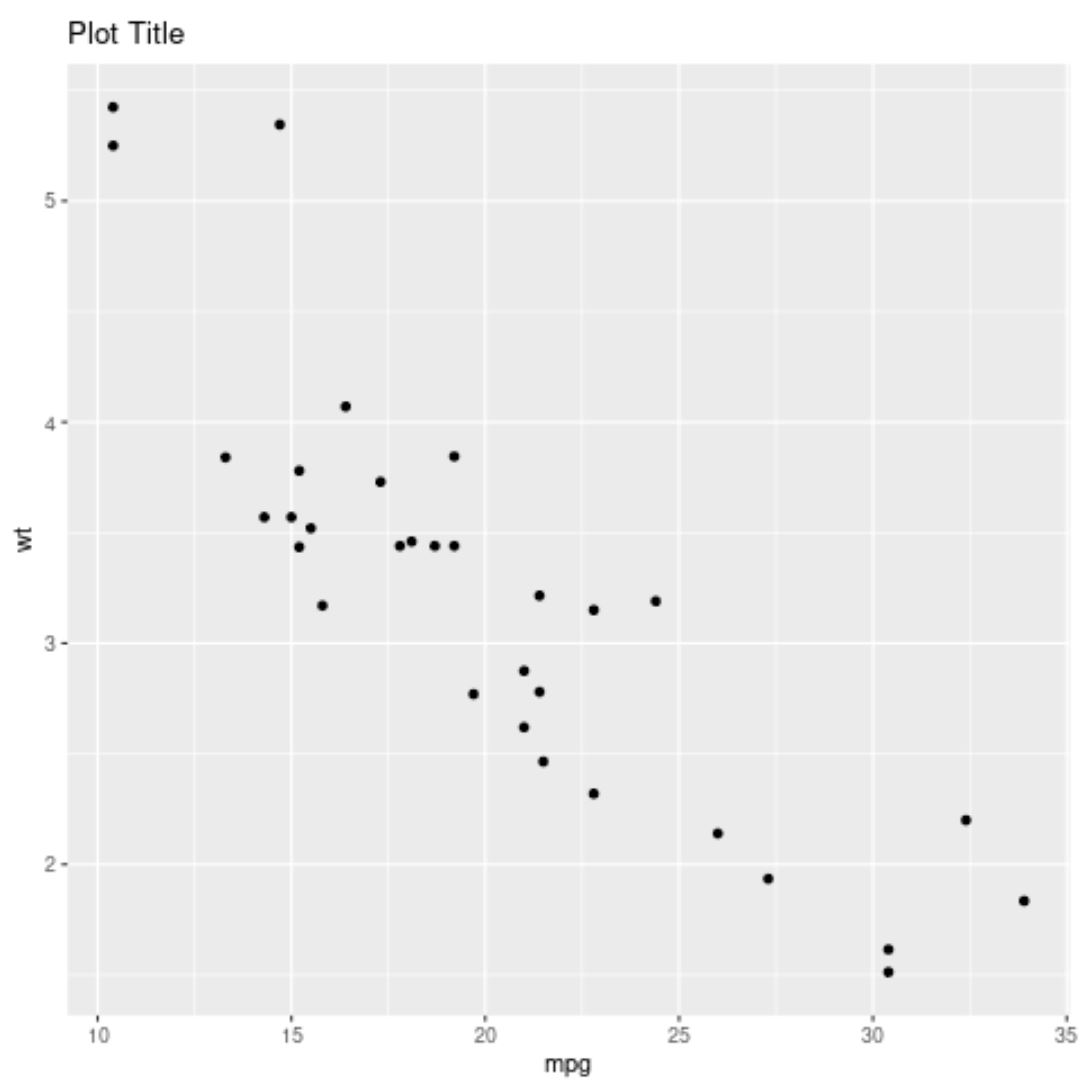

We will begin by establishing a foundation using a simple scatter plot derived from the readily available mtcars dataset. The code below generates this plot and assigns a title, clearly illustrating the default left-justified position. This initial result provides the necessary context to appreciate the precise control offered by the hjust parameter.

library(ggplot2)

#create scatter plot with title in default position
ggplot(data=mtcars, aes(x=mpg, y=wt)) +
  geom_point() +
  ggtitle("Plot Title")

To successfully shift the title’s horizontal alignment, we must interact with the theme() system. We target the plot.title element and modify it using the element_text() function, which encapsulates all text formatting options. By specifying hjust to a value of 0.5, we instruct ggplot2 to center the title perfectly. Recall that hjust=0 maintains left alignment, while hjust=1 forces right alignment, offering flexibility for integration into various document layouts.

library(ggplot2)

#create scatter plot with title center-aligned
ggplot(data=mtcars, aes(x=mpg, y=wt)) +
  geom_point() +
  ggtitle("Plot Title") +
  theme(plot.title = element_text(hjust=.5))

The power of the hjust parameter lies in its continuous range. You are not limited to 0, 0.5, or 1; any decimal value (e.g., 0.25 or 0.7) can be used for subtle, precise horizontal nudges. While vjust can technically be applied to plot.title as well, it primarily affects the vertical spacing relative to surrounding plot elements, a modification typically reserved for complex multi-line titles or specialized marginal adjustments.

Example 2: Achieving Precision with Axis Label Alignment

The clarity of axis labels is paramount for correctly interpreting a visualization’s quantitative or qualitative dimensions. When plotting categorical data, especially when category names are verbose, rotating the labels is a necessary technique to prevent them from overlapping and becoming illegible. However, a common pitfall of simple rotation (e.g., using angle=90) is that the resulting labels often fail to align neatly with the corresponding tick marks, creating an awkward visual disconnect that diminishes the plot’s professionalism.

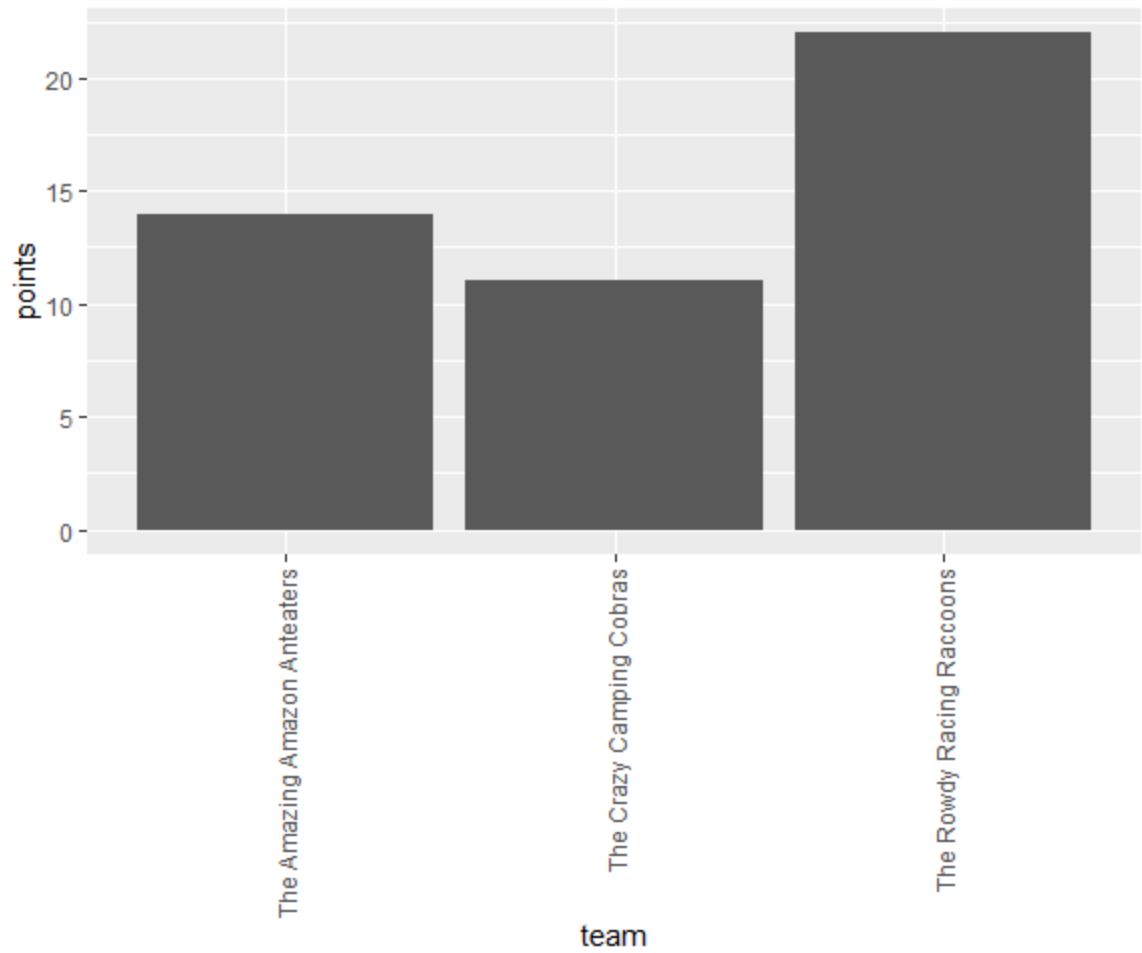

To demonstrate this problem, we will construct a bar chart displaying fictitious team scores. First, we define a simple data frame. We then apply a 90-degree rotation to the x-axis labels via the theme(axis.text.x = element_text(angle=90)) function. Note carefully the default, slightly misaligned placement of the lengthy team names in the resulting visualization:

library(ggplot2)

#create data frame
df = data.frame(team=c('The Amazing Amazon Anteaters',
                       'The Rowdy Racing Raccoons',
                       'The Crazy Camping Cobras'),
                points=c(14, 22, 11))

#create bar plot to visualize points scored by each team
ggplot(data=df, aes(x=team, y=points)) +
  geom_bar(stat='identity') +
  theme(axis.text.x = element_text(angle=90))

To rectify the misalignment resulting from rotation, we must adjust both hjust and vjust simultaneously within the element_text() call for axis.text.x. It is crucial to remember that when text is rotated, the visual interpretation of “horizontal” and “vertical” justification swaps relative to the unrotated state. For a 90-degree clockwise rotation, hjust effectively controls the vertical spacing relative to the tick mark, while vjust dictates the horizontal positioning.

The ideal alignment for 90-degree rotated labels is achieved by setting vjust to 0.5 (centering the label horizontally relative to the tick mark) and hjust to 1 (which aligns the right edge of the rotated text block precisely with the tick mark). This combination pulls the labels directly into alignment with their corresponding bars, resulting in a significantly cleaner and more interpretable axis. Review the revised code below to see this precise adjustment in action:

library(ggplot2)

#create data frame
df = data.frame(team=c('The Amazing Amazon Anteaters',
                       'The Rowdy Racing Raccoons',
                       'The Crazy Camping Cobras'),
                points=c(14, 22, 11))

#create bar plot to visualize points scored by each team
ggplot(data=df, aes(x=team, y=points)) +
  geom_bar(stat='identity') +
  theme(axis.text.x = element_text(angle=90, vjust=.5, hjust=1)

This level of detailed visual fine-tuning is what distinguishes a basic plot from a publication-ready visualization. By understanding the interaction between text rotation and the hjust/vjust parameters, you gain the power to ensure that all elements, even rotated axis labels, maintain a clear and logical connection to the data they represent, thus maximizing the plot’s overall readability.

Example 3: Fine-Tuning Annotated Text Placement

Text annotations, which label specific data points or regions, significantly increase a plot’s informational density. For example, in a scatter plot, labeling outliers or critical observations with identifying text (like player names) improves immediate data comprehension. However, without careful positioning, these text labels can overlap with the data points themselves or with other labels, severely reducing the overall clarity. This scenario makes precise justification essential.

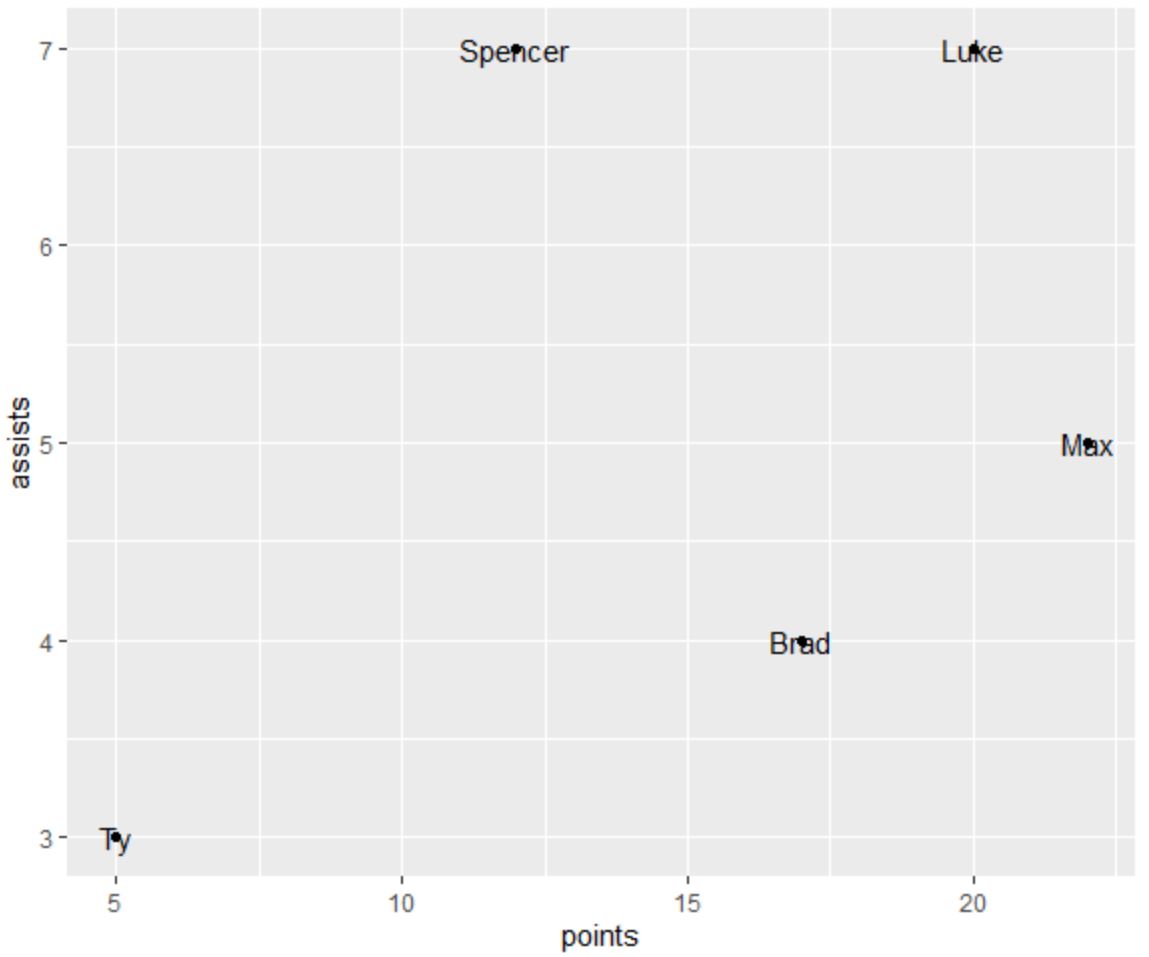

We will create a simple scatter plot comparing player points and assists using a small data frame. We utilize geom_text() to layer player names onto the points. Observe in the initial output below that the text labels obscure the underlying data points. This overlap is precisely the issue we aim to solve using vertical justification, specifically the vjust parameter.

library(ggplot2)

#create data frame
df <- data.frame(player=c('Brad', 'Ty', 'Spencer', 'Luke', 'Max'),
                 points=c(17, 5, 12, 20, 22),
                 assists=c(4, 3, 7, 7, 5))

#create scatter plot with annotated labels
ggplot(df) +
  geom_point(aes(x=points, y=assists)) +
  geom_text(aes(x=points, y=assists, label=player))

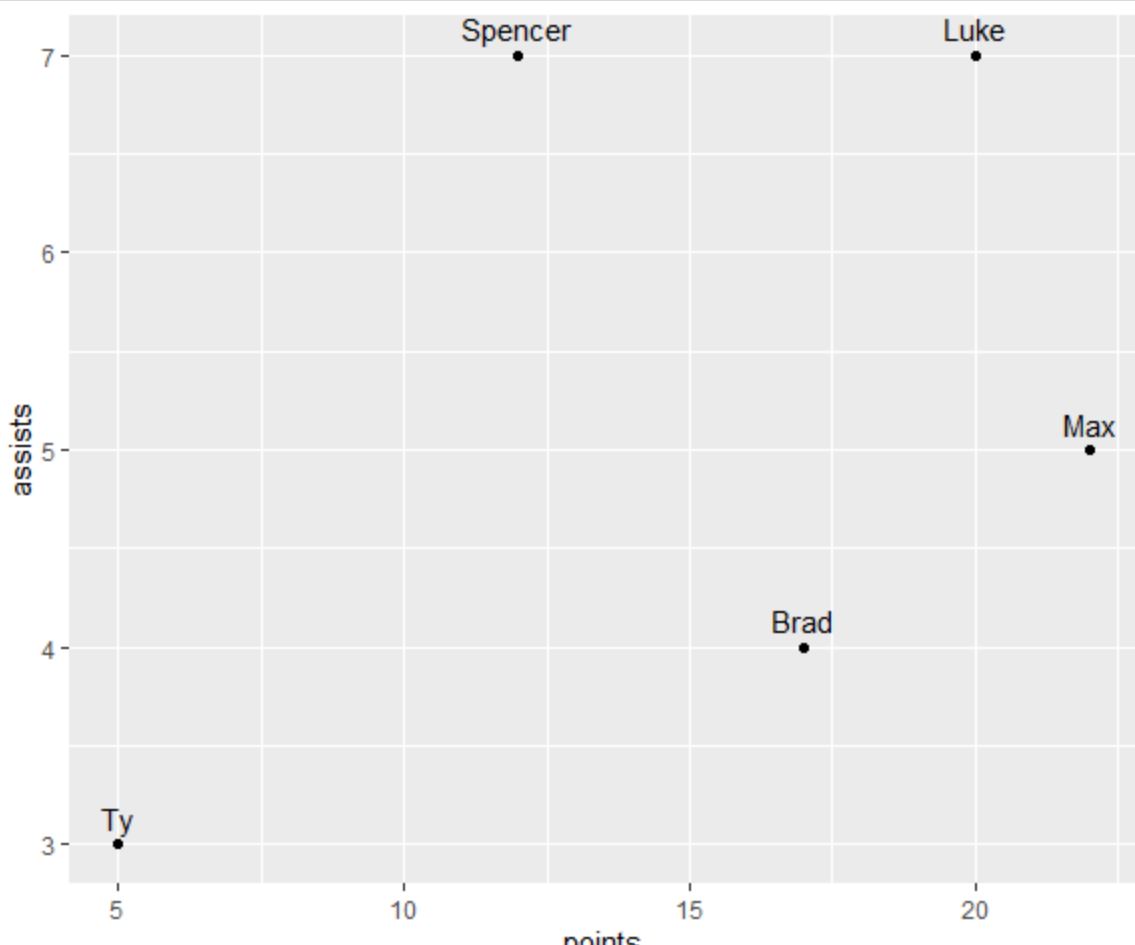

To separate the text from the data point, we introduce the vjust argument directly within geom_text(). By assigning a negative value to vjust (e.g., -0.6), we instruct the text to shift upwards along the y-axis, lifting the label clear of the point marker. This simple modification immediately resolves the visual obstruction, ensuring that both the data point and its identifying label are easily discernible, a key step in producing clean visualizations.

library(ggplot2)

#create data frame
df <- data.frame(player=c('Brad', 'Ty', 'Spencer', 'Luke', 'Max'),
                 points=c(17, 5, 12, 20, 22),
                 assists=c(4, 3, 7, 7, 5))

#create scatter plot with annotated labels
ggplot(df) +
  geom_point(aes(x=points, y=assists)) +
  geom_text(aes(x=points, y=assists, label=player), vjust=-.6)

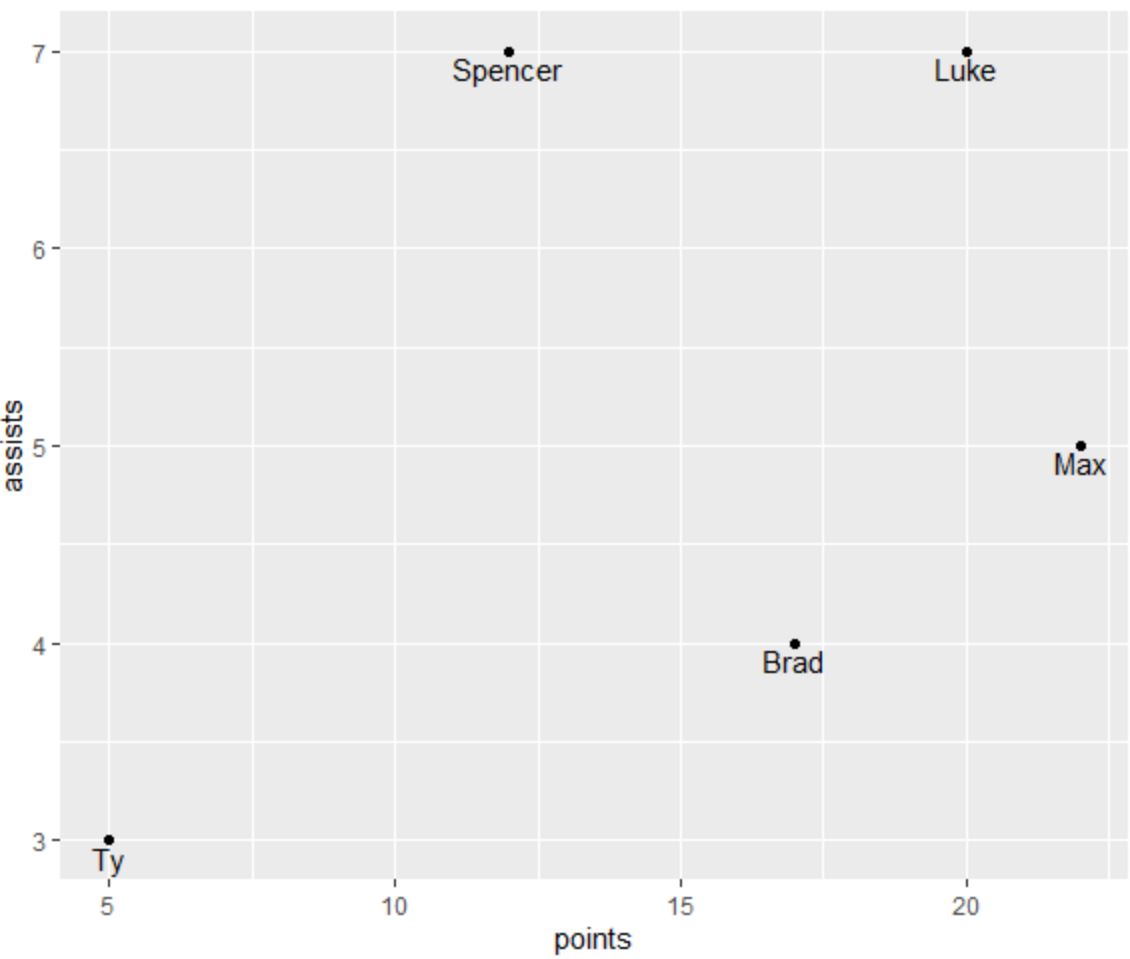

Conversely, employing a positive value for vjust, such as 1.2, will reposition the text annotation downward, placing it comfortably beneath the data point. This versatility in vertical positioning is crucial for adapting to different data densities or avoiding overlaps with elements in the upper regions of the plot. The ability to shift labels up or down ensures maximum visual separation and enhances the overall aesthetic appeal of the visualization.

library(ggplot2)

#create data frame
df <- data.frame(player=c('Brad', 'Ty', 'Spencer', 'Luke', 'Max'),
                 points=c(17, 5, 12, 20, 22),
                 assists=c(4, 3, 7, 7, 5))

#create scatter plot with annotated labels
ggplot(df) +
  geom_point(aes(x=points, y=assists)) +
  geom_text(aes(x=points, y=assists, label=player), vjust=1.2)

While we focused on vertical displacement here, the hjust argument functions identically within geom_text() to control horizontal shifting (left or right) relative to the point’s x-coordinate. For instance, setting hjust = 1.1 would push the text slightly to the right. Combining the fine-tuned control of hjust and vjust provides the complete toolkit necessary for placing annotations precisely where they best serve the narrative of the data without causing visual interference.

Best Practices for Effective Justification

Harnessing the power of hjust and vjust moves a visualization from adequate to exceptional. However, this granular control demands a strategic approach. Simply inputting arbitrary values can quickly lead to visual inconsistencies and clutter. By following established best practices, you ensure that these positional adjustments consistently enhance, rather than detract from, the clarity and professional quality of your plots.

• Understand the Coordinate System: The standard justification values (0 to 1) define the element’s bounding box alignment relative to its anchor point. Remember: 0 is typically aligned to the left (horizontal) or bottom (vertical); 0.5 is center-aligned; and 1 aligns to the right (horizontal) or top (vertical). Always account for how text rotation in elements like axis labels fundamentally alters the visual meaning of these horizontal and vertical controls.

• Prioritize Readability: The fundamental purpose of adjusting element position is to maximize comprehension. Always ensure adequate white space surrounds labels, titles, and annotations. Avoid placing text directly on plot boundaries or too close to other primary data elements, as this sacrifices clarity for minor positional gains.

• Maintain Visual Consistency: When creating a series of related plots (e.g., for a report or dashboard), strive for uniformity in element positioning. If titles are centered in one plot, they should be centered across all others. Consistency in justification settings across similar elements reinforces professionalism and predictability for the viewer.

• Iterate and Fine-Tune: Achieving the perfect alignment often requires iterative testing. Start with the major alignment points (0, 0.5, 1) and then use small, precise decimal increments (e.g., 0.1, -0.25) to nudge the element until the exact desired aesthetic is realized.

• Address Severe Overlap with Advanced Geoms: In cases of very dense scatter plots where basic hjust/vjust adjustments are insufficient to prevent extensive label overlap, consider employing geom_text_repel() from the specialized ggrepel package. This geometry automatically shifts labels away from both data points and each other, using connecting line segments to maintain the association.

Adopting these strategic guidelines ensures that you fully capitalize on the fine-tuning capabilities of hjust and vjust, moving beyond simple data representation to create sophisticated, highly readable, and impactful visualizations using ggplot2.

Conclusion

Achieving mastery in data visualization hinges on the ability to control every aspect of the plot’s appearance. In the context of ggplot2, the hjust and vjust parameters serve as essential controls for precise element positioning. These arguments provide the necessary tools to address common aesthetic challenges, whether that involves centralizing a plot title for better balance, correcting the alignment of rotated axis labels, or ensuring that text annotations never overlap with the data they describe.

Mastering hjust and vjust empowers you to move beyond default plot aesthetics and craft truly custom, professional-grade visualizations that are both informative and visually appealing. By applying the techniques demonstrated in these examples, you can significantly enhance the clarity and impact of your R plots, making your data stories more compelling and easier for your audience to understand.

Additional Resources

To continue enhancing your expertise in ggplot2 and advanced visualization techniques, we recommend exploring the following official documentation and related resources:

• element_text() Documentation: The official reference detailing all options for customizing text elements within ggplot2 themes.
• geom_text() and geom_label() Documentation: Detailed information on adding and styling text annotations directly onto plots.
• Theming in ggplot2: A comprehensive guide covering the modification of all non-data aesthetic elements in a plot.
• The R Graph Gallery: A vast collection of R charts, complete with reproducible source code for learning and inspiration.
