Using HLOOKUP with VBA: A Comprehensive Guide

Introduction to Horizontal Lookups in VBA

The HLOOKUP function is a cornerstone tool within Excel, specifically engineered for the horizontal retrieval of data. Its primary role involves searching across the first row of a designated table or range to find a specific lookup value, subsequently returning a corresponding data point from a specified row within that same column. However, when this powerful function is seamlessly integrated into VBA (Visual Basic for Applications), its capabilities transcend standard spreadsheet functionality, enabling developers to build sophisticated, dynamic data retrieval systems and facilitating complex automated reporting directly within their workbooks. This integration is essential for automating tasks that would otherwise be repetitive and time-consuming, leading to significant efficiency gains in data management.

The mechanism for implementing horizontal lookups within the VBA environment relies heavily on the WorksheetFunction object. This object serves as a vital programmatic link, providing direct access to almost all of Excel’s expansive library of built-in functions directly from your code. This approach is absolutely indispensable whenever the requirement is to search horizontally across the top row of a large dataset and then efficiently extract precise information located in a lower row. Developing a robust and clear understanding of the HLOOKUP function’s syntax and mastering its application within programmatic scripts is a critical skill set for any developer aiming to craft intelligent, reliable, and fully automated Excel solutions.

This comprehensive tutorial is designed to meticulously guide you through the fundamental syntax and structured requirements necessary for executing an HLOOKUP operation directly using VBA code. We will provide clear, practical examples to illustrate effective implementation strategies and delve into the critical components that define the function’s behavior. Our central objective is to ensure you gain a thorough understanding of how to programmatically extract specific data points from your spreadsheets, thereby maximizing your automation potential and enhancing your overall data processing capabilities within the Excel ecosystem.

Deconstructing the HLOOKUP Syntax in VBA

To successfully execute an HLOOKUP operation within the VBA environment, the standard and most reliable methodology involves invoking the WorksheetFunction.HLookup method. While its core functional behavior mirrors the native Excel worksheet formula, it must be correctly encapsulated within a VBA Sub procedure or a custom function. The following structure represents the foundational syntax used inside a typical automation macro, illustrating how the lookup result is assigned to a specific cell:

Sub Hlookup()
    Range("H2").Value = WorksheetFunction.HLookup(Range("G2"),Range("A1:E2"),2,False)
End Sub

The initial line of this code snippet, Range("H2").Value = ..., clearly establishes that the final value retrieved by the horizontal lookup will be directly assigned to the value property of cell H2 on the active worksheet. The operational core resides within the WorksheetFunction.HLookup method, which requires four primary arguments to precisely define the search parameters, the data range, and the desired output. A detailed understanding of each argument is essential for correct and effective implementation:

• lookup_value: This is the required criterion that the function must search for exclusively within the first row of your designated data table. In the provided example, Range("G2") dynamically sets the content of cell G2 as the search term. This inherent flexibility allows for lookups to be driven by external inputs or calculated results, significantly increasing the versatility of the macro.
• table_array: This defines the comprehensive, continuous range of cells that encompasses the entire dataset where the lookup operation will take place. The range designation Range("A1:E2") establishes the boundaries of the search area. It is absolutely crucial to recall that HLOOKUP will only search across the very first row of this defined table_array to locate a match for the lookup_value.
• row_index_num: This numerical argument specifies the relative row number within the table_array from which the corresponding value should be returned. A value of 2, as used here, instructs the function that once the lookup_value is successfully found in the first row, it must retrieve the data point situated in the second row of that matching column. This index is always relative to the top of the table_array, not the absolute row number of the worksheet.
• range_lookup: This optional, yet profoundly critical, argument governs the required type of match. Setting this argument explicitly to False (or 0) forces the function to search only for an exact match. If no exact correspondence is found in the first row, the function returns the standard error value #N/A. Conversely, setting it to True (or omitting it entirely) enables an approximate match. For scenarios demanding precise data integrity, explicitly setting False is the recommended and best practice, ensuring reliable results.

To summarize the operation, the provided VBA subroutine automates the complex process of locating the value stored in cell G2 within the horizontal range A1:E2. Upon successful identification of a match, the code efficiently extracts the corresponding data from the second row of that column and deposits the retrieved result directly into cell H2. This structured, programmatic approach guarantees rapid and accurate data extraction based on horizontal matching criteria.

Practical Application: Automating Data Retrieval with HLOOKUP

To fully appreciate the practical utility of implementing HLOOKUP through VBA, let us analyze a common, real-world data scenario involving a horizontally structured dataset. Imagine you are working with a database in Excel that contains key statistics for several sports teams. In this typical setup, organizational attributes like team names, total points scored, and rebounds are systematically arranged across distinct rows, while individual teams are cataloged in separate columns across the sheet.

Our core objective is to programmatically and reliably extract specific statistics based on a dynamic lookup criterion, which, in this instance, is a specific team name. This level of automation drastically streamlines the process of isolating relevant data points from a massive, horizontally oriented data pool, a task that is often cumbersome and prone to manual error. For this exercise, we will focus on automating the retrieval of the total points scored for a selected team using a dedicated macro.

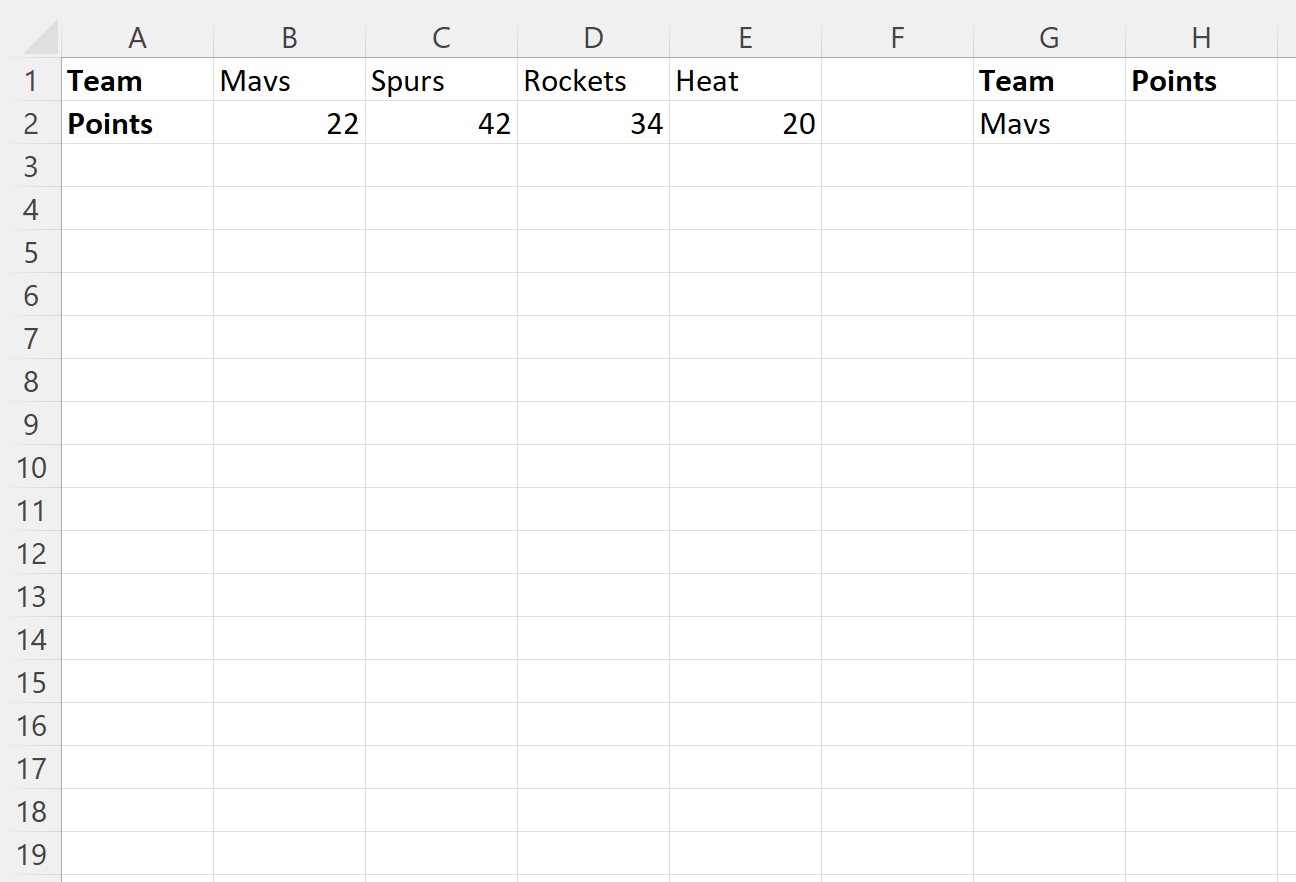

The following image provides a visual representation of the dataset we will be working with. Our specific challenge is to accurately determine the total points scored by the “Mavs” team. To accomplish this, the horizontal lookup must be executed within the first row (containing the “Team” names), and the function must subsequently retrieve the corresponding numerical value from the second row (which holds the “Points” data).

We can achieve this precise data retrieval efficiently by deploying the simple VBA macro demonstrated earlier. It is essential to ensure that the target lookup value, “Mavs,” is correctly input into cell G2, and that the designated output cell for the formula’s result remains H2, maintaining consistency with our predefined syntax structure. The underlying code remains exactly identical to our foundational example, ensuring maximum reusability:

Sub Hlookup()
    Range("H2").Value = WorksheetFunction.HLookup(Range("G2"),Range("A1:E2"),2,False)
End Sub

Upon successful execution of this script, the embedded HLOOKUP function initializes its search for the text “Mavs” within the designated first row of the data range A1:E2. Once the matching column is located, the function accurately and instantaneously retrieves the corresponding value from the second row (the “Points” row) of that column. This retrieved numerical data is then prominently displayed in cell H2, offering an immediate and automated output of the horizontal lookup operation, as visualized in the resulting screenshot below.

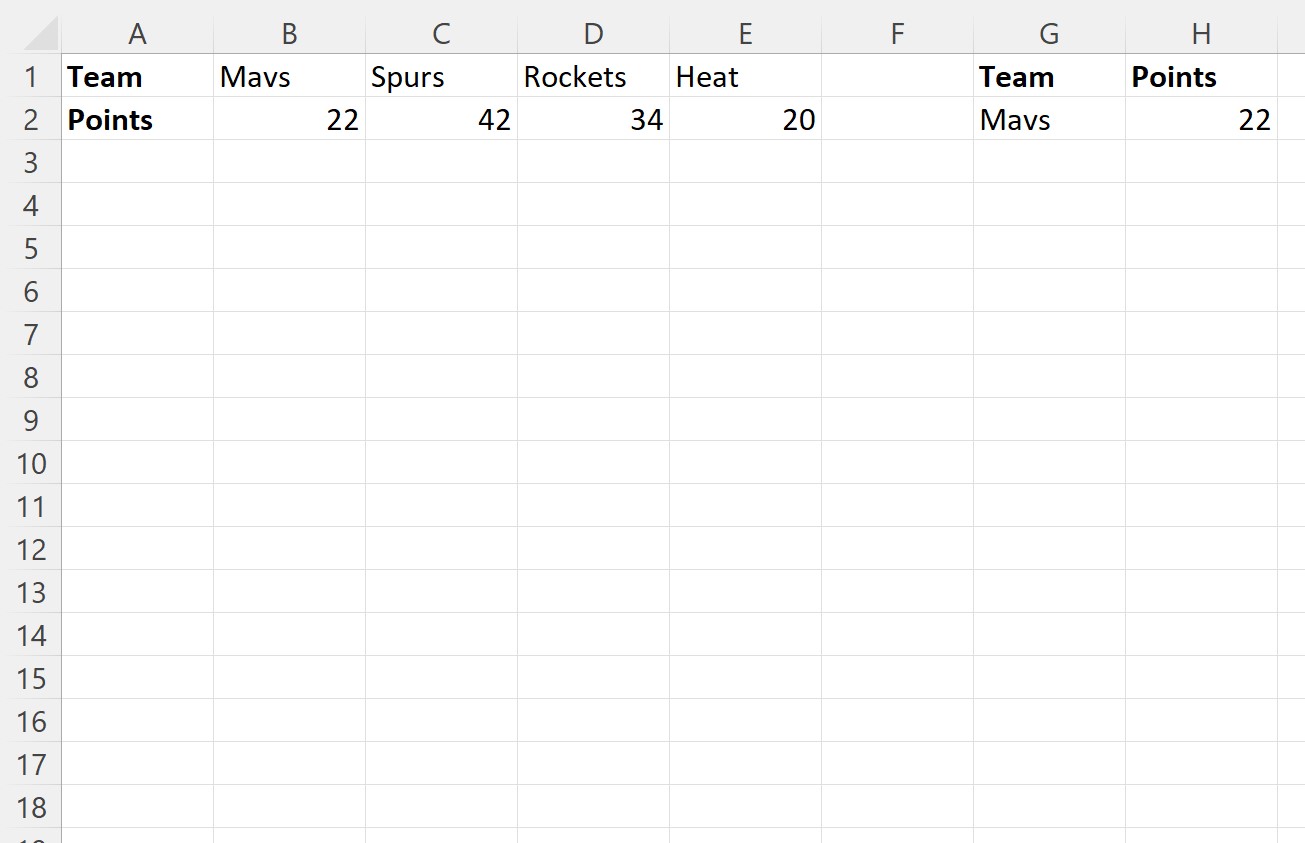

The resulting output clearly confirms the success and precision of the operation, accurately returning a value of 22 points for the “Mavs” team. This outcome not only validates the accuracy of the data retrieval based on our specified criteria but also confirms the effective and reliable operation of the horizontal lookup mechanism when utilized within the VBA environment for structured data extraction.

Leveraging Dynamic Lookups for Enhanced Flexibility

One of the most significant advantages conferred by utilizing HLOOKUP via VBA is the inherent dynamic nature it introduces to your data analysis workflows. Critically, unlike static cell formulas, your compiled code is never permanently bound to a single, hardcoded lookup value. By linking the lookup_value argument directly to a cell reference, such as cell G2 in our established example, you gain the ability to perform entirely new and different lookups simply by modifying the content of that input cell and then re-executing the macro, without needing to touch or alter the underlying VBA subroutine code itself.

This powerful dynamic capability proves exceptionally valuable when developing interactive dashboards, generating large-scale automated reports, or constructing robust analytical tools that must adapt seamlessly to changing user inputs or evolving dataset requirements. It fundamentally transforms the standard spreadsheet lookup function from a static calculation into a potent, reusable automation script. This adaptability forms the core principle of efficient and intelligent spreadsheet design practices, dramatically increasing the versatility and long-term utility of your Excel applications.

For instance, if the analytical requirement immediately shifts and we now need to retrieve the total points for the “Rockets” team from the identical dataset, the process is streamlined and instantaneous. We simply modify the team name in the input cell G2 from “Mavs” to “Rockets”. Following this straightforward change, executing the exact same macro again will instantaneously yield the points corresponding to the “Rockets” team, clearly demonstrating the responsiveness and inherent efficiency of our automated solution.

As the illustration confirms, the simple modification of the input in G2 to “Rockets” and the subsequent re-running of the macro correctly updates cell H2 with the new team’s score (18). This seamless adjustment powerfully underscores how VBA empowers users to engineer highly responsive and remarkably adaptable data analysis and reporting tools, making Excel applications significantly more robust and user-friendly in complex, real-world data environments.

Critical Considerations and Best Practices for Implementation

While WorksheetFunction.HLookup is undoubtedly an invaluable tool for horizontal data retrieval in VBA, developers must proactively address several crucial aspects to guarantee that the resulting code is robust, entirely error-free, and performs with high efficiency. One paramount concern is effective error handling. If the specified lookup_value cannot be successfully located within the first row of the defined table_array, and the range_lookup argument is set to False (mandating an exact match), the HLOOKUP function will inevitably trigger a runtime error in your VBA code. This error can abruptly halt the execution of your automation macro, negatively impacting the user experience.

To prevent unexpected crashes caused by these unhandled errors, it is strongly recommended that developers implement effective error trapping mechanisms. A standard and powerful approach involves employing the On Error Resume Next statement at the beginning of the Sub procedure, followed by a subsequent check to determine if the result of the lookup operation is an error value (e.g., #N/A). For example, utilizing a conditional statement such as If IsError(Range("H2").Value) Then... allows you to gracefully manage scenarios where no match is found. This technique enables you to provide custom, informative feedback to the user, display a clean “Not Found” message, or log the issue for later review, ensuring a significantly smoother and more professional user experience and enhancing the stability of the application.

Another critical consideration is performance optimization, particularly when dealing with excessively large datasets. Although HLOOKUP performs efficiently for moderate data sizes, for extremely expansive tables or scenarios requiring numerous, frequent lookup operations, alternative function combinations can often offer superior speed and computational power. Specifically, combining the INDEX and MATCH functions, both readily accessible through the WorksheetFunction object in VBA, provides enhanced flexibility and frequently proves more performant, especially when complex criteria or highly dynamic row retrieval is necessary. Nevertheless, for the majority of straightforward horizontal lookup tasks, WorksheetFunction.HLookup remains a clear, easily maintainable, and highly effective choice.

Finally, meticulous attention must be paid to the crucial distinction between requesting an exact match (False) and an approximate match (True). For the approximate match feature to function correctly and deliver reliable results, the first row of your table_array is an absolute requirement to be sorted in strict ascending order. Failure to properly sort the data will inevitably result in incorrect or unpredictable lookup outcomes, severely compromising data integrity. For precise data retrieval where exact correspondence is paramount, always explicitly specify False as the final argument to guarantee accurate results and maintain the integrity of your lookup operation.

Further Learning and Essential Resources

Mastering the diverse array of lookup functions available in Excel and their powerful integration with VBA fundamentally elevates your data analysis and automation capabilities. The HLOOKUP function, as thoroughly detailed in this guide, provides a critical foundational element in this advanced skill set, but there is a vast and exciting range of additional functionalities to explore within the Excel object model.

For the most comprehensive details and exploration of advanced usage scenarios concerning the VBA HLookup method, developers should always prioritize consulting the official Microsoft documentation. This authoritative source offers in-depth explanations of all parameters, meticulously outlines potential runtime errors that may be encountered, and provides supplementary code examples that are essential for refining your understanding and practical application of this powerful function in complex projects.

To further solidify your proficiency in VBA and Excel automation, we highly recommend exploring other related lookup functions and core programming concepts. Building upon the foundational knowledge gained here with these supplementary resources will empower you to tackle even the most complex data challenges efficiently, ultimately transforming you into a highly adept Excel and VBA user capable of creating advanced, robust analytical tools and reports.
