Learning Range Intersection with VBA: A Comprehensive Guide with Examples

The Intersect method in VBA is an indispensable component of the Application object, offering developers and advanced Excel spreadsheet users a highly precise mechanism for manipulating Range objects. Its core purpose is remarkably straightforward yet immensely powerful: it determines and returns a new Range object that strictly represents the common area where two or more specified ranges overlap. This analytical capability is absolutely fundamental for creating conditional operations, implementing sophisticated data filtering routines, or ensuring that specific actions, such as formatting or calculation, are confined only to the shared segments of a worksheet.

Achieving mastery over the utility of Intersect is critical for developing automation scripts that are both robust and exceptionally efficient. By leveraging this built-in application method, programmers can bypass the need to write convoluted, resource-intensive loops that manually iterate through cell addresses to detect overlaps. This method accelerates execution and simplifies the underlying logic substantially. While the Intersect method finds its most frequent application within subroutines or custom functions defined inside the VBA editor, it also possesses the flexibility to be exposed directly to the worksheet environment. We can accomplish this by creating a User-Defined Function (UDF), allowing end-users to utilize its powerful intersection logic directly within standard spreadsheet formulas, as we will demonstrate through several practical examples.

Core Implementation: Exposing Intersect to the Worksheet

The most practical and common approach for leveraging the Intersect method directly within a cell formula in an Excel spreadsheet is by encapsulating the application method within a user-defined Function. This wrapper allows the custom function to accept one or more range references as input arguments. It then executes the intersection logic and returns the resulting intersection range’s value or values, providing immediate, dynamic feedback to the user regarding the overlap of the input areas.

This UDF structure must be designed with both clarity and reliability in mind. It requires explicit variable declaration for robust performance and, most importantly, crucial error handling to manage scenarios where no overlap exists between the provided ranges. Without proper error handling, attempting to access properties of a non-existent intersection range will inevitably lead to a run-time error, halting the execution. The following structure defines a reliable user-defined function named FindIntersect, which includes the necessary range declaration and essential error management.

Function FindIntersect(range1 As Range, range2 As Range)
    Dim IntersectionRange As Range

    Set IntersectionRange = Application.Intersect(range1, range2)

    If Not IntersectionRange Is Nothing Then
        FindIntersect = IntersectionRange.Value
    Else
        FindIntersect = "No Intersection"
    End If
End Function

The code above is enhanced with explicit variable declaration using the As Range keyword, which promotes type safety and readability. The critical element is the error handling block: If Not IntersectionRange Is Nothing Then. When this Function is executed from a cell in an Excel spreadsheet, it first checks for an overlap. If an intersection is successfully identified, the function returns the content values contained within that resulting range object. Conversely, if no common area is found, the function gracefully returns the defined text message, “No Intersection,” thereby preventing potential run-time errors and improving the overall user experience.

Dataset Used for Practical Examples

To provide a concrete foundation for understanding how the Intersect method behaves under various operating conditions, we will utilize a consistent sample dataset across all subsequent examples. This structured data, comprising several columns and multiple rows, offers the necessary complexity and scope required to define demonstrably overlapping ranges for our practical exercises.

This sample dataset spans columns A through C and incorporates eleven rows of information, including the essential header row. Utilizing this data, we will proceed to explore two distinct and highly representative examples. The first will illustrate how to calculate an intersection resulting in a single, isolated cell. The second will demonstrate the method’s capability to return a multi-cell rectangular range, effectively showcasing the flexibility and precision of the Application.Intersect method in various data scenarios.

Example 1: Finding an Intersection Resulting in a Single Cell

In our first practical scenario, the primary objective is to precisely isolate the single cell value that resides exactly at the convergence point of a defined horizontal range and a specific vertical range. For instance, imagine we need to locate the single data point common to the row range A2:C2 and the comprehensive column range A1:A11. This task perfectly demonstrates the method’s ability to pinpoint specific data locations.

The procedure begins by defining these two input ranges—one spanning the row and one spanning the column—and then invoking our previously created custom VBA function directly within the worksheet environment. The inherent and deterministic logic of the intersection operation dictates that when comparing the entire second row segment (cells A2, B2, and C2) against the entire first column segment (cells A1 through A11), the only cell shared by both boundaries is cell A2.

We rely entirely on the established FindIntersect Function, which resides efficiently within the standard module of our VBA project, to execute this boundary computation:

Function FindIntersect(range1 As Range, range2 As Range)
    Dim IntersectionRange As Range

    Set IntersectionRange = Application.Intersect(range1, range2)

    If Not IntersectionRange Is Nothing Then
        FindIntersect = IntersectionRange.Value
    Else
        FindIntersect = "No Intersection"
    End If
End Function

By entering the formula =FindIntersect(A2:C2, A1:A11) into any convenient cell on the spreadsheet, we instruct Excel to calculate the intersection based on the defined row and column boundaries of the two input Range objects. This calculation is instantaneous and highly efficient.

Following successful execution of the formula, the output cell returns the value Mavs. This outcome unequivocally confirms that cell A2, which contains the text value “Mavs,” is the singular, precise point of overlap between the specified horizontal range A2:C2 and the comprehensive vertical range A1:A11. This demonstration validates the method’s accuracy in identifying single-cell intersections, which is a fundamental requirement for many data validation and conditional formatting tasks.

Example 2: Finding an Intersection Resulting in Multiple Cells (A Range)

The utility of the Intersect method extends far beyond isolating single cells; it is designed to return an entire rectangular Range object whenever the input ranges share a larger, contiguous common area. For this next example, we will focus on determining the intersection between the range A1:C3 and the range A1:B10, showcasing how the method calculates shared boundaries.

To accurately predict the outcome of this specific intersection, we must methodically analyze the boundaries imposed by both input ranges:

• Range 1 (A1:C3) spans horizontally across columns A, B, and C, and vertically across rows 1, 2, and 3.
• Range 2 (A1:B10) spans horizontally across columns A and B, and vertically across rows 1 through 10.

The resulting intersection must simultaneously satisfy the constraints of both ranges. By comparing the boundaries, we establish that the common columns are restricted to A and B, and the common rows are limited to 1, 2, and 3. Consequently, the resulting intersection range is defined precisely as A1:B3, a multi-cell region containing six individual cells.

We again utilize the identical FindIntersect Function derived from our VBA module for the calculation:

Function FindIntersect(range1 As Range, range2 As Range)
    Dim IntersectionRange As Range

    Set IntersectionRange = Application.Intersect(range1, range2)

    If Not IntersectionRange Is Nothing Then
        FindIntersect = IntersectionRange.Value
    Else
        FindIntersect = "No Intersection"
    End If
End Function

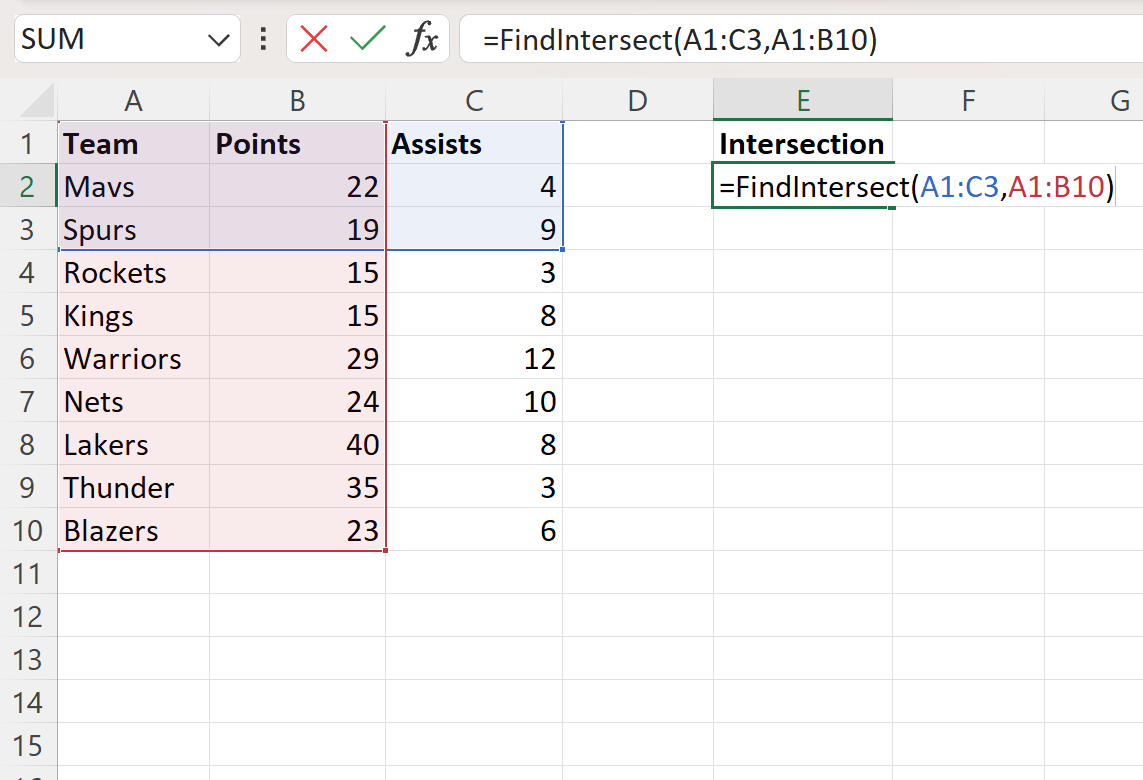

When we input the formula =FindIntersect(A1:C3, A1:B10) into a single cell on the spreadsheet, we observe a key behavior of User-Defined Functions: when a UDF is designed to return a multi-cell range to a single spreadsheet cell, Excel, by default, returns only the value of the top-left cell of the resulting range. In this case, the top-left cell of the resulting A1:B3 range is A1, which contains the header value “Team”.

It is vital to understand the distinction in execution environments. When the Intersect method is executed within the pure VBA execution context (such as within a Subroutine or a standard procedure), it returns the complete Range object corresponding to A1:B3. This capability empowers the developer to immediately perform bulk actions on all cells within that identified overlap region, such as applying specific formatting, clearing content, or calculating an aggregate sum for that specific data subset.

Advanced Usage and Mandatory Error Handling in VBA Procedures

A critically important aspect of using the Intersect method, especially when coding complex automation tasks, is the requirement for robust error handling. Unlike some other VBA methods that might return an empty range object, Application.Intersect returns the value Nothing if the specified ranges do not overlap at all. This distinction is crucial because attempting to access any property (such as .Address, .Count, or .Value) on a variable that holds the value Nothing will immediately trigger a catastrophic run-time error (Error 91: Object variable or With block variable not set).

Therefore, the standard and professional approach for writing resilient code necessitates using the Is Nothing operator immediately after setting the intersection variable. This validation step ensures that the code proceeds to manipulate the range object only if a valid, overlapping range was successfully identified, thereby preventing program crashes, particularly in scenarios where range definitions are dynamic or based on user input.

Sub CheckRangeOverlap()
    Dim Rng1 As Range
    Dim Rng2 As Range
    Dim Overlap As Range

    Set Rng1 = ActiveSheet.Range("A1:C5")
    Set Rng2 = ActiveSheet.Range("C3:E7") ' These ranges partially overlap (C3:C5)

    Set Overlap = Application.Intersect(Rng1, Rng2)

    If Not Overlap Is Nothing Then
        MsgBox "Overlap found at: " & Overlap.Address & " containing " & Overlap.Cells.Count & " cells."
        Overlap.Interior.Color = RGB(255, 255, 0) ' Highlight the intersection
    Else
        MsgBox "No common area found between the ranges."
    End If
End Sub

This error-checking pattern is indispensable, especially when implementing event handlers within Excel. A classic example is utilizing Application.Intersect(Target, Range("A1:C10")) within the Worksheet_SelectionChange event. This allows the code to efficiently determine whether the user has selected a cell (represented by the Target range) that falls within a designated input area (e.g., A1:C10). The robust check ensures that the event procedure runs smoothly even when the user selects cells outside the monitored area.

Note: For developers seeking exhaustive detail on the arguments, return behaviors, and advanced uses of the VBA Intersect method, the complete official documentation is maintained on the Microsoft Developer Network (MSDN).

Complementary Methods for Comprehensive Range Manipulation

Successfully mastering the Intersect method represents a significant milestone, often serving as the gateway to developing truly advanced automation routines in Excel. For professionals committed to further enhancing their proficiency in handling and dynamically manipulating the Range object, it is highly recommended to explore methods that complement the intersection logic covered here.

Key concepts that work in tandem with Application.Intersect for complete range control include:

• The Application.Union Method: This method serves as the logical inverse of intersection. It is used to combine two or more non-contiguous or disjointed ranges into a single, comprehensive Range object. This capability is essential for managing complex, scattered selections where action needs to be applied uniformly.
• The Range.Offset and Range.Resize Properties: These properties are foundational for dynamic programming. .Offset allows a developer to move an existing range relative to its current position, while .Resize enables the adjustment of a range’s dimensions (rows and columns). These are often necessary when operating on data immediately adjacent to or derived from an intersected area.
• Working with Named Ranges: Implementing defined names (e.g., “Data_Table” instead of “A1:C100”) simplifies complex code and drastically improves readability and maintainability. This practice is crucial, especially when dealing with intersection logic that spans multiple worksheets or workbooks.

Further specialized tutorials and documentation are available that explain how to perform other common tasks in VBA and expand upon robust range manipulation techniques:

• Detailed guides on how to use the Application.Union Method for combining multiple ranges effectively and safely.

• Essential techniques for efficiently looping through every cell contained within an intersected range for performing complex data validation or processing tasks.

• Best practices for using the Range.Find method for efficient, non-case-sensitive data searching within large, production-level datasets.
