Use Italic Font in R (With Examples)

Introduction to Advanced Text Styling in R Graphics

The production of high-quality, publication-ready data visualizations necessitates precise control over every graphical element, including text formatting. Within the
R environment, particularly when utilizing base graphics functions, applying specific font styles like
italicization to components such as titles, axis labels, or critical annotations requires a specialized methodology. This requirement stems from the fact that standard character strings are not automatically interpreted as graphical expressions capable of handling complex formatting commands.

To successfully render italic font within
R plots, we must leverage R’s powerful expression parsing capabilities. These functions are designed to transform conventional text into mathematical or graphical expressions that the plotting engine can accurately interpret and display. This comprehensive tutorial will guide you through the exact syntax needed to implement italic formatting consistently across various plot elements, ensuring your data visualizations maintain both aesthetic integrity and scientific rigor.

The Necessity of the Plotmath Engine

The core challenge in applying sophisticated formatting in R graphics lies in how the language processes text. Unlike standard text processors,
R uses a specialized rendering system known as
plotmath. This engine is specifically designed to handle complex mathematical notation, Greek symbols, superscripts, and, crucially, font styling like italics and bolding, within the graphical output. If text is passed to a plotting function as a simple quoted string, the plot engine treats it literally, ignoring any embedded formatting commands.

To compel R to interpret your text as a format-able expression, we must combine three essential functions: substitute(), paste(), and the style-specific function, italic(). This functional combination converts a standard character input into a valid plotmath expression. Understanding this transformation is fundamental to mastering text customization in base R graphics.

Mastering the Core Syntax for Italic Formatting

Generating italicized content requires wrapping the desired text within a series of nested functions that prepare the input for the plotmath engine. The structure begins with the italic() function, which explicitly marks the enclosed string for italic rendering. This styled string is then processed by
paste(), which is used to concatenate various text segments (italicized, bold, standard, or mathematical symbols) into a single unified expression.

Finally, the entire expression must be enclosed within the
substitute() function. The primary role of substitute() here is to capture the function calls (like paste() and italic()) and prevent R from evaluating them immediately as character strings. Instead, it passes the unevaluated expression to the plotting function, allowing the
plotmath engine to handle the graphical rendering.

The fundamental syntax required to achieve italic font styling in
R plots is demonstrated below:

substitute(paste(italic('this text is italic')))

The text input enclosed within the italic() function will be successfully rendered in italics on the final visualization output. The subsequent examples illustrate how to apply this essential structure effectively to various components of your data visualization.

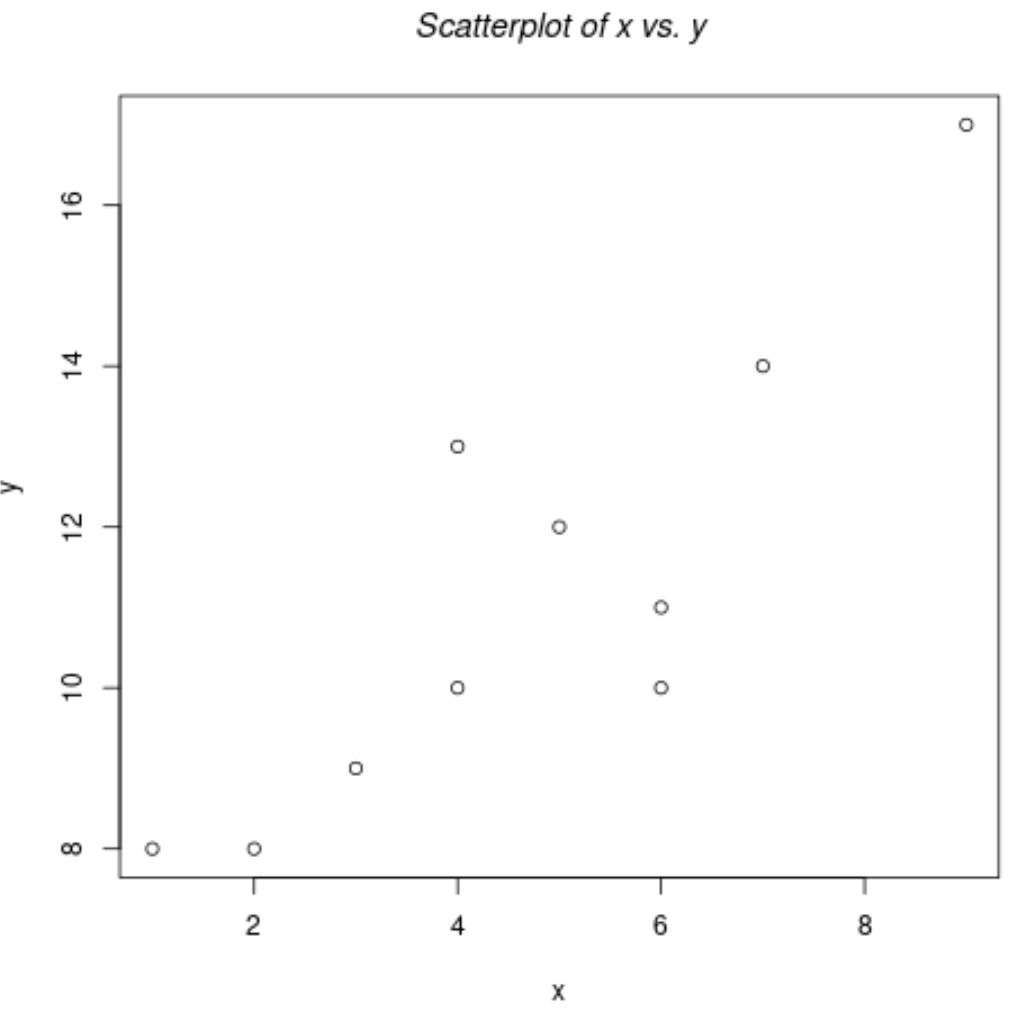

Example 1: Applying Italic Font to Plot Titles

Formatting the main title is arguably the most frequent application of text styling in R graphics. Titles often contain critical terms, statistical hypotheses, or taxonomic names (such as species names), which require italic formatting to comply with academic or publication standards. The substitute(paste(italic())) structure can be integrated directly into the main argument of the plot() function.

In this first demonstration, we establish a basic dataset and then generate a
scatterplot where the entire title is rendered using an italicized font, confirming the successful implementation of the plotmath expression.

#define data
x <- c(1, 2, 3, 4, 4, 5, 6, 6, 7, 9)
y <- c(8, 8, 9, 10, 13, 12, 10, 11, 14, 17)

#create scatterplot with title in italics
plot(x, y, main = substitute(paste(italic('Scatterplot of x vs. y'))))

A more advanced and frequently necessary technique involves applying italic font to only a specific segment of the title while leaving the remaining text in the default font style. To achieve this selective styling, we must utilize the
paste() function to join the formatted (italicized) segment with the unformatted (standard) segment. It is vital that both segments remain within the scope of the
substitute() wrapper. Observe how the text ‘ x vs. y’ is placed outside of the italic() wrapper but remains an argument within the paste() function.

#create scatterplot with only some of title in italics
plot(x, y, main = substitute(paste(italic('Scatterplot of'), ' x vs. y')))

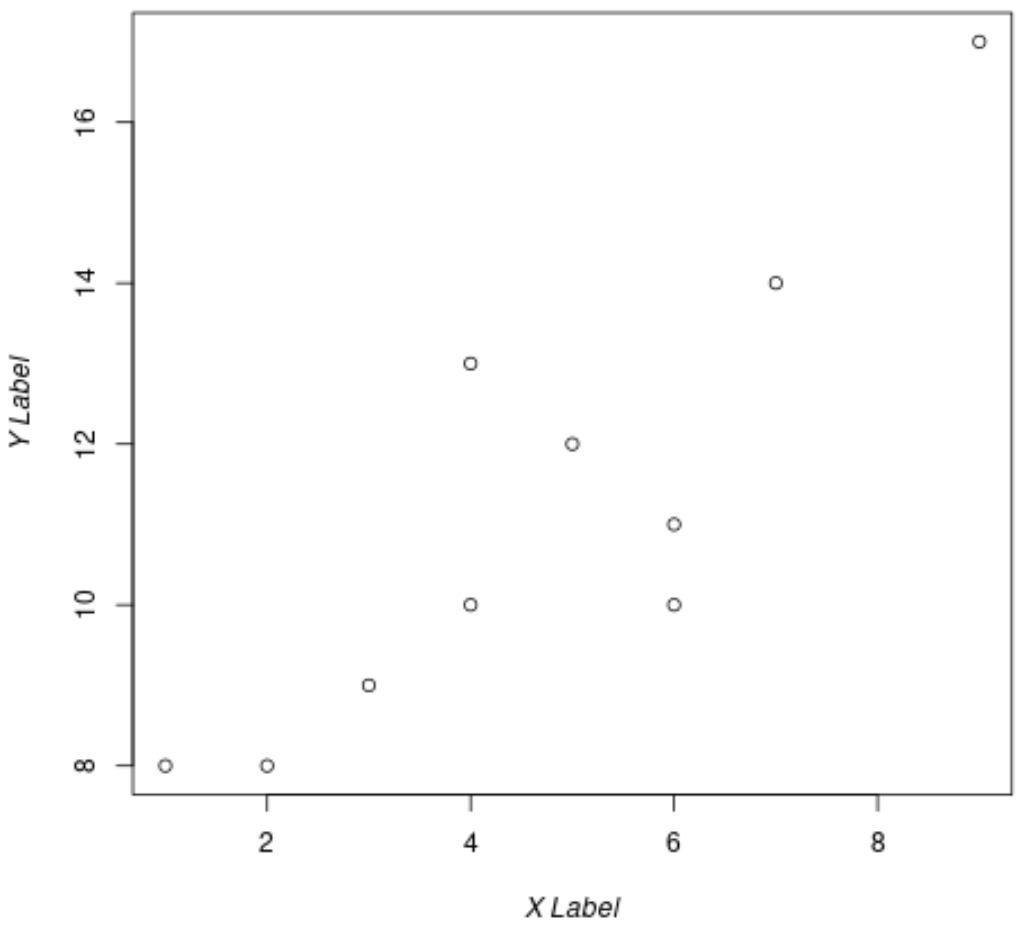

Example 2: Formatting Axis Labels with Italic Font

Axis labels defined by the xlab and ylab arguments often represent key variable names, parameters, or units that benefit significantly from specialized formatting, such as bolding or italicization. Fortunately, applying italics to axis labels employs the exact same logical structure used for the plot title, providing consistency across all text elements within the plotting environment.

Using our established dataset, we can specify the italic font style for both the x-axis label and the y-axis label simultaneously. This feature proves especially useful when variable names are derived from complex statistical notation or standardized scientific terminology that conventionally requires emphasis.

#define data
x <- c(1, 2, 3, 4, 4, 5, 6, 6, 7, 9)
y <- c(8, 8, 9, 10, 13, 12, 10, 11, 14, 17)

#create scatterplot with axes labels in italics
plot(x, y, xlab = substitute(paste(italic('X Label'))),
           ylab = substitute(paste(italic('Y Label'))))

When implementing this technique for axis labels, it is critical to ensure that the entire expression—including the paste() and italic() functions—is passed as the value for the xlab or ylab parameter. Failure to include the
substitute() wrapper will cause
R to interpret the input as a literal character string, resulting in the actual R code being displayed on the axis instead of the formatted text.

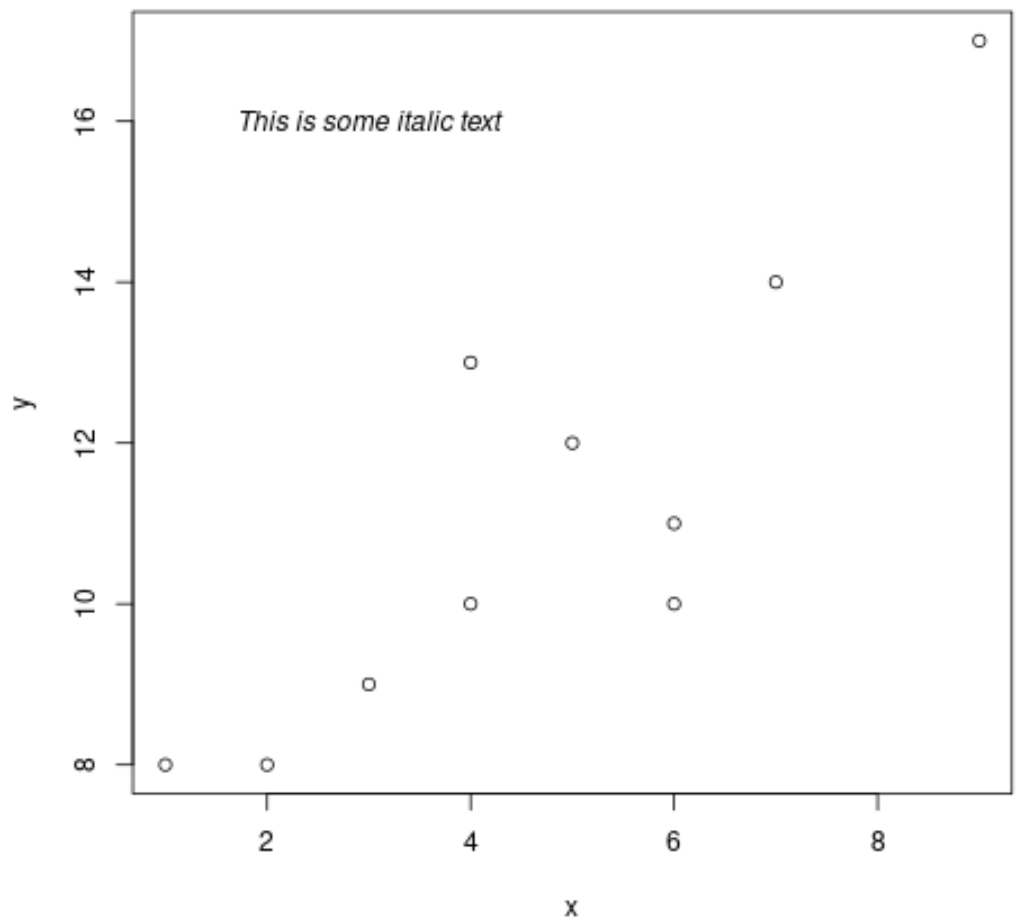

Example 3: Inserting Italic Text Annotations within the Plot Area

In addition to standard titles and axis labels, data visualizations often require internal annotations to draw attention to specific data points, summarize trends, or display derived statistical results. The text() function in R is the primary tool used to place custom text at precise coordinates within the plotting region.

If this internal text needs to be italicized, you must supply the identical expression structure to the text() function’s label argument. This adherence to the
plotmath formatting rules ensures that the annotation is rendered correctly and consistently with the other styled elements of the graphic.

The following code demonstrates how to first generate a standard
scatterplot, and then use the text() function to add an italicized annotation at the specific coordinates (x=3, y=16) to provide context or commentary on the data distribution.

#define data
x <- c(1, 2, 3, 4, 4, 5, 6, 6, 7, 9)
y <- c(8, 8, 9, 10, 13, 12, 10, 11, 14, 17)

#create scatterplot
plot(x, y)

#add italic text at location x=3, y=16
text(3, 16, substitute(paste(italic('This is some italic text'))))

This approach offers substantial flexibility. Researchers often use this technique to dynamically insert statistical output (such as R-squared values or regression coefficients) into the plot area, ensuring that any variable names or required notation within that output are correctly displayed using italics, thereby significantly enhancing the descriptive power and technical accuracy of the visualization.

Expanding Text Styling Capabilities in R

While the focus of this guide is specifically on achieving italicization using the italic() function, it is essential to appreciate that R’s expression parsing capabilities are vast. The plotmath environment facilitates a comprehensive range of sophisticated textual outputs well beyond simple font styling. This includes the seamless integration of complex mathematical formulas, Greek letters, superscripts, subscripts, and combinations of different font weights.

For instance, if the requirement is to display text in bold italics, you can easily nest the relevant functions: substitute(paste(bold(italic('text')))). Similarly, combining standard text with a mathematical symbol is accomplished by passing the symbol as an argument within the
paste() expression alongside the text strings. Mastering the seamless interaction between
substitute(), paste(), and the various plotmath functions is indispensable for generating high-quality, technically precise graphics in
R.

Summary of R Text Formatting Essentials

Effectively styling text in
R plots requires a departure from treating text as simple character strings. Instead, one must embrace R’s specialized mechanism for graphical expressions. By consistently applying the core structure substitute(paste(italic('text'))), developers and analysts can ensure that titles, axis labels, and internal annotations are rendered precisely in italic font.

This methodology is crucial for customizing base R graphics, providing users with the robust, granular control necessary for the clear and professional visual communication of complex statistical information.
