Learning to Extract Conditional Data in Excel Using the LARGE IF Function

Mastering Conditional Data Extraction in Excel

In the dynamic environment of Microsoft Excel, effective data analysis frequently requires the extraction of specific values based on defined conditions. While the standard LARGE function is highly efficient at identifying the Nth largest value within a numerical range, it inherently lacks the capability to filter that data according to external criteria. This limitation necessitates a more sophisticated approach, which is achieved by seamlessly combining the power of LARGE with the versatile IF function.

The synergy between these two functions enables users to perform complex, conditional calculations that go far beyond simple ranking. For instance, you can precisely identify the 3rd highest score achieved by students in a specific course or pinpoint the 2nd largest sales figure attributed exclusively to the North region. This technique is typically implemented as an array formula, opening up profound analytical opportunities within your spreadsheets. This comprehensive guide will walk you through the practical deployment of the LARGE IF function in Excel, detailing scenarios involving both single and multiple conditional tests.

We will focus on two foundational formulas that encapsulate the core functionality of the LARGE IF method, providing the basis for all conditional Nth largest value calculations:

Formula 1: LARGE IF with a Single Criterion

=LARGE(IF(A2:A16="A",C2:C16),2)

This formula is engineered to locate the 2nd largest numerical value within the designated range C2:C16, contingent upon the corresponding cell in A2:A16 meeting the exact condition of being equal to “A”. It serves as a powerful, targeted filter before the largest value retrieval occurs.

Formula 2: LARGE IF with Multiple Criteria

=LARGE(IF((A2:A16="A")*(B2:B16="Guard"),C2:C16),2)

This advanced formula expands the filtering capabilities by identifying the 2nd largest value in C2:C16 only for rows that satisfy two conditions simultaneously: the value in A2:A16 must be “A” and the value in B2:B16 must be “Guard.” This structure demonstrates how to implement the logical AND operation efficiently within an array formula framework. The subsequent sections will detail how to deploy these formulas using a consistent sample dataset.

The Mechanics: Understanding LARGE and IF in Concert

To fully leverage the combined LARGE IF functionality, it is essential to first understand the individual roles and operations of the LARGE function and the IF function. Their seamless interaction is what transforms a standard ranking tool into a conditional analytical powerhouse.

The LARGE function is a statistical tool in Excel designed to return the k-th largest value in a numerical array or dataset. Its syntax, LARGE(array, k), requires two arguments: ‘array’ (the range of numerical data) and ‘k’ (the rank position, where 1 is the absolute largest). Crucially, the LARGE function is built to handle numerical inputs and cannot natively filter data based on text or external conditions in other columns.

Conversely, the IF function is the primary mechanism for conditional logic in Excel, following the structure IF(logical_test, value_if_true, value_if_false). When deployed within an array formula, the IF function processes the condition across an entire range, generating an intermediate array. For every row where the condition is met, the corresponding numerical value is passed to the array (the ‘value_if_true’). For every row where the condition fails, the function typically returns the boolean value FALSE, which acts as a numerical null value.

The ingenuity of the nested structure lies in how the output of IF is interpreted by LARGE. The LARGE function is designed to gracefully ignore non-numerical values, including FALSE, when calculating the k-th largest number. Consequently, the IF function effectively filters the data down to only the relevant numerical values, passing this clean, filtered array to LARGE for the final ranking calculation.

Implementing LARGE IF with a Single Criterion

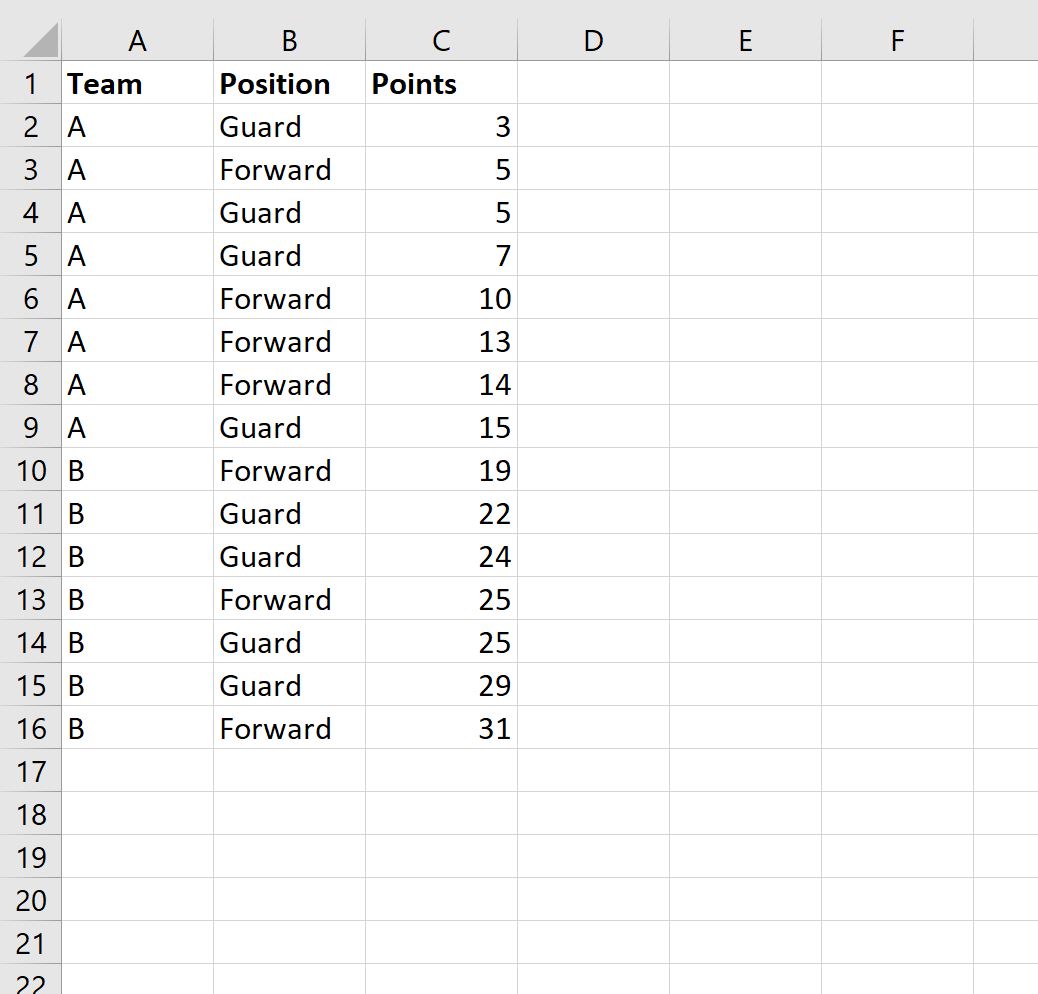

The most common application of this powerful technique involves filtering a dataset based on one specific condition. This single criterion scenario is perfect for targeted analysis, such as isolating performance metrics for a single product line, location, or team. Let us use our example data to find the 2nd largest points value specifically associated with “Team A.”

To execute this task, we input the first core formula. It is critical to remember that because this formula operates on arrays rather than single cells, it must be entered as an array formula in most traditional versions of Excel:

=LARGE(IF(A2:A16="A",C2:C16),2)

The logic sequence is straightforward: the IF function first evaluates the range A2:A16 for the condition “A”. If the condition is TRUE, the corresponding points value from C2:C16 is returned; if FALSE, the value FALSE is returned. This intermediate array is then processed by the LARGE function, which finds the 2nd largest number among the points that belong only to “Team A,” effectively ignoring all other data points.

When implementing this formula in Excel, you must press Ctrl+Shift+Enter simultaneously after typing the formula. This action signals to Excel that the formula should handle arrays, automatically enclosing the formula in curly braces (e.g., {=LARGE(IF(A2:A16=”A”,C2:C16),2)}). Failing to use this key combination will typically result in a standard calculation error rather than the intended array calculation. The visual result of this successful calculation is demonstrated below:

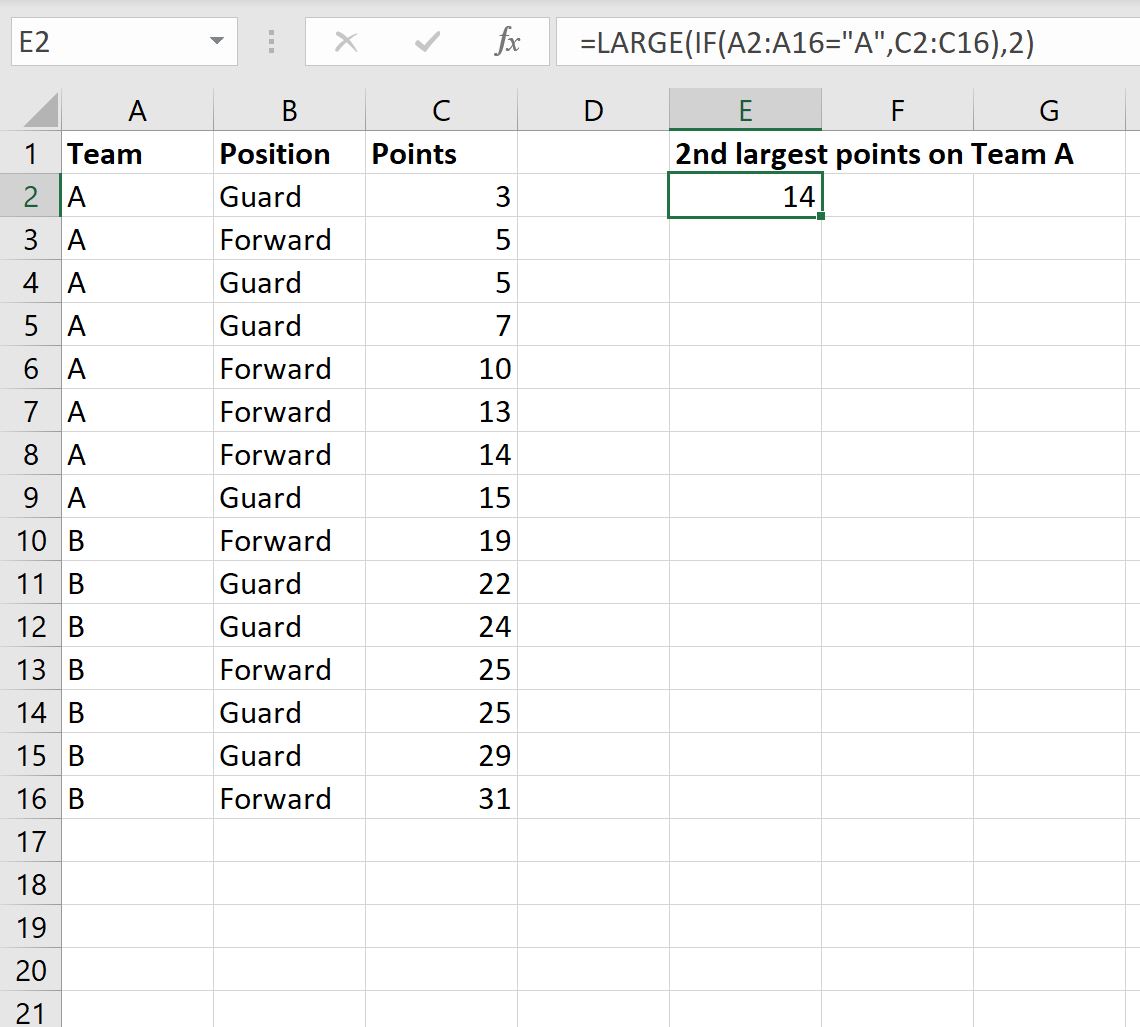

The output confirms that the 2nd highest points total achieved by any player on Team A is 14. This ability to filter and rank simultaneously provides analysts with an invaluable tool for precise data segmentation.

Conditional Ranking with Logical AND (Multiple Criteria)

In real-world data analysis, filtering often requires satisfying multiple conditions simultaneously. The LARGE IF technique can easily accommodate these complex requirements by incorporating a logical AND structure within the IF function‘s test argument. For our example, we aim to find the 2nd largest points value for players who are on “Team A” AND play the “Guard” position.

The formula for handling multiple criteria involves nesting the conditions and linking them with the multiplication operator (`*`), which serves as the logical AND for array formulas:

=LARGE(IF((A2:A16="A")*(B2:B16="Guard"),C2:C16),2)

The core of this advanced filtering method is the arithmetic handling of Boolean values. Each conditional test, such as (A2:A16="A"), generates an array of TRUEs and FALSEs. When Excel performs arithmetic operations, TRUE is treated as the numerical value 1, and FALSE is treated as 0. Therefore, multiplying these two arrays—(Condition 1) * (Condition 2)—results in a final array where only rows satisfying both conditions (1 * 1 = 1) yield a 1. Any row failing either or both conditions results in a 0 (or FALSE), ensuring that only the data points meeting the complex criteria are activated for the final calculation.

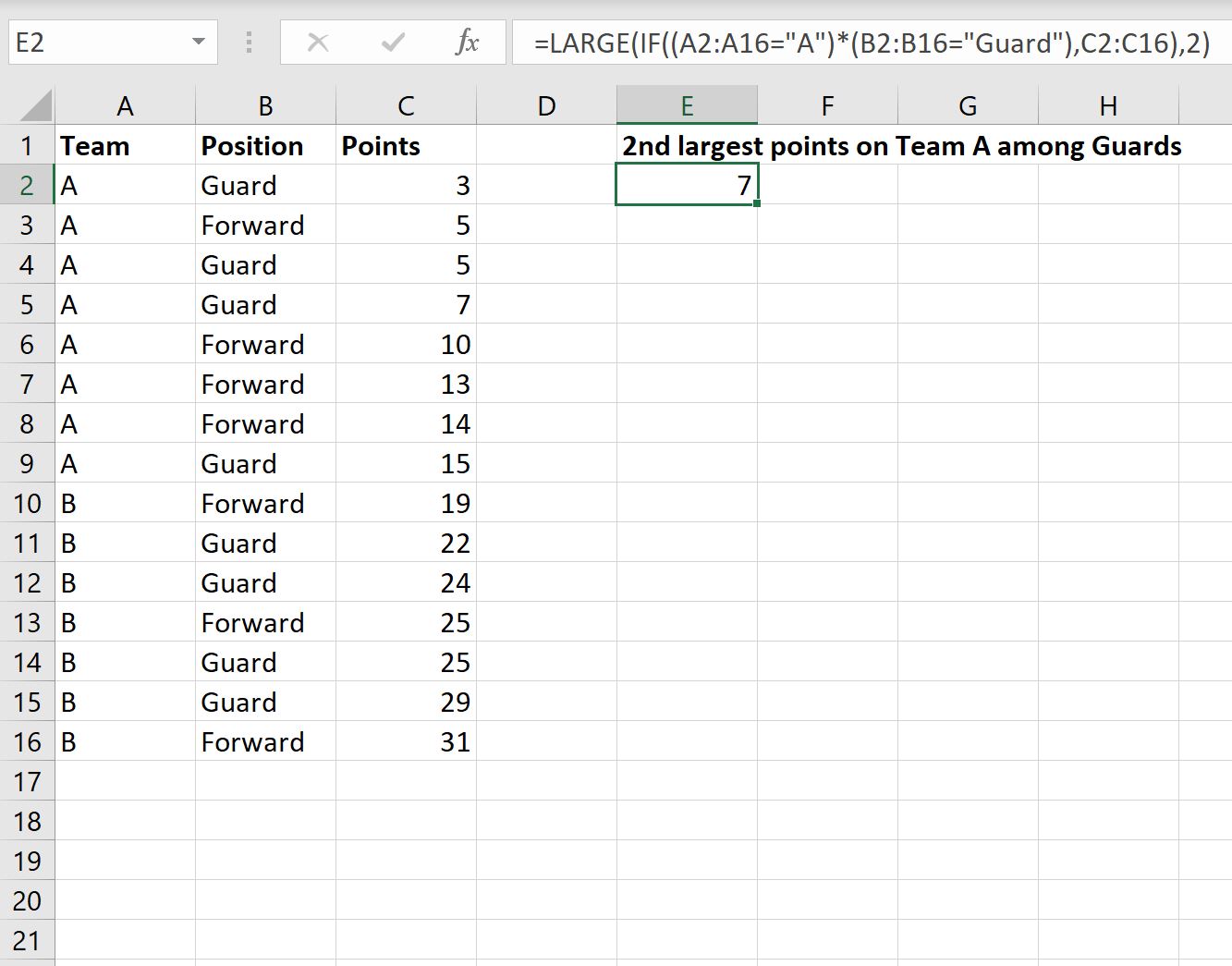

As with the single criterion example, this formula must be confirmed by pressing Ctrl+Shift+Enter to enable its array processing capability. The resulting array passed to the LARGE function contains only the points values for Team A Guards, with all other rows being filtered out by the FALSE values. The demonstrated outcome is as follows:

The calculated result, 7, is the 2nd largest points total achieved solely by “Guards” on “Team A.” This powerful technique allows for incredibly granular and precise analysis, transforming how users interact with complex Excel spreadsheets.

Best Practices and Essential Considerations

While the LARGE IF function is unmatched for conditional ranking, its implementation requires attention to detail regarding entry method, error handling, and performance to ensure robust spreadsheet design.

The paramount consideration is the correct entry of the array formula. For most users of traditional Excel versions, the necessity of pressing Ctrl+Shift+Enter cannot be overstated, as this combination is what tells the software to process the formula across entire ranges simultaneously. Users of modern Excel versions featuring Dynamic Arrays might find this step unnecessary, as array handling is often implicit; however, using Ctrl+Shift+Enter remains a reliable habit for maximum compatibility.

Another crucial element is handling scenarios where no data matches the specified criteria. If the filtering process yields an array containing only FALSE values, the LARGE function cannot calculate the k-th largest number and will return a disruptive #NUM! error. To maintain a clean and user-friendly output, it is highly recommended to wrap your LARGE IF construction within the IFERROR function. For example, =IFERROR(LARGE(IF(…),2),”No matching data”) will display a custom, informative message instead of an error code when the filter returns no results.

Finally, analysts must consider performance, especially when working with extensive datasets. Traditional array formulas, though effective, are resource-intensive. If your spreadsheet begins to suffer from calculation lag, an efficient alternative is the AGGREGATE function, which can handle complex array operations (including LARGE and SMALL) while offering superior performance and built-in options for ignoring errors or hidden cells, thus providing a more scalable solution for large-scale data management.

Related Conditional Functions and Further Exploration

The foundational principles used to combine LARGE and IF are transferable to other key statistical functions in Excel, allowing you to conduct a full spectrum of conditional numerical analyses.

A direct counterpart to this technique is the SMALL IF function. By substituting LARGE with SMALL, you can find the Nth smallest value that satisfies your specified criteria. For instance, =SMALL(IF(A2:A16=”B”,C2:C16),1) would identify the absolute minimum points value recorded for players on “Team B.” Similarly, conditional maximum and minimum values—MAX IF and MIN IF—can be derived simply by setting the ‘k’ argument to 1 in the respective LARGE IF or SMALL IF constructions.

For high-volume data operations or complex array calculations, especially when dealing with nested errors or large datasets, the AGGREGATE function is often the superior choice. It offers the functionality of both LARGE and SMALL (among 17 other functions) and can process array calculations without the cumbersome Ctrl+Shift+Enter requirement, leading to faster calculation times and cleaner formulas.

To further advance your conditional data manipulation skills in Excel, we recommend focusing on these related concepts:

• SUMPRODUCT function for efficient conditional summing, counting, and averaging without traditional array entry.
• INDEX and MATCH functions combined with conditional logic for advanced, dynamic lookups.
• Introduction to Dynamic Array formulas (e.g., FILTER, SORT) available in modern Excel, which provide native conditional filtering capabilities.

Conclusion: The Efficiency of Conditional Ranking

The LARGE IF function represents a fundamental technique for advanced data filtering and ranking in Excel. By cleverly nesting the IF function inside the LARGE function and executing it as an array formula, you gain the precise control needed to extract the Nth largest numerical value based on single or multiple text and numerical conditions within your datasets.

This method is essential for targeted analysis, enabling you to move beyond broad aggregates to pinpoint specific data points—whether you are determining the second-best performance within a filtered category or identifying the third-highest cost associated with a particular project phase. By ensuring correct array entry via Ctrl+Shift+Enter (or leveraging dynamic arrays) and integrating robust error handling, the LARGE IF technique provides a clean, accurate, and highly efficient framework for transforming raw spreadsheet data into actionable intelligence.
