Use lines() Function in R (With Examples)

Enhancing Data Visualizations with the lines() Function in R

The R programming language is universally recognized as a cornerstone tool for statistical computing and the generation of high-quality, informative graphics. Integral to its functionality is the powerful yet flexible base R graphics system, which provides analysts with an intuitive methodology for transforming complex raw data into clear visual representations. While the foundation of any plot is typically established using primary functions such as plot(), effective and comprehensive data analysis often necessitates layering supplementary information onto this initial visualization. This need arises whenever researchers must compare multiple distinct data series, overlay complex theoretical models, or highlight calculated trends like regression lines.

This requirement defines the crucial role played by the lines() function. Unlike plotting functions that initiate a graphic from a blank canvas, lines() operates exclusively on an active graphics device, allowing users to efficiently draw continuous line segments that connect a defined sequence of coordinate points. This additive approach is essential for enriching graphical outputs without the cumbersome task of redefining the entire plot structure. By leveraging lines(), users can seamlessly integrate elements such as prediction intervals, fitted curves, or the calculated trajectory of a time series directly onto their existing graphs, substantially deepening the analytical insight provided by the visualization.

For any data scientist operating within the R environment, mastering the application of the lines() function is paramount. It grants precise control over the visual narrative, enabling clear and immediate differentiation between raw observed data and fitted analytical results. This tutorial will meticulously detail the function’s syntax, essential parameters, and practical implementation strategies. The objective is to ensure you can effectively augment your statistical plots, making them more robust, visually compelling, and analytically sound for demanding reports and presentations.

Deconstructing the Syntax and Parameters of the lines() Function

The lines() function is intentionally designed for straightforward integration into existing plotting workflows, requiring only minimal input to achieve significant graphical results. Its core mechanism relies on receiving paired sets of coordinates that precisely dictate the path of the line to be drawn. However, its true versatility stems from the array of optional arguments that facilitate fine-grained aesthetic control, ensuring the overlaid line meets specific visualization and accessibility requirements.

The fundamental syntax structure for invoking the function is concise and prioritizes coordinate inputs, followed by optional customization parameters:

lines(x, y, col, lwd, lty)

Understanding each parameter is critical for effective implementation. The primary requirement involves specifying the horizontal and vertical positions using Cartesian coordinates. The secondary, optional parameters govern the visual attributes, ensuring the line is distinguishable and communicates its intended message clearly within the context of the overall plot.

• x: This mandatory argument requires a numerical vector containing the horizontal positions (x-coordinates) of the points that define the line. It is crucial that these values respect the current x-axis limits of the active plot; otherwise, portions of the line may be clipped or invisible.

• y: Similarly mandatory, this parameter accepts a numerical vector corresponding to the vertical positions (y-coordinates). For the function to correctly render a continuous line, the length and sequential order of the ‘y’ vector must perfectly align with the length and order of the ‘x’ vector, establishing an accurate one-to-one mapping for each line segment endpoint.

• col: This optional argument controls the color of the newly added line. Users can specify colors using standard R names (e.g., “red”, “purple”) or precise hexadecimal codes (e.g., “#FF00FF”). Utilizing distinct colors is often the most effective method for differentiating overlaid analytical lines from the underlying raw data points.

• lwd: Standing for “line width,” this numerical parameter determines the thickness of the line drawn. The default value is typically 1. Increasing this value adds visual emphasis, which is particularly useful for highlighting primary trends such as a robust regression fit or a calculated mean trajectory.

• lty: This parameter controls the line type or style. Common numerical values range from 1 (solid line, the default) up to 6 (long dashed), with intermediate values representing dotted and various dashed patterns. Varying the line type is a critical technique for distinguishing multiple overlaid lines, especially where color distinctions are limited or accessibility concerns (like color vision deficiencies) must be addressed.

Establishing the Canvas: Setting Up the Initial Plot in R

Before the functionality of lines() can be demonstrated, we must first prepare the base graphical environment using a fundamental plotting function like plot(). For the sake of clear illustration, we will utilize a simple scatter plot, which is the standard format for visualizing the relationship between two numerical variables. The initial plot serves a dual purpose: it acts as the canvas and crucially establishes the coordinate system, including the necessary limits for the x and y axes that all subsequent graphical additions must respect.

Our preparatory step involves defining two numerical vectors, conventionally named x and y, which will contain eight pairs of sample data points. These vectors represent a typical dataset, perhaps consisting of sequential observations or paired measurements collected during an experiment. The subsequent call to the plot() function processes these coordinates, automatically scaling the axes to ensure all data points are comfortably contained within the plotting area. This setup is the non-negotiable prerequisite for using any function, including lines(), that is designed to add elements to an existing graph.

The following R code executes both the data definition and the initial plot creation. It is important to note that the plot() function, by default, draws individual points, not connecting lines. This default behavior perfectly sets the stage for our eventual use of lines() to introduce a calculated trend or connect these points sequentially.

#define (x, y) coordinates
x <- c(1, 2, 3, 4, 5, 6, 7, 8)
y <- c(2, 5, 5, 9, 10, 14, 13, 15)

#create scatter plot
plot(x, y)

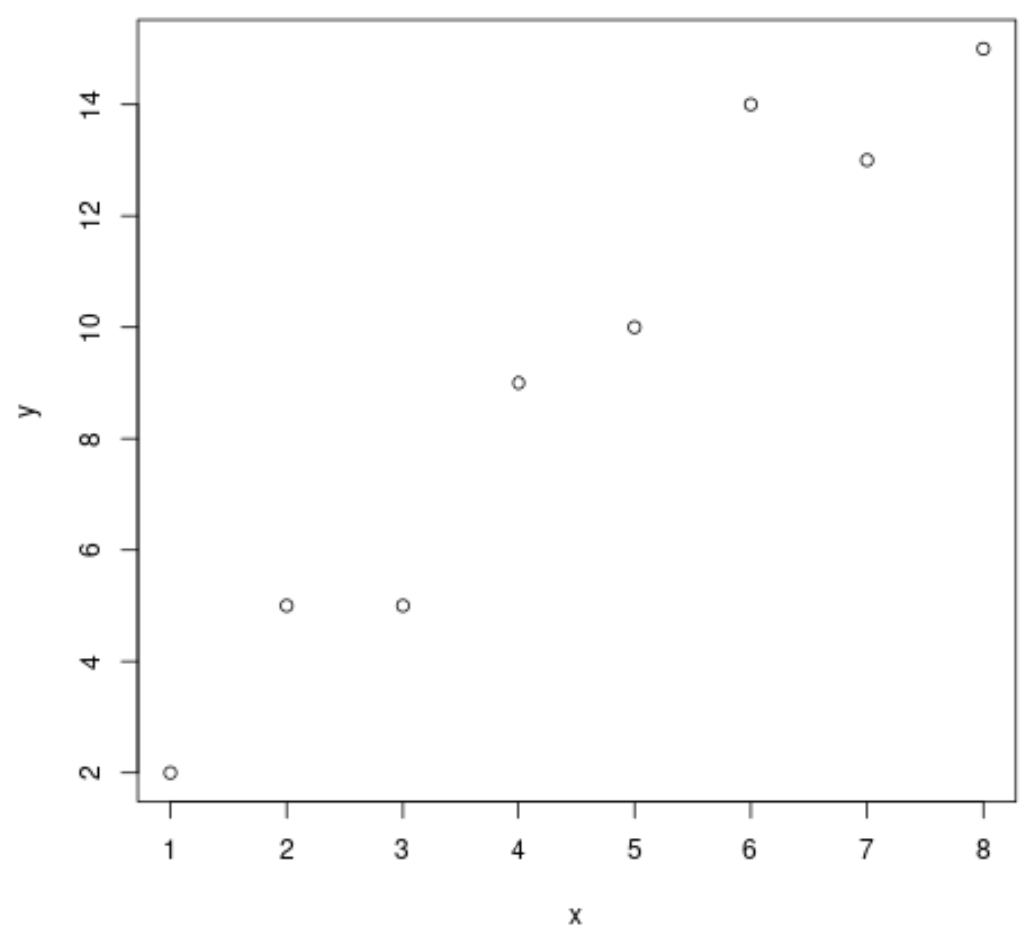

As illustrated by the output image above, this concise block of code generates a clean, basic scatter plot. The eight data points are clearly displayed, and the axes have been appropriately labeled and scaled automatically. This established graphic is now the designated active graphics device, perfectly prepared to receive additional layers of contextual information via the powerful lines() function.

Integrating New Data Series: Adding a Simple Line Overlay

With the initial data visualization successfully established, we now proceed to the core objective of this tutorial: superimposing a new line using the lines() function. This step is fundamental for comparative analysis, allowing the user to contrast the original data points against a secondary series, a calculated average, or a theoretical hypothesis. The inherent simplicity of lines() ensures this layering process is executed efficiently, provided the new line’s coordinates align logically within the existing plot space.

To provide a clear demonstration, we must define a completely new set of x and y-coordinates specifically for the line we intend to draw. This new data series, defined by the vectors x_line and y_line, represents a distinct trend—in this example, a straight, linear progression that we can visually compare against the inherent variability of the original scatter points. It is absolutely essential that the range of these new coordinates remains within the established bounds of the axes defined by the original plot() call to avoid unexpected clipping.

The following code block first replicates the creation of the base scatter plot to ensure the graphics device is active and then introduces the new coordinate data. The final line, containing the call to lines, sequentially connects the points defined by x_line and y_line. This action draws a continuous line directly over the existing plot without demanding any complex adjustments to axis scaling or plot setup, showcasing the additive power of this function.

#define (x, y) coordinates
x <- c(1, 2, 3, 4, 5, 6, 7, 8)
y <- c(2, 5, 5, 9, 10, 14, 13, 15)

#create scatter plot
plot(x, y)

#define (x, y) coordinates for new line to add
x_line <- c(1, 2, 3, 4, 5, 6, 7, 8)
y_line <- c(2, 4, 6, 8, 10, 12, 14, 16)

#add new line to plot
lines(x_line, y_line)

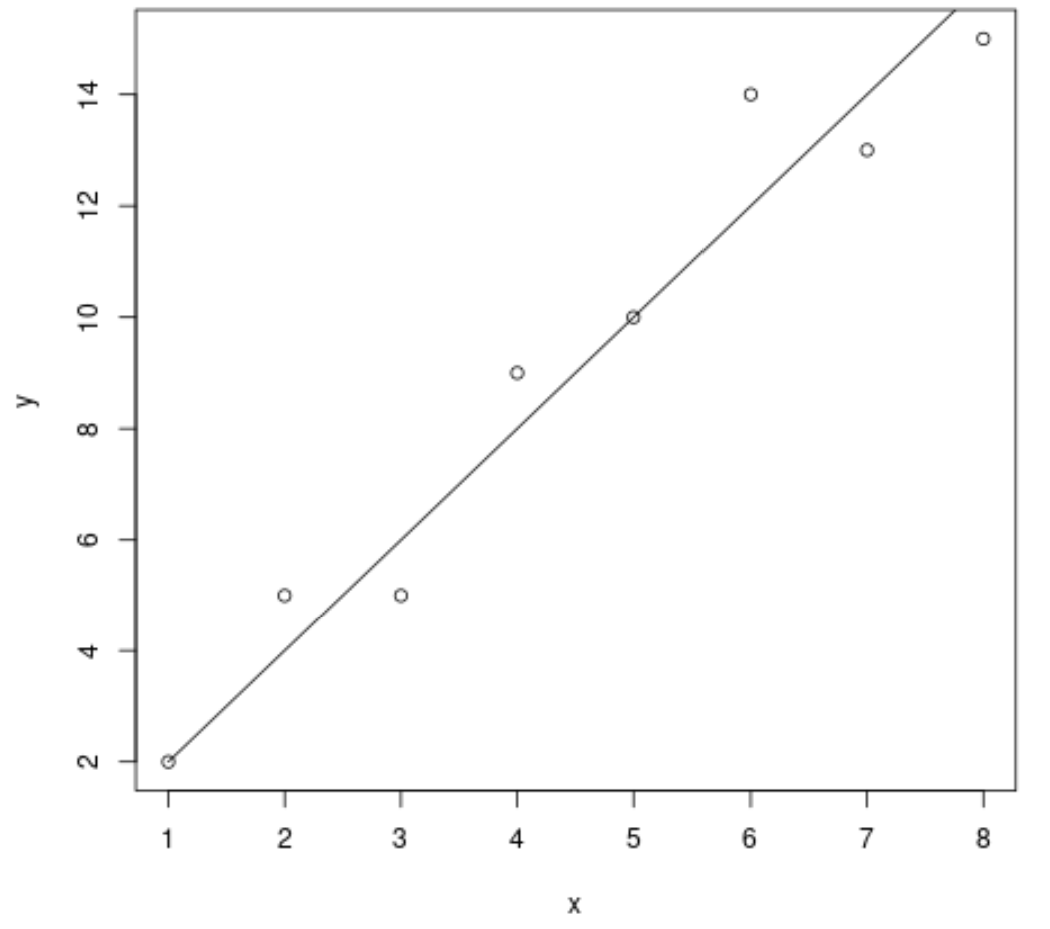

The resulting image clearly displays the original data points augmented by a new, continuous line. By default, the line is rendered in solid black with a standard thickness (lwd=1). This example powerfully demonstrates the fundamental capability of lines(): to rapidly layer analytical or comparative data onto an established plot, enabling immediate and effective visual comparison between the observed variability and the calculated or hypothesized trend.

Aesthetic Control: Customizing Color, Width, and Type for Clarity

While a basic line addition is functionally correct, professional and unambiguous data visualizations frequently demand visual customization. If multiple analytical lines are overlaid, or if the line represents a critical statistical result (such as a confidence interval or a regression model), it must be visually distinct from all other plot elements. The lines() function provides robust control over these aesthetic attributes through its optional parameters: col, lwd, and lty.

The strategic deployment of these parameters allows the analyst to meticulously manage the visual hierarchy of the plot. For instance, a thick, brightly colored line commands immediate attention and is ideal for representing a primary trend. Conversely, a thinner, dashed line might be used to indicate a secondary trend, a baseline, or a boundary condition. Furthermore, when preparing graphics for publication or for audiences with color vision deficiencies, relying on variations in lwd (line width) and lty (line type) becomes essential for maintaining clarity, differentiation, and accessibility.

To showcase these crucial customization options, we will replicate the previous example but incorporate specific arguments directly into the lines() function call. We will select a striking color, significantly increase the width, and choose a non-solid line style. This modification demonstrates how minor adjustments to the functional call can drastically alter the visual impact and interpretation of the overlaid element, moving far beyond the function’s default black and solid appearance.

#define (x, y) coordinates
x <- c(1, 2, 3, 4, 5, 6, 7, 8)
y <- c(2, 5, 5, 9, 10, 14, 13, 15)

#create scatter plot
plot(x, y)

#define (x, y) coordinates for new line to add
x_line <- c(1, 2, 3, 4, 5, 6, 7, 8)
y_line <- c(2, 4, 6, 8, 10, 12, 14, 16)

#add new line to plot with custom style
lines(x_line, y_line, col='red', lwd=6, lty='dashed')

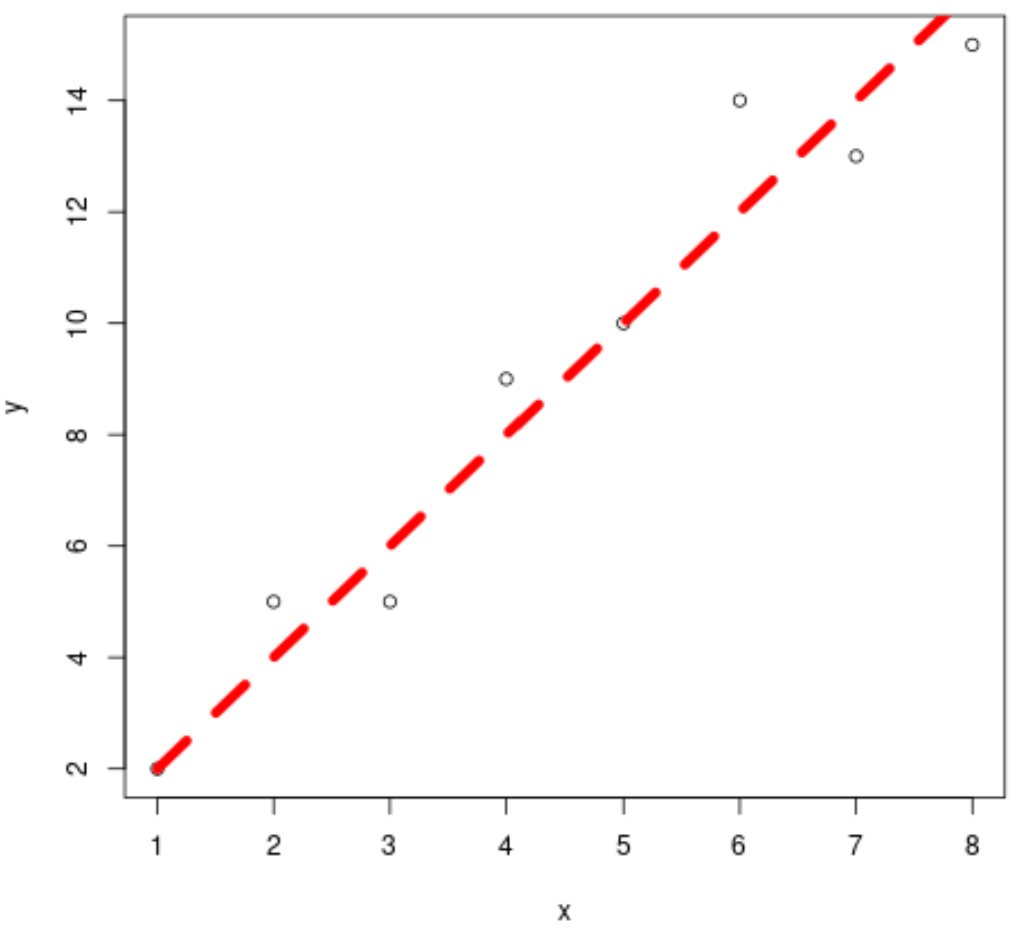

The resulting plot clearly demonstrates the profound visual impact of these aesthetic choices. The added line is now rendered in a vibrant red, possesses a considerable line width (lwd) of 6, and utilizes a dashed line type (lty). These modifications guarantee the line is highly visible and instantly recognizable as a distinct analytical layer separate from the original data points. Effective customization using col, lwd, and lty is fundamental to generating sophisticated, publication-ready base R graphics.

Best Practices for Layering, Context, and Alternative Functions

While the technical mechanics of using lines() are relatively straightforward, applying it effectively requires adherence to several best practices to ensure your visualizations remain accurate and easily interpretable. The foremost consideration is the alignment of the new line’s coordinates with the established plot boundaries. Analysts must always verify that the x and y coordinate values provided to lines() fall strictly within the visible range set by the initial plotting function. Failure to do so may result in line segments being unexpectedly clipped at the edges of the plot, which can lead to a misleading or distorted view of the underlying data.

A secondary, yet equally important, best practice involves leveraging related functions to maximize clarity and code efficiency. While lines() is perfectly suited for connecting sequential points or drawing arbitrary curves, other specialized functions offer more direct solutions for specific needs. For instance, if the goal is to add a theoretical regression line with a known slope and intercept, the abline() function is generally more efficient. If the requirement is only to add individual markers or points without drawing connecting segments, the points() function is the correct choice. Furthermore, for connecting only two specific points or drawing precise error bars, the segments() function offers fine-tuned control over these discrete elements. Choosing the right tool for the job always leads to cleaner, more maintainable R code and ultimately, clearer graphics.

Finally, context is absolutely paramount in data visualization. Any time a new line is introduced—whether it represents a calculated mean, a model prediction, or a confidence interval—you must provide an explicit explanation. Always utilize the legend() function to clearly label what each unique line type or color signifies. Without a legend, a viewer cannot reliably distinguish between raw observations and analytical overlays, rendering the enhanced plot potentially useless for drawing valid conclusions. By combining technical accuracy with clear documentation, you ensure your base R graphics are both powerful and accessible to any audience.

Conclusion: Mastering the Art of Graphical Augmentation

The lines() function stands as a foundational yet incredibly versatile component within the R graphical ecosystem. Its primary utility lies in its unique ability to dynamically augment an existing plot, allowing for the rapid overlay of complex analytical information—ranging from simple averages to detailed model fits—without necessitating a complete redefinition of the entire plotting structure. By simply supplying new x and y-coordinates, data analysts can immediately draw continuous lines that significantly enhance data interpretation and visual storytelling.

Throughout this tutorial, we have thoroughly examined the core syntax of lines(), focusing particularly on the critical role of coordinate vectors and the powerful aesthetic control afforded by the col, lwd, and lty parameters. These attributes empower users to precisely tailor the visual properties of the line, ensuring clear differentiation from the original data points on the scatter plot. Furthermore, we emphasized the importance of adopting best practices, such as verifying coordinate ranges and utilizing legends, which collectively guarantee that the resulting visualizations are not only aesthetically polished but also analytically sound and easily understood by the intended audience.

We strongly encourage readers to continue their exploration of R’s vast plotting capabilities. Mastering additive functions like lines() is a pivotal step toward transforming basic data plots into sophisticated, multilayered graphical tools that communicate complex findings effectively. Continue experimenting with different line styles and coordinate sequences to fully leverage the robust power of the base R graphics system in your future statistical and scientific reporting efforts.
