Use PROC FORMAT in SAS (With Examples)

The PROC FORMAT procedure in SAS is a highly versatile and foundational utility essential for controlling data presentation and analysis. Its core purpose is to define custom formats, establishing a clear mapping between raw data values—often cryptic numerical codes or brief abbreviations—and more descriptive, intuitive data labels. This transformation is vital for enhancing the readability and overall interpretability of reports, ensuring that all stakeholders can instantly grasp the meaning hidden within complex datasets.

The effective application of PROC FORMAT is indispensable throughout the entire data pipeline, spanning from initial data cleaning and standardization to final reporting. By translating abstract codes into actionable categories—such as grouping continuous scores into ‘High,’ ‘Medium,’ or ‘Low’ performance tiers—analysts can communicate complex findings in an extremely user-friendly and actionable manner. This procedure offers the necessary flexibility to manage and report data comprehensively, whether the task involves discretizing continuous variables or simply assigning meaningful names to coded character inputs.

Understanding the Core Syntax of PROC FORMAT

The structure of PROC FORMAT relies on a declarative syntax that clearly defines how custom mappings are established within the SAS environment. Every format definition block begins with the proc format; statement, followed by one or more mandatory value statements containing the specific mapping rules, and concludes with the run; statement. This rigorous structure ensures that SAS processes, compiles, and saves the format definitions correctly so they can be referenced later in subsequent data steps or procedures.

The value statement is the heart of the format definition, specifying the precise logic for data translation. The programmer must first assign a unique, descriptive name to the custom format (e.g., points_range). Following this format name, a series of rules associates specific data ranges or individual values with their corresponding descriptive labels. These labels, which are typically character strings, serve as the user-facing representation that will replace the original raw data values in all output reports, enabling sophisticated grouping and categorization based on precise, programmer-defined criteria.

The following example illustrates the basic syntax for defining a numeric format, categorizing raw scores into three distinct performance tiers based on specific numerical thresholds:

proc format;
    value points_range
        25-high='High'
        15-<25='Medium'
        other ='Low';
run;

In the custom format named points_range, three fundamental categorization rules are established. The keyword high is utilized to denote all values that are greater than or equal to the specified lower bound (25 in this instance). Conversely, the notation < indicates “less than,” defining an exclusive upper boundary for the range. Crucially, the powerful other keyword serves as a comprehensive catch-all, guaranteeing that any numerical value not explicitly covered by the preceding rules is automatically assigned the ‘Low’ label, ensuring complete and robust categorization for all possible inputs.

Specifically, this mapping translates raw numerical scores into the following intuitive descriptive categories, offering immediate analytical clarity:

• Values equal to 25 or greater will be represented as ‘High‘. This range is inclusive of the value 25 and extends indefinitely to the highest possible value in the dataset.
• Values between 15 (inclusive) and 25 (exclusive) will be displayed as ‘Medium‘. This strictly means that 15 is included in this tier, but any score of 25 is not.
• All other values, which necessarily fall below the threshold of 15, are consistently assigned the label ‘Low‘, ensuring every observation is categorized according to the defined business logic.

Preparing the Data for Custom Formatting

To effectively illustrate the practical utility and application of PROC FORMAT, we must first establish a simulated dataset. This dataset is designed to model scoring data achieved by various players across different teams and positions, providing a realistic context where the application of custom formatting can dramatically enhance reporting clarity and ease of analysis. Understanding and establishing the initial raw structure of our data is a mandatory first step before any powerful transformations can be successfully applied.

The following DATA step snippet creates our sample dataset, which we name my_data. It meticulously defines three key variables: team (character), position (character), and points (numeric). The datalines statement is employed here as a convenient and quick method for facilitating in-stream data input, making it an ideal approach for constructing small, instructive example datasets used for testing or instructional purposes.

/*create dataset*/
data my_data;
    input team $ position $ points;
    datalines;
A Guard 25
A Guard 20
A Guard 30
A Forward 25
A Forward 10
B Guard 10
B Guard 22
B Forward 30
B Forward 10
B Forward 10
B Forward 25
;
run;

/*view dataset*/
proc print data=my_data;

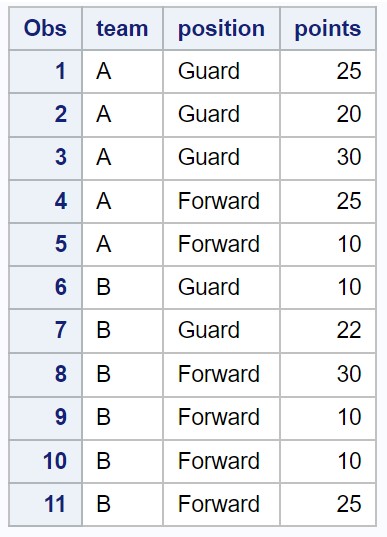

After the successful execution of the code provided above, we utilize PROC PRINT to display the contents of the newly generated my_data dataset. This crucial verification step is essential as it allows us to immediately confirm the structure of the data and observe the raw numerical values contained within the points variable before any custom formatting or data transformation is introduced.

As clearly illustrated in the output above, the points column currently holds simple, raw numerical scores. Our core objective now is to effectively leverage PROC FORMAT—specifically the points_range format we defined—to transform these raw numbers into the previously established descriptive categories (‘High’, ‘Medium’, ‘Low’). This transformation will dramatically improve the dataset’s overall utility for subsequent analysis and professional reporting.

Example 1: Enhancing Frequency Tables for Clarity

One of the most immediate and profound benefits of using PROC FORMAT is the ability to dramatically enhance frequency tables. When analysts are working with continuous data or data coded using numerous distinct numerical inputs, a standard frequency distribution often lists every unique raw value. This results in an output that can obscure critical underlying patterns and make interpretation tedious and time-consuming. By applying a custom format, we can aggregate these raw values into aggregated, meaningful labels, rendering the resulting frequency table far more intuitive and analytically useful.

To highlight this significant improvement, we first generate a baseline frequency distribution for the raw points variable utilizing PROC FREQ, intentionally omitting any custom formatting in this initial step:

/*calculate frequency of values in points column*/
proc freq data = my_data;
    table points;
run;

As clearly observable in this initial output, every individual score present in the points column is listed separately, accompanied by its respective count and percentage. While statistically accurate, this raw tabulation places the burden on the reader to manually aggregate or mentally calculate the distribution across performance tiers. To address this analytical gap, we must now apply the custom format, points_range, defined previously. This application groups the scores into ‘High,’ ‘Medium,’ and ‘Low’ categories, providing immediate and valuable analytical insight without manual intervention.

To execute this presentation transformation, we integrate the custom format directly into the PROC FREQ step using the dedicated format statement. This critical statement explicitly instructs SAS to utilize the descriptive labels associated with points_range. in the output, replacing the raw numerical values when generating the frequency table. The synergy of defining the format via PROC FORMAT and applying it via the format statement results in a significantly more intuitive and insightful report.

/*define formatting for points variable*/
proc format;
    value points_range
        25-high='High'
        15-<25='Medium'
        other ='Low';
run;

/*create frequency table for points variable, using formatting defined above*/
proc freq data = my_data;
    table points;
    format points points_range.;
run;

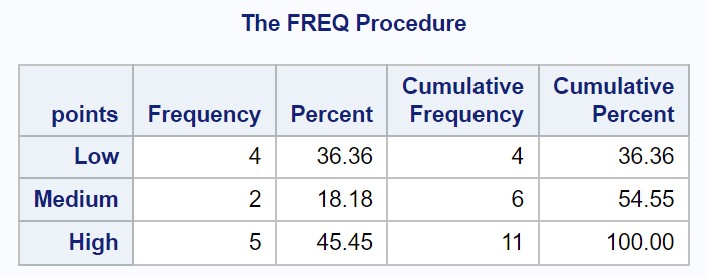

The final frequency table now clearly displays the distribution of the points variable grouped into the descriptive labels (‘High’, ‘Medium’, ‘Low’). This powerful transformation shifts the table from a raw list of counts to an immediately actionable summary of performance distribution, allowing for swift interpretation and deep analytical insights without the necessity of manual score aggregation.

Example 2: Generating New Permanent Categorical Variables

While the primary focus of the previous example was visual presentation, PROC FORMAT possesses the capability to permanently transform underlying data by creating entirely new categorical variables within a dataset. This persistent transformation is crucial when the formatted labels are required to be stored as actual data values for subsequent advanced operations, such as specialized merges, conditional filtering, or statistical modeling that depends directly on the categorized data itself, rather than just a temporary visual overlay.

This permanent generation process requires combining the previously defined format with a subsequent DATA step. Within this DATA step, we make use of the powerful PUT function. The PUT function is explicitly designed to apply the custom format (points_range.) to the existing numerical variable (points) and assign the resulting character label to a brand new variable (point_range). This technique effectively converts numeric data into corresponding descriptive character categories for permanent storage within the dataset.

The following comprehensive syntax first ensures that the points_range format is correctly defined and then proceeds to create a new dataset, new_data. This new dataset includes all the original variables from my_data plus the newly generated point_range variable, which permanently holds the categorized labels derived from the raw point scores.

/*define formatting for points variable*/
proc format;
    value points_range
        25-high='High'
        15-<25='Medium'
        other ='Low';
run;

/*create new dataset with points_range variable*/
data new_data;
    set my_data;
    point_range = put(points, points_range.);
run;

/*view dataset*/
proc print data=new_data;

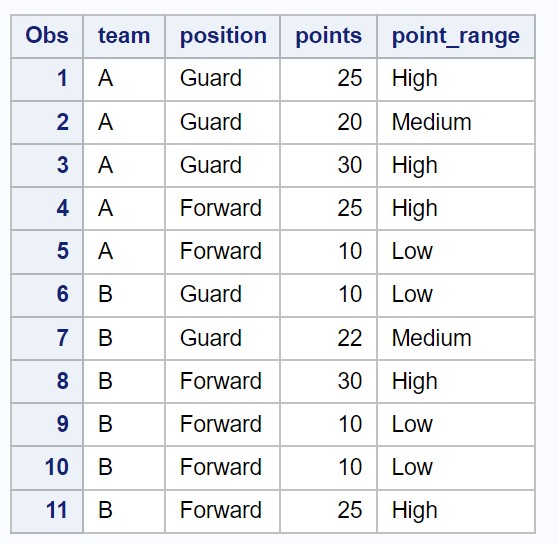

The output generated by PROC PRINT for new_data unequivocally confirms the successful creation of the point_range variable. This new column now explicitly stores the categorical labels (‘Low’, ‘Medium’, or ‘High’) based on the defined data rules. This technique proves invaluable for permanently transforming raw data, significantly streamlining downstream analysis, and ensuring that categorical data is both clearly defined and reliably stored for any other necessary applications.

Best Practices and Key Considerations for PROC FORMAT

To ensure the highly efficient, robust, and reliable use of PROC FORMAT, experienced SAS programmers adhere to several critical best practices. Understanding these considerations is paramount for maximizing the procedure’s utility while successfully navigating common programming challenges related to scope and format persistence.

1. Managing Format Persistence and Scope: By default, formats defined using PROC FORMAT are strictly temporary, existing only within the lifespan of the current SAS session. To enable the reuse of formats across multiple sessions, jobs, or projects, they must be saved permanently. This crucial step is accomplished by utilizing the LIBRARY= option within the PROC FORMAT statement, which instructs SAS to store the format catalog in a defined, permanent SAS library.
2. Establishing Clear Naming Conventions: Formats must be named logically and consistently to accurately reflect their purpose. For example, adopting names such as age_group_fmt or status_code immediately communicates the format’s function. Clear and standardized naming conventions drastically improve code readability, maintainability, and collaboration, especially when working on large-scale enterprise projects.
3. Addressing Overlapping Ranges: It is important to understand that SAS resolves format ranges sequentially. If two ranges inadvertently overlap (e.g., 1-10 and 5-15), SAS will apply the label from the very first rule encountered that successfully matches the data value. Therefore, programmers must define ranges meticulously, utilizing operators like < (less than, exclusive) or - (inclusive range) to prevent unintended or ambiguous categorization results.
4. Matching Format Type to Variable Type: Always ensure that the format type corresponds precisely to the variable type to which it is being applied. Numeric variables utilize standard value statements. Conversely, character variables mandate the use of the value $ statement to correctly indicate a character format definition. Mismatched types will invariably result in runtime errors or the silent failure of format application.
5. Debugging and Verification: After defining any complex format, thorough verification of its operation is absolutely essential. A simple test using PROC FREQ or PROC PRINT on a sample subset of data confirms that values are being mapped according to the intended logic. Additionally, the FMTLIB option within PROC FORMAT is an excellent, built-in tool for listing and troubleshooting all currently active format definitions.

By seamlessly integrating these robust practices into your daily workflow, you can fully harness the immense potential of PROC FORMAT, thereby creating reliable, clear, and highly efficient solutions for both complex data processing tasks and professional, high-quality reporting within the SAS environment.

Conclusion

In conclusion, PROC FORMAT stands as an absolutely indispensable and potent tool within the SAS programming toolkit, offering users unparalleled capability to transform raw, technical, and often inscrutable data into meaningful, readily digestible information. Whether the core objective is to significantly improve the visual clarity of statistical reports, such as frequency tables, or to permanently generate new categorical variables for use in sophisticated analytical models, this procedure provides a simple yet profoundly potent mechanism to achieve these diverse goals effectively.

Through its straightforward, declarative syntax and broad applicability across different data types, PROC FORMAT empowers users to dramatically improve data quality, rigorously enforce reporting standards, and facilitate much more intuitive data exploration. By meticulously defining custom mappings between raw values and descriptive labels, analysts ensure that their outputs are not only statistically accurate but also highly accessible and transparent to a diverse audience, regardless of their familiarity with the underlying structure of the raw data.

Mastering the nuances of PROC FORMAT is a vital and necessary step toward achieving true proficiency as a SAS user, enabling the consistent production of cleaner, more professional, and ultimately more impactful data analyses and reports. We strongly encourage all readers to proactively experiment with its diverse options and integrate its immense capabilities into their routine SAS programming practice immediately.

Note: Comprehensive documentation for PROC FORMAT, including all advanced options and statements, can be found on the official SAS website.
