Understanding Q-Q Plots: A Guide to Checking for Normality

Understanding the Quantile-Quantile (Q-Q) Plot

The Q-Q plot (short for Quantile-Quantile plot) is a fundamental graphical tool in statistical analysis, designed to evaluate whether a sample dataset adheres to a specific theoretical distribution. Unlike simpler visual methods like histograms, Q-Q plots provide a highly detailed, quantitative assessment of the distribution’s shape, paying particularly close attention to the behavior of the data’s tails. This precision makes them invaluable for diagnosing data characteristics before applying inferential statistics.

The primary and most frequent application of the Q-Q plot is testing the assumption of normal distribution, also widely known as the Gaussian distribution. This check is crucial because a vast number of parametric statistical tests—including the t-test, ANOVA, and linear regression—rely on the underlying premise that the residuals or the data itself are normally distributed. Violating this assumption can severely compromise the validity of the test results and subsequent conclusions.

Interpreting the Q-Q plot follows a remarkably simple core principle: if the data perfectly matches the theoretical distribution being tested, the plotted points will align precisely along a straight, diagonal reference line. Conversely, any significant or systematic deviation of the points away from this line serves as strong visual evidence that the dataset does not follow the hypothesized distribution, often indicating problems such as excessive skewness or kurtosis.

The Mechanism: Comparing Empirical and Theoretical Quantiles

The Q-Q plot operates by comparing two sets of quantiles directly against one another. Specifically, the y-axis represents the empirical quantiles, which are the ordered values derived directly from the sample data. The x-axis, on the other hand, displays the theoretical quantiles expected if the data truly came from the reference distribution—most commonly, the standard normal distribution.

The diagonal line plotted on the graph acts as the perfect benchmark of agreement. When the sample data quantiles are identical to their expected theoretical counterparts, every point lands exactly on this reference line. The genius of the Q-Q plot lies in how deviations from this line immediately highlight structural differences between the sample’s empirical distribution and the theoretical ideal.

Specific, recognizable patterns of deviation allow statisticians to quickly diagnose the nature of non-normality:

• If the points follow a characteristic S-shape curve, it typically suggests that the data possesses heavier tails than the normal distribution (a condition known as high kurtosis, or leptokurtic).
• Sharp upward or downward curvature at the extreme ends of the plot often indicates that the data is significantly skewed (asymmetric).
• While minor, random scattering is expected and usually acceptable, any large-scale, systematic departure from the straight line is a strong signal that the assumption of normality has been violated.

Example 1: Analyzing Data Conforming to Normal Distribution

To establish a clear baseline for interpretation, we first examine the ideal scenario: a dataset known to follow the normal distribution. We will use the powerful R programming environment to generate this sample and construct its corresponding Q-Q plot. This visual exercise provides the standard against which all other plots should be compared.

The following R code snippet generates 200 random observations drawn from a standard normal distribution. We then utilize R’s built-in qqnorm() function, which automatically compares the generated data against the theoretical normal quantiles, followed by qqline() to add the crucial reference line.

#make this example reproducible
set.seed(1)

#create some fake data that follows a normal distribution
data <- rnorm(200)

#create Q-Q plot
qqnorm(data)
qqline(data)

Upon careful inspection of the resulting graph, it is evident that the vast majority of the data points are tightly clustered around the straight diagonal line. Although minor, random fluctuations are naturally observed, especially at the extreme ends (the tails), these departures are random rather than systematic. Based on this compelling visual evidence, we can confidently conclude that this specific sample data is reasonably consistent with the assumption of normal distribution, requiring no remedial action before proceeding with parametric tests.

Example 2: Diagnosing Data with Exponential Distribution (Non-Normality)

It is equally vital for a statistician to recognize the visual signal of a violated normality assumption. For this second example, we intentionally generate a dataset that exhibits significant non-normality—specifically, we use the exponential distribution, which is inherently characterized by strong positive skew. We will then analyze the profound impact this skewness has on the Q-Q plot.

The code below utilizes R to generate 200 observations following this skewed distribution. As before, the quantiles of this exponential data are plotted against the theoretical normal quantiles, highlighting the mismatch.

#make this example reproducible
set.seed(1)

#create some fake data that follows an exponential distribution
data <- rexp(200, rate=3)

#create Q-Q plot
qqnorm(data)
qqline(data)

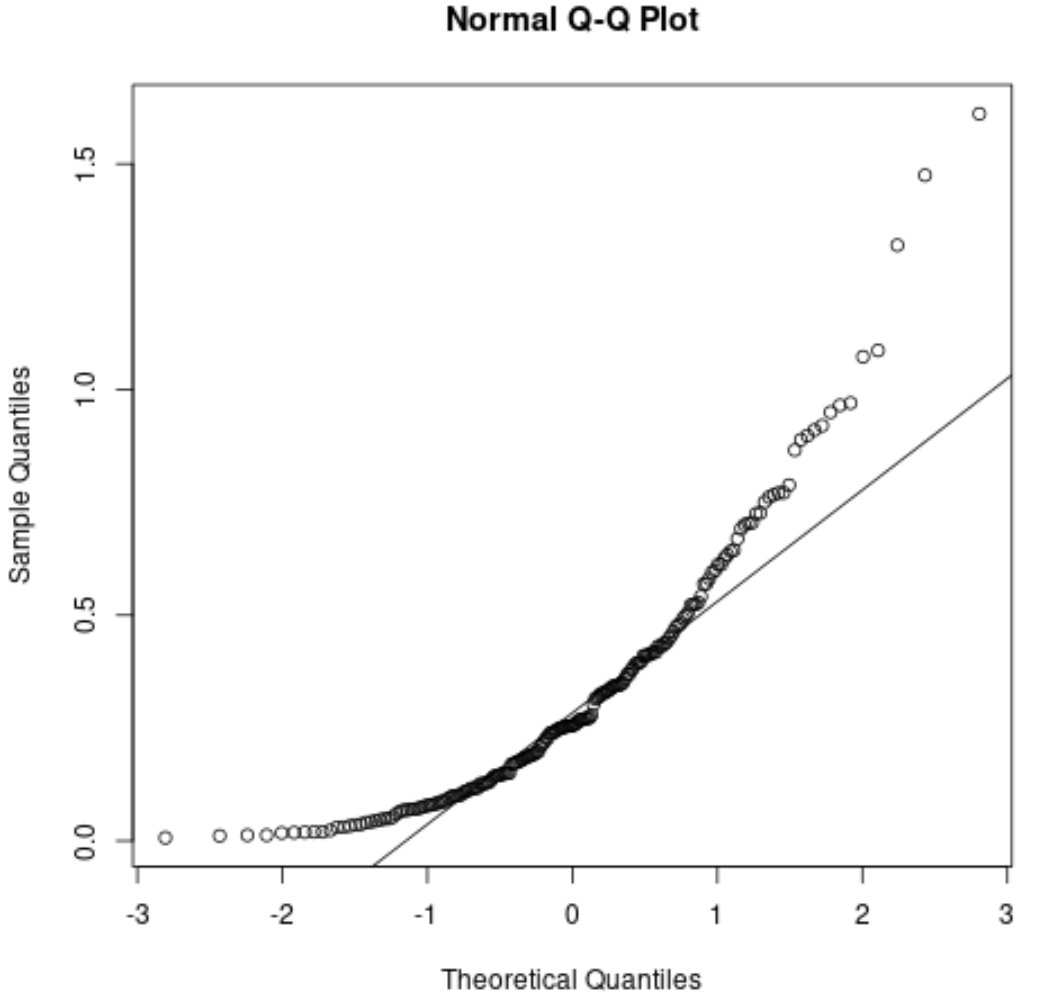

In stark contrast to the previous plot, the points here exhibit a systematic and significant deviation from the diagonal line. The pronounced upward curvature, particularly noticeable as the theoretical quantiles increase, is the unmistakable signature of a highly skewed distribution. This curvature confirms that the dataset does not conform to the normal distribution model.

This visualization aligns perfectly with statistical theory, as the underlying data was explicitly generated from an exponential distribution. The Q-Q plot serves as a powerful diagnostic tool, visually confirming the expected positive skewness introduced during the data generation process.

Q-Q Plots vs. Histograms: The Advantage of Detail

While the Q-Q plot is widely considered the gold standard for visually assessing normality, it is often used alongside other graphical methods. The histogram remains a common tool for visual distribution assessment, plotting the frequency of data points within predefined bins. A histogram is often sufficient for a quick, general overview; if its shape approximates the symmetric “bell curve,” a preliminary assumption of normality can be made.

However, Q-Q plots hold a distinct advantage over histograms: they offer a much more sensitive and granular assessment of the distributional tails. Non-normality often manifests subtly in the tails, which are frequently smoothed out or obscured by binning in a histogram. The Q-Q plot highlights these tail deviations directly against the theoretical expectation.

Let us compare the two visualization methods using the normally distributed data generated in Example 1.

#make this example reproducible
set.seed(1)

#create some fake data that follows a normal distribution
data <- rnorm(200)

#create a histogram to visualize the distribution
hist(data)

As anticipated, the histogram above displays the characteristic, albeit rough, bell curve shape, reinforcing the conclusion of normality derived from the Q-Q plot. Now, let’s observe the histogram for the highly skewed, exponentially distributed data from Example 2.

#make this example reproducible
set.seed(1)

#create some fake data that follows an exponential distribution
data <- rexp(200, rate=3)

#create a histogram to visualize the distribution
hist(data)

This visualization clearly shows a distribution heavily weighted toward lower values, followed by a rapid decay in frequency, confirming the severe positive skew. While the histogram identifies the general skewness, the Q-Q plot provided the precise visual detail of how the sample quantiles failed to match the theoretical distribution across the entire range.

The Crucial Role of Normality Testing in Inference

Checking for normality is not merely an academic exercise; it is a fundamental pillar of robust inferential statistical methodology. For many advanced statistical models, normality is a core assumption, and when this assumption is violated, the resulting calculations may be fundamentally flawed, leading to inaccurate conclusions and potentially misguided research outcomes.

Specifically, deviations from normality can directly distort the estimation of standard errors and the construction of confidence intervals. This distortion, in turn, impacts the calculated p-values, increasing the risk of both Type I errors (falsely rejecting a true null hypothesis) and Type II errors (failing to detect a true effect).

Therefore, the Q-Q plot must be one of the first steps in any comprehensive data diagnostic procedure. If a visual inspection confirms significant non-normality, researchers are compelled to explore alternative analytical strategies. These strategies typically involve transforming the data (e.g., using logarithmic or square root transformations to achieve symmetry) or, alternatively, opting for non-parametric statistical methods that are robust against specific distributional assumptions.

Advanced Diagnostics and Resources for Further Study

To solidify your expertise in distributional analysis and advanced data diagnostics, we recommend exploring the following related topics and resources:

• Formal Normality Tests: Investigate quantitative statistical tests, such as the Shapiro-Wilk test or the Kolmogorov-Smirnov test. These provide numerical p-values that complement and confirm the visual assessment provided by the Q-Q plot.
• Handling Skewness and Kurtosis: Deepen your understanding of statistical methods specifically designed for quantifying and mitigating the adverse effects of distribution asymmetry and atypical tail weights in your datasets.
• Testing Alternative Distributions: Learn how Q-Q plots can be adapted to test against other common probability distributions, such as the Poisson, Weibull, Gamma, or Chi-Square distributions, moving beyond the standard normal check.
