Customizing Discrete X-Axes in R: A Tutorial Using scale_x_discrete()

When constructing sophisticated data visualizations using the renowned ggplot2 package in R, achieving precise control over the aesthetic mappings is essential for clarity and impact. The dedicated function for handling the horizontal axis, especially when dealing with non-numeric data, is scale_x_discrete(). This function provides the necessary toolkit to specify the exact values, descriptive labels, and display order for any discrete x-axis. It is truly indispensable when visualizing data based on factors or categorical variables, enabling analysts to move far beyond the restrictive default settings and tailor the output for maximum interpretability.

To properly leverage this powerful customization capability, data scientists must first grasp the core syntax and the arguments that are available within the function. The scale_x_discrete() function is almost always added as an additional layer to an existing plot object (which is commonly denoted in code examples as p):

p +
  scale_x_discrete(name, labels, limits, ...)

The primary arguments that facilitate the modification of the discrete x-scale are straightforward yet powerful. These allow for comprehensive control over how the categorical data is presented to the viewer:

• name: This crucial argument accepts a simple character string that will completely replace the default title of the x-axis, thereby providing essential context regarding the variable being displayed.
• labels: This requires a character vector that contains the desired, custom labels that will be displayed directly on the axis ticks. This feature is particularly useful for replacing short, cryptic factor levels (like ‘M’ or ‘F’) with full, descriptive text (like ‘Male Respondents’ or ‘Female Respondents’).
• limits: This argument accepts a vector used to explicitly define which factor levels should actually be included on the axis, thereby giving the user precise control over the displayed range and, crucially, the order of the discrete data points.

Of these three parameters, the labels argument provides the most direct and common means of enhancing readability, especially when visualizing common data types such as survey responses or other categorical variables. In these scenarios, the underlying data codes (e.g., ‘1’, ‘2’) often need to be mapped to their full, intuitive descriptive names (e.g., ‘Strongly Agree’, ‘Neutral’).

Applying scale_x_discrete() in R: A Practical Walkthrough

To properly illustrate the practical application of scale_x_discrete(), we will work through a straightforward example using a small, simulated dataset. This dataset tracks basic statistics for several basketball players distributed across three distinct teams. We begin our process by defining this sample data frame in R:

# Create the sample data frame
df <- data.frame(team=c('A', 'A', 'A', 'B', 'B', 'C', 'C', 'C', 'C'),
                 points=c(12, 15, 22, 24, 20, 40, 12, 18, 11),
                 assists=c(4, 6, 6, 2, 8, 0, 1, 8, 13))

# Display the data frame structure
df

  team points assists
1    A     12       4
2    A     15       6
3    A     22       6
4    B     24       2
5    B     20       8
6    C     40       0
7    C     12       1
8    C     18       8
9    C     11      13

The resulting data frame contains nine rows, and crucially, the team column represents the primary categorical variable that we intend to visualize. Our core objective is to generate an accurate bar chart that effectively visualizes the frequency, or count, of players associated with each distinct team. This initial plot will serve as our foundation before applying any scale customizations.

Generating the Default Bar Plot using ggplot2

To create a preliminary frequency visualization, we utilize the standard geom_bar() function from the ggplot2 package. Before proceeding with the plotting code, it is imperative to ensure that the R environment has the necessary package installed. If installation is required, use the following simple command in the R console:

# Install ggplot2 package if necessary
install.packages('ggplot2')

Once the package is confirmed to be available, we can load the library and generate the initial plot. This baseline visualization simply maps the team variable directly to the x-axis, relying entirely on default aesthetic settings:

library(ggplot2)

# Create bar plot to visualize count by team using default settings
ggplot(df, aes(team)) +
  geom_bar()

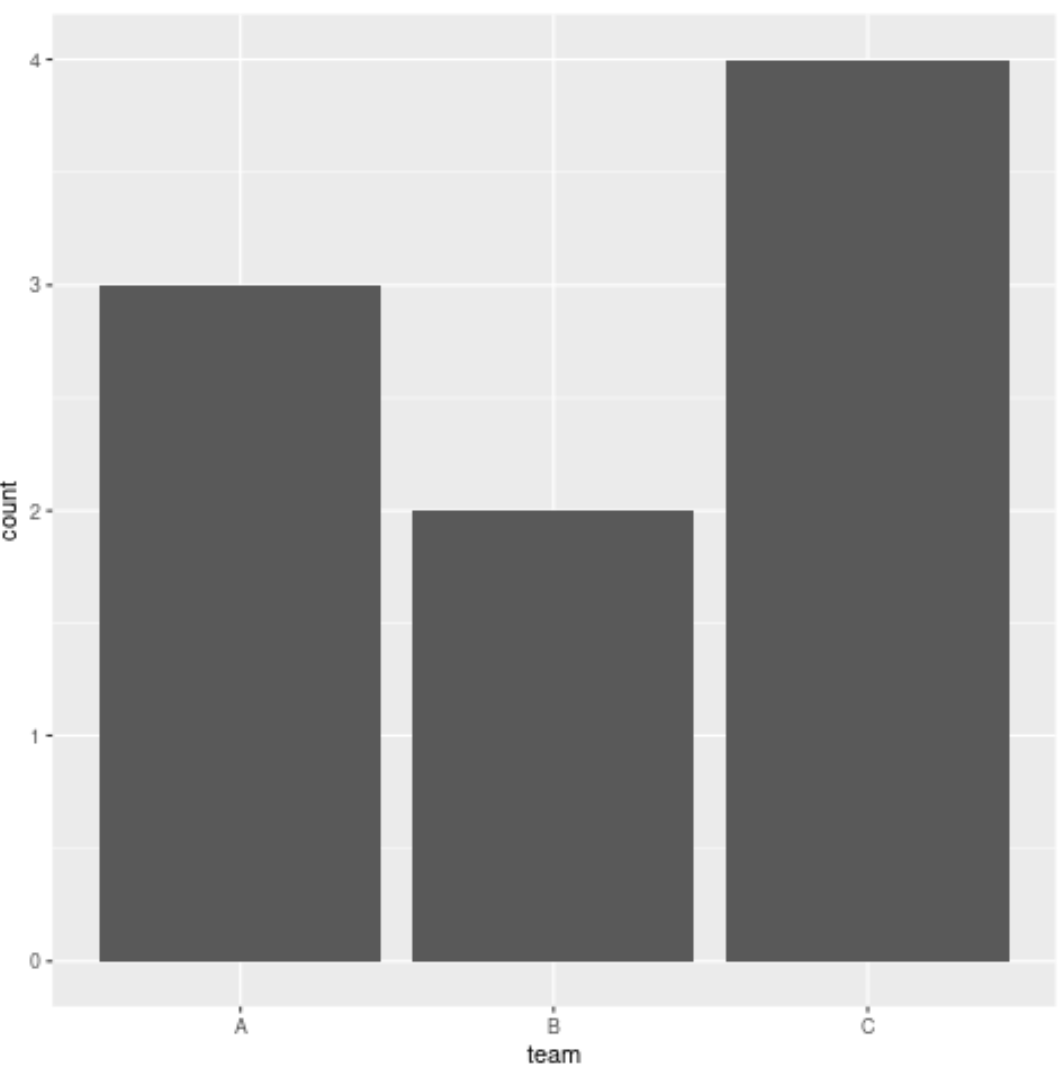

The resulting visualization successfully represents the counts for each team category. However, a quick inspection reveals a limitation: the x-axis labels are derived directly from the data and consist only of the single, cryptic letters ‘A’, ‘B’, and ‘C’. While this is functionally correct, these labels lack descriptive meaning for an external audience. Our next step is to use scale_x_discrete() to enhance readability significantly.

Customizing Discrete X-Axis Labels for Enhanced Readability

To immediately improve the clarity and professional appearance of the plot, we will utilize the specialized labels argument within scale_x_discrete(). Our goal is to replace the current single-letter labels with more meaningful, descriptive names. This customization process requires supplying a character vector to the function, and it is crucial to ensure that the order of the new labels corresponds exactly to the factor levels as they appear in the data (A, B, C).

For our basketball team data, we aim to implement the following set of descriptive labels for the x-axis:

• Team A
• Team B
• Team C

We integrate this simple but powerful customization directly into our ggplot2 plot pipeline by adding the `scale_x_discrete` layer:

library(ggplot2)

# Create bar plot with customized x-axis labels
ggplot(df, aes(team)) +
  geom_bar() +
  scale_x_discrete(labels=c('Team A', 'Team B', 'Team C'))

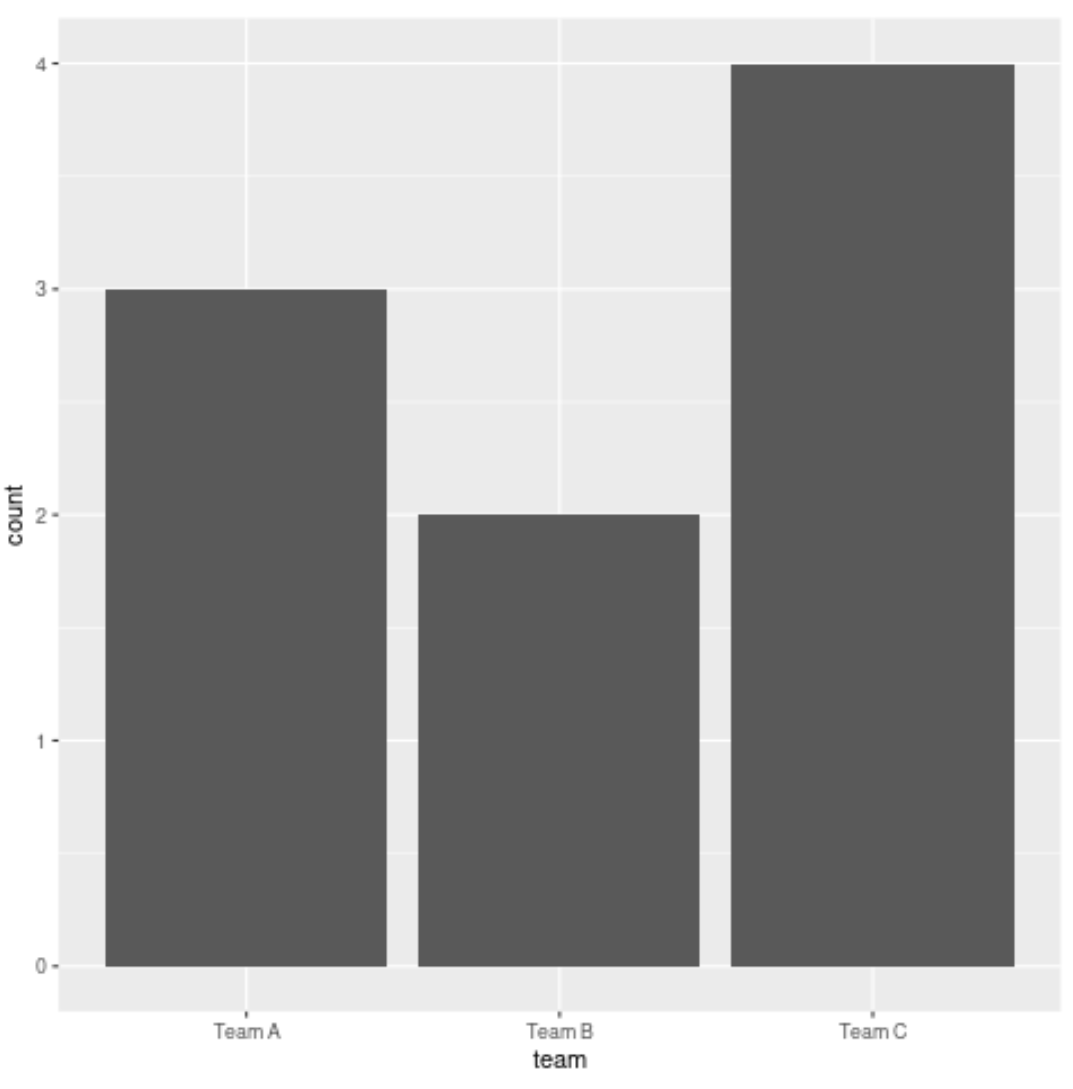

The execution of this updated code successfully produces the following revised visualization:

As clearly evident in the output, the discrete labels on the x-axis now accurately and descriptively reflect the strings provided in the labels vector, thereby dramatically improving the context and overall readability of the visual display.

Comprehensive Customization: Changing the Axis Title and Labels Simultaneously

Beyond merely modifying the tick labels, we can also use scale_x_discrete() to change the overall descriptive title of the x-axis. This is efficiently achieved by passing the desired title string as the first unnamed argument to the function. When specifying both the axis title (using the name parameter) and the custom labels, it is a convention in ggplot2 that the title string must always precede the definition of the labels argument in the function call.

For our final version, we will update the plot to include the custom title ‘Team Names’ while retaining our previously defined descriptive tick labels. Executing this step completes the full customization of the discrete x-scale using a single function call in scale_x_discrete:

library(ggplot2)

# Specify both the axis title and the custom labels
ggplot(df, aes(team)) +
  geom_bar() +
  scale_x_discrete('Team Names', labels=c('Team A', 'Team B', 'Team C'))

Running this final, polished code generates the plot below, successfully demonstrating the seamless application of both title and label customization using a single, cohesive scale function within the powerful ggplot2 framework:

Note: For more advanced customization options, such as using the limits argument to manually reorder or subset the discrete categories displayed, please refer to the official documentation for the scale_x_discrete function within the R ecosystem. Mastering these scale functions is fundamental to creating publishable quality graphics.
