Learning to Visualize Statistical Summaries with `stat_summary()` in ggplot2

Mastering the stat_summary() Function for Advanced Statistical Visualization

The stat_summary() function is an exceptionally powerful and efficient component of the ggplot2 package, specifically engineered to streamline the visualization of statistical summaries. Unlike traditional geometric functions (geoms) that map every raw observation directly onto the plot, stat_summary() performs crucial statistical calculations—such as computing the mean, median, or standard deviation—on your data first, and then plots the resulting aggregated metric. This capability eliminates the cumbersome necessity of performing preparatory data aggregation using external tools, such as the summarise() function found in the popular dplyr package, before initiating the plotting process. By integrating calculation and visualization into a single layer, stat_summary() significantly cleans up the data visualization pipeline, allowing researchers and analysts to move swiftly from raw data to meaningful, group-level insights.

The true versatility of stat_summary() stems from its control mechanisms, primarily managed through two fundamental arguments: fun and geom. The fun argument serves as the statistical engine, dictating the mathematical operation applied to the data subset (e.g., 'mean', 'median', or even a sophisticated, user-defined function). Simultaneously, the geom argument acts as the visual renderer, determining the geometric shape used to represent the calculated result, whether it be a simple 'bar', a distinct 'point', or a range-based element like an 'errorbar'. This intelligent separation of calculation (fun) and presentation (geom) enables the rapid generation of complex visualizations that accurately communicate central tendencies, measures of dispersion, or extreme values across various categorical groupings.

Furthermore, leveraging stat_summary() is essential when working with large or noisy datasets where plotting every single point would lead to significant visual clutter and obscured patterns. By reducing hundreds or thousands of observations within a category down to a single, representative metric, the function helps focus the viewer’s attention on the comparative performance or distribution characteristics between groups. This statistical aggregation capability is fundamental to generating clean, insightful plots that move beyond simple raw data display to convey meaningful, statistically derived information directly within the plotting environment of ggplot2.

Preparing the Foundational Data Structure in R

To effectively demonstrate the practical application and precise syntax of the stat_summary() function, we must first establish a simple, well-defined data frame within the R environment. This artificial dataset is designed to mirror common data structures used in statistical analysis, featuring twelve observations distributed across two critical variables: a categorical grouping variable named team, and a continuous quantitative measurement variable named points. This structure is perfectly suited for showcasing how summary statistics are calculated on a group-wise basis, facilitating clear performance comparisons among the three distinct groups: Team A, Team B, and Team C. The following code snippet details the creation, population, and subsequent display of this foundational data set, establishing the context for our subsequent visualizations.

#create data frame
df = data.frame(team=rep(c('A', 'B', 'C'), each=4),
                points=c(8, 12, 4, 6, 26, 21, 25, 20, 9, 18, 14, 14))

#view data frame
df

   team points
1     A      8
2     A     12
3     A      4
4     A      6
5     B     26
6     B     21
7     B     25
8     B     20
9     C      9
10    C     18
11    C     14
12    C     14

As clearly illustrated by the output above, the team column serves as the critical categorical variable we will use for grouping the data, while the points column provides the quantitative metric that we aim to summarize statistically. In the examples that follow, we will leverage the capabilities of stat_summary() to calculate and visualize various statistical measures of the points variable, with the aggregation performed separately for each unique entry within the team column. This methodology is indispensable for efficiently conducting robust group comparisons and generating summary plots within the sophisticated R visualization environment.

Example 1: Visualizing Central Tendency using Mean and Bar Geometry (geom=’bar’)

One of the most frequent and intuitive applications of stat_summary() involves the creation of bar plots that visually represent the central tendency of a continuous variable across distinct categories, typically focusing on the arithmetic mean or the median. In this initial demonstration, we provide explicit instructions to the function to calculate the mean value of the points column, ensuring this calculation is performed independently for each unique grouping defined by the team variable, and finally instructing the result to be displayed using a bar geometry. This particular visualization is highly effective for immediate comparative analysis, providing stakeholders with a clear, direct understanding of the average performance level achieved by each team.

The accompanying code initiates the ggplot2 pipeline by defining the essential aesthetic mappings (aes), where the categorical variable team is assigned to the x-axis and the continuous variable points is mapped to the y-axis. Critically, within the stat_summary() layer, we set the fun argument to 'mean', which guarantees that the statistical operation executed is the calculation of the arithmetic average for each group. Concurrently, by setting the geom argument to 'bar', we ensure that the calculated mean value is rendered as a vertical bar, scaled precisely from the zero baseline up to the computed mean score. This combination provides a powerful, aggregated view of the data.

library(ggplot2)
library(dplyr)

#create bar plot to visualize mean points by team
df %>%
  ggplot(aes(x=team, y=points)) +
  stat_summary(fun='mean', geom='bar')

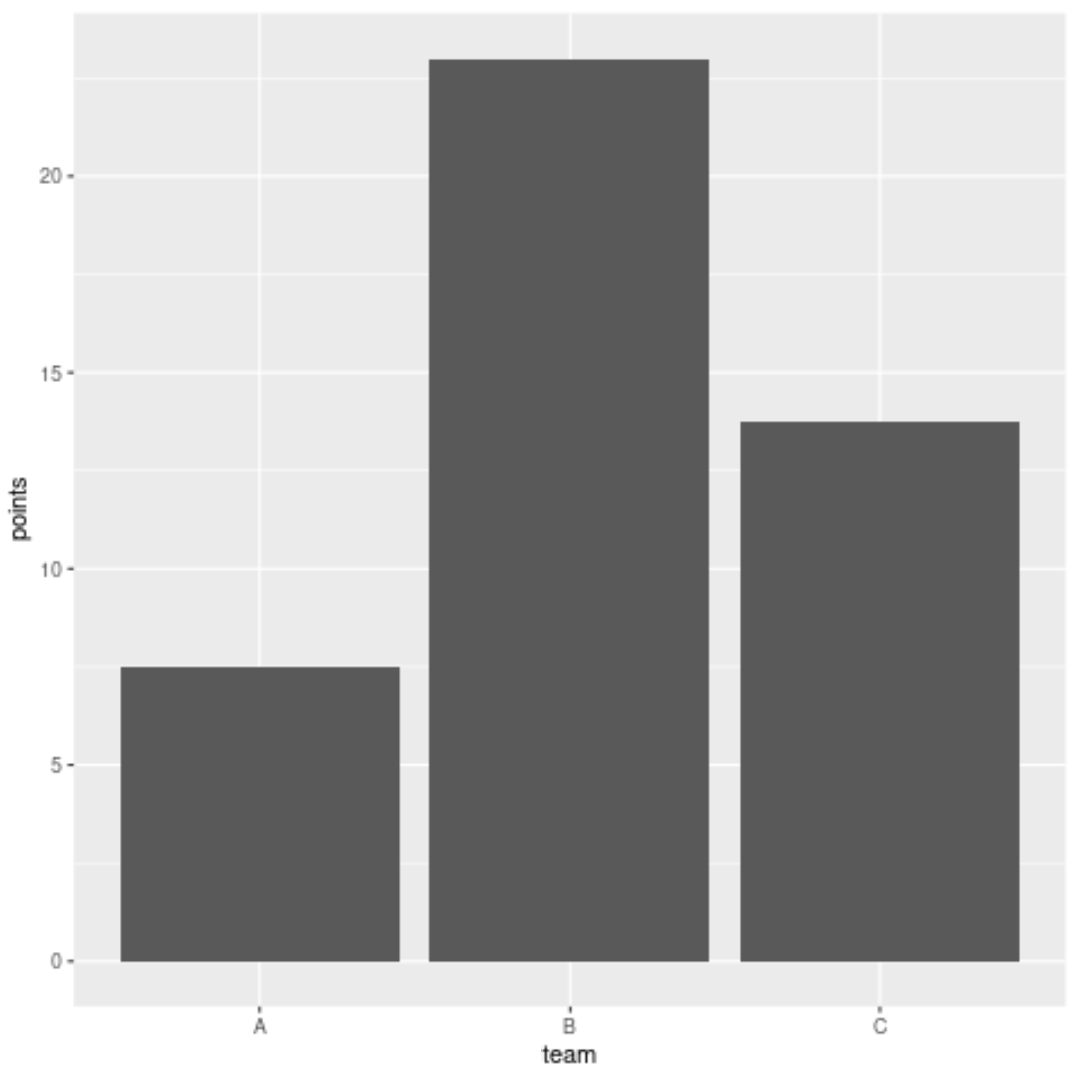

The resulting bar plot provides a clear visual confirmation of the calculated mean points for each respective team. Observing the plot, Team B, which boasts the highest average score (23 points), is predictably represented by the tallest bar. It is vital to recognize the foundational flexibility afforded by the fun argument, as it is capable of accepting any standard or custom statistical function, provided that the function returns a single numerical value for each group. Furthermore, setting geom='bar' provides the instruction to ggplot2 on how to geometrically represent that single calculated summary value, distinctly differentiating this layer from the behavior of geom_bar(), which typically plots counts of observations.

Example 2: Minimizing Visual Clutter with Point Geometry (geom=’points’)

While bar charts excel at conveying magnitude comparisons relative to a zero baseline, visualizing the summary statistic as a simple point is often preferable, especially when the intent is to overlay the aggregate metric onto raw data points or when comparing summary values across numerous groups without the potential bias introduced by area scaling. In this second illustrative example, we maintain the statistical objective—calculating the mean score—but fundamentally alter the visual representation by setting the geom argument to 'points'. This subtle change in geometry can drastically improve plot clarity and focus.

This point-based approach is particularly valuable when the visualization must minimize unnecessary visual weight or when the summary statistic needs to be contextualized alongside other geometric elements, such as raw scatter plots or trend lines. The underlying structure of the R code remains nearly identical to the previous example; only the specific geometric instruction within the stat_summary() layer is modified. We continue to calculate the group mean using fun='mean', but we now instruct ggplot2 to render the resulting average score for each team as a distinct data point on the Cartesian coordinate system.

library(ggplot2)
library(dplyr)

#create plot with points to visualize mean points by team
df %>%
  ggplot(aes(x=team, y=points)) +
  stat_summary(fun='mean', geom='points')

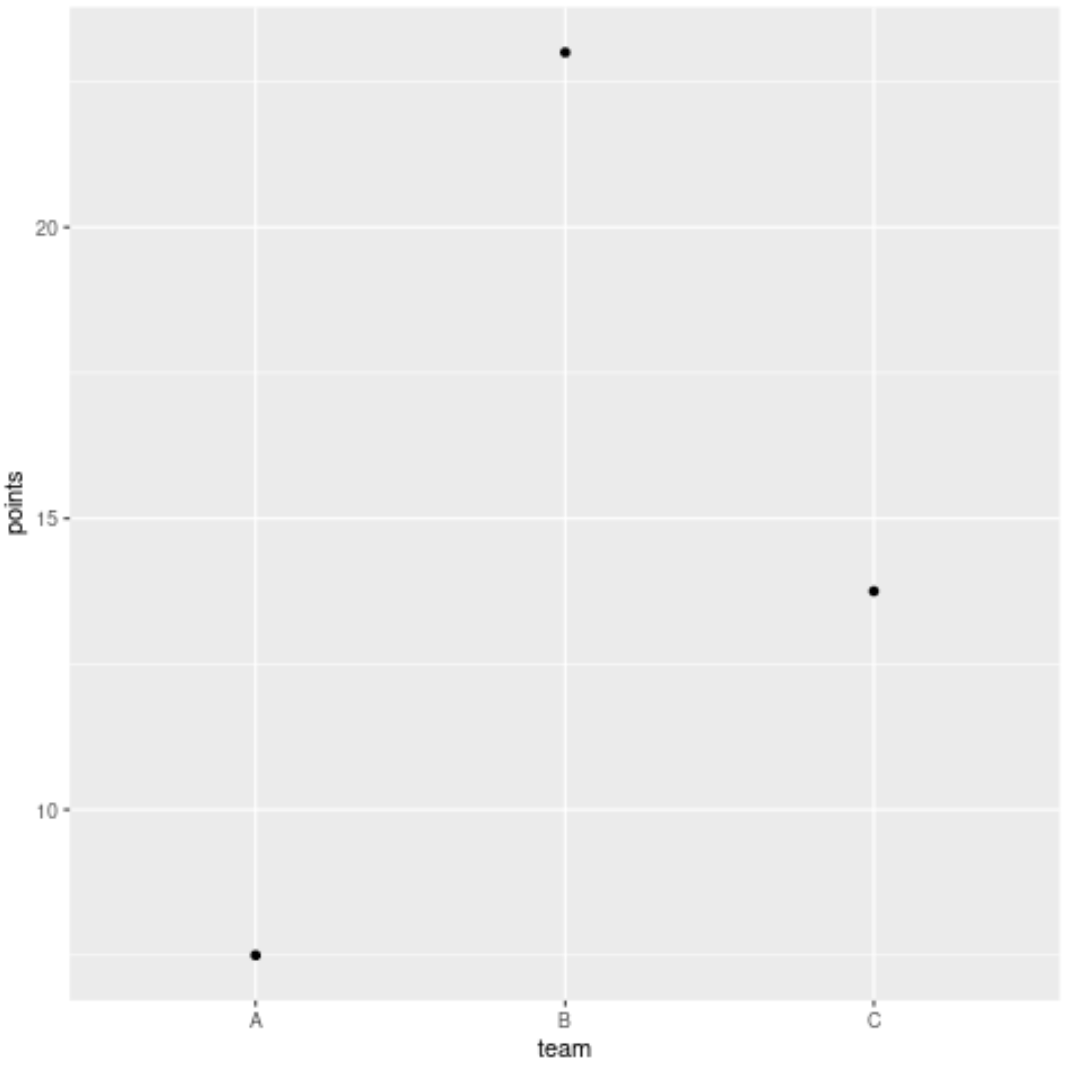

The resulting scatter plot clearly depicts the mean points value for each team, represented by a single, centrally located dot. This exercise strongly emphasizes the critical role of the geom argument within stat_summary(): it serves as the final visual instruction, dictating the form that the calculated summary value will take on the plot. Regardless of whether the user opts for 'bar', 'points', or more intricate geometric representations, the underlying statistical aggregation process remains entirely consistent, relying solely on the function specified within the fun argument to determine the statistical output.

Example 3: Analyzing Extreme Values by Calculating and Plotting Minimum Scores

To further highlight the dynamic flexibility inherent in the fun argument, this next example shifts our statistical focus away from the typical central tendency measures (like the mean) toward an extreme value: the absolute minimum score recorded by each team. Identifying these minimum values is often crucial in data analysis for establishing performance floors or worst-case scenarios within a dataset, providing insights into variability and outliers. Achieving this requires only a minimal adjustment to our previous code structure: specifically, changing the function specified in the fun argument from 'mean' to the built-in R function 'min'.

For this visualization, we revert to utilizing the robust bar plot geometry (geom='bar'), as this visual form effectively and immediately communicates the magnitude of the lowest observed score for each independent group. The inherent efficiency of stat_summary() is profoundly evident here: by simply adjusting a single function name, we fundamentally alter the statistical insight being displayed without requiring any complex restructuring of the entire plotting command or the execution of external data manipulation routines. This declarative approach keeps the code clean, concise, and highly readable within the R environment.

library(ggplot2)
library(dplyr)

#create bar plot to visualize minimum points by team
df %>%
  ggplot(aes(x=team, y=points)) +
  stat_summary(fun='min', geom='bar')

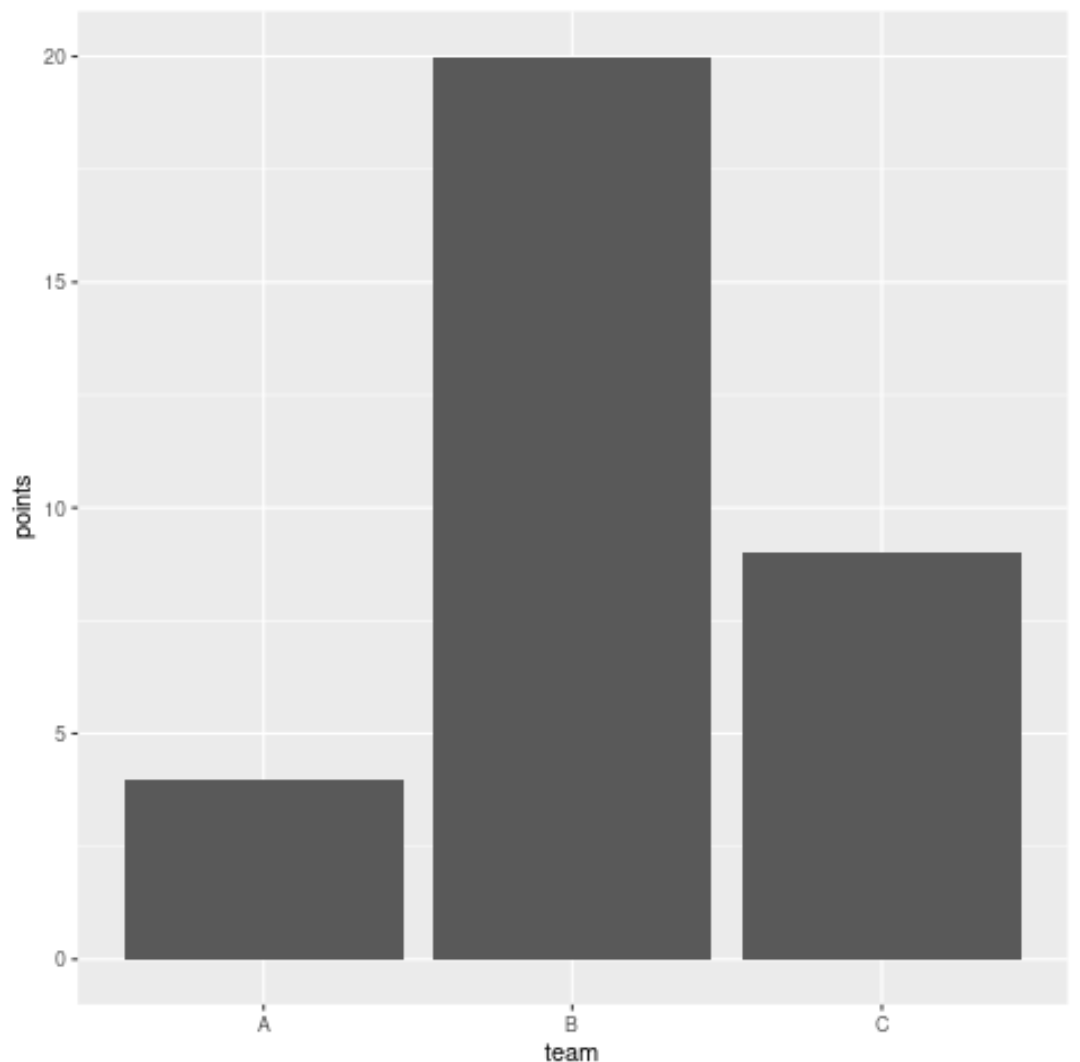

As anticipated, the resulting graph clearly displays bars corresponding to the minimum points observed for each team (e.g., Team A’s minimum is 4, Team B’s minimum is 20, and Team C’s minimum is 9). This final basic example strongly reinforces the concept that the fun argument acts as the central statistical engine of stat_summary(), rigorously controlling precisely which statistical parameter is computed across the groups. It is crucial to remember the argument’s high degree of flexibility; users can readily substitute 'min' with 'max', 'median', or even define a sophisticated custom function—such as one calculating a specific percentile or a robust measure of location—and pass that function’s name directly into the fun argument for immediate visualization.

Exploring Advanced Customization: Plotting Variability and Confidence Intervals

While the fundamental usage demonstrated in the preceding examples focuses on calculating and plotting a single summary point, the stat_summary() function truly excels when deployed to visualize measures of variability, dispersion, or critical statistical ranges like confidence intervals. To plot summaries that inherently require the representation of multiple y-values (e.g., error bars that show the mean plus/minus the standard error or standard deviation), the function provides specialized, coordinated arguments: fun.y, fun.ymin, and fun.ymax. These arguments are designed to be used in concert when the desired geometric output (the geom) requires a defined range of values, such as when using geom='errorbar' or geom='pointrange'.

For instance, if an analysis requires plotting the group mean (defined by fun.y) along with corresponding standard error bars (defined by fun.ymin for the lower bound and fun.ymax for the upper bound), the user must explicitly define three separate functions. One function calculates the center point, another calculates the lower boundary, and the third determines the upper boundary. This sophisticated, range-based approach seamlessly maintains the elegance and declarative nature of the R visualization grammar by computing these complex, multi-point statistics dynamically during the plotting process. When utilizing these range-defining functions, it is imperative that the chosen geom is capable of rendering a vertical range, such as geom='pointrange', which effectively plots the calculated central point alongside the defined vertical extent representing variability.

Furthermore, a key feature that dramatically expands the analytical reach of stat_summary() is its ability to accept and execute user-defined functions. If a researcher or analyst needs to compute a highly non-standard metric—such as a specific robust estimator, a trimmed mean, or a unique measure of skewness—they can easily author a simple R function. This custom function must be designed to accept a vector of data as input and return the desired single numerical output value. The name of this custom function is then passed directly into the standard fun argument. This unparalleled flexibility makes stat_summary() an indispensable tool for advanced researchers who routinely need to visualize precise, group-level comparisons based on specialized statistical calculations not natively available in the standard library.

Conclusion and Recommended Further Resources

The stat_summary() function stands as a concise and immensely powerful method for generating insightful visualizations based on aggregated statistics within the R programming environment. By efficiently controlling the fun argument to specify the statistical operation (whether it be mean, minimum, maximum, median, or a custom metric) and utilizing the geom argument to precisely dictate the visual output (such as a bar, a point, or an error bar), users gain the ability to create highly informative plots that effectively summarize complex data distributions across various categorical groups. This methodology is highly valued because it skillfully bypasses the need for resource-intensive data pre-processing steps, resulting in visualization code that remains clean, highly maintainable, and directly reflective of the desired statistical output.

Developing proficiency in correctly mapping the data using the aes function and subsequently applying the appropriate summary layer allows for the rapid, efficient exploration of key statistical features, including central tendencies, measures of spread, and variability. Whether the analytical goal involves straightforward comparisons of group means, the identification of extreme values, or the sophisticated visualization of complex confidence intervals, stat_summary() is rightfully recognized as a cornerstone function for advanced statistical visualization within the modern R ecosystem.
