Learn How to Use SUBTOTAL with SUMIF for Conditional Summing in Filtered Excel Data

The Challenge of Conditional Summing in Filtered Data

Performing conditional sums in Excel, such as totaling values that meet a specific criterion, is a foundational element of effective data analysis. Standard functions like SUMIF are designed to calculate sums across an entire range, which creates a significant hurdle when dealing with dynamically filtered datasets. By default, the SUMIF function calculates sums based on all rows, including those hidden by an active filter. This inherent behavior frequently leads to inaccurate results if the goal is to analyze only the visible subset of data.

To overcome this critical limitation and accurately calculate sums based on criteria exclusively within visible rows, Excel experts utilize a powerful combination of advanced functions. This solution integrates the unique visibility-aware capabilities of the SUBTOTAL function with the array processing strength of SUMPRODUCT. This sophisticated technique allows for the precise calculation of sums that satisfy specified conditions only among the data currently displayed after filtering. This article provides a comprehensive walkthrough for implementing this essential dynamic formula, bridging the gap between simple conditional summing and robust filtered data analysis.

The core formula structure required to merge the logic of SUBTOTAL (visibility check) and SUMIF (conditional check) for use with filtered ranges is displayed below. Understanding how this intricate formula operates is key to mastering dynamic reporting in Excel, ensuring that your aggregate results always reflect the data currently visible to the user:

=SUMPRODUCT(SUBTOTAL(109,OFFSET(C2,ROW(C2:C11)-ROW(C2),,1)),--(B2:B11="Guard"))

This formula is engineered to sum numerical values within the target range (C2:C11) only when a corresponding cell in the criteria range (B2:B11) matches the specified condition (“Guard”). Crucially, this calculation is executed after the dataset has been filtered. The inclusion of the visibility check ensures that only visible rows that meet the criteria are included in the final aggregation, delivering reliable and dynamic results for real-time data analysis.

Deconstructing the Advanced Formula Components

Achieving accurate conditional summation on visible data requires a deep understanding of the individual functions that work together to create this robust array formula. The mechanism relies heavily on turning cell visibility into a measurable array that can be multiplied against the conditional array. Let’s examine the role of each key component in this high-level solution:

• The Visibility Engine: SUBTOTAL(109, …): This is the foundation of the solution’s dynamic capability. The function number 109 instructs SUBTOTAL to execute a SUM operation while specifically ignoring rows that have been hidden by an active filter. This distinction is vital; using the number ‘9’ would only ignore manually hidden rows, failing to interact with the standard Excel filter mechanism. The ‘1’ prefix (109) ensures responsiveness to automatic filtering.

• The Array Generator: OFFSET(C2, ROW(C2:C11)-ROW(C2), , 1): This intricate segment is essential for creating a dynamic array of single-cell references. SUBTOTAL cannot evaluate an entire range for visibility at once; it needs to check each cell individually. The OFFSET function facilitates this iterative check.

  • The expression ROW(C2:C11) returns an array of absolute row numbers (e.g., {2; 3; 4;…; 11}).
  • Subtracting the starting row number, ROW(C2) (which is 2), from this array yields the necessary row offsets ({0; 1; 2;…; 9}).
  • OFFSET then uses these offsets, starting from cell C2, to generate a series of references (C2, C3, C4, etc.). Each individual cell reference is passed sequentially to SUBTOTAL, which then checks its visibility status, returning an array of 1s (visible) and 0s (hidden).

• The Multiplier and Aggregator: SUMPRODUCT(…): Renowned for its flexibility in handling array operations, the SUMPRODUCT function multiplies corresponding elements across multiple arrays and then sums the resulting products. This capability is perfect for this scenario as it inherently processes the arrays returned by SUBTOTAL and the conditional check, aggregating the final result without requiring the cumbersome Ctrl+Shift+Enter array entry method typical in older Excel versions.

• The Conditional Filter: — (B2:B11=”Guard”): This component performs the logical equivalent of a conditional sum. It determines which rows meet the secondary criteria.

  • The logical test (B2:B11=”Guard”) generates an array composed entirely of TRUE (if the condition is met) or FALSE (if the condition is not met) values.
  • The double unary operator (–) is used to coerce these Boolean results into their numerical equivalents: 1 for TRUE and 0 for FALSE. This resulting array of 1s and 0s acts as a precise conditional mask, ensuring that only rows matching “Guard” are assigned a value of 1 for multiplication.

The culmination of these steps involves SUMPRODUCT multiplying three resulting arrays: the numerical values from the C column (via SUBTOTAL/OFFSET), the visibility flag (1 or 0, from SUBTOTAL), and the conditional flag (1 or 0, from the Boolean check). Only rows that are both visible (flag=1) and meet the criteria (flag=1) will yield a non-zero product, which is then summed up accurately.

Step-by-Step Implementation: A Practical Basketball Example

To solidify your understanding, let’s apply this formula to a tangible scenario. Suppose we are analyzing a dataset of basketball players, detailing their Conference, Position, and Points Scored. Our objective is to calculate the total points scored by players designated as ‘Guard,’ but only for those players who remain visible after we apply a filter for a specific conference.

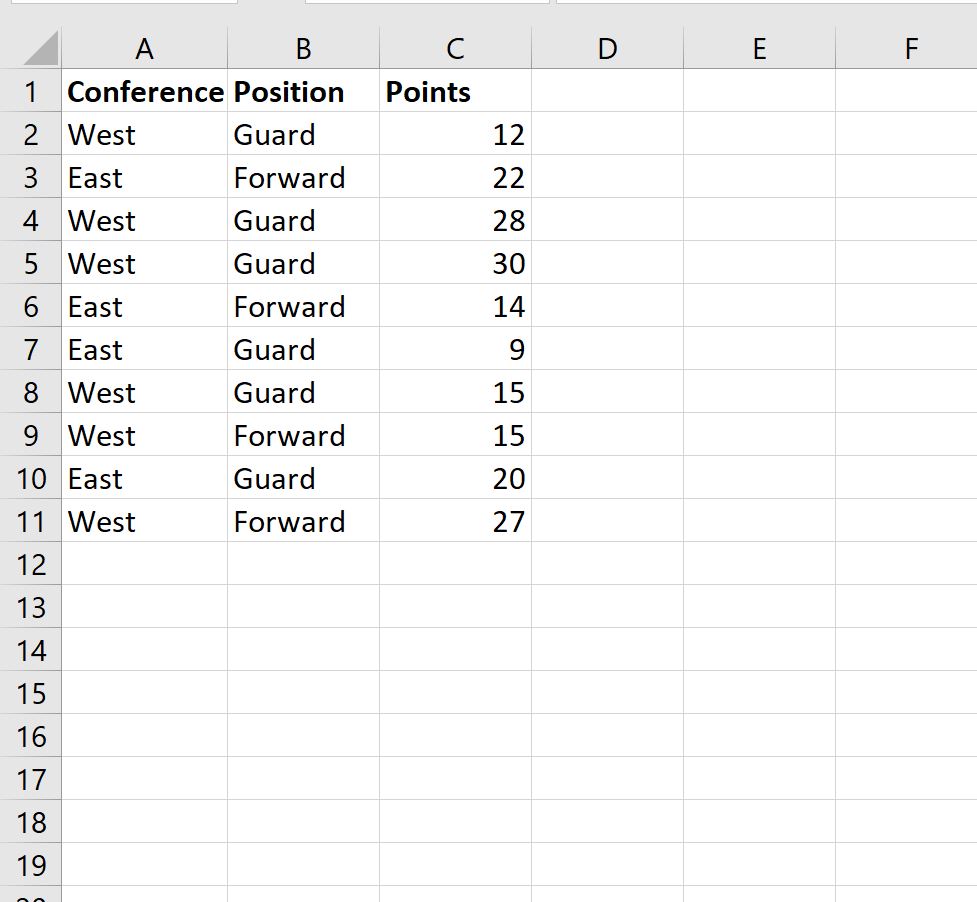

The following dataset serves as our reference point in the Excel worksheet, spanning rows 1 through 11:

In this structure, Column A holds the Conference data, Column B specifies the Position, and Column C contains the Points scored. Our ultimate goal is to find the aggregate points for ‘Guard’ players, restricting the calculation exclusively to data visible in the current filtered view. This requires us to first establish the filter criteria before applying the advanced formula.

Applying Filters to Isolate Specific Data Views

Before we implement the SUMPRODUCT/SUBTOTAL formula, we must first activate and apply the required data filter. For this demonstration, we will narrow our focus exclusively to players belonging to the West conference. Follow these procedural steps to correctly set up the filtered view:

1. Select the Range for Filtering: Highlight the entire dataset, starting from the headers down to the last row of data (in this case, the range A1:C11). This ensures that the filter controls all columns relevant to the analysis.

2. Activate the Filter Tool: Locate the Data tab in the top ribbon of Excel. Within the ‘Sort & Filter’ group, click the Filter button. This action automatically places dropdown arrows on each column header, signaling that the data is ready to be manipulated by criteria.

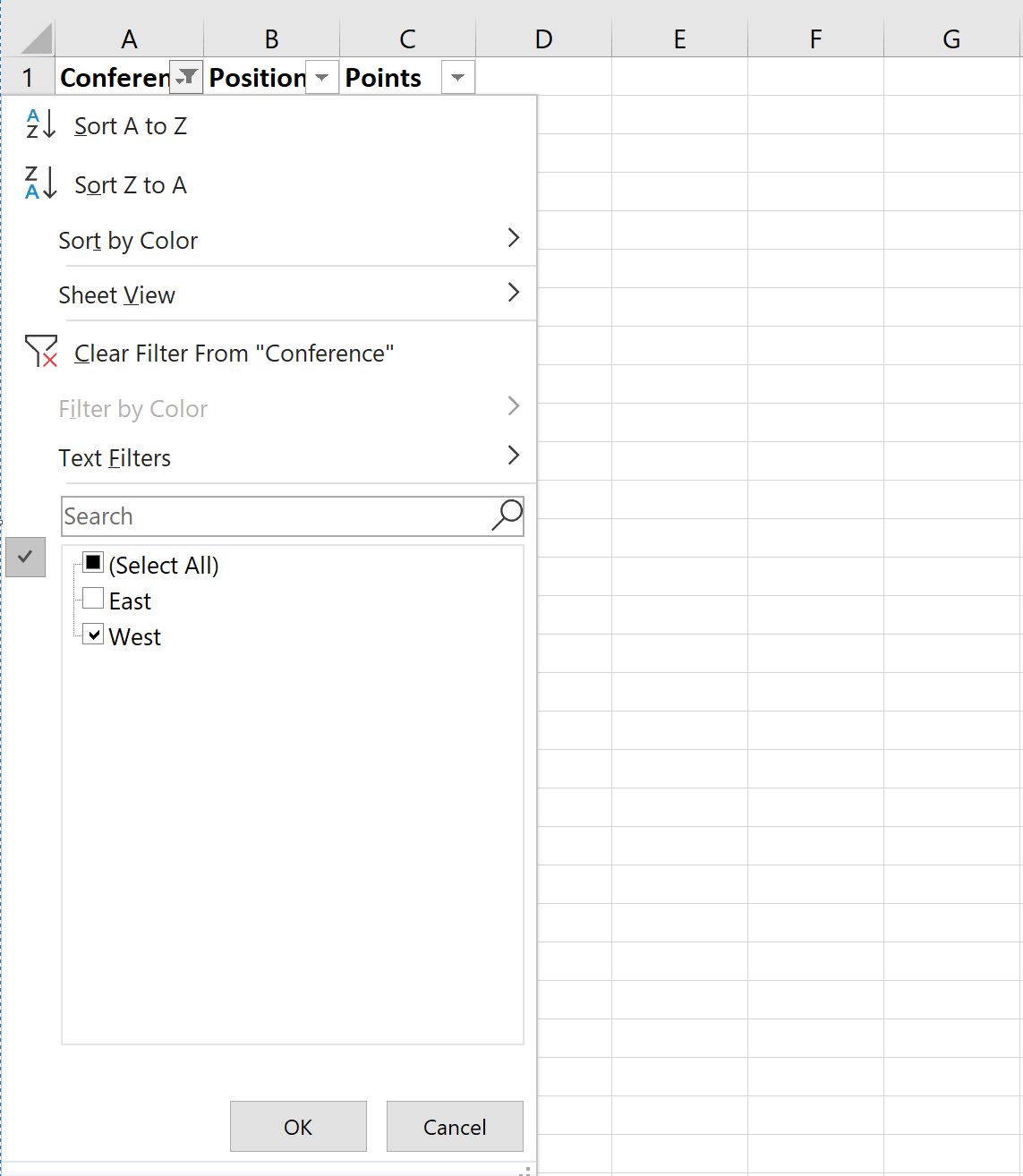

Once the filter arrows are visible, click the dropdown arrow corresponding to the ‘Conference’ column header. In the menu that appears, deselect all options except for West, and then confirm your selection by clicking OK.

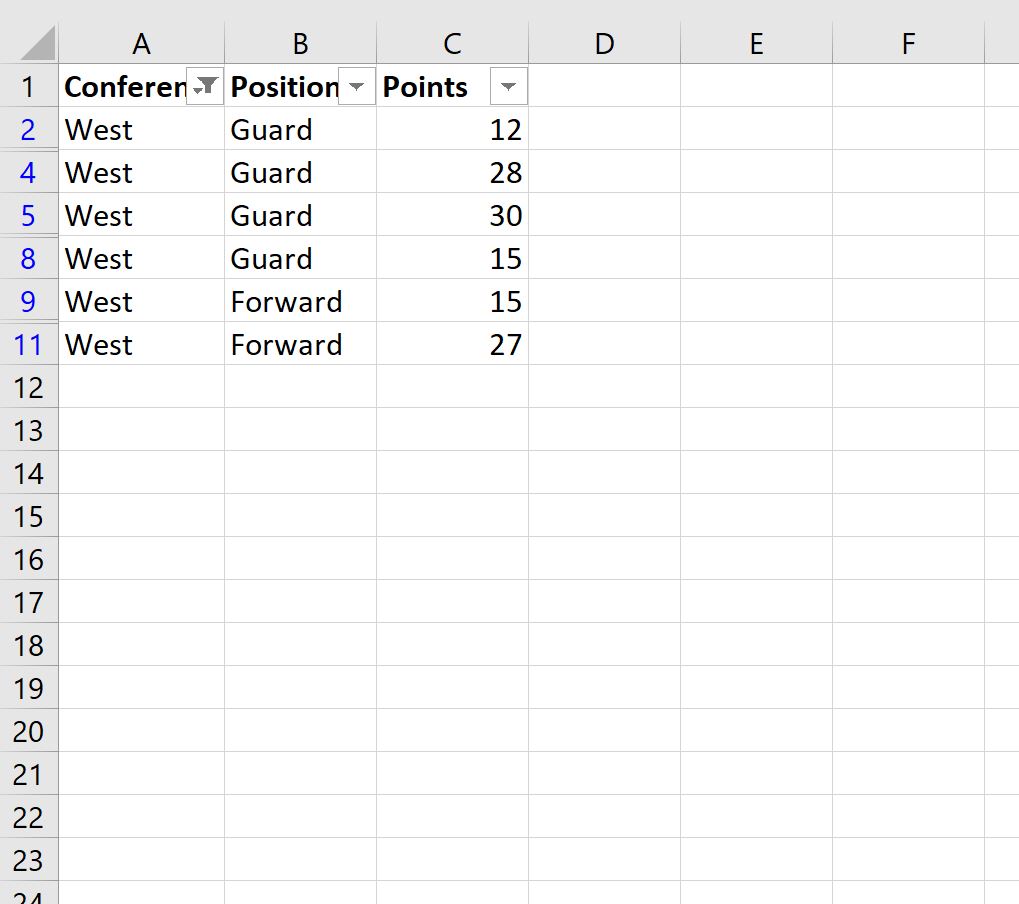

After the filter is applied, the dataset will instantaneously update, displaying only those rows where the ‘Conference’ column contains the value West. This visual confirmation is vital, as it ensures that the subsequent calculations will operate only on this restricted, visible data view.

Illustrating the Flaw of Standard SUMIF on Filtered Data

With our data successfully filtered, let us now attempt to use the conventional SUMIF function to sum the points for ‘Guard’ positions. If we were to use the simple formula:

=SUMIF(B2:B11,"Guard",C2:C11)

, the result would incorrectly reflect the sum of points for all ‘Guard’ players within the entire, original dataset, completely ignoring the active conference filter.

The screenshot below clearly demonstrates this common limitation. Using SUMIF() returns a total that includes points scored by guards from both the West and East conferences, despite the data being actively filtered. This discrepancy highlights the fundamental issue: SUMIF is range-based and non-dynamic concerning row visibility.

The reason for this behavior is simple: SUMIF is not designed to interact with Excel’s filtering mechanism. It operates solely on the input ranges provided, treating hidden rows identically to visible rows. This limitation mandates the need for a more advanced, array-based approach that can explicitly check for row visibility before performing the conditional aggregation, justifying the use of the combined SUBTOTAL and SUMPRODUCT solution.

Executing the Dynamic Conditional Sum Formula

To achieve the desired, accurate sum—total points for ‘Guard’ players only within the visible “West” conference data—we must deploy the powerful combined formula. This technique successfully integrates the visibility check provided by SUBTOTAL into the conditional summing logic, ensuring that the result is precisely tailored to the dynamically filtered view.

We will use the full, advanced formula we deconstructed earlier:

=SUMPRODUCT(SUBTOTAL(109,OFFSET(C2,ROW(C2:C11)-ROW(C2),,1)),--(B2:B11="Guard"))

Enter this formula into an unused cell on your Excel sheet, such as E1, and press Enter. The following image confirms the successful application of the formula and its correct output:

The calculation correctly returns the total of 85. This figure represents the sum of points scored exclusively by ‘Guard’ players who are currently visible (i.e., those belonging to the West conference). This result stands as the correct total, contrasting sharply with the misleading sum obtained from the simple SUMIF function used previously on the same filtered data.

We can quickly verify the accuracy of this dynamic result by manually reviewing and summing the visible ‘Guard’ player points in the filtered table:

• Row 2 (Guard, West): 12 points
• Row 5 (Guard, West): 28 points
• Row 8 (Guard, West): 30 points
• Row 11 (Guard, West): 15 points

The manual sum confirms the output: 12 + 28 + 30 + 15 = 85. The perfect match between the manual calculation and the formula’s result validates the reliability and precision of the combined SUBTOTAL and SUMPRODUCT technique for dynamic conditional aggregation.

Mastering Dynamic Conditional Sums in Excel

Developing the capability to execute conditional summing specifically on visible data is an absolutely necessary skill for any professional engaged in serious data manipulation within Excel. While the simplicity of the standard SUMIF function suits static calculations, its limitations become apparent when working with complex, dynamic, or filtered views. By intelligently combining SUBTOTAL, OFFSET, ROW, and SUMPRODUCT, you introduce a layer of precision essential for accurate analysis of filtered datasets.

Furthermore, the principles demonstrated here are versatile and extend far beyond simple summation. This method can be adapted to perform virtually any aggregate function—such as COUNT, AVERAGE, MAX, or MIN—on filtered data, simply by adjusting the function number argument (e.g., 102 for COUNT, 101 for AVERAGE) within the SUBTOTAL function. Mastering these advanced Excel formulas significantly elevates your reporting capabilities, ensuring your data analysis remains robust, reliable, and responsive to any active data filter.
