Learning SUMIF in Power BI with DAX: A Step-by-Step Guide

While analytical tools like Microsoft Power BI offer powerful aggregation capabilities, users frequently seek a function equivalent to the traditional spreadsheet SUM IF construct. This conditional summation is essential for calculating totals based on specific criteria within your datasets. However, unlike Excel, Power BI utilizes the Data Analysis Expressions (DAX) language, which requires a more sophisticated approach involving function nesting to achieve conditional aggregation. This article provides a comprehensive guide to implementing this logic effectively.

In DAX, the concept of SUM IF is primarily achieved by manipulating the evaluation context of a calculation. Instead of a single function that handles both the sum and the condition, we leverage two core DAX functions: CALCULATE and FILTER. The CALCULATE function is arguably the most powerful function in DAX, as it allows you to modify the context in which data is aggregated, while the FILTER function is used to define the specific row-level conditions that must be met before the aggregation occurs. Mastering this combination is fundamental to writing complex, dynamic measures and calculated columns in Power BI reports.

You can use the following standard syntax in DAX to write a function that mimics the behavior of SUM IF within Power BI, typically structured as a calculated column or a measure depending on your desired output and context:

Sum Points =
CALCULATE (
    SUM ( 'my_data'[Points] ),
    FILTER ( 'my_data', 'my_data'[Team] = EARLIER ( 'my_data'[Team] ) )
)

This specific formula generates a new calculated column named Sum Points. This column holds the sum of values found in the Points column, but critically, the aggregation is scoped to match the corresponding unique value present in the Team column within the table named my_data. This implementation uses the EARLIER function, which is critical when creating calculated columns that need to reference the current row context while modifying the filter context for the aggregation. This complex interaction between row context and filter context is what allows DAX to achieve sophisticated conditional grouping and summation dynamically for every row.

Understanding the DAX Architecture for Conditional Logic

To fully appreciate the mechanism behind the SUM IF formula in DAX, it is crucial to understand the roles played by the core functions utilized. The CALCULATE function acts as the context transition engine. It takes the expression (the SUM of points) and modifies the filter context surrounding that expression based on the conditions provided. Without CALCULATE, the aggregation would simply return the grand total of the entire Points column, ignoring the row-by-row criteria we intend to enforce. CALCULATE is the gateway through which we inject conditional filtering into an otherwise standard aggregation.

The nested FILTER function is where the actual condition is defined. It iterates over the specified table (‘my_data’) and, for each row, evaluates a logical test. In this case, the test is whether the current row’s [Team] value matches the team value of the row that triggered the calculation (referenced by EARLIER(‘my_data'[Team])). When used inside CALCULATE, FILTER generates a temporary table containing only the rows that satisfy the condition. CALCULATE then applies the SUM function exclusively to the numerical values within this filtered, temporary table, effectively creating a conditional summation.

The EARLIER function is a critical component when defining a calculated column that performs an aggregation based on a grouping criteria. When DAX processes the calculated column for a given row, EARLIER retrieves the value of the specified column (in this case, ‘my_data'[Team]) from the outer row context. This mechanism ensures that as the FILTER function iterates over the table, it knows exactly which team it is supposed to be summing points for. This allows the calculation to be performed accurately, ensuring that the sum is calculated only for the subset of rows that belong to the team of the current row being evaluated. This powerful technique is the standard pattern for creating group-level aggregations within calculated columns in DAX.

Practical Example: Calculating Team Totals

To illustrate this concept practically, let us consider a typical scenario involving sports analytics. Suppose we have a table within Power BI named my_data. This table contains detailed information regarding various basketball players, including their names, their respective teams, and the points each player scored. Our business requirement is to augment this dataset by calculating the total points scored by the entire team associated with each player, displayed alongside the individual player’s performance.

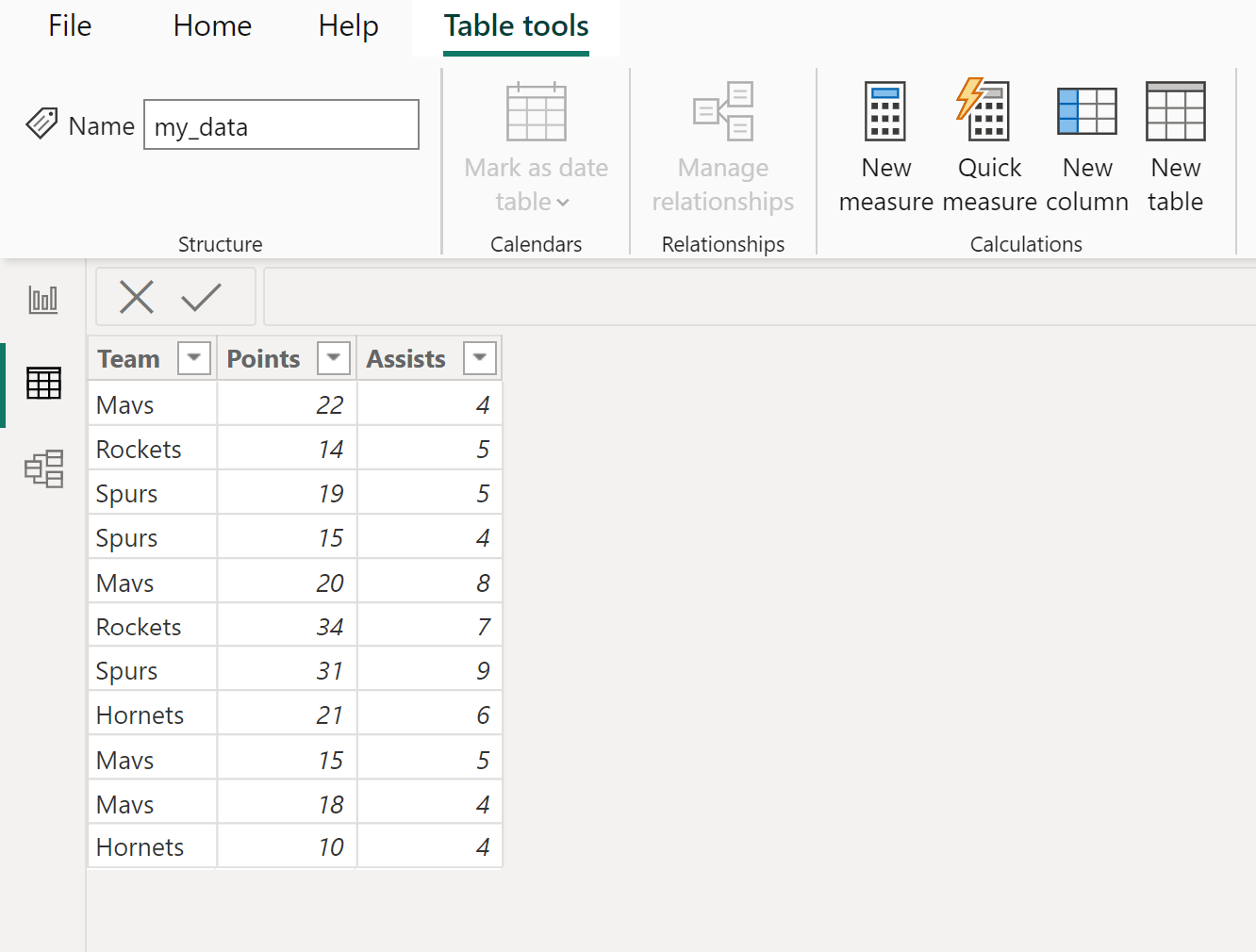

The following table represents our initial dataset, my_data. Notice the structure, which includes a key grouping column (Team) and the numerical column we wish to aggregate conditionally (Points).

The objective is clear: we want to create a new column where, for every row, the value reflects the sum of points for the team listed in that specific row. For instance, every row associated with the ‘Mavs’ must display the total points scored by all ‘Mavs’ players combined. This calculation cannot be achieved through simple aggregation functions because we need the summation to be applied conditionally based on the team identifier in each row. The implementation of the CALCULATE(SUM(…), FILTER(…)) pattern is specifically designed to handle this type of row-level context modification required for accurate conditional totals.

Step-by-Step Implementation in Power BI Desktop

To implement this conditional summation logic, the process begins within the Power BI Desktop environment. Assuming your data model is correctly loaded and the my_data table is visible in the Data view, navigate to the necessary tools to create a new derived column. This is the mechanism by which we will permanently embed the team total calculation into the data structure itself.

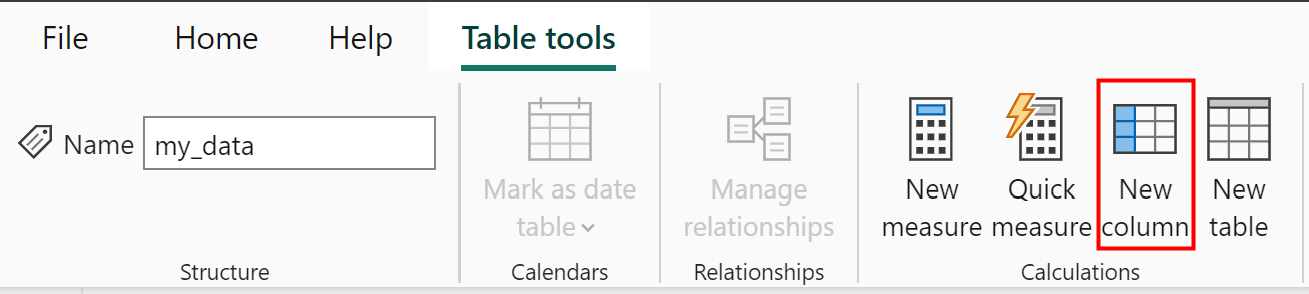

The first procedural step involves initiating the creation of a new calculated column. To do this, locate and click the Table tools tab in the Power BI ribbon interface. Within this tab, you will find the New column icon. Clicking this icon opens the DAX formula bar, preparing the environment for the input of our conditional summation expression.

Once the formula bar is active, the following robust DAX formula must be accurately typed or pasted. This formula encapsulates the conditional logic, ensuring that the summation of points is restricted by the team context of the row being processed:

Sum Points =
CALCULATE (
    SUM ( 'my_data'[Points] ),
    FILTER ( 'my_data', 'my_data'[Team] = EARLIER ( 'my_data'[Team] ) )
)

After confirming the formula by pressing Enter, Power BI processes the expression across every row of the my_data table. The result is the creation of the new column named Sum Points. This column successfully displays the total points associated with the team for each respective player, completing the conditional aggregation task we set out to achieve. This column can now be used in visualizations, reports, or further calculations without needing to perform additional grouping operations.

Interpreting the Results and Verifying Accuracy

Upon successful execution of the DAX formula, the new calculated column is appended to the my_data table. This column, Sum Points, demonstrates how the conditional aggregation has collapsed the individual player scores into team-level totals, which are then replicated for every member of that specific team. This outcome is precisely what the SUM IF logic is designed to accomplish in a row-by-row context.

The resulting table, including the newly calculated column, appears as follows:

By meticulously reviewing the output, we can confirm the accuracy of the conditional summation applied to each team within the dataset. The consistency of the calculated values across players belonging to the same team validates the correct application of the CALCULATE and FILTER context modification. Specifically, we can derive the following insights from the newly generated column:

• The sum of points value for players on the Mavs team is consistently displayed as 75 across all Mavs records (25 + 50).
• The sum of points value for players on the Rockets team is calculated as 48 (30 + 18).
• The sum of points value for players on the Spurs team is 65 (45 + 20).
• The sum of points value for players on the Hornets team is 31 (11 + 20).

Advanced Considerations and Alternative Approaches

While the CALCULATE(SUM(), FILTER(…, EARLIER())) pattern is highly effective for calculated columns, it is important to note that performance can degrade significantly on extremely large tables (millions or billions of rows) due to the context transition and row-by-row iteration imposed by EARLIER. In such cases, or when creating measures (not calculated columns) for conditional aggregation, alternative DAX patterns should be considered, particularly those leveraging the SUMX function.

The SUMX function is an iterator that allows you to calculate an expression over a table. A measure equivalent to the above conditional aggregation, which is generally more performant and flexible for reporting, would look like this: Team Total Points = CALCULATE(SUM('my_data'[Points]), ALLEXCEPT('my_data', 'my_data'[Team])). This measure removes all filters from the table except the filters applied to the ‘Team’ column, thus aggregating the points only within the scope of the currently filtered team in a visual. Understanding when to use calculated columns (which consume memory) versus measures (which are calculated dynamically) is crucial for efficient Power BI model design.

Additional Resources

For users seeking to expand their knowledge of DAX and Power BI functionality, the following tutorials explain how to perform other common tasks and explore related analytical functions:

The SUM function, while simple in its base form, is central to virtually all quantitative analysis in DAX. You can find the complete documentation for the SUM function in Power BI official documentation, which provides further details on its usage and contextual behavior.
